3-1634689-4: Descriptionbox header right angle 34 way; CategoryThe connector; File Size288KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

3-1634689-4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-1634689-4	-	-	View	Buy Now

3-1634689-4 Overview

box header right angle 34 way

3-1634689-4 Parametric

Parameter Name	Attribute value
Datasheets

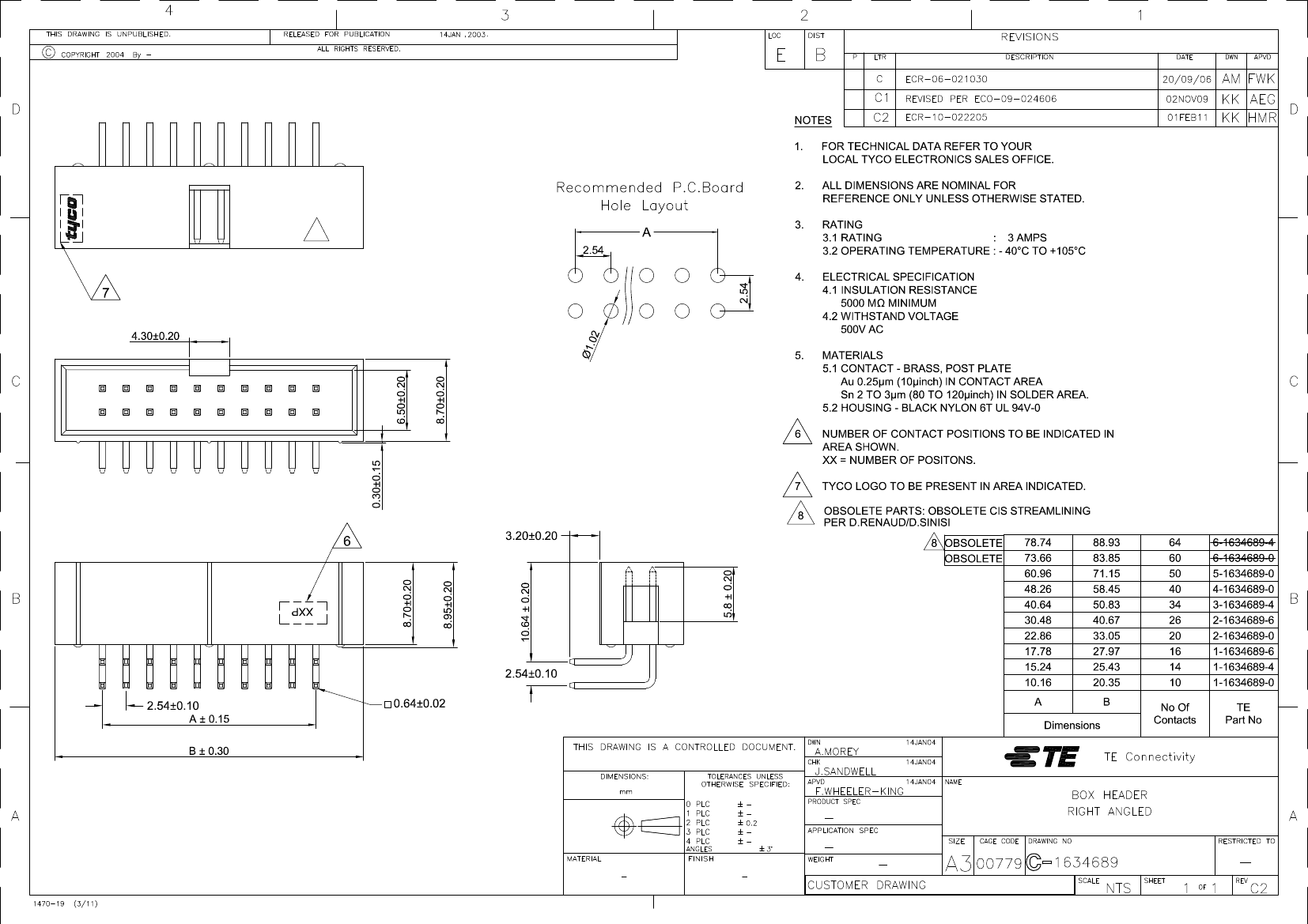

1634689 Drawing
Standard Package	600
Category	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Male Pins
Packaging	Tray
Contact Type	Male Pi
Connector Type	Header, Shrouded
Number of Positions	34
Number of Positions Loaded	All
Pitch	0.100" (2.54mm)
Number of Rows	2
Row Spacing	0.100" (2.54mm)
Contact Mating Length	0.228" (5.80mm)
Mounting Type	Through Hole, Right Angle
Terminati	Solde
Fastening Type	-
Features	Polarized
Contact Finish	Copper Alloy
Contact Finish Thickness	10µin (0.25µm)
Col	Black
Other Names	A118459

Preview

Download Datasheet

View All

3-1634689-4 Related Products

	3-1634689-4	1-1634689-4	2-1634689-0	2-1634689-6	1-1634689-0	5-1634689-0
Description	box header right angle 34 way	box header right angle 14 way	box header right angle 20 way	box header right angle 26 way	conn header pin R/A 10pos gold	box header right angle 50 way
Standard Package	600	260	1,000	800	320	400
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins
Packaging	Tray	Tray	Tray	Tray	Tray	Tray
Contact Type	Male Pi	Male Pi	Male Pi	Male Pi	Male Pi	Male Pi
Connector Type	Header, Shrouded	Header, Shrouded	Header, Shrouded	Header, Shrouded	Header, Shrouded	Header, Shrouded
Number of Positions	34	14	20	26	10	50
Number of Positions Loaded	All	All	All	All	All	All
Pitch	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Rows	2	2	2	2	2	2
Row Spacing	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Contact Mating Length	0.228" (5.80mm)	0.228" (5.80mm)	0.228" (5.80mm)	0.228" (5.80mm)	0.228" (5.80mm)	0.228" (5.80mm)
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle
Terminati	Solde	Solde	Solde	Solde	Solde	Solde
Features	Polarized	Polarized	Polarized	Polarized	Polarized	Polarized
Contact Finish	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy
Contact Finish Thickness	10µin (0.25µm)	10µin (0.25µm)	10µin (0.25µm)	10µin (0.25µm)	10µin (0.25µm)	10µin (0.25µm)
Col	Black	Black	Black	Black	Black	Black
Other Names	A118459	A118185	A117427	A117428	-	A117669
