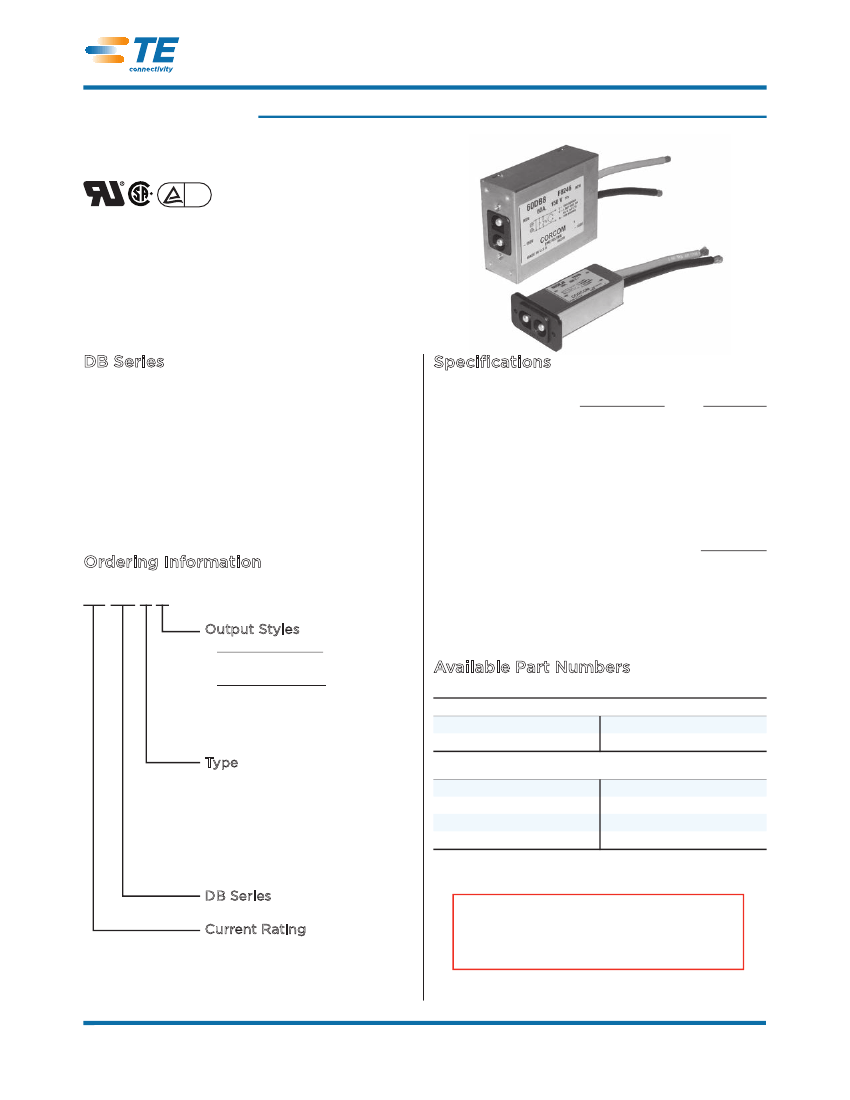

Corcom Product Guide
Compact RFI High Current DC Inlet Connection
Catalog: 1654001
Issue Date: 06.2011
DB Series
EN
60 950
UL Recognized
CSA Certified
TUV Certified
60DB8
60DBJ8
DB Series
• Compact connector for high-current DC
applications
• Reliable performance in a compact assembly
• Polarized mating scheme
• Easy customer termination of power source
• Plug and receptacle available pre-terminated
in standard wire lengths
• Available filtered or unfiltered
Specifications
Hipot rating (one minute):
Filtered Models
DBR & DBP
Line to Ground:
LIne to Line:
Rated Voltage (max):
Rated Current:
2121 VDC
1768 VDC
150VDC*
n/a
1600 VAC
300 VDC
60A
(all versions)
Ordering Information
60 DB F 8
Output Styles
Filtered Models
8 – 6” Wire leads
Connector Only
L1 – 1’ Cable pair
L3 – 3’ Cable pair
L9 – 9’ Cable pair
Omit for none
Type
R – Receptacle with clips
P – Plug with clips
J – Compact filter
F – Feedthrough capacitors
X – High performance
Blank – Standard filter
DB Series
Current Rating
60A
Operating Ambient Temperature Range
(at rated current Ir):
-10°C to +55°C
In an ambient temperature (Ta) higher than +55°C
the maximum operating current (Io) is calculated as
follows: Io = Ir
(85-Ta)/30
½½
Available Part Numbers
Filtered Models
60DB8
60DBF8
60DBR
60DBRL1
60DBRL3
60DBJ8
60DBX8
60DBP
60DBPL1
60DBPL3
60DBPL9
Connectors Only
WARNING
This is not approved for hot swap or current
interruption in DC applications. Doing so will
result in irreparable damage to contacts.
214
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
For email, phone or live chat, please go to
te.com/help
corcom.com
Corcom Product Guide
Compact RFI High Current DC Inlet Filter
(continued)
Catalog: 1654001
Issue Date: 06.2011
DB Series

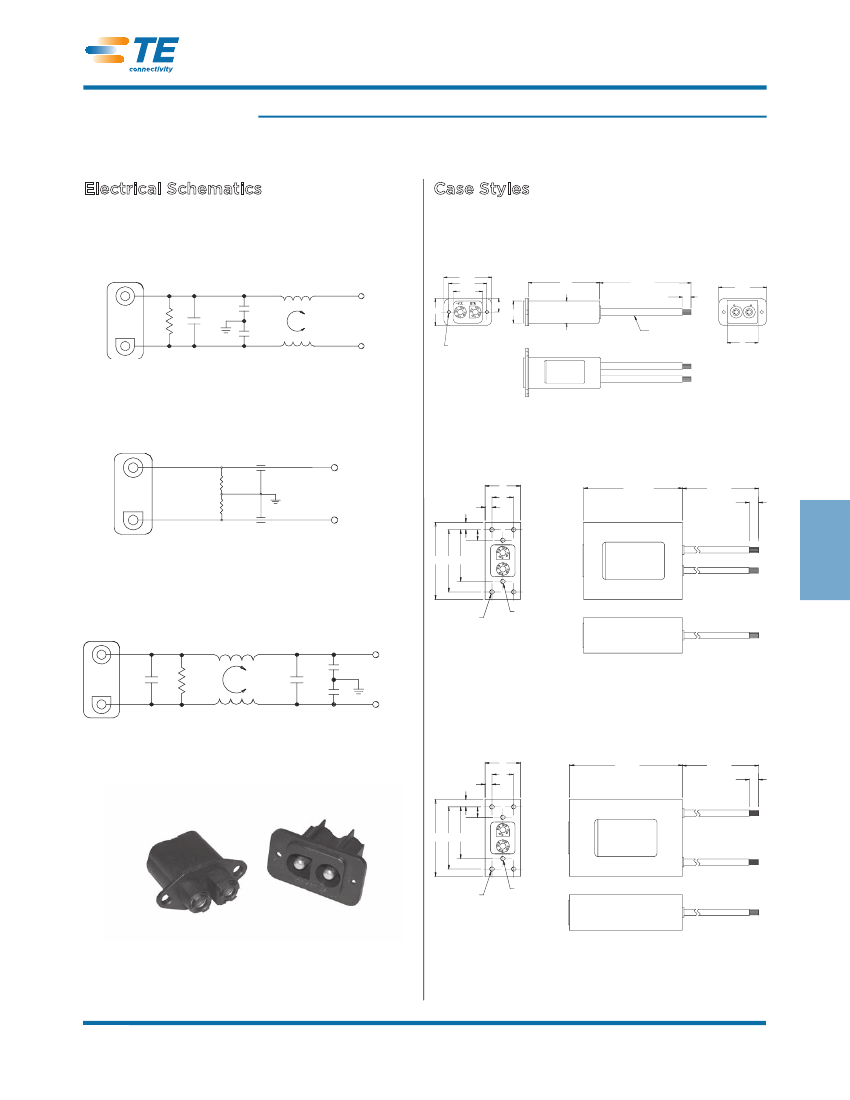

Electrical Schematics
DB8 & DBJ8
-VDC
(Black)
Load
C
Case Styles
DBJ8
E
D
F
0.591
0.965
1.04 Max.
Wire #6 AWG, 300V
Extra Flexible
IAW UL10198
(2 x)
Red (RTN)
Label
Black (-VDC)
A
6.0 Min.
0.375
(ref)
2.087
Line
RTN
(Red)
0.150 Connector Dia.
0.140 Can Dia.
B
DBF8
-VDC
(Black)
Load
Line
DB8 & DBF8
C
E
0.277
A
6.0 Min.
0.375
(ref)
RTN
(Red)
0.297
0.423
B
D
F
Label
Red (RTN)
Black (-VDC)
4
DC Filters
DBX8
-VDC
(Black)
Load
Line
#6-32 Thread
(4x)
#4-40 Thread
(2x)
Wire #6 AWG, 300V
Extra Flexible
IAW UL10198
(2 x)
RTN
(Red)
DBX8
C
E
0.277
A
6.0 Min.
0.375
(ref)
Red (RTN)
0.297
0.423
B
D
F
Label
Black (-VDC)
Wire #6 AWG, 300V
Extra Flexible
IAW UL10198
(2 x)
#6-32 Thread
(4x)
#4-40 Thread
(2x)
60DBPL
60DBRL
Available as connector only (shown)
or with pre-installed 6AWG 300V Extra Flexible wire
215
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
For email, phone or live chat, please go to
te.com/help
corcom.com
Corcom Product Guide
Compact RFI High Current DC Inlet Filter
(continued)
Catalog: 1654001
Issue Date: 06.2011
DB Series

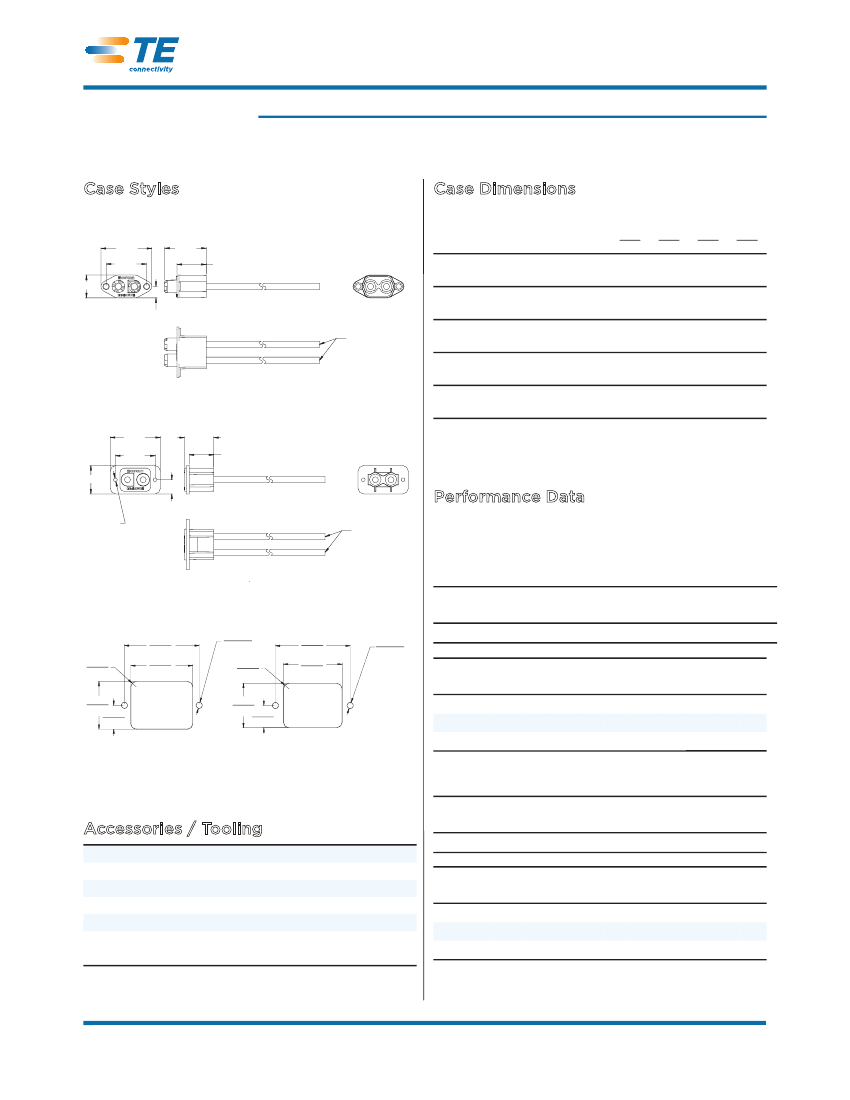

Case Styles
(continued)
DBPL
C
D
B
F
Black (-VDC)
Case Dimensions
A
Part No.
B
C
D
E
F
A
E
60DBJ8
60DB8
60DBF8
Wire #6 AWG, 300V
Extra Flexible
IAW UL10198
(2 x)
60DBX
60DBRL
60DBPL
Red (RTN)
DBRL
C
D
B
F
A
E
Performance Data
Black (-VDC)
0.150 Dia.
2x
Red (RTN)
Wire #6 AWG, 300V
Extra Flexible
IAW UL10198
(2 x)
Minimum Insertion Loss
Measured in closed 50 Ohm system
Common Mode / Asymmetrical (Line to Ground)
Recommended Panel Cutout
1.654
42.01
R 0.062
(4x)
1.57
0.138 Dia. (2x)
3.50
0.138 Dia. (2x)
3.50
1.654
42.01
1.3
33.02
1.370
34.79
R 0.125
(4x)
3.175
1.055
26.79
0.528
13.41
0.985
25.01
0.493
12.52
Front Mount Panel Cutout
Tolerance ± .005
Rear Mount Panel Cutout
Tolerance ± .005
Differential Mode / Symmetrical (Line to Line)
Accessories / Tooling
Insertion/Extraction Tool:
Crimp per TE spec:
Crimp tool:
Indenter head:
Locator:
Connector system locking kit¹:
1643922-1*
114-13206
M22520/23-01
M22520/23-04
M22520/23-11
Contact TE
½
½½½
216
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
For email, phone or live chat, please go to
te.com/help
corcom.com
