9-103759-0-16 datasheet, PDF - EEWORLD Datasheet

9-103759-0-16: Descriptionconn headr brkway .100 16pos R/A; CategoryThe connector; File Size138KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric View All

9-103759-0-16 Overview

conn headr brkway .100 16pos R/A

Parameter Name	Attribute value
Datasheets

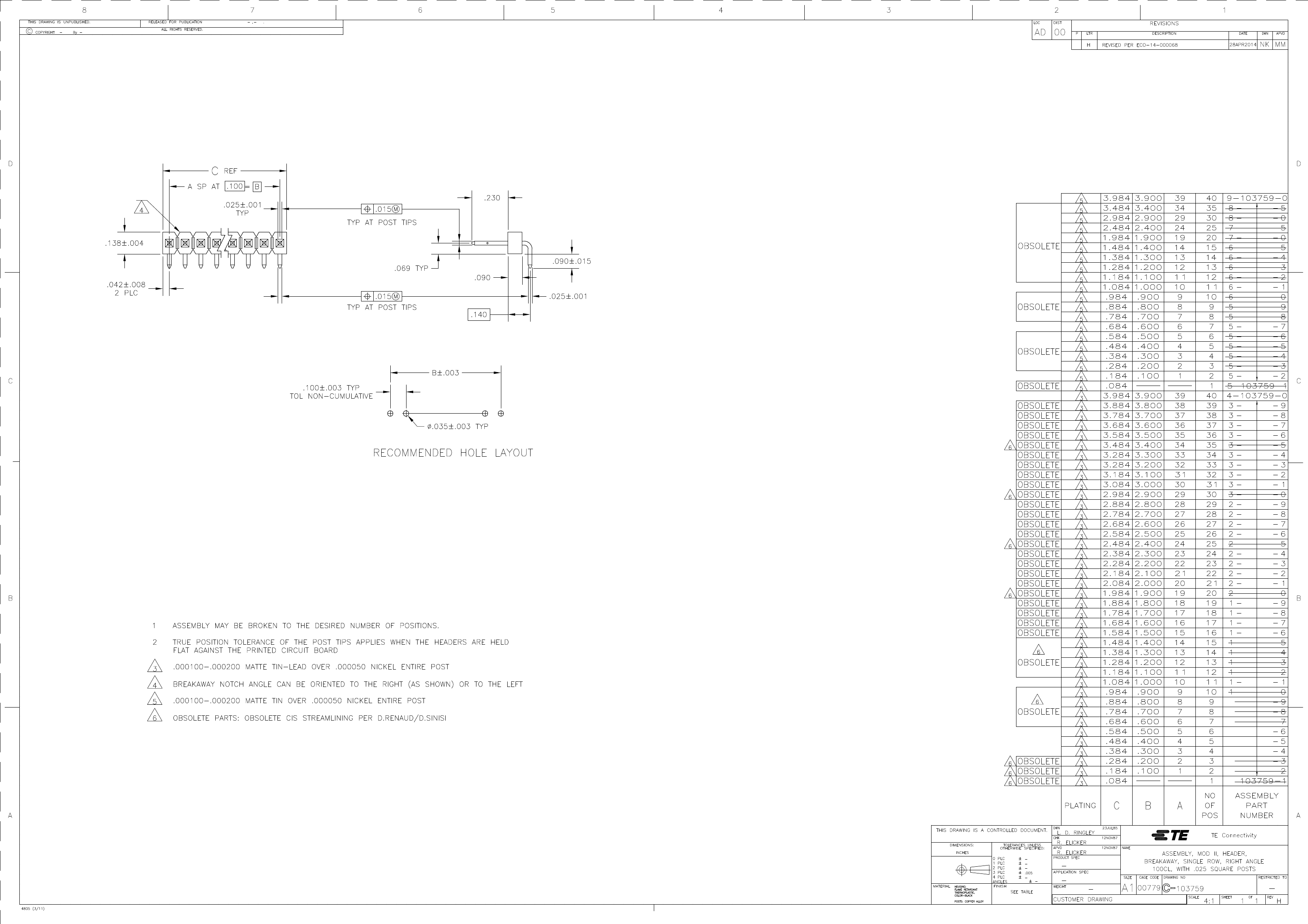

103759 Drawing
RoHS Informati
9-103759-0 Statement of Compliance
RoHS 2 Stateme
Catalog Drawings
100 Center Single Right Angle Side
Standard Package	1
Category	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Male Pins
Packaging	Bulk
Contact Type	Male Pi
Connector Type	Header, Unshrouded, Breakaway
Number of Positions	16
Number of Positions Loaded	All
Pitch	0.100" (2.54mm)
Number of Rows	1
Row Spacing	-
Contact Mating Length	0.230" (5.84mm)
Mounting Type	Through Hole, Right Angle
Terminati	Solde
Fastening Type	-
Features	-
Contact Finish	Ti
Contact Finish Thickness	100µin (2.54µm)
Col	Black
Dynamic Catalog	AMPMODU Mod II Series
Mating Products	A114888-ND - CONN RCPT 16POS .100 TIN LEAD1-146763-5-ND - CONN RCPT 16POS .100 TIN T/H1-103900-5-ND - CONN RCPT 16POS .100 GOLD1-103687-5-ND - 16 MTE RCPT SR PLAIN .100CL1-103686-5-ND - 16 MTE RCPT SR PLAIN .100CLA32924-ND - CONN RECEPT 16POS .100 VERT GOLDA32549-ND - CONN RECEPT 16POS .100 VERT AUA26414-ND - CONN RECEPT 16POS .100 RT/ANG AUA26426-ND - CONN RECEPT 16POS .100 VERT AU1-103734-5-ND - 16 MTE RCPT SR LATCH .100CL1-103645-5-ND - CONN RECEPT 16 POS 22-26AWG TINA114753-ND - CONN RECEPT 16 POS 22-26AWG 15AUA26993-ND - CONN HOUSING 16POS .100 POLARA26481-ND - CONN RECEPT 16POS .100 VERT AUA26977-ND - CONN HOUSING 16POS .100 SINGLE1-487378-5-ND - CONN RECPET 16POS .100 SLIMLINEA3025-ND - CONN HOUSING 16POS .100 SINGLE
Other Names	A34261-16
