MTMM-104-03-S-S-150 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> MTMM-104-03-S-S-150

Preview

MTMM-104-03-S-S-150: Descriptionconn header 4pos 2mm sgl gold; CategoryThe connector; File Size920KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

MTMM-104-03-S-S-150 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MTMM-104-03-S-S-150	-	-	View	Buy Now

MTMM-104-03-S-S-150 Overview

conn header 4pos 2mm sgl gold

MTMM-104-03-S-S-150 Parametric

Parameter Name	Attribute value
Datasheets
MTMM Series Spec Shee
MTMM-1yy-yy-yy-y-yyy-yy-yyy Drawing
MTMM (Single) Through Hole Footpri
Featured Produc
Hi Reliability, Rugged Tiger Eye System
Standard Package	1
Category	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Male Pins
Packaging	Tube
Contact Type	Male Pi
Connector Type	Header, Unshrouded
Number of Positions	4
Number of Positions Loaded	All
Pitch	0.079" (2.00mm)
Number of Rows	1
Row Spacing	-
Contact Mating Length	0.150" (3.81mm)
Mounting Type	Through Hole
Terminati	Solde
Fastening Type	-
Features	-
Contact Finish	Gold
Contact Finish Thickness	30µin (0.76µm)
Col	Black
Mating Products	SMM-104-02-F-S-ND - CONN RCPT 2MM 4POS SMDMMS-104-02-L-SV-ND - CPMM RCPT 2MM 4POS SGL VERT SMDSQT-104-01-F-S-RA-ND - CONN RCPT 2MM 4POS R/ASAM1248-04-ND - CONN RCPT 2MM 4POS SGL R/A PCBSAM1247-04-ND - CONN RCPT 2MM 4POS SGL VERT PCBSAM1244-04-ND - CONN RCPT 2MM 4POS SGL GOLD SMDSAM1242-04-ND - CONN RCPT 2MM 4POS SGL VERT SMDSAM1241-04-ND - CONN RCPT 2MM 4POS SGL HORZ SMDSAM1238-04-ND - CONN RCPT 2MM 4POS SGL VERT SMDSAM1237-04-ND - CONN RCPT 2MM 4POS SGL HORZ SMDSAM1234-04-ND - CONN RCPT 2MM 4POS SGL VERT PCBSAM1233-04-ND - CONN RCPT 2MM 4POS SGL HORZ PCBSAM1230-04-ND - CONN RCPT 2MM 4POS SGL VERT PCBSAM1229-04-ND - CONN RCPT 2MM 4POS SGL HORZ PCB

Preview

Download Datasheet

View All

F-219

MTMM–108–07–F–D–350

MTMM–114–05–F–Q–235

MTMM–124–15–T–S–650

(2.00 mm) .0787"

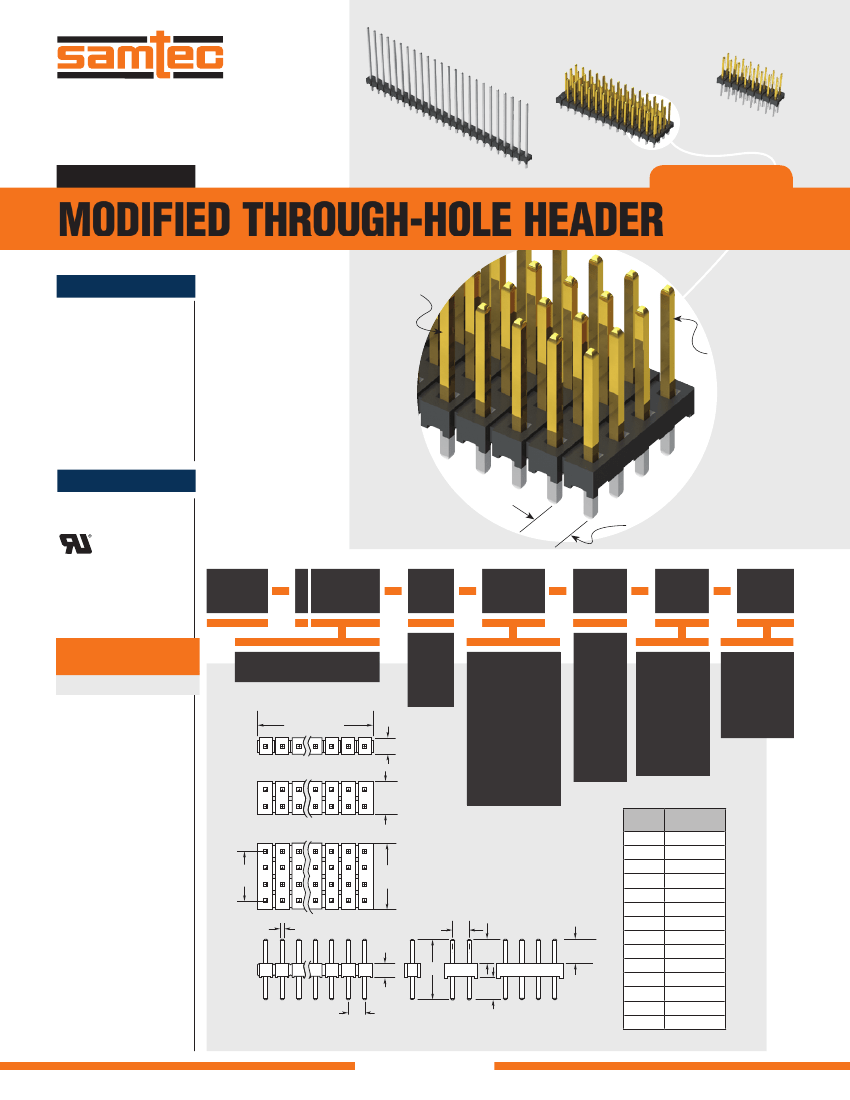

MTMM SERIES

MODIFIED THROUGH-HOLE HEADER

SPECIFICATIONS

For complete specifications

see www.samtec.com?MTMM

Insulator Material:

Black Liquid Crystal Polymer

Terminal Material:

Phosphor Bronze

Plating:

Sn or Au over

50 µ" (1.27 µm) Ni

Operating Temp Range:

-55 °C to +105 °C with Tin;

-55 °C to +125 °C with Gold

RoHS Compliant:

Yes

Lead–Free Solderable:

Yes

Board Mates:

CLT, SQT, SQW, ESQT,

TLE, SMM, MMS

Cable Mates:

TCSD

Choice of

single, double or

quad row

Specify

post height in

(0.13 mm) .005"

increments

RECOGNITIONS

For complete scope

of recognitions see

www.samtec.com/quality

(2.00 mm)

.0787" pitch

FILE NO. E111594

MTMM

ALSO AVAILABLE

(MOQ Required)

• Other platings

NO.

1

PER PINS

ROW

LEAD

STYLE

Specify

LEAD

STYLE

from

chart.

PLATING

OPTION

ROW

OPTION

POST

HEIGHT

OPTION

01 thru 50

No. of positions x

(2.00) .0787

50

02

01

100

= Gold flash on post,

Matte Tin on tail

–F

= Single

Row

–S

(2.00)

.0787

= 10 µ" (0.25 µm)

Gold post,

Matte Tin on tail

–L

= Double

Row

–D

= Post Height

in inches

(0.13 mm) .005"

increments

Example:

–070

= (1.78 mm)

.070"

–“XXX”

= Polarized

Position

Specify

position of

omitted pin

(3.94)

.155

01

04 08

99

196 200

= Matte Tin

LEAD

STYLE

OAL

(6.48) .255

(7.67) .302

(8.20) .323

(9.58) .377

(10.08) .397

(11.58) .456

(12.09) .476

(13.59) .535

(14.10) .555

(15.09) .594

(15.60) .614

(17.09) .673

(19.08) .751

(21.08) .830

–T

= Quad

Row

–Q

(6.00)

.236

(8.00)

.315

01 05

195 197

(0.50) .020 SQ

(1.50)

.059

(2.00)

.0787

(0.00) .000

MIN

POST

HEIGHT

OAL

(2.00)

.0787

–S

–D

Note:

This Series is

non-standard, non-returnable.

(0.00)

.000

MIN

–Q

– 02

–03

–04

–05

–06

–07

–08

–09

–10

–11

–12

–13

–14

–15

Due to technical progress, all designs, specifications and components are subject to change without notice.

All parts within this catalog are built to Samtec’s specifications.

Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.

WWW.SAMTEC.COM
