FMXMC7S318DDD-125.000000M-PD datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> FMXMC7S318DDD-125.000000M-PD

FMXMC7S318DDD-125.000000M-PD: DescriptionParallel - 3Rd Overtone Quartz Crystal, 125MHz Nom, ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 2 PIN; CategoryPassive components Crystal/resonator; File Size202KB，1 Pages; ManufacturerFrequency Management International; Environmental Compliance

Download Datasheet Parametric View All

FMXMC7S318DDD-125.000000M-PD Overview

Parallel - 3Rd Overtone Quartz Crystal, 125MHz Nom, ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 2 PIN

FMXMC7S318DDD-125.000000M-PD Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1313221043
package instruction	ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 2 PIN
Reach Compliance Code	compliant
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - 3RD OVERTONE
Drive level	10 µW
frequency stability	0.001%
frequency tolerance	10 ppm
load capacitance	18 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	125 MHz
Maximum operating temperature	50 °C
Minimum operating temperature	-10 °C
physical size	L7.0XB5.0XH1.3 (mm)/L0.276XB0.197XH0.051 (inch)
Series resistance	80 Ω
surface mount	YES

Preview

Download Datasheet

View All

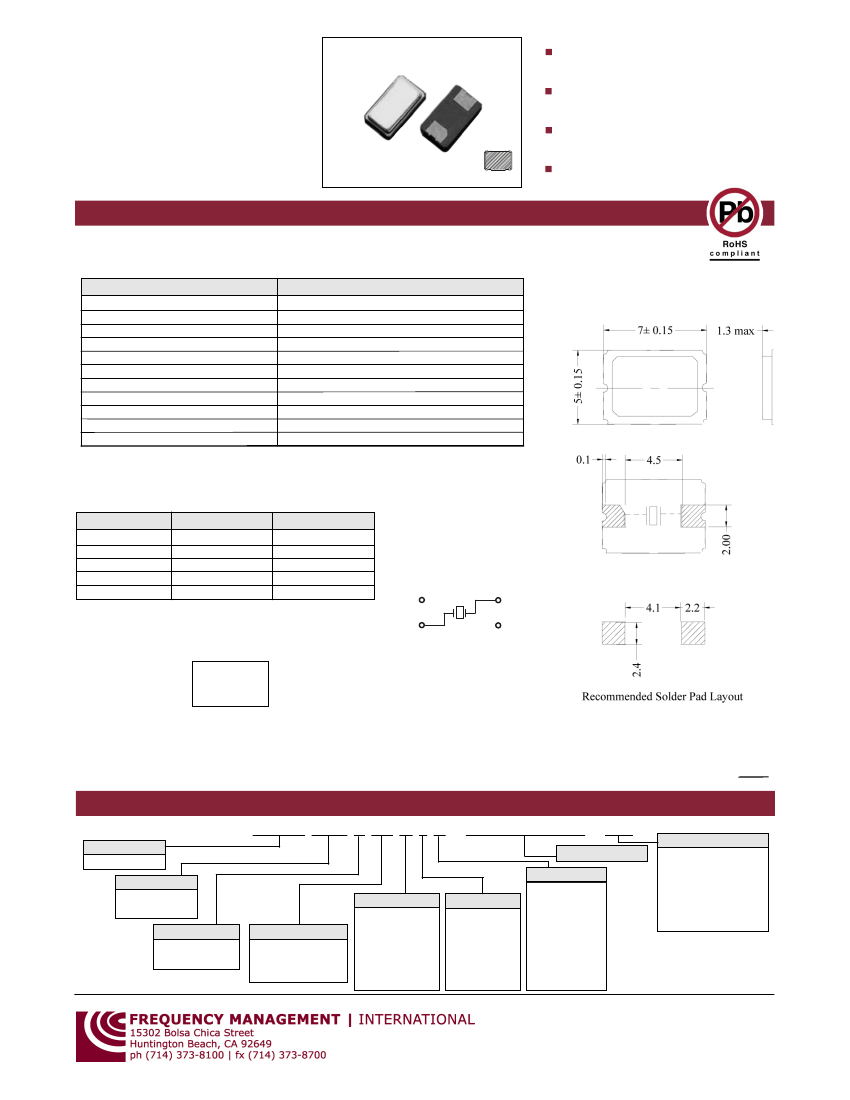

FMXMC7S

SERIES

Crystals for Microprocessors

& Chip Sets

Surface Mount Ceramic Pkg.

5x7 Miniature 2-Pad / Ultra Thin

High Reliability

Actual Size

CERAMIC SMD 5x7

SPECIFICATIONS

Issue 5 | 08142012

Tight Stability

Parameter

Frequency Range

Operation Mode

Load Capacitance (CL)

Frequency Tolerance

Temperature Tolerance

Operating Temperature

Storage Temperature

Equivalent Series Resistance (ESR)

Shunt Capacitance (C0)

Drive Level

Aging @ +25°C

All specifications subject to change without notice.

Specification

5.5 - 150 MHz

See Operation Mode and ESR Table

18 pF Std., 8 - 60 pF and Series available

±30 ppm @ 25°C Std. (See Cal. Tol. for Options)

±50 ppm Std. (See Temp. Tol. for Options)

0 to +70°C Std. (See Temp. Range for Options)

-40 to +85°C / -55 to +125°C

See Operation Mode and ESR Table

5 pF max.

10 µW typical, 300 µW max.

±3 ppm typical; ±5 ppm per year max.

5x7 CERAMIC SMD

OPERATION MODE AND ESR TABLE

Frequency (MHz)

5.5 - 8.00

8.0 - 14.0

14.0 - 40.0

35.0 - 125.0

90.0 - 150.0

Mode

Fundamental

3rd Overtone

5th Overtone

Max. ESR (Ohms)

100

STANDARD MARKING

XXX.XXXM

XXXXXXX

FMI YYWW

XXX.XXXM FREQUENCY in MHz

XXXXXXX Part Number

FMI, Date Code

#2 / #4: connected to lid

#1 / #3: connected to crystal

NOTE: Standard Specifications for product indicated in

color

Dimensions:

Inches

(mm)

PART DESCRIPTION SYSTEM

MARKING: See Page 52, Format A

FMXM C7S 1 18 H J A - XX.XXXXXXM - CM

Product Family

MicroP Crystal

Package

Ceramic SMD

5x7mm, 2 pad

Mode

1 - Fundamental

3 - 3rd Overtone

Load Cap. (CL)

18 - Standard (pF)

00 - Series

XX - Custom (pF)

Cal. Tol. @ 25°C

D ±10 ppm

F ±20 ppm

H ±30 ppm

J ±50 ppm

K ±100 ppm

X Custom

Frequency (MHz)

Temp. Range

A 0 to 70 °C

B -20 to 70 °C

C -40 to 85 °C

D -10 to 50 °C

E -10 to 60 °C

F -30 to 60 °C

J 0 to 50 °C

X Custom

Options

TR - Tape & Reel

PD - Parameter Data

TD - Temp. Data

TG - Temp. Grading

CM - Custom Mark

BLANK - None Req’d.

Temp. Tol.

D ±10 ppm

F ±20 ppm

H ±30 ppm

J ±50 ppm

K ±100 ppm

X Custom

1-800-800-XTAL
