A12306335050 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> A12306335050

A12306335050: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID; CategoryPassive components capacitor; File Size516KB，4 Pages; ManufacturerLeclanche Capacitors; Websitehttp://www.lcap.ch; Environmental Compliance

Download Datasheet Parametric View All

A12306335050 Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID

A12306335050 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1308415315
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	12000 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	35 mm
dielectric materials	ALUMINUM (WET)
ESR	24 mΩ
length	50 mm
Manufacturer's serial number	A
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package form	Axial
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	63 V
ripple current	4200 mA
series	A

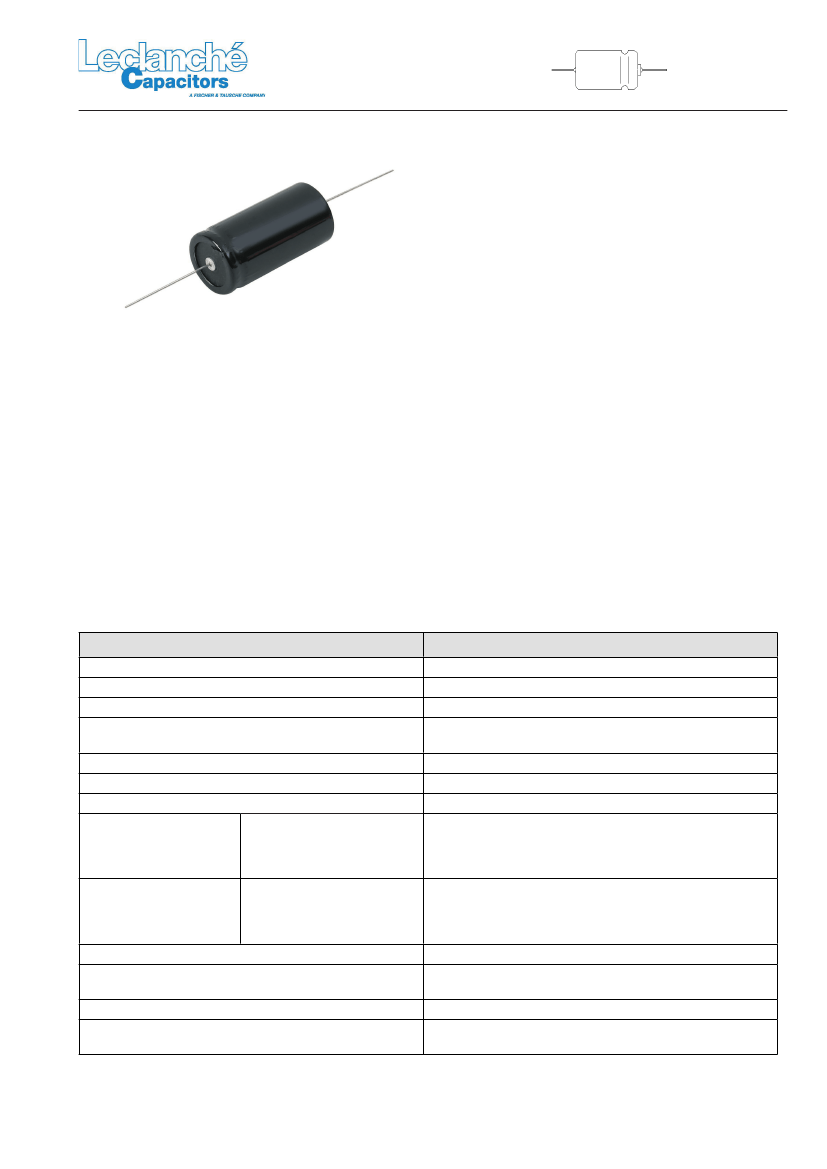

Preview

Download Datasheet

View All

85 ° C

8. Ser

Axial terminals

Low mounting height

High CV product

Long life 5000 h @ 85 °C

Features

•

RoHS compliant

REACH compliant

Different case sizes, voltages and

capacitance combinations are

available on request.

Also in small lots.

All contacts welded

High CV product

Welded axial leads

High reliability

HiFi

Industrial

Tube amplifier

Applications

General specifications

Items

Rated capacitance range C

Capacitance tolerance

Rated voltage range U

Surge voltage U

Max. reverse voltage

Category temperature range

Leakage current I

after 5 min @ U

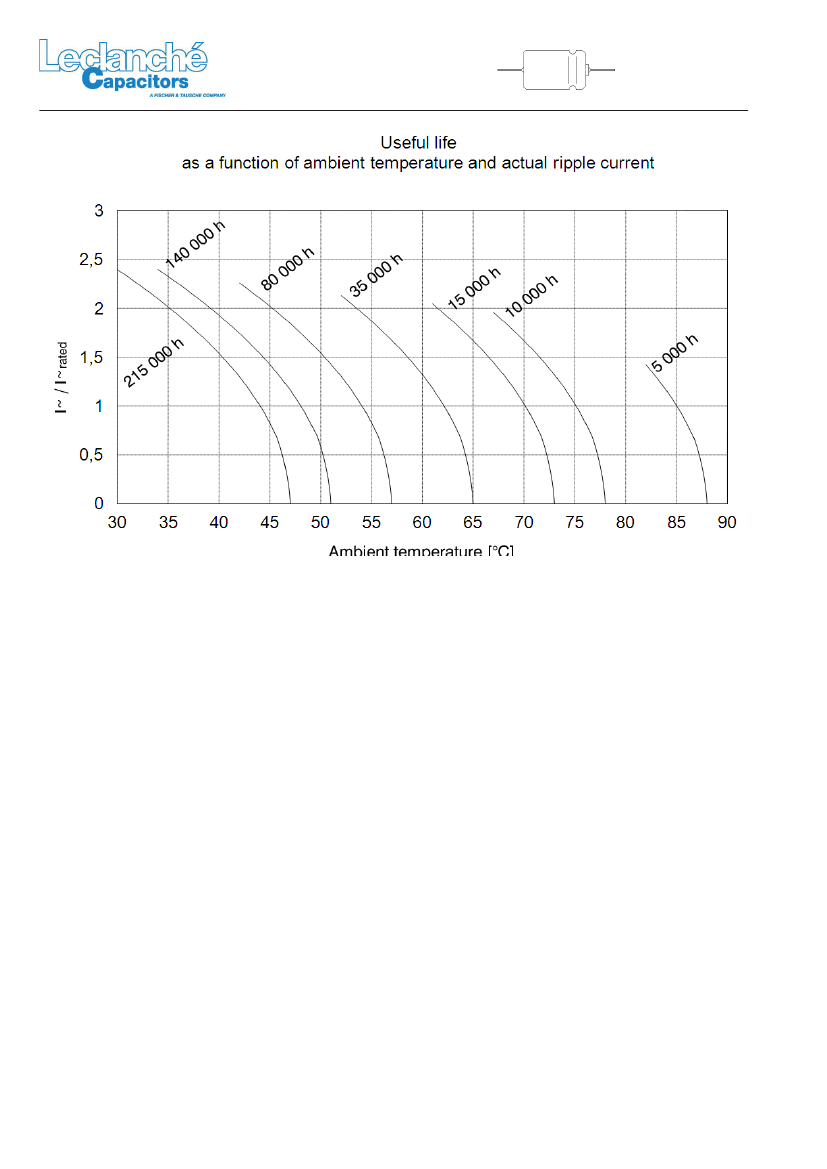

Useful life

5000 h @ 85 °C ; U

; I

Characteristics

4,7… 82.000 µF

± 20%

16 … 500 V

≤ 315 V: U

= 1,15 U

> 315 V: U

= 1,10 U

- 40°C ... + 85 °C

≤ 0,008 * C

[µF] * U

[V] + 6 µA [µA]

Requirements

Δ C/C ≤ 30 % of initial value

ESR ≤ 300 % of specified limit

≤ specified limit

Requirements

Δ C/C ≤ 20 % of initial value

ESR ≤ 130 % of specified limit

≤ specified limit

40/085/56

D ≤ 25 mm: ≥ 1000 V AC

D > 25 mm: ≥ 2500 V AC

IEC 60384-4

Up to 25 mm Ø : 0,8 mm ;

more than 25 mm Ø : 1,0 mm

Endurance test

Climatic category IEC 60068

2000 h @ 85 °C , U

Voltage proof of the external insulation

Sectional specification

Ø leads

Leclanché Capacitors

1400 Yverdon, Switzerland

Tel. +41 24 445 66 88

Fax +41 24 445 66 89

www.Lcap.ch

capinfo@Lcap.ch
