The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
The upper surface provides flat area for placement of embossed tape packaged connectors with vacuum
nozzles of automatic equipment.
■

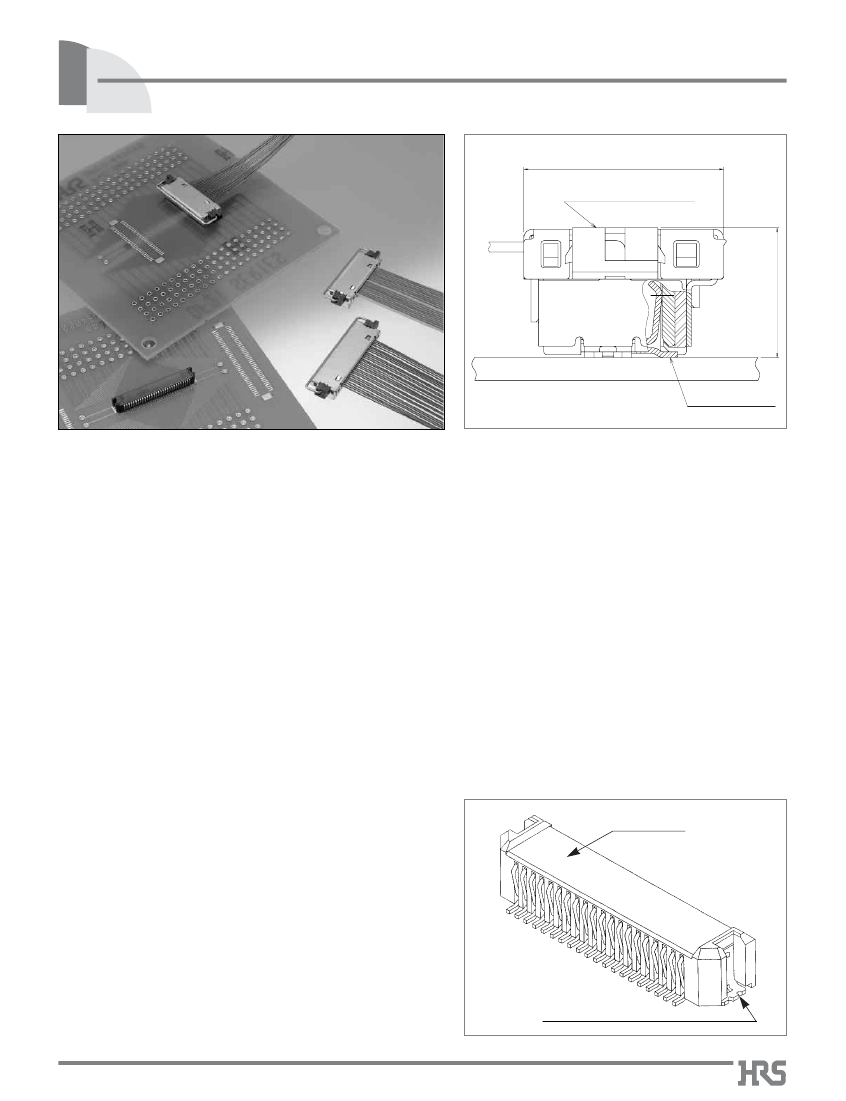

Applications
Notebook computers, liquid crystal displays (LCD), video and
audio devices, medical instruments, portable devices and
any other device requiring reliable connection and
termination with fine pitch coaxial cable.
Receptacle
Flat surface
for placement
with Automatic
Equipment
Metal Hold-down
(4.55)
B305
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the
Connectors
the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
No melting of the resin parts that will affect performance
No deformation of the insulator parts affecting performance.
Condition
Measured at 100 V DC
Conduction of 150 V AC applied for 1 minute
Measured at 100 mA
Frequency of 10 to 55 Hz, single amplitude of 0.75 mm, in 3
directions, 2 hours
Temperature of 40
±
2
ç
, humidity of 90% to 95%, left standing
for 96 hours
(-55
ç
: 30minutes
/
5 to 35
ç
: 2 to 3minutes
/
85
ç
: 30minutes
/
5 to 35
ç
: 2 to 3minutes ) for 5 cycles
30 cycles (mating/unmating)
Reflow: at the recommended temperature profile, Solder: at a
soldering iron temperature of 300
ç
for 3 seconds
Solder bond: Within 5 seconds at 270
ç
max., Within 30 seconds at 200
ç
min. Hand soldering: Soldering iron temperature 300°C, 3 seconds
Note 1: Includes temperature rise caused by current flow.
Note 2: The term “storage” refers to products stored for long period of time prior to mounting and use. Operating Temperature Range
and Humidity range covers non- conducting condition of installed connectors in storage, shipment or during transportation.
Note 3: Information contained in this catalog represents general requirements for this Series. Contact us for the drawings and
specifications for a specific part number shown.
■Materials
Item
Part
Insulator
Receptacles
Contacts
Metal fittings
Insulator
Plugs
Contacts
Metal shell
Metal shell
Metal shell
Material
LCP
Phosphor bronze
Phosphor bronze
LCP
Phosphor bronze
Phosphor bronze
Stainless steel
Finish
Black
Gold plating
Tin copper plating
Black
Gold plating
Tin plating
Tin copper plating
Remarks
UL94V-0
----------
----------
UL94V-0
----------
----------
----------
■Ordering
information
●Receptacles/Plug
DF 21 -
*
P - 0.6 SD - GND
1
1
Series name
2
Number of contacts
3
Connector type
S : Single-row receptacle
P : Single-row plug
: DF21
: 20, 30
2
3
4
5
6
5
Termination section
V : Straight SMT
SD : Fine coaxial cable
6
Plug mounting parts
GND : Metal shell-required
4
Contact pitch
: 0.6 mm
Note: The metal shell is an absolutely necessary part at the time of wiring.
B306
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the
DF21
website RoHS search at
Pitch Board-to-Fine-Coaxial
your Hirose sales representative.
Hirose
Series●0.6mm
www.hirose-connectors.com, or contact
Cable Connectors

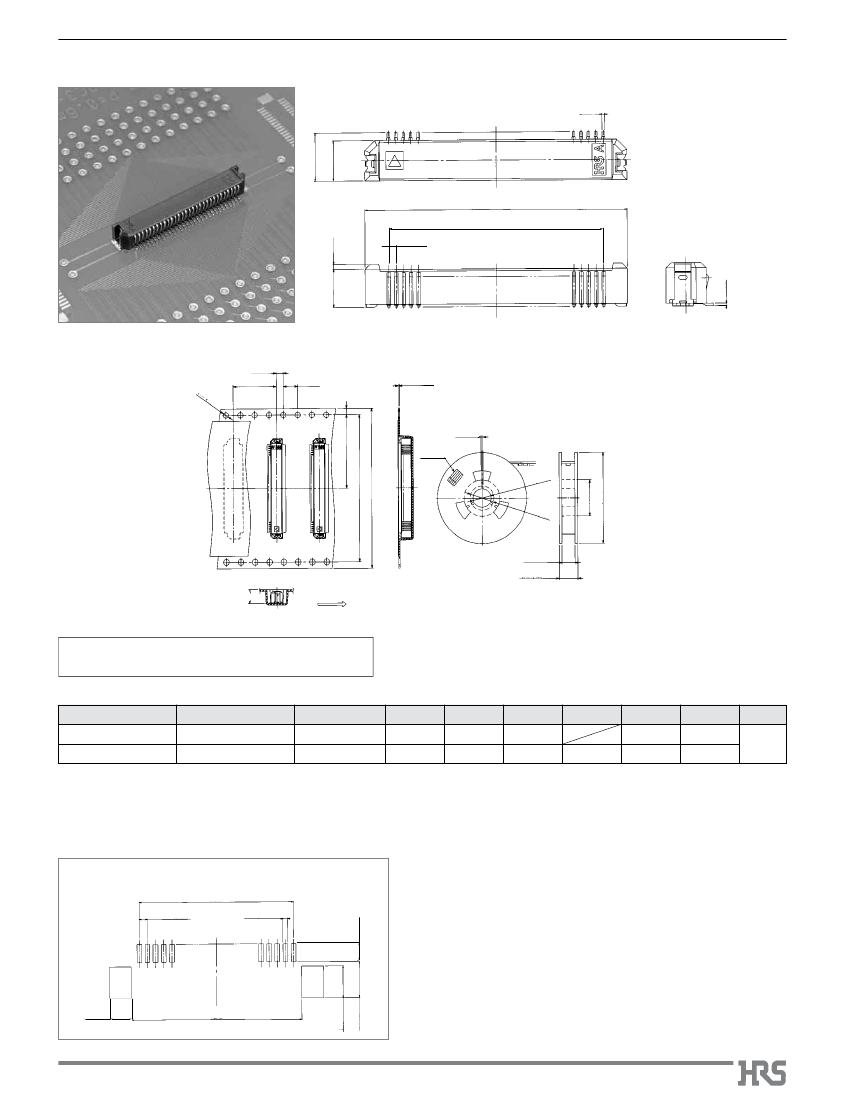

■Receptacles
0.2
3.8
3.2
A
B
0.4
P=0.6
P=0.6
●Embossed
Carrier Tape Dimensions
2±0.1
1.75±0.1
Ø1
12±0.1
.5
+1
.
0 5
4±0.1
t=0.4±0.1
2±0.5
C±0.1
Product
name
label
D±0.1
E±0.3
Ø13±
0.2
Ø21±
0.8
(
E+0.4
)
+2
0
(E+6.4)MAX
3.8
Unreeling direction
[
Specifications number
]
-
* *
, (
* *
)
(56) : Embossed tape packaging (1,000 pieces per reel)
Unit: mm
Product No.
DF21-20S-0.6V(56)
DF21-30S-0.6V(56)
CL No.
687-0001-5-56
687-0003-0-56
Number of Contacts
20
30
A
15.2
21.2
B
11.4
17.4
C
11.5
14.2
28.4
D
E
24
32
F
12.6
18.6
RoHS
YES
Note : One reel contains 1,000 pieces package unit. Please order by the package unit.
●Recommended
PCB mounting pattern
B±0.03
P=0.6±0.03
0.35±0.02
1.3
+0.1
0
1.6
+0.1
0
F±0.05
2.3±0.05
2.6±0.05
Ø330±2
(Ø80)
0.2
3
B307
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the
Connectors
the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
Note 1 : One package unit contains 100 pieces. Please order by the package unit.
Note 2: The metal shell is an absolutely necessary part at the time of wiring.

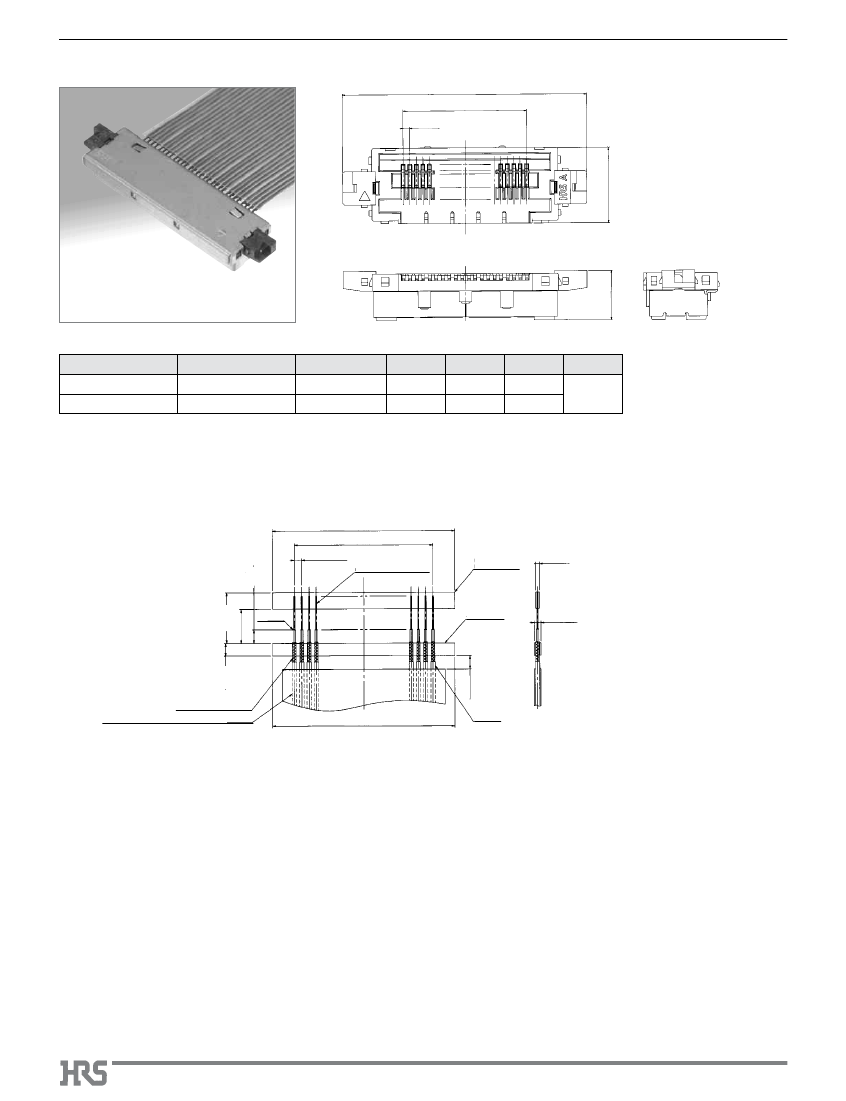

●Recommended
Fine Coaxial Cable Preparation
C±0.5
B±0.15
P=0.6±0.1
0
-0.3
Inner conductor
(Solder coating required)
Pitch maintaining
tape
0.4max
4.1MAX
1.1
1.0
+0.10
-0.05
2.75MIN
Insulator
Ground bar
00.0
0.55
-0.05
Outer shield
(for individual conductor)
Fine coaxial cable
C±0.3
1.1MIN
Jacket
Note
Note
Note
Note
1:
2:
2:
3:
The pitch maintaining tape can be left in place during the termination process. Use high quality tape.
When using 2-conductor coaxial cable, some contact positions will not be usable.
Contact nearest Hirose sales office for recommendation on specific application.
Contact Hirose for Termination Procedures.
B308
4.45
6.8
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the
DF21
website RoHS search at
Pitch Board-to-Fine-Coaxial
your Hirose sales representative.
Hirose
Series●0.6mm
www.hirose-connectors.com, or contact
Cable Connectors

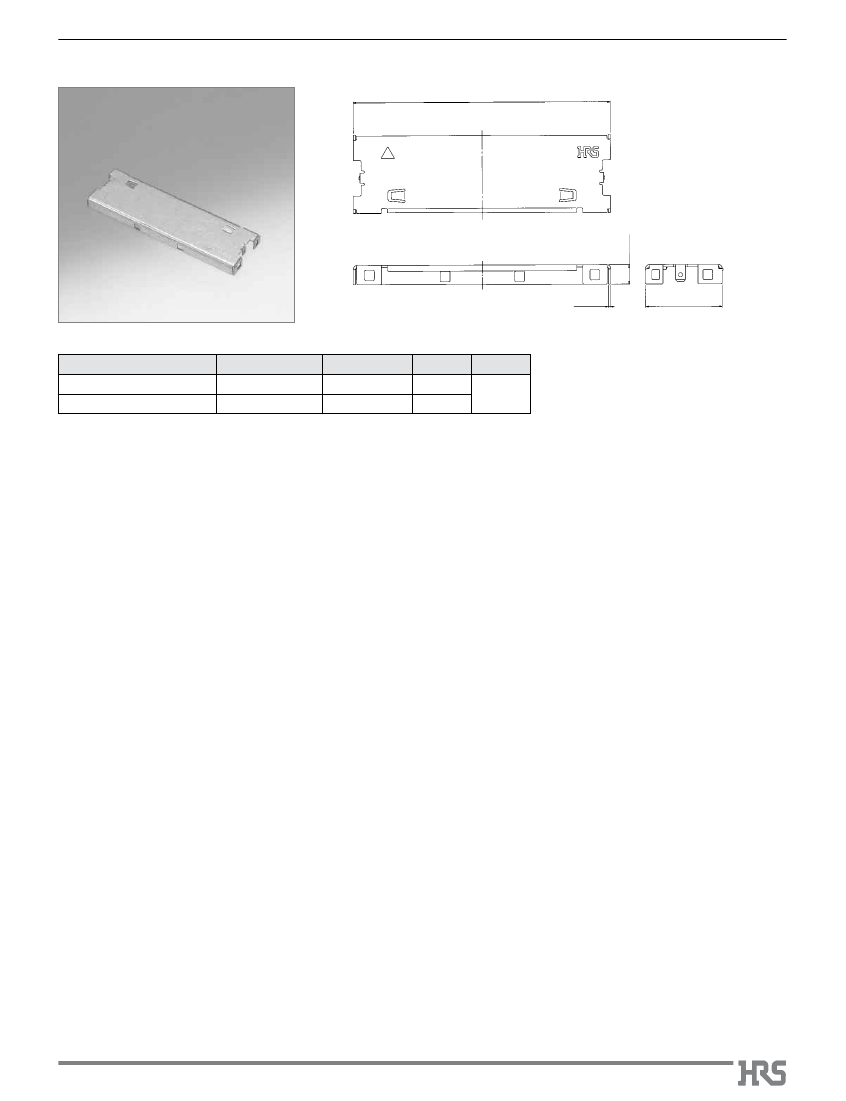

■Metal
shell-Required for assembly of the Plug
A
t=0.2
1.75
7
Unit: mm
Product No.
DF21-20P-0.6SD-GND(05)
DF21-30P-0.6SD-GND(05)
CL No.
687-2500-6-05
687-2502-1-05
Number of Contacts
20
30
A
17.7
23.7
RoHS
YES
Note 1: One package unit contains 100 pieces. Please order by the package unit.
Note 2: The metal shell is an absolutely necessary part at the time of wiring.
