5-1375204-4: Descriptionconn mod plug 8p8c shielded; CategoryThe connector; File Size363KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

5-1375204-4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5-1375204-4	-	-	View	Buy Now

5-1375204-4 Overview

conn mod plug 8p8c shielded

5-1375204-4 Parametric

Parameter Name	Attribute value
Datasheets
1375204 Drawing
RoHS Informati
5-1375204-4 Statement of Compliance
RoHS 2 Stateme
Featured Produc
TE Connectivity - Modular Jack
Standard Package	1,000
Category	Connectors, Interconnects
Family	Modular Connectors - Plugs
Packaging	Bulk
Cable Type	Round Cable, Solid Wires
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Features	Molded B
Shielding	Shielded
Ratings	Cat6
Ingress Protecti	-
Terminati	IDC
Length	-
Col	Translucent - Cle
Wire Gauge	23-24 AWG
Contact Finish	Gold
Contact Finish Thickness	50µin (1.27µm)
Contact Material	Phosphor Bronze
Current Rating	-
Voltage Rating	-
Housing Material	Polycarbonate (PC)
Shield Material	Brass
Associated Produc	5-737893-6-ND - CONN ACCY BOOT YELLOW4-737893-6-ND - CONN ACCY BOOT YELLOW5-737893-1-ND - CONN ACCY BOOT WHITE4-737893-1-ND - CONN ACCY BOOT WHITE5-737893-3-ND - CONN ACCY BOOT RED4-737893-3-ND - CONN ACCY BOOT RED5-737893-2-ND - CONN ACCY BOOT GRAY4-737893-2-ND - CONN ACCY BOOT GRAY5-737893-5-ND - CONN ACCY BOOT GREEN4-737893-5-ND - CONN ACCY BOOT GREEN5-737893-4-ND - CONN ACCY BOOT BLUE4-737893-4-ND - CONN ACCY BOOT BLUEA106453-ND - CONN ACCY BOOT BLACK4-737893-7-ND - CONN ACCY BOOT BLACK354711-3-ND - TOOL CRIMPER MODULAR 8-POSITIONA9900-ND - TOOL CRIMP MOD 8POS WITH DIE

Preview

Download Datasheet

View All

8

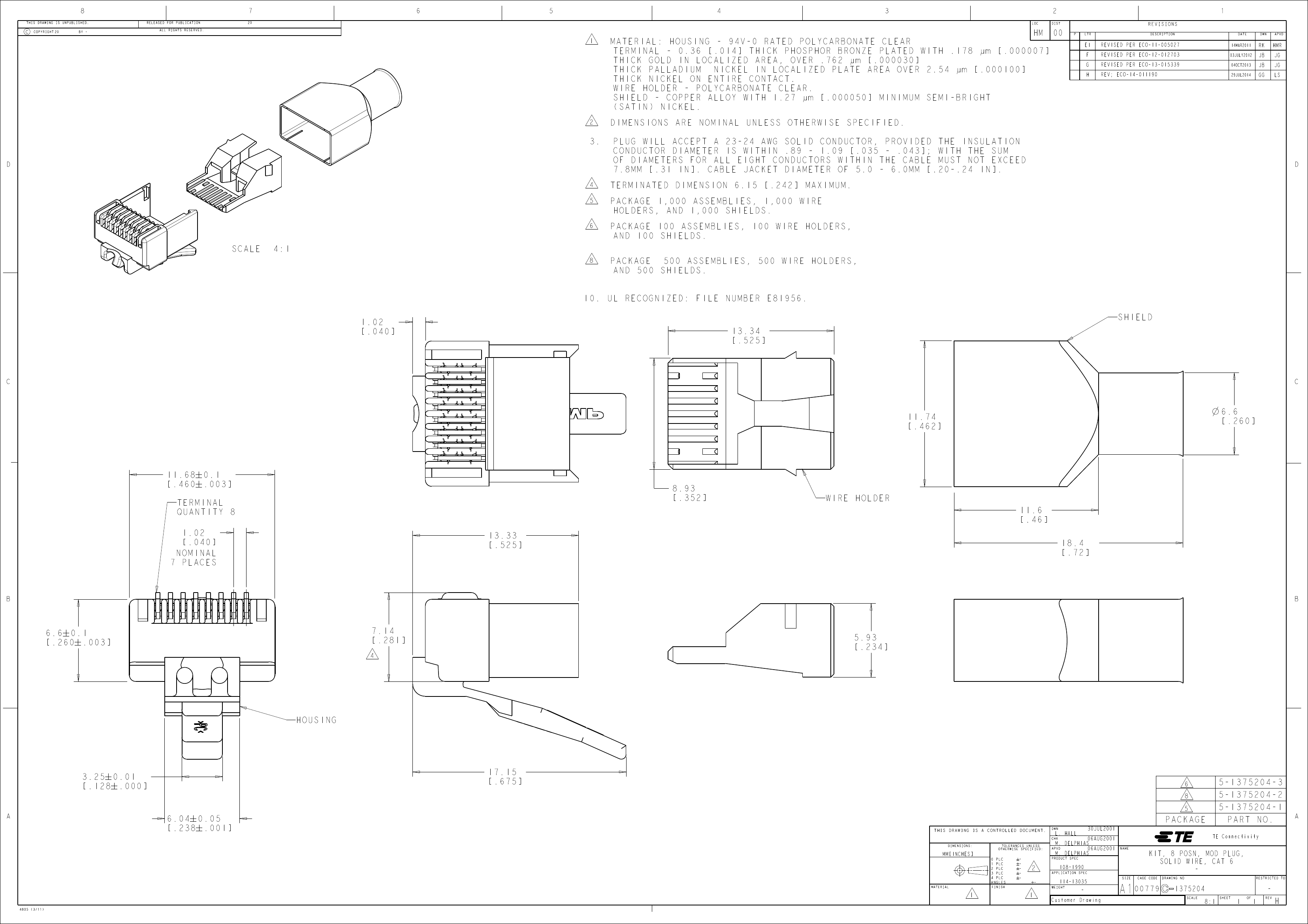

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

7

20

6

5

4

3

LOC

2

DIST

1

REVISIONS

P

LTR

DESCRIPTION

DATE

DWN

APVD

C

COPYRIGHT

20

1

MATERIAL: HOUSING - 94V-0 RATED POLYCARBONATE CLEAR

TERMINAL - 0.36 [.014] THICK PHOSPHOR BRONZE PLATED WITH .178 µm [.000007]

THICK GOLD IN LOCALIZED AREA, OVER .762 µm [.000030]

THICK PALLADIUM NICKEL IN LOCALIZED PLATE AREA OVER 2.54 µm [.000100]

THICK NICKEL ON ENTIRE CONTACT.

WIRE HOLDER - POLYCARBONATE CLEAR.

SHIELD - COPPER ALLOY WITH 1.27 µm [.000050] MINIMUM SEMI-BRIGHT

(SATIN) NICKEL.

DIMENSIONS ARE NOMINAL UNLESS OTHERWISE SPECIFIED.

PLUG WILL ACCEPT A 23-24 AWG SOLID CONDUCTOR, PROVIDED THE INSULATION

CONDUCTOR DIAMETER IS WITHIN .89 - 1.09 [.035 - .043]; WITH THE SUM

OF DIAMETERS FOR ALL EIGHT CONDUCTORS WITHIN THE CABLE MUST NOT EXCEED

7.8MM [.31 IN]. CABLE JACKET DIAMETER OF 5.0 - 6.0MM [.20-.24 IN].

TERMINATED DIMENSION 6.15 [.242] MAXIMUM.

PACKAGE 1,000 ASSEMBLIES, 1,000 WIRE

HOLDERS, AND 1,000 SHIELDS.

PACKAGE 100 ASSEMBLIES, 100 WIRE HOLDERS,

AND 100 SHIELDS.

PACKAGE 500 ASSEMBLIES, 500 WIRE HOLDERS,

AND 500 SHIELDS.

HM

00

E1

F

G

H

REVISED PER ECO-11-005027

REVISED PER ECO-12-012703

REVISED PER ECO-13-015339

REV; ECO-14-011190

14MAR2011

03JULY2012

04OCT2013

29JUL2014

RK

JB

GG

HMR

JG

LS

2

3.

D

4

5

6

D

SCALE

4:1

8

10. UL RECOGNIZED: FILE NUMBER E81956.

1.02

[ .040 ]

SHIELD

13.34

[ .525 ]

C

11.74

[ .462 ]

6.6

[ .260 ]

11.68

[ .460

0.1

.003 ]

TERMINAL

QUANTITY 8

1.02

[ .040 ]

NOMINAL

7 PLACES

13.33

[ .525 ]

8.93

[ .352 ]

WIRE HOLDER

11.6

[ .46 ]

18.4

[ .72 ]

B

6.6 0.1

[ .260 .003 ]

7.14

[ .281 ]

4

5.93

[ .234 ]

HOUSING

3.25 0.01

[ .128 .000 ]

A

17.15

[ .675 ]

6

8

5

5-1375204-3

5-1375204-2

5-1375204-1

PART NO.

TE Connectivity

6.04 0.05

[ .238 .001 ]

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

L. HALL

M. DELPHIAS

108-1990

30JUL2001

06AUG2001

NAME

PACKAGE

A

MM[INCHES]

APVD

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

-

PRODUCT SPEC

2

-

APPLICATION SPEC

WEIGHT

114-13035

1

4805 (3/11)

1

-

Customer Drawing

A1

00779

SIZE

CAGE CODE

KIT, 8 POSN, MOD PLUG,

SOLID WIRE, CAT 6

-

DRAWING NO

RESTRICTED TO

1375204

SCALE

8:1

SHEET

1

OF

1

REV

-

H

5-1375204-4 Related Products

	5-1375204-4	5-1375204-1	5-1375204-2
Description	conn mod plug 8p8c shielded	conn mod plug 8p8c shielded	conn mod plug 8p8c shielded
Standard Package	1,000	1,000	500
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Modular Connectors - Plugs	Modular Connectors - Plugs	Modular Connectors - Plugs
Packaging	Bulk	Bulk	Bulk
Cable Type	Round Cable, Solid Wires	Round Cable, Solid Wires	Round Cable, Solid Wires
Number of Positions/Contacts	8p8c (RJ45, Ethernet)	8p8c (RJ45, Ethernet)	8p8c (RJ45, Ethernet)
Features	Molded B	Molded B	Molded B
Shielding	Shielded	Shielded	Shielded
Ratings	Cat6	Cat6	Cat6
Terminati	IDC	IDC	IDC
Col	Translucent - Cle	Translucent - Cle	Translucent - Cle
Wire Gauge	23-24 AWG	23-24 AWG	23-24 AWG
Contact Finish	Gold	Gold	Gold
Contact Finish Thickness	50µin (1.27µm)	50µin (1.27µm)	50µin (1.27µm)
Contact Material	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze
Housing Material	Polycarbonate (PC)	Polycarbonate (PC)	Polycarbonate (PC)
Shield Material	Brass	Brass	Brass
Associated Produc	5-737893-6-ND - CONN ACCY BOOT YELLOW4-737893-6-ND - CONN ACCY BOOT YELLOW5-737893-1-ND - CONN ACCY BOOT WHITE4-737893-1-ND - CONN ACCY BOOT WHITE5-737893-3-ND - CONN ACCY BOOT RED4-737893-3-ND - CONN ACCY BOOT RED5-737893-2-ND - CONN ACCY BOOT GRAY4-737893-2-ND - CONN ACCY BOOT GRAY5-737893-5-ND - CONN ACCY BOOT GREEN4-737893-5-ND - CONN ACCY BOOT GREEN5-737893-4-ND - CONN ACCY BOOT BLUE4-737893-4-ND - CONN ACCY BOOT BLUEA106453-ND - CONN ACCY BOOT BLACK4-737893-7-ND - CONN ACCY BOOT BLACK354711-3-ND - TOOL CRIMPER MODULAR 8-POSITIONA9900-ND - TOOL CRIMP MOD 8POS WITH DIE	5-737893-6-ND - CONN ACCY BOOT YELLOW4-737893-6-ND - CONN ACCY BOOT YELLOW5-737893-1-ND - CONN ACCY BOOT WHITE4-737893-1-ND - CONN ACCY BOOT WHITE5-737893-3-ND - CONN ACCY BOOT RED4-737893-3-ND - CONN ACCY BOOT RED5-737893-2-ND - CONN ACCY BOOT GRAY4-737893-2-ND - CONN ACCY BOOT GRAY5-737893-5-ND - CONN ACCY BOOT GREEN4-737893-5-ND - CONN ACCY BOOT GREEN5-737893-4-ND - CONN ACCY BOOT BLUE4-737893-4-ND - CONN ACCY BOOT BLUEA106453-ND - CONN ACCY BOOT BLACK4-737893-7-ND - CONN ACCY BOOT BLACK354711-3-ND - TOOL CRIMPER MODULAR 8-POSITIONA9900-ND - TOOL CRIMP MOD 8POS WITH DIE	5-737893-6-ND - CONN ACCY BOOT YELLOW4-737893-6-ND - CONN ACCY BOOT YELLOW5-737893-1-ND - CONN ACCY BOOT WHITE4-737893-1-ND - CONN ACCY BOOT WHITE5-737893-3-ND - CONN ACCY BOOT RED4-737893-3-ND - CONN ACCY BOOT RED5-737893-2-ND - CONN ACCY BOOT GRAY4-737893-2-ND - CONN ACCY BOOT GRAY5-737893-5-ND - CONN ACCY BOOT GREEN4-737893-5-ND - CONN ACCY BOOT GREEN5-737893-4-ND - CONN ACCY BOOT BLUE4-737893-4-ND - CONN ACCY BOOT BLUEA106453-ND - CONN ACCY BOOT BLACK4-737893-7-ND - CONN ACCY BOOT BLACK354711-3-ND - TOOL CRIMPER MODULAR 8-POSITIONA9900-ND - TOOL CRIMP MOD 8POS WITH DIE
