Datasheet> All Categories > The connector> 5767006-7

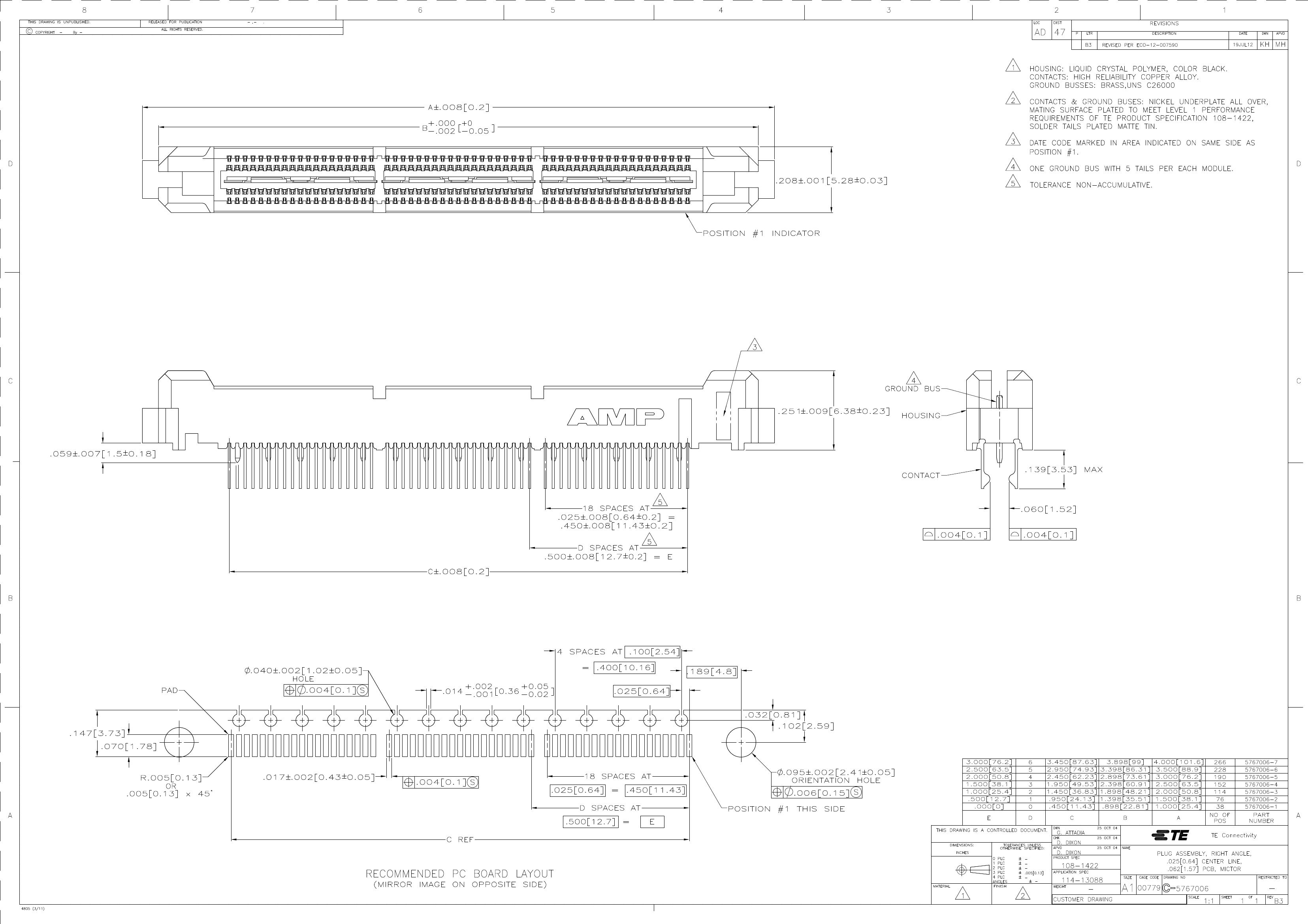

Preview

5767006-7: Descriptionconn plug 266pos R/A .025 smd; CategoryThe connector; File Size169KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

5767006-7 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5767006-7	-	-	View	Buy Now

5767006-7 Overview

conn plug 266pos R/A .025 smd

5767006-7 Parametric

Parameter Name	Attribute value
Datasheets
5767006
RoHS Informati
5767006-7 Statement of Compliance
RoHS 2 Stateme
3D Model
5767006-7.pdf
Standard Package	210
Category	Connectors, Interconnects
Family	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
Packaging	Tube
Connector Type	Plug, Outer Shroud Contacts
Number of Positions	266
Pitch	0.025" (0.64mm)
Number of Rows	2
Mounting Type	Board Edge, Straddle Mou
Features	Board Guide, Ground Bus (Plane)
Contact Finish	Gold
Contact Finish Thickness	30µin (0.76µm)
Mated Stacking Heights	-
Height Above Board	-
Mating Products	A115507-ND - CONN RCPT 266POS VERT .025 SMDA115663-ND - CONN RCPT 266POS VERT .025 SMD5767095-7-ND - CONN RCPT 266POS VERT .025 SMD767095-7-ND - CONN RCPT 266POS VERT .025 SMD5767130-7-ND - CONN RCPT 266POS VERT .025 SMD767130-7-ND - CONN RCPT 266POS VERT .025 SMD5767089-7-ND - CONN RCPT 266POS R/A .025 SMD767089-7-ND - CONN RCPT 266POS R/A .025 SMD5767143-7-ND - CONN RCPT 266POS R/A .025 SMD767143-7-ND - CONN RCPT 266POS R/A .025 SMD5767054-7-ND - CONN RCPT 266POS .025 VERT SMD767054-7-ND - CONN RCPT 266POS .025 VERT SMD5767061-7-ND - CONN RCPT 266POS .025 VERT SMD767061-7-ND - CONN RCPT 266POS .025 VERT SMDA115510-ND - CONN RCPT 266POS .025 VERT SMD767110-7-ND - CONN RCPT 266POS .025 VERT SMD5767081-7-ND - CONN RCPT 266POS .025 VERT SMD767081-7-ND - CONN RCPT 266POS .025 VERT SMDA99289-ND - CONN RCPT 266POS VERT .025 SMDA115146-ND - CONN RECEPT 266 POS .025 SMT

Preview

Download Datasheet

View All

5767006-7 Related Products

	5767006-7	5767006-6
Description	conn plug 266pos R/A .025 smd	conn plug 228pos R/A .025 smd
Standard Package	210	36
Category	Connectors, Interconnects	Connectors, Interconnects
Family	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
Packaging	Tube	Tube
Connector Type	Plug, Outer Shroud Contacts	Plug, Outer Shroud Contacts
Number of Positions	266	228
Pitch	0.025" (0.64mm)	0.025" (0.64mm)
Number of Rows	2	2
Mounting Type	Board Edge, Straddle Mou	Board Edge, Straddle Mou
Features	Board Guide, Ground Bus (Plane)	Board Guide, Ground Bus (Plane)
Contact Finish	Gold	Gold
Contact Finish Thickness	30µin (0.76µm)	30µin (0.76µm)
Mating Products	A115507-ND - CONN RCPT 266POS VERT .025 SMDA115663-ND - CONN RCPT 266POS VERT .025 SMD5767095-7-ND - CONN RCPT 266POS VERT .025 SMD767095-7-ND - CONN RCPT 266POS VERT .025 SMD5767130-7-ND - CONN RCPT 266POS VERT .025 SMD767130-7-ND - CONN RCPT 266POS VERT .025 SMD5767089-7-ND - CONN RCPT 266POS R/A .025 SMD767089-7-ND - CONN RCPT 266POS R/A .025 SMD5767143-7-ND - CONN RCPT 266POS R/A .025 SMD767143-7-ND - CONN RCPT 266POS R/A .025 SMD5767054-7-ND - CONN RCPT 266POS .025 VERT SMD767054-7-ND - CONN RCPT 266POS .025 VERT SMD5767061-7-ND - CONN RCPT 266POS .025 VERT SMD767061-7-ND - CONN RCPT 266POS .025 VERT SMDA115510-ND - CONN RCPT 266POS .025 VERT SMD767110-7-ND - CONN RCPT 266POS .025 VERT SMD5767081-7-ND - CONN RCPT 266POS .025 VERT SMD767081-7-ND - CONN RCPT 266POS .025 VERT SMDA99289-ND - CONN RCPT 266POS VERT .025 SMDA115146-ND - CONN RECEPT 266 POS .025 SMT	5767154-6-ND - CONN RCPT 228POS VERT .025 SMD767154-6-ND - CONN RCPT 228POS VERT .025 SMD5767094-6-ND - CONN RCPT 228POS VERT .025 SMDA115662-ND - CONN RCPT 228POS VERT .025 SMD5767130-6-ND - CONN RCPT 228POS VERT .025 SMD767130-6-ND - CONN RCPT 228POS VERT .025 SMD767089-6-ND - CONN RCPT 228POS R/A .025 SMD5767044-6-ND - CONN RCPT 228POS R/A .025 SMD767044-6-ND - CONN RCPT 228POS R/A .025 SMD5767143-6-ND - CONN RCPT 228POS R/A .025 SMD767143-6-ND - CONN RCPT 228POS R/A .025 SMD1-767153-3-ND - CONN RCPT 228POS .025 VERT SMD5767054-6-ND - CONN RCPT 228POS .025 VERT SMD5767061-6-ND - CONN RCPT 228POS .025 VERT SMD767061-6-ND - CONN RCPT 228POS .025 VERT SMD5767081-6-ND - CONN RCPT 228POS .025 VERT SMD767081-6-ND - CONN RCPT 228POS .025 VERT SMDA115503-ND - CONN RCPT 228POS R/A .64MMA99288-ND - CONN RCPT 228POS VERT .025 SMD1-5767153-3-ND - CONN RCPT 228POS VERT W/BARBSA115654-ND - CONN RECEPT VERT 228POS GOLD PCBA115145-ND - CONN RECEPT 228 POS .025 SMT
