STL42-022STU datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> STL42-022STU

STL42-022STU: DescriptionBoard Connector, 22 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size89KB，1 Pages; ManufacturerMPE-Garry GmbH; Environmental Compliance

Download Datasheet Parametric View All

STL42-022STU Overview

Board Connector, 22 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Receptacle

STL42-022STU Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	304288790
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.165 inch
subject depth	0.256 inch
body length	0.866 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact style	RND PIN-SKT
Dielectric withstand voltage	500VAC V
insulator material	THERMOPLASTIC
JESD-609 code	e3
Manufacturer's serial number	590
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	22

Preview

Download Datasheet

View All

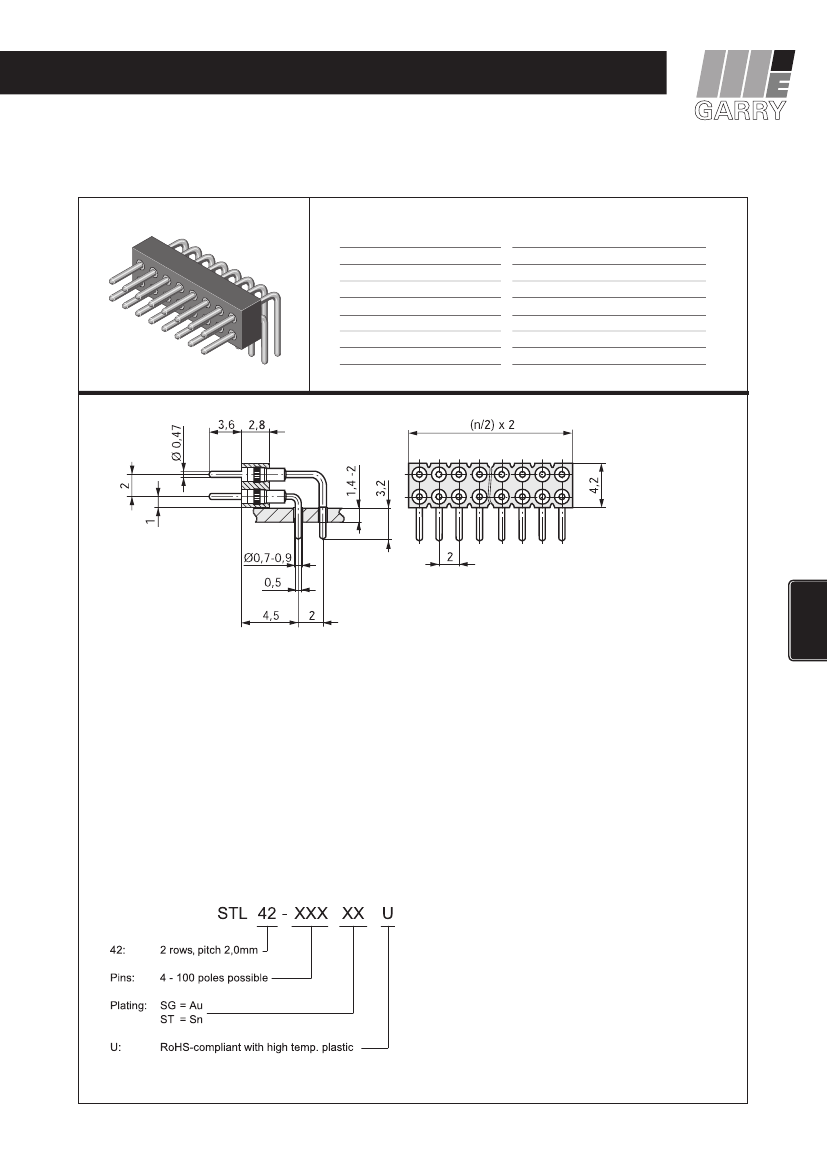

PRODUCT GROUP 8 -

MALE AND FEMALE HEADER 2,00/1,27/1,00/0,80/0,50 mm

PIN HEADER „PRECISION“ 2,00 mm

ID: 164

STL 42-XXX

Series 590

TECHNICAL DATA

Pitch

Insulating Material

Contact Material

Rated Current

Rated Voltage

Withstanding Voltage

Operating Temperature

Maximum Soldering Temperature

2,00 mm

high temp. thermoplast UL94V-0

Brass

3 Amp.

100 V

RMS

/150 V

min. 500 V

RMS

-40°C to +105°C

260°C for 10 seconds

All dimensions in mm.

Other dimensions upon request.

MPE-Garry GmbH · Schäfflerstraße 13 · 87629 Füssen · Germany · Tel.: +49 (0) 83 62 / 91 56-0 · Fax.: +49 (0) 83 62 / 91 56-520

e-mail: vk@mpe-connector.de · www.mpe-connector.de

183

| 2,00 mm
