999-39-310-04-000 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 999-39-310-04-000

Preview

999-39-310-04-000: DescriptionInterconnection Device; CategoryThe connector The connector; File Size85KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

999-39-310-04-000 Overview

Interconnection Device

999-39-310-04-000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mill-Max
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.091 inch
subject depth	0.2 inch
body length	0.197 inch
Body/casing type	PLUG
Connector type	INTERCONNECTION DEVICE
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	15 mΩ
Contact style	SQ PIN-SKT
Durability	100 Cycles
maximum insertion force	8.062 N
Insulator color	YELLOW
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e0
Manufacturer's serial number	999
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of connectors	ONE
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Plating thickness	30u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Total number of contacts	2
Evacuation force-minimum value	3.058 N
Base Number Matches	1

Preview

Download Datasheet

View All

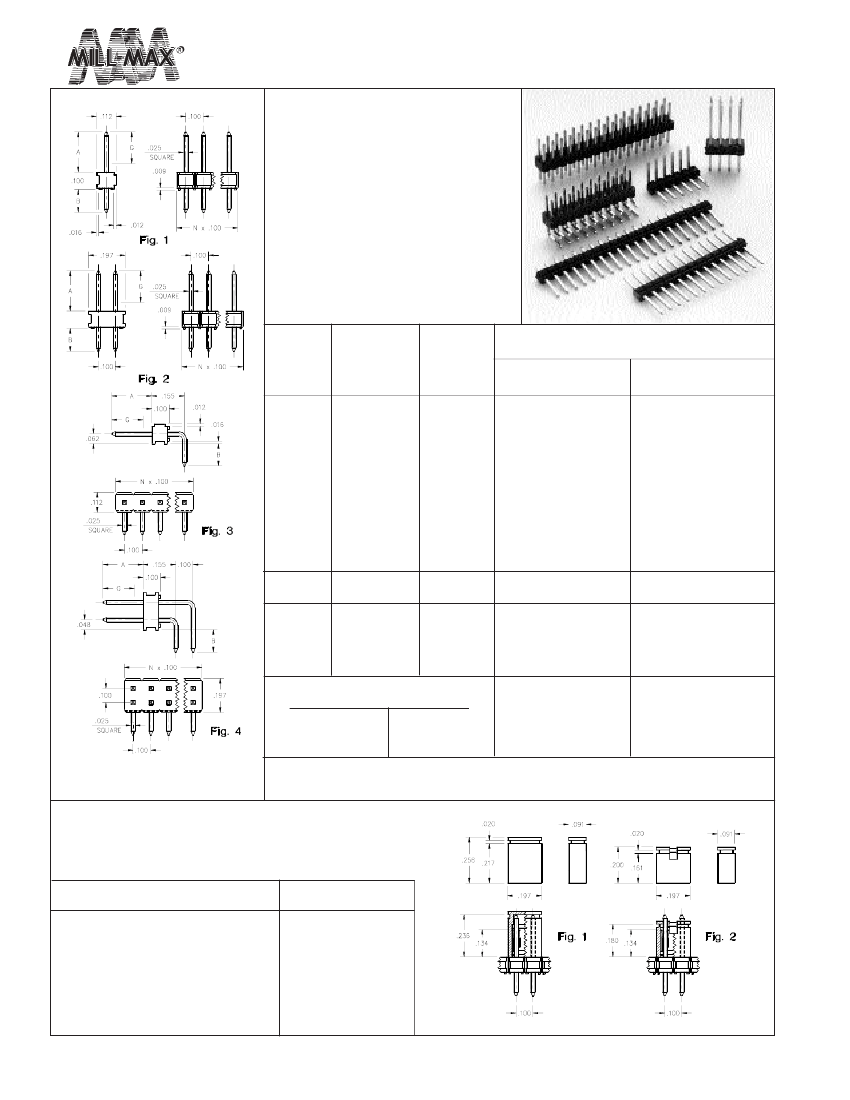

INTERCONNECTS

.025” Square Pin Headers

and Jumpers

•

Square pin headers may be used

as board-to-board interconnects

using series 801, 803 socket

strips; or as a hardware program-

ming switch with series 999 color

coded jumpers.

•

Single and double row strips are

available with straight or right

angle solder tails.

•

Series 999 color coded jumpers

are offered in closed, and open

insulators for longer pins.

LENGTH

TAIL

LENGTH

LENGTH OF

SELECTIVE

GOLD

Series 890, 892, 999

Ordering Information

Single Row Fig.1

Vertical Mount

890-XX-XXX-10-802

890-XX-XXX-10-803

890-XX-XXX-10-805

890-XX-XXX-10-806

890-XX-XXX-10-807

890-XX-XXX-10-808

890-XX-XXX-10-800

890-XX-XXX-10-801

890-XX-XXX-10-809

Single Row Fig.3

Right Angle

890-XX-XXX-20-902

890-XX-XXX-20-903

890-XX-XXX-20-904

890-XX-XXX-20-901

Specify number

of pins XXX:

From 002

To

036

Double Row Fig.2

Vertical Mount

892-XX-XXX-10-802

892-XX-XXX-10-803

892-XX-XXX-10-805

892-XX-XXX-10-806

892-XX-XXX-10-807

892-XX-XXX-10-808

892-XX-XXX-10-800

892-XX-XXX-10-801

892-XX-XXX-10-809

Double Row Fig.4

Right Angle

892-XX-XXX-20-902

892-XX-XXX-20-903

892-XX-XXX-20-901

Specify total

No. of pins XXX:

From 004 (2x2)

To

072 (2x36)

A

.230

.265

.275

.335

B

.100

.115

.200

.300

.400

.500

.125

.400

.100

G

min.

.180

.215

.225

.285

.230

.265

.100

.135

.200

.125

.180

.215

Code XX=

TAIL

150µ“SnPb

Specify Plating

19= 10µ“ Gold

39= 30µ“ Gold

90= 150µ“ SnPb

Jumpers

For .025” Square Pin Headers

Ordering Information

Insulator

Color

BLACK

RED

YELLOW

GREEN

BLUE

GRAY

WHITE

Closed Insulator

Figure 1

999-XX-210-00-000

999-XX-210-02-000

999-XX-210-04-000

999-XX-210-05-000

999-XX-210-06-000

999-XX-210-08-000

999-XX-210-09-000

Open Insulator

Figure 2

999-XX-310-00-000

999-XX-310-02-000

999-XX-310-04-000

999-XX-310-05- 000

999-XX-310-06- 000

999-XX-310-08-000

999-XX-310-09-000

58

Mill-Max Mfg. Corp., P.O.Box 300, 190 Pine Hollow Road, Oyster Bay, NY11771-0300. Tel: 516-922-6000 Fax: 516-922-9253
