5024306030 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 5024306030

5024306030: Descriptionconn 0.4 B/B plug 60ckt; CategoryThe connector; File Size488KB，6 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

5024306030 Overview

conn 0.4 B/B plug 60ckt

5024306030 Parametric

Parameter Name	Attribute value
Datasheets
5024306030
RoHS Informati
5024306030 Cert of Compliance
3D Model
502430-6030.s
Standard Package	3,000
Category	Connectors, Interconnects
Family	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
Packaging	Tape & Reel (TR)
Connector Type	Plug, Outer Shroud Contacts
Number of Positions	60
Pitch	0.016" (0.40mm)
Number of Rows	2
Mounting Type	Surface Mou
Features	Solder Retenti
Contact Finish	Gold
Contact Finish Thickness	3.9µin (0.10µm)
Mated Stacking Heights	1mm
Height Above Board	0.031" (0.80mm)
Mating Products	5024266030-ND - CONN B/B 0.4MM RCPT 60CKTWM24075-ND - CONN RCPT 60POS VERT DUAL SMD
Other Names	502430-6030

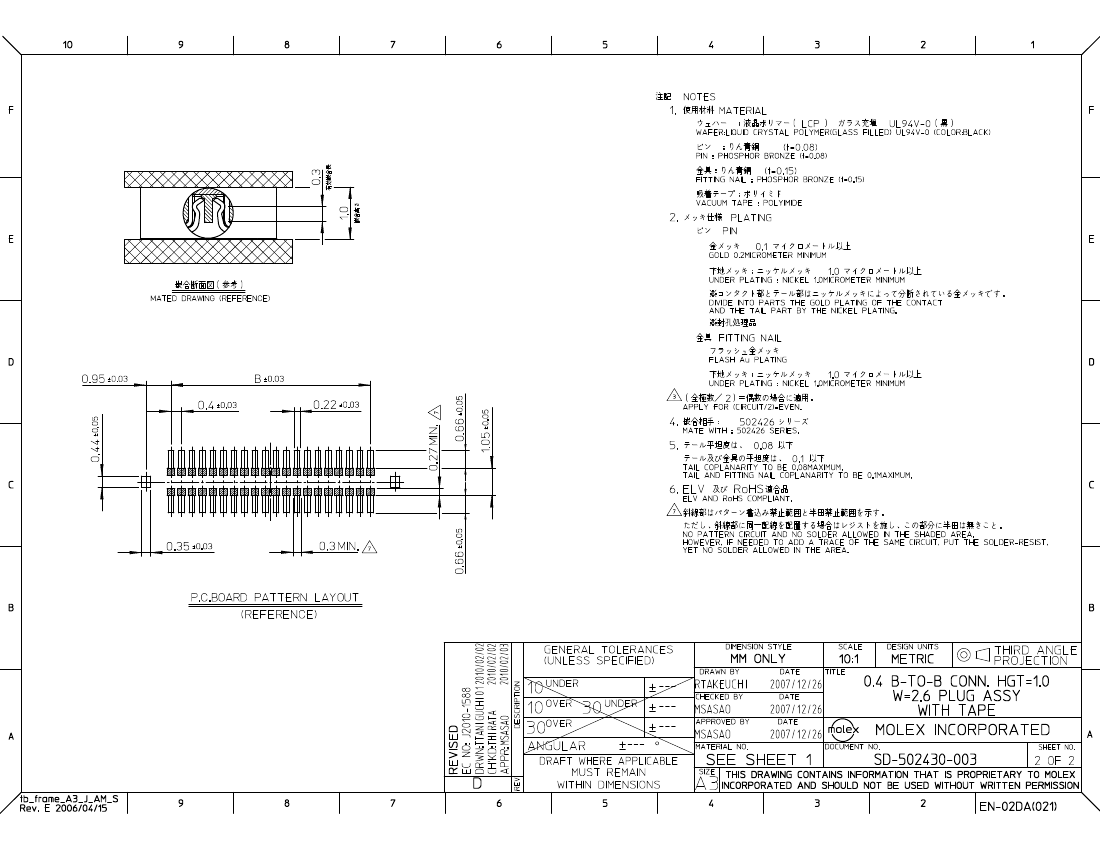

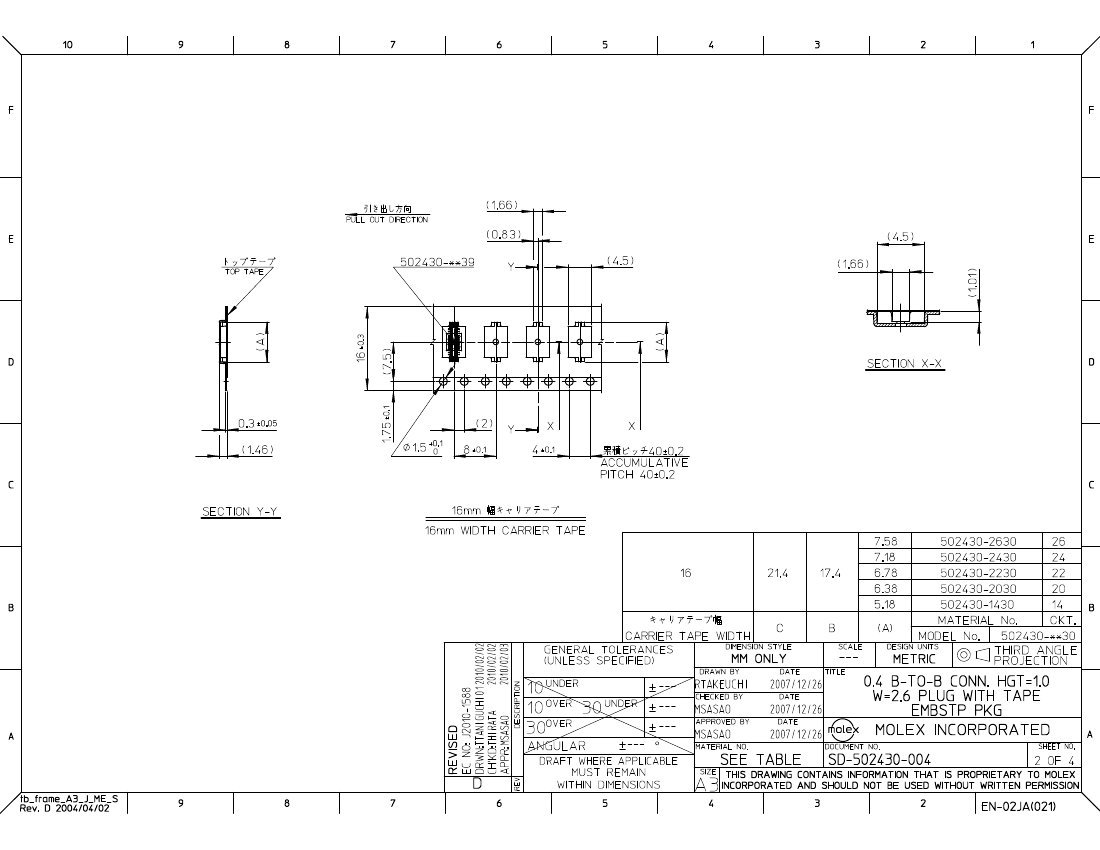

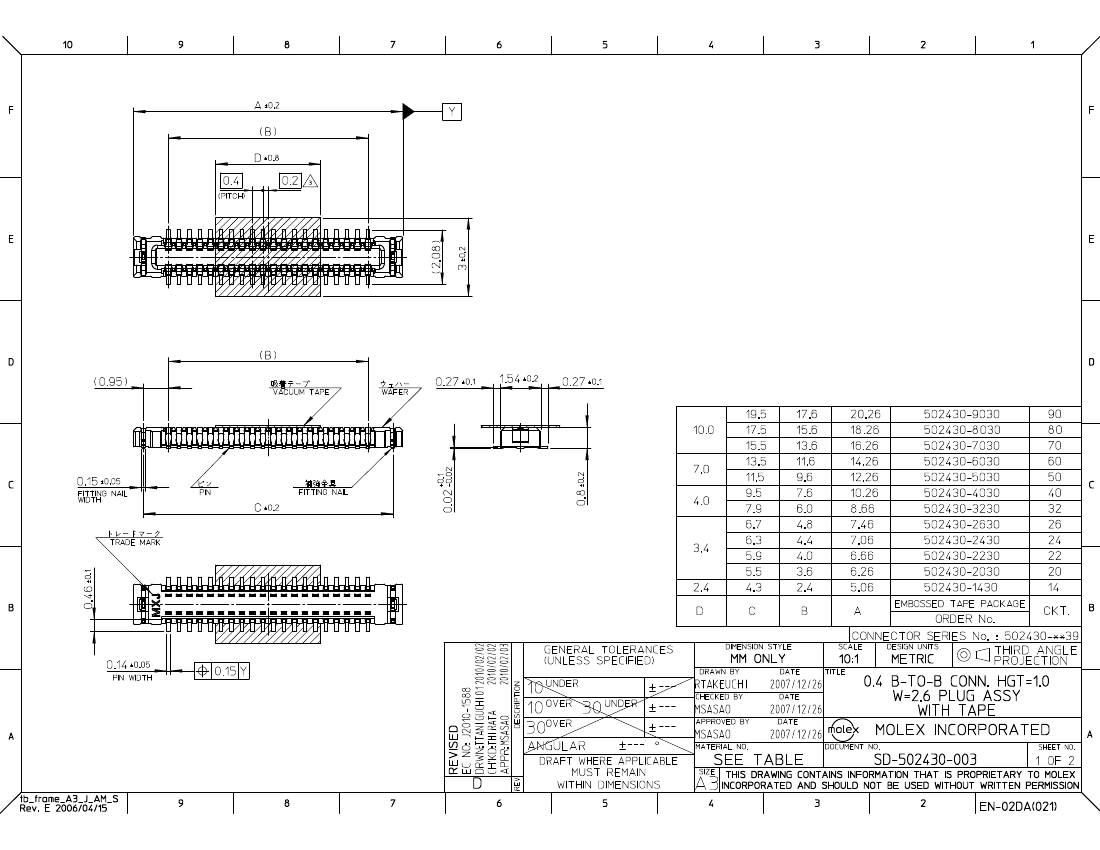

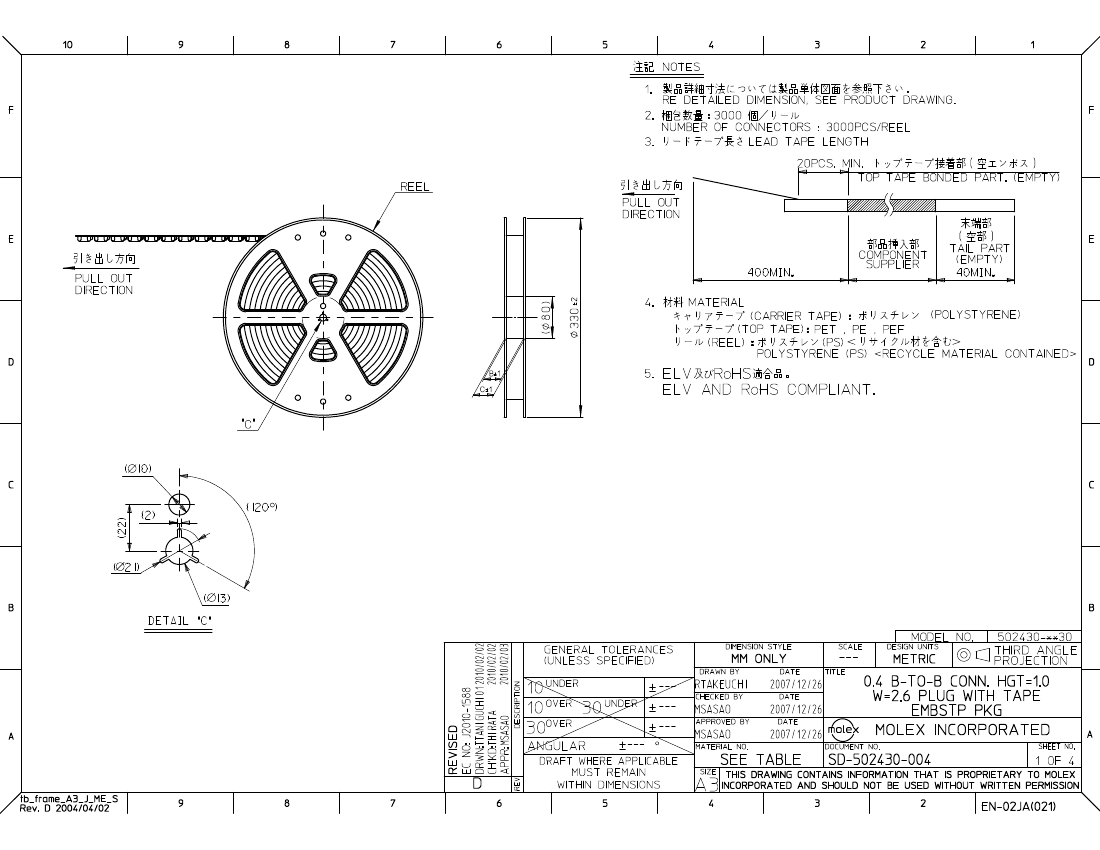

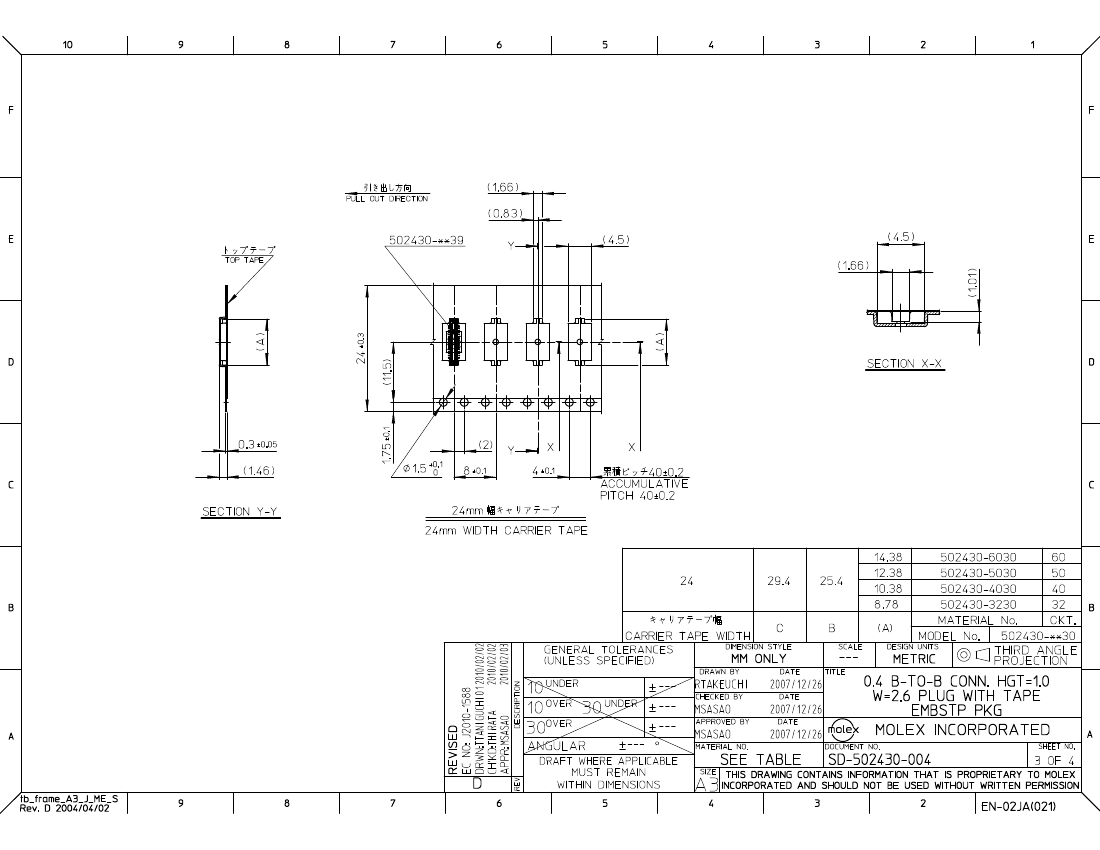

Preview

Download Datasheet

View All

5024306030 Related Products

	5024306030	5024302430	5024302030	5024304030	5024301430	5024302230	5024307030
Description	conn 0.4 B/B plug 60ckt	conn 0.4 B/B plug 24ckt	conn 0.4 B/B plug 20ckt	conn 0.4 B/B plug 40ckt	conn 0.4 B/B plug 14ckt	conn 0.4 B/B plug 22ckt	conn 0.4 B/B plug 70ckt
Standard Package	3,000	3,000	3,000	3,000	3,000	3,000	3,000
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
Packaging	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)
Connector Type	Plug, Outer Shroud Contacts	Plug, Outer Shroud Contacts	Plug, Outer Shroud Contacts	Plug, Outer Shroud Contacts	Plug, Outer Shroud Contacts	Plug, Outer Shroud Contacts	Plug, Outer Shroud Contacts
Number of Positions	60	24	20	40	14	22	70
Pitch	0.016" (0.40mm)	0.016" (0.40mm)	0.016" (0.40mm)	0.016" (0.40mm)	0.016" (0.40mm)	0.016" (0.40mm)	0.016" (0.40mm)
Number of Rows	2	2	2	2	2	2	2
Mounting Type	Surface Mou	Surface Mou	Surface Mou	Surface Mou	Surface Mou	Surface Mou	Surface Mou
Features	Solder Retenti	Solder Retenti	Solder Retenti	Solder Retenti	Solder Retenti	Solder Retenti	Solder Retenti
Contact Finish	Gold	Gold	Gold	Gold	Gold	Gold	Gold
Contact Finish Thickness	3.9µin (0.10µm)	3.9µin (0.10µm)	3.9µin (0.10µm)	3.9µin (0.10µm)	3.9µin (0.10µm)	3.9µin (0.10µm)	3.9µin (0.10µm)
Mated Stacking Heights	1mm	1mm	1mm	1mm	1mm	1mm	1mm
Height Above Board	0.031" (0.80mm)	0.031" (0.80mm)	0.031" (0.80mm)	0.031" (0.80mm)	0.031" (0.80mm)	0.031" (0.80mm)	0.031" (0.80mm)
Other Names	502430-6030	502430-2430	502430-2030	502430-4030	502430-1430	502430-2230	502430-7030
Mating Products	5024266030-ND - CONN B/B 0.4MM RCPT 60CKTWM24075-ND - CONN RCPT 60POS VERT DUAL SMD	5024262430-ND - CONN 0.4MM RCPT 24CKT SMD	WM24070DKR-ND - CONN RCPT 20POS .4MM VERT SMDWM24070TR-ND - CONN RCPT 20POS .4MM VERT SMDWM24070CT-ND - CONN RCPT 20POS VERT DUAL SMD	WM24073DKR-ND - CONN RCPT 40POS .4MM VERT SMDWM24073TR-ND - CONN RCPT 40POS .4MM VERT SMD5024264080-ND - CONN B/B 0.4MM RCPT 40CKTWM24073CT-ND - CONN RCPT 40POS VERT DUAL SMD	WM9059DKR-ND - CONN 0.4MM BTB RCPT 14POS SMDWM9059CT-ND - CONN 0.4MM BTB RCPT 14POS SMDWM9059TR-ND - CONN 0.4MM BTB RCPT 14POS SMD5024261410-ND - CONN 0.4MM RCPT 14CKT SMD	-	5024267030-ND - CONN B/B 0.4MM RCPT 70CKT
