2-647134-3 datasheet, PDF - EEWORLD Datasheet

2-647134-3: Descriptionconn header 3pos R/A .156 gold; CategoryThe connector; File Size153KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

2-647134-3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2-647134-3	-	-	View	Buy Now

conn header 3pos R/A .156 gold

Parameter Name	Attribute value
Datasheets
647134
RoHS Informati
2-647134-3 Statement of Compliance
RoHS 2 Stateme
3D Model

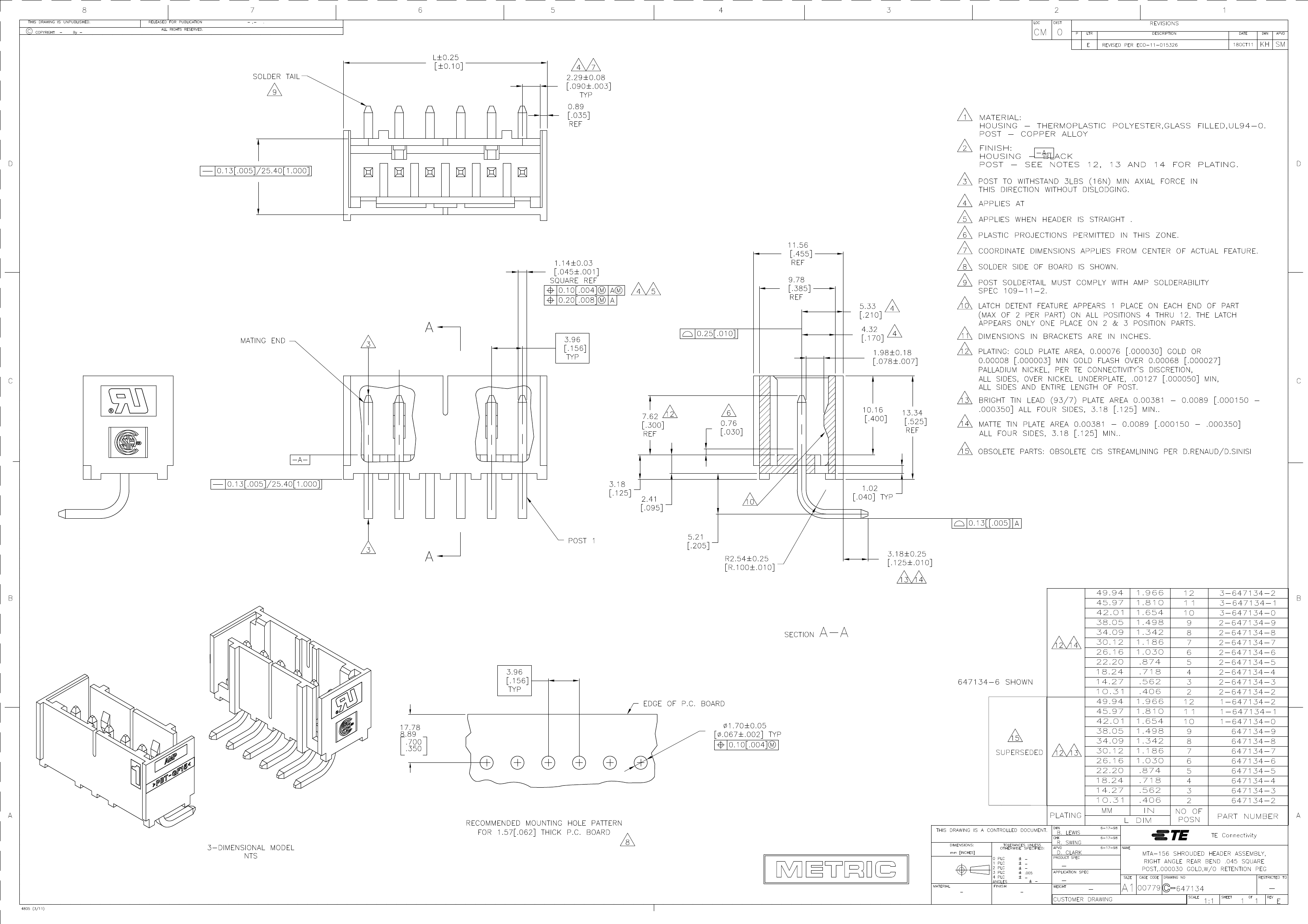

2-647134-3.pdf
Standard Package	500
Category	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Male Pins
Packaging	Bulk
Contact Type	Male Pi
Connector Type	Header, Shrouded
Number of Positions	3
Number of Positions Loaded	All
Pitch	0.156" (3.96mm)
Number of Rows	1
Row Spacing	-
Contact Mating Length	0.300" (7.62mm)
Mounting Type	Through Hole, Right Angle
Terminati	Solde
Fastening Type	-
Features	-
Contact Finish	Gold
Contact Finish Thickness	30µin (0.76µm)
Col	Black

	2-647134-3	2-647134-2	2-647134-5	2-647134-7
Description	conn header 3pos R/A .156 gold	conn header 2pos R/A .156 gold	conn header 5pos R/A .156 gold	conn header 7pos R/A .156 gold
Standard Package	500	500	500	500
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins
Packaging	Bulk	Bulk	Bulk	Bulk
Contact Type	Male Pi	Male Pi	Male Pi	Male Pi
Connector Type	Header, Shrouded	Header, Shrouded	Header, Shrouded	Header, Shrouded
Number of Positions	3	2	5	7
Number of Positions Loaded	All	All	All	All
Pitch	0.156" (3.96mm)	0.156" (3.96mm)	0.156" (3.96mm)	0.156" (3.96mm)
Number of Rows	1	1	1	1
Contact Mating Length	0.300" (7.62mm)	0.300" (7.62mm)	0.300" (7.62mm)	0.300" (7.62mm)
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle
Terminati	Solde	Solde	Solde	Solde
Contact Finish	Gold	Gold	Gold	Gold
Contact Finish Thickness	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)
Col	Black	Black	Black	Black
