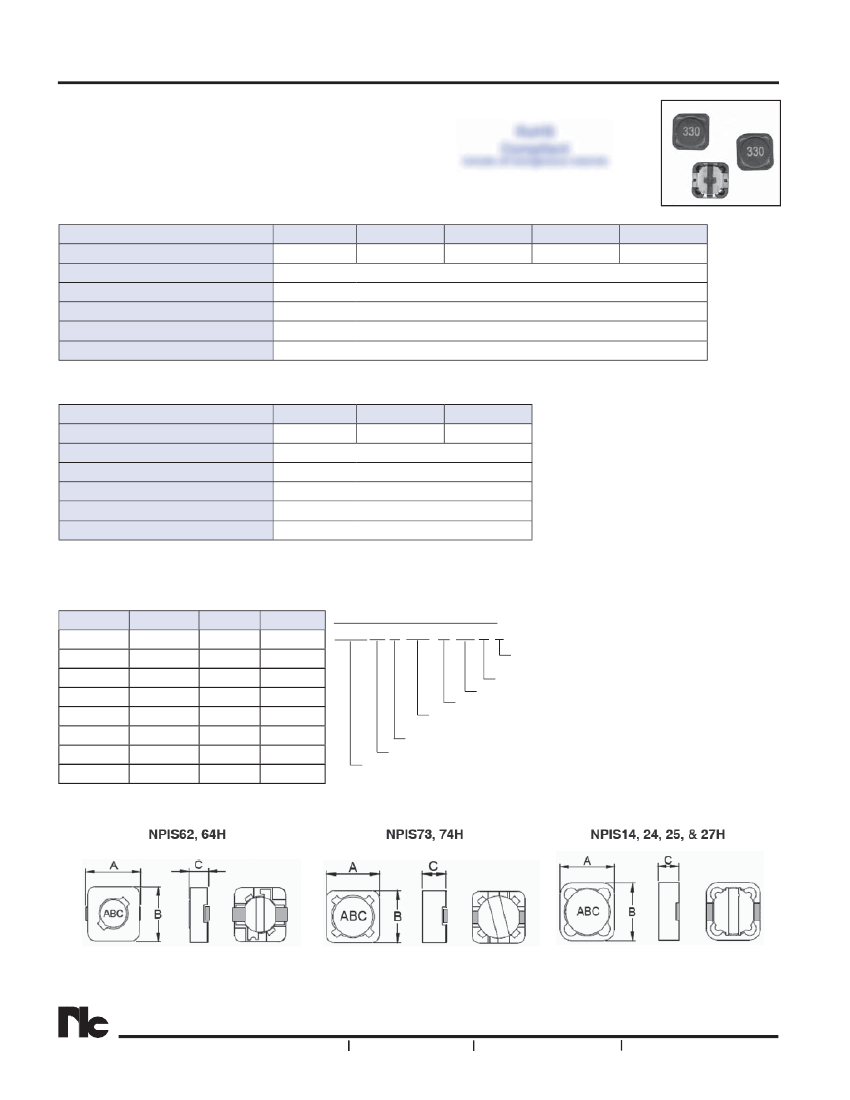

NPIS Shielded Power Inductors
FEATURES
• SHIELDED POWER INDUCTOR
• HIGH CURRENT (UP TO 12 AMPS)
• SURFACE MOUNTABLE CONSTRUCTION
• HIGH INDUCTANCE (UP TO 1000μH)
• TAPED AND REELED FOR AUTOMATIC INSERTION
• FOR USE IN DC/DC CONVERTERS
CHARACTERISTICS
Case Size
Inductance Range
Ambient Operating Temperature Range
Temperatrue Rise at Irms
Inductance Change at Isat
Inductance Tolerance
Resistance to Solder Heat
NPIS62H
3.3 ~ 330μH
NPIS64H
10 ~ 1,000μH
NPIS73H
10 ~ 1,000μH
+40°C max.
-25% typical
20% (M)
260°C for 10 seconds
NPIS74H
10 ~ 1,000μH
NPIS__H Series
RoHS
Compliant
includes all homogeneous materials
*See Part Number System for Details
NPIS14H
4.7 ~ 470μH
-40°C ~ +125C (including temperature rise)
Case Size
Inductance Range
Ambient Operating Temperature Range
Temperatrue Rise at Irms
Inductance Change at Isat
Inductance Tolerance
Resistance to Solder Heat
NPIS24H
1.0 ~ 330μH
NPIS25H
1.0 ~ 1,000μH
+40°C max.
-25% typical
20% (M)
260°C for 10 seconds
NPIS27H
1.0 ~ 1,000μH
-40°C ~ +125°C (including temperature rise)
DIMENSIONS (mm)
Series
NPIS62H
NPIS64H
NPIS73H
NPIS74H
NPIS14H
NPIS24H
NPIS25H
NPIS27H
A
6.8
6.8
7.8
7.8
10.5
12.5
12.5
12.5
B
7.0
7.0
7.8
7.8
10.5
12.5
12.5
12.5
C
3.0
5.0
4.0
5.0
5.0
5.0
6.0
8.0
PART NUMBER SYSTEM
NPIS 24 H 560 M TR N F
Termination Finish:
F = Pb-free/RoHS Compliant (100%Sn)
Optional 90° Taping Orientation
Packaging: TR = Tape & Reel
Inductance Tolerance Code: K=10%, L=15%M=±20%,30% (Y)
Inductance Code (μH): 1st two digits are significant,
3rd digit is multiplier for values from 10μH and up.
Construction Code (see drawing for details)
Size Code (see table for details)
Series
®
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
1
NPIS Shielded Power Inductors
Part Number
NPIS62H3R3MTRF
NPIS62H4R7MTRF
NPIS62H5R6MTRF
NPIS62H100MTRF
NPIS62H120MTRF
NPIS62H150MTRF
NPIS62H180MTRF
NPIS62H220MTRF
NPIS62H270MTRF
NPIS62H330MTRF
NPIS62H390MTRF
NPIS62H470MTRF
NPIS62H560MTRF
NPIS62H680MTRF
NPIS62H820MTRF
NPIS62H101MTRF
NPIS62H121MTRF
NPIS62H151MTRF
NPIS62H181MTRF
NPIS62H221MTRF
NPIS62H271MTRF
NPIS62H331MTRF
Standard Values - Case Size 62 (6.8 x 7.0 x 3.0)
Inductance Value (μH)
3.3 ± 20%
4.7 ± 20%
5.6 ± 20%
10 ± 20%
12 ± 20%
15 ± 20%
18 ± 20%
22 ± 20%
27 ± 20%
33 ± 20%
39 ± 20%
47 ± 20%
56 ± 20%
68 ± 20%
82 ± 20%
100 ± 20%
120 ± 20%
150 ± 20%
180 ± 20%
220 ± 20%
270 ± 20%
330 ± 20%
Test Conditions
100k, 0.3V
100k, 0.3V
100k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
DC Resistance (Ω)
0.068
0.08
0.096
0.015
0.2
0.23
0.27
0.34
0.38
0.45
0.49
0.69
0.78
1.07
1.21
1.39
1.9
2.18
2.77
3.12
4.38
4.94
NPIS__H Series
DC Current Isat/Irms (Amps)
1.94
1.63
1.4
1.1
1
0.9
0.8
0.74
0.66
0.59
0.54
0.5
0.46
0.42
0.38
0.34
0.31
0.28
0.26
0.23
0.22
0.19
Irms/Isat specification is based on +40°C temperature rise or -25% inductance change whichever is less.
®
2
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
NPIS Shielded Power Inductors
Part Number
NPIS64H100MTRF
NPIS64H120MTRF
NPIS64H150MTRF
NPIS64H180MTRF
NPIS64H220MTRF
NPIS64H270MTRF
NPIS64H330MTRF
NPIS64H390MTRF
NPIS64H470MTRF
NPIS64H560MTRF
NPIS64H680MTRF
NPIS64H820MTRF
NPIS64H101MTRF
NPIS64H121MTRF
NPIS64H151MTRF
NPIS64H181MTRF
NPIS64H221MTRF
NPIS64H271MTRF
NPIS64H331MTRF
NPIS64H391MTRF
NPIS64H471MTRF
NPIS64H561MTRF
NPIS64H681MTRF
NPIS64H821MTRF
NPIS64H102MTRF
Standard Values - Case Size 64 (6.8 x 7.0 x 5.0)
Inductance Value (μH)
10 ± 20%
12 ± 20%
15 ± 20%
18 ± 20%
22 ± 20%
27 ± 20%
33 ± 20%
39 ± 20%
47 ± 20%
56 ± 20%
68 ± 20%
82 ± 20%
100 ± 20%
120 ± 20%
150 ± 20%
180 ± 20%
220 ± 20%
270 ± 20%
330 ± 20%
390 ± 20%
470 ± 20%
560 ± 20%
680 ± 20%
820 ± 20%
1000 ± 20%
Test Conditions
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
DC Resistance (Ω)
0.12
0.13
0.18
0.24
0.27
0.3
0.33
0.37
0.52
0.56
0.63
0.71
1.03
1.15
1.68
1.87
2.08
2.37
2.67
2.94
3.93
5.43
7.32
8.24
9.26
NPIS__H Series
DC Current Isat/Irms (Amps)
1.35
1.2
1.1
1
0.91
0.82
0.75
0.69
0.62
0.58
0.52
0.47
0.43
0.39
0.35
0.32
0.29
0.26
0.25
0.22
0.2
0.18
0.17
0.15
0.14
Irms/Isat specification is based on +40°C temperature rise or -25% inductance change whichever is less.
®
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
3
NPIS Shielded Power Inductors
Part Number
NPIS73H100MTRF
NPIS73H120MTRF
NPIS73H150MTRF
NPIS73H180MTRF
NPIS73H220MTRF
NPIS73H270MTRF
NPIS73H330MTRF
NPIS73H390MTRF
NPIS73H470MTRF
NPIS73H560MTRF
NPIS73H680MTRF
NPIS73H820MTRF
NPIS73H101MTRF
NPIS73H121MTRF
NPIS73H151MTRF
NPIS73H181MTRF
NPIS73H221MTRF
NPIS73H271MTRF
NPIS73H331MTRF
NPIS73H391MTRF
NPIS73H471MTRF
NPIS73H561MTRF
NPIS73H681MTRF
NPIS73H821MTRF
NPIS73H102MTRF
Standard Values - Case Size 73 (7.8 x 7.8 x 4.0)
Inductance Value (μH)
10 ± 20%
12 ± 20%
15 ± 20%
18 ± 20%
22 ± 20%
27 ± 20%
33 ± 20%
39 ± 20%
47 ± 20%
56 ± 20%
68 ± 20%
82 ± 20%
100 ± 20%
120 ± 20%
150 ± 20%
180 ± 20%
220 ± 20%
270 ± 20%
330 ± 20%
390 ± 20%
470 ± 20%
560 ± 20%
680 ± 20%
820 ± 20%
1000 ± 20%
Test Conditions
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
DC Resistance (Ω)
0.072
0.098
0.13
0.14
0.19
0.21
0.24
0.32
0.36
0.47
0.52
0.69
0.79
0.89
1.27
1.45
1.65
2.31
2.62
2.94
4.18
4.67
5.73
6.54
9.44
NPIS__H Series
DC Current Isat/Irms (Amps)
1.68
1.52
1.33
1.2
1.07
0.96
0.91
0.77
0.76
0.68
0.61
0.57
0.5
0.49
0.43
0.39
0.35
0.32
0.28
0.26
0.24
0.22
0.19
0.18
0.16
Irms/Isat specification is based on +40°C temperature rise or -25% inductance change whichever is less.
®
4
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
NPIS Shielded Power Inductors
Part Number
NPIS74H100MTRF
NPIS74H120MTRF
NPIS74H150MTRF
NPIS74H180MTRF
NPIS74H220MTRF
NPIS74H270MTRF
NPIS74H330MTRF
NPIS74H390MTRF
NPIS74H470MTRF
NPIS74H560MTRF
NPIS74H680MTRF
NPIS74H820MTRF
NPIS74H101MTRF
NPIS74H121MTRF
NPIS74H151MTRF
NPIS74H181MTRF
NPIS74H221MTRF
NPIS74H271MTRF
NPIS74H331MTRF
NPIS74H391MTRF
NPIS74H471MTRF
NPIS74H561MTRF
NPIS74H681MTRF
NPIS74H821MTRF
NPIS74H102MTRF
Standard Values - Case Size 74 (7.8 x 7.8 x 5.0)
Inductance Value (μH)
10 ± 20%
12 ± 20%
15 ± 20%
18 ± 20%
22 ± 20%
27 ± 20%
33 ± 20%
39 ± 20%
47 ± 20%
56 ± 20%
68 ± 20%
82 ± 20%
100 ± 20%
120 ± 20%
150 ± 20%
180 ± 20%
220 ± 20%
270 ± 20%
330 ± 20%
390 ± 20%
470 ± 20%
560 ± 20%
680 ± 20%
820 ± 20%
1000 ± 20%
Test Conditions
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
1k, 0.3V
DC Resistance (Ω)
0.049
0.058
0.081
0.091
0.11
0.15
0.17
0.23
0.26
0.35
0.38
0.43
0.61
0.66
0.88
0.98
1.17
1.64
1.86
2.85
3.01
3.62
4.63
5.2
6
NPIS__H Series
DC Current Isat/Irms (Amps)
1.84
1.71
1.47
1.31
1.23
1.12
0.96
0.91
0.88
0.75
0.69
0.61
0.6
0.52
0.46
0.42
0.36
0.34
0.32
0.29
0.26
0.23
0.22
0.2
0.18
Irms/Isat specification is based on +40°C temperature rise or -25% inductance change whichever is less.
®
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
5
