0008560114

Description
KK 156 terminal crimp humpback
CategoryThe connector    Connector bracket
File Size33KB,1 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

0008560114 Online Shopping

Suppliers Part Number Price MOQ In stock
0008560114 - - View Buy Now

0008560114 Overview

KK 156 terminal crimp humpback

0008560114 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codecompliant
Factory Lead Time13 weeks
Is SamacsysN
Connector bracket typeCONNECTOR ACCESSORY
Base Number Matches1
This document was generated on 06/30/2014
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
08-56-0114
Active
KK® Interconnect System - Molex
KK® Crimp Terminal, Series 2477, Humpback, with Overall Gold (Au) Plated Brass
Contact, 18-24 AWG, Loose
Documents:

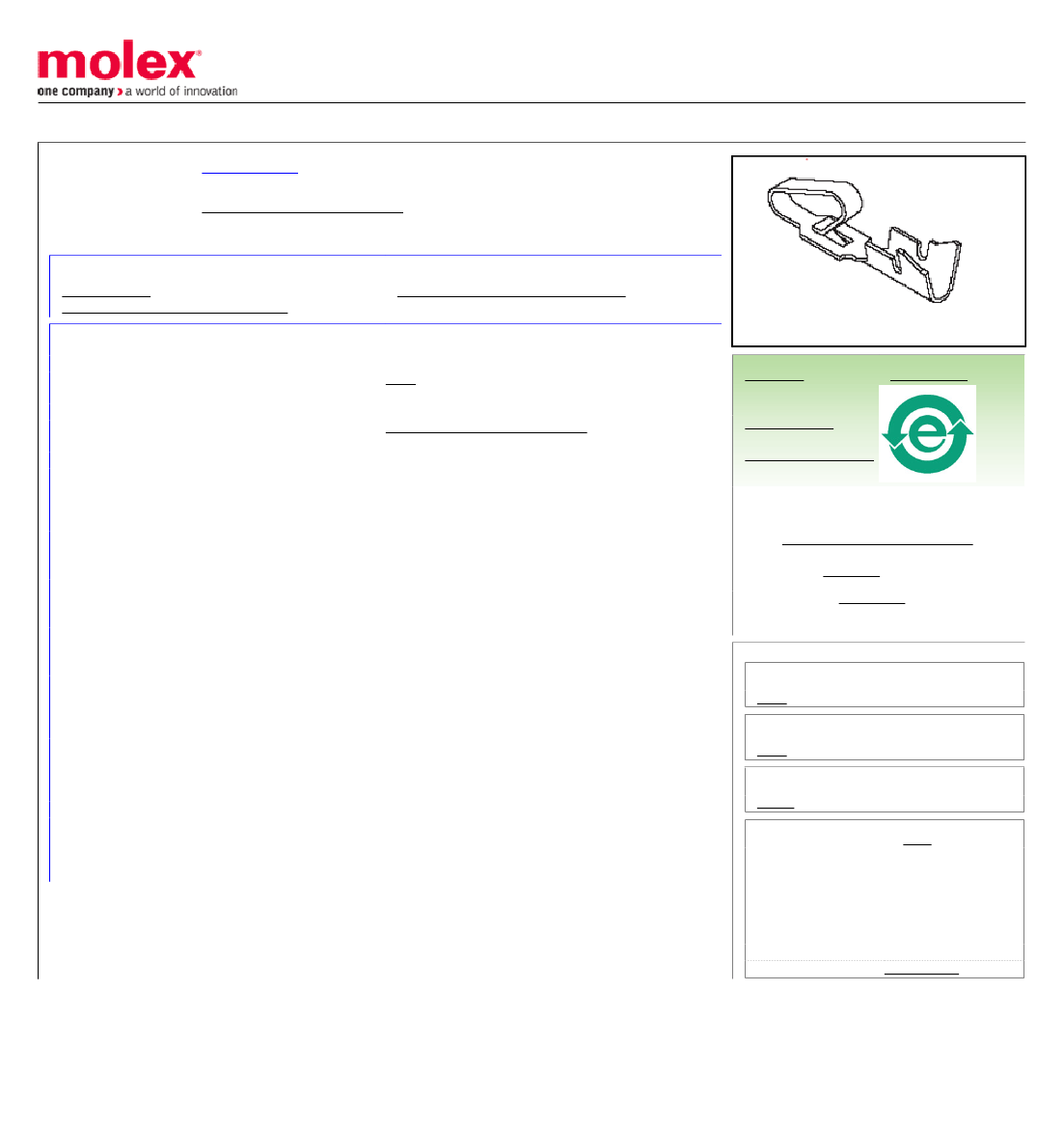

Drawing (PDF)
Product Specification PS-08-50 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
Crimp Terminals
2477
Power
Yes
KK® Interconnect System - Molex
KK®
800753842748
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Low-Halogen Status
Low-Halogen
China RoHS
General
Product Family
Series
Application
Crimp Quality Equipment
Overview
Product Name
UPC
Physical
Durability (mating cycles max)
Gender
Material - Metal
Material - Plating Mating
Material - Plating Termination
Net Weight
Packaging Type
Plating min - Mating
Plating min - Termination
Termination Interface: Style
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
25
Female
Brass
Gold
Gold
0.160/g
Bag
0.508µm
0.051µm
Crimp or Compression
2.54-2.79mm
18, 20, 22, 24
N/A
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
2477Series
Mates With
2139 Crimp Housing
Use With
41696 Crimp Housings
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Hand Crimper
0638117500
Electrical
Current - Maximum per Contact
Voltage - Maximum
4.25A, 5A
250V
Material Info
Old Part Number
2477-GL
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-08-50
SD-2477-****
This document was generated on 06/30/2014
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
