435-40-236-00-160000: Descriptionconn header dbl 36pos .100"; CategoryThe connector The connector; File Size351KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

435-40-236-00-160000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	435-40-236-00-160000	-	-	View	Buy Now

435-40-236-00-160000 Overview

conn header dbl 36pos .100"

435-40-236-00-160000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	LOW PROFILE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	MATTE TIN (200) OVER NICKEL (150)
Contact completed and terminated	MATTE TIN (200) OVER NICKEL (150)
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	435
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	36
Base Number Matches	1

Preview

Download Datasheet

View All

INTERCONNECTS

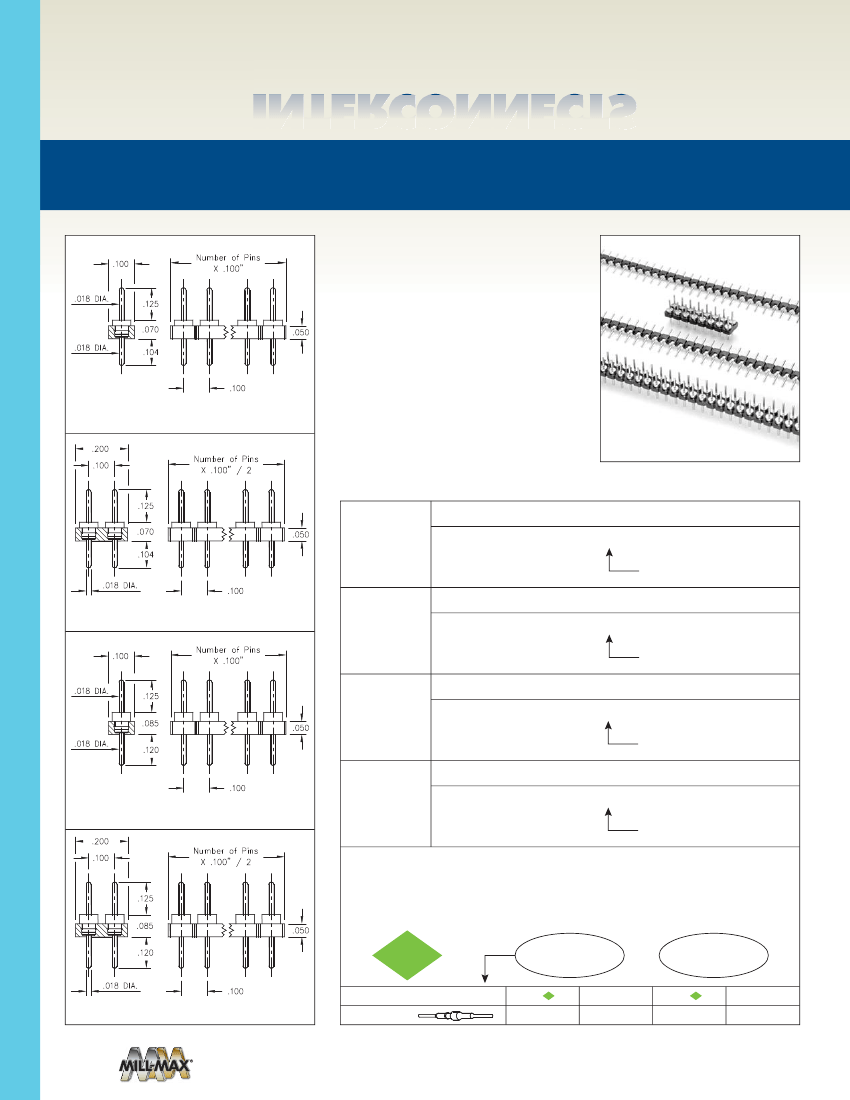

SERIES 335, 364, 435, 464 • .100” GRID (.018” DIA. PINS),

LOW PROFILE • SINGLE AND DOUBLE ROW STRIPS

•

Series 335 and 435 single and double row PCB

interconnects offer a .070” profile, the lowest

available

•

Series 364 and 464 single and double row PCB

interconnects offer .085” profile above board

•

Series 335 and 435 use MM #3516 pins. See

page 212 for details

•

Series 364 and 464 use MM #6458 pins. See

FIG. 1

page 213 for details

•

Insulators are high temperature thermoplastic,

suitable for all soldering operations

ORDERING INFORMATION

Series 335...160

Single Row .070” Profile Pin Header

335-XX-1_ _-00-160000

Specify number of pins

01-32

FIG. 1

Series 435...160

Double Row .070” Profile Pin Header

435-XX-2_ _-00-160000

FIG. 2

Series 364...580

Specify number of pins

04-72

Single Row .085” Profile Pin Header

364-10-1_ _-00-580000

FIG. 3

Series 464...580

Specify number of pins

01-32

Double Row .085” Profile Pin Header

464-10-2_ _-00-580000

FIG. 3

PAGE 78 | INTERCONNECTS

FIG. 4

Specify number of pins

04-72

RoHS - 2

2011/65/EU

XX=Plating Code

See Below

10

”

Au

For

Electrical, Mechanical

& Enviromental Data,

See page 264

SPECIFY PLATING CODE XX=

90

200

”

Sn/Pb

40

200

”

Sn

FIG. 4

Pin Plating

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
