147279-5: Descriptionconn header B/A 20pos DL gold; CategoryThe connector; File Size147KB，1 Pages; ManufacturerAll Sensors

Download Datasheet Parametric Compare View All

147279-5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	147279-5	-	-	View	Buy Now

147279-5 Overview

conn header B/A 20pos DL gold

147279-5 Parametric

Parameter Name	Attribute value
Datasheets

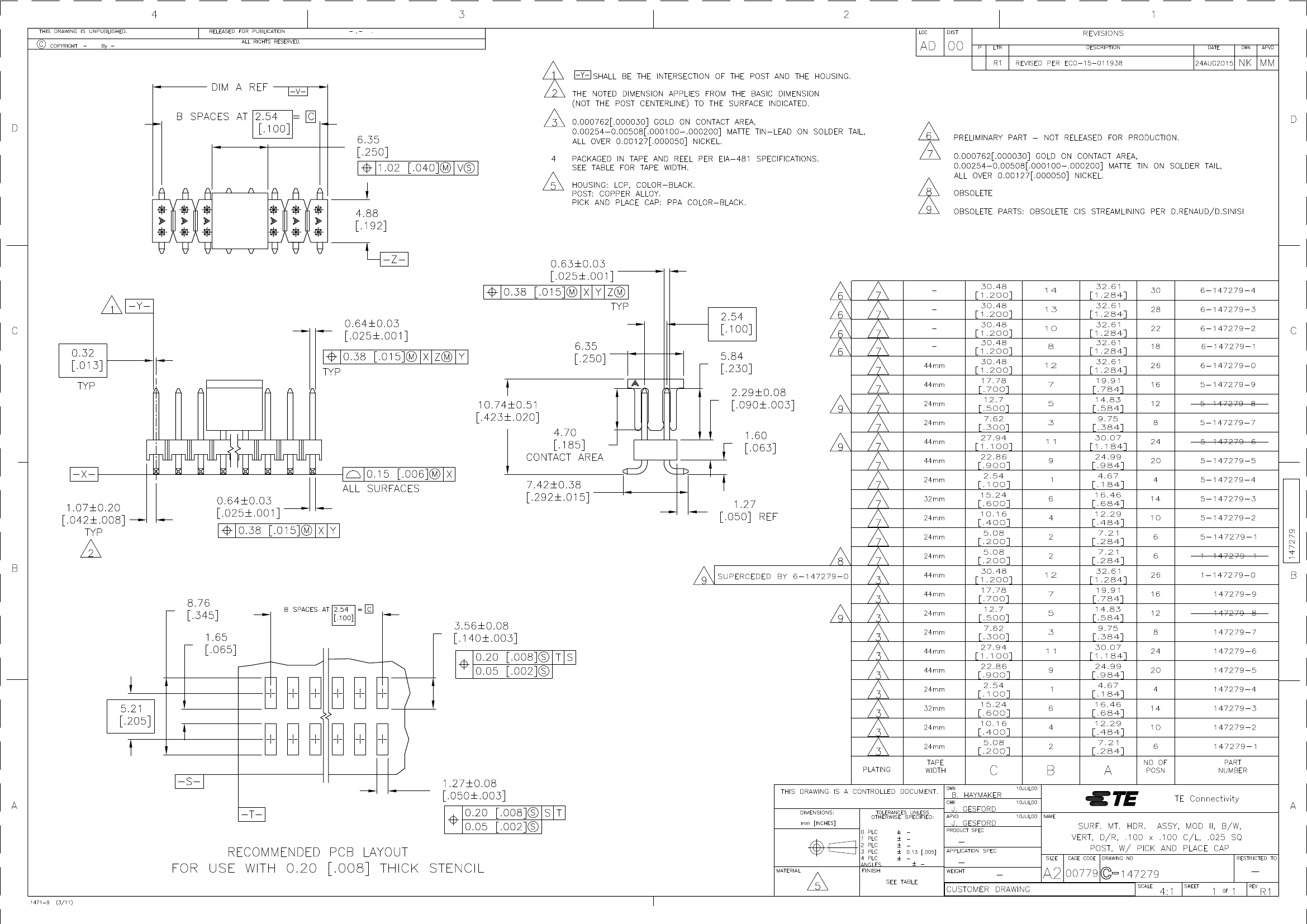

147279 Drawing
RoHS Informati
147279-5 Statement of Compliance
3D Model
147279-5.pdf
Standard Package	750
Category	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Male Pins
Packaging	Tape & Reel (TR)
Contact Type	Male Pi
Connector Type	Header, Unshrouded, Breakaway
Number of Positions	20
Number of Positions Loaded	All
Pitch	0.100" (2.54mm)
Number of Rows	2
Row Spacing	0.100" (2.54mm)
Contact Mating Length	0.230" (5.84mm)
Mounting Type	Surface Mou
Terminati	Solde
Fastening Type	-
Features	-
Contact Finish	Gold
Contact Finish Thickness	30µin (0.76µm)
Col	Black
Mating Products	5-102084-6-ND - CONN RCPT 20POS HORZ DUAL TIN146140-9-ND - CONN RCPT 20POS DL R/A .100 T/H1-147105-0-ND - CONN RCPT 20POS .100 GOLD SMD1-147103-0-ND - CONN RCPT 20POS .100 TIN SMDA114785-ND - CONN RCPT 20POS DUAL VERT GOLDA114889-ND - CONN RECEPT 20POS .100 DL TINA32971-ND - CONN RECEPT 20POS .100 VERT DUALA32959-ND - CONN RECEPT 20POS .100 VERT DUALA32941-ND - CONN RECEPT 20POS .100 VERT DUALA32929-ND - CONN RECEPT 20POS .100 RT/A DUAL1-535598-0-ND - CONN RCPT 20POS .100 DUAL T/H AU1-535542-0-ND - CONN RECEPT 20POS .100 VERT DUALA26460-ND - CONN RECEPT 20POS .100 VERT DUALA26490-ND - CONN RECEPT 20POS .100 VERT DUALA26502-ND - CONN RECEPT 20POS .100 VERT DUALA26438-ND - CONN RECEPT 20POS .100 RT/A DUAL
