GP3125-181MLF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> GP3125-181MLF

GP3125-181MLF: DescriptionGeneral Purpose Inductor, 180uH, 20%, 1 Element, Ferrite-Core, SMD,; CategoryPassive components inductor; File Size2MB，1 Pages; ManufacturerGowanda Electronics

Download Datasheet Parametric View All

GP3125-181MLF Overview

General Purpose Inductor, 180uH, 20%, 1 Element, Ferrite-Core, SMD,

GP3125-181MLF Parametric

Parameter Name	Attribute value
Maker	Gowanda Electronics
Reach Compliance Code	compliant
ECCN code	EAR99
core material	FERRITE
DC Resistance	0.35 Ω
Nominal inductance(L)	180 µH
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Maximum rated current	0.9 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.001 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

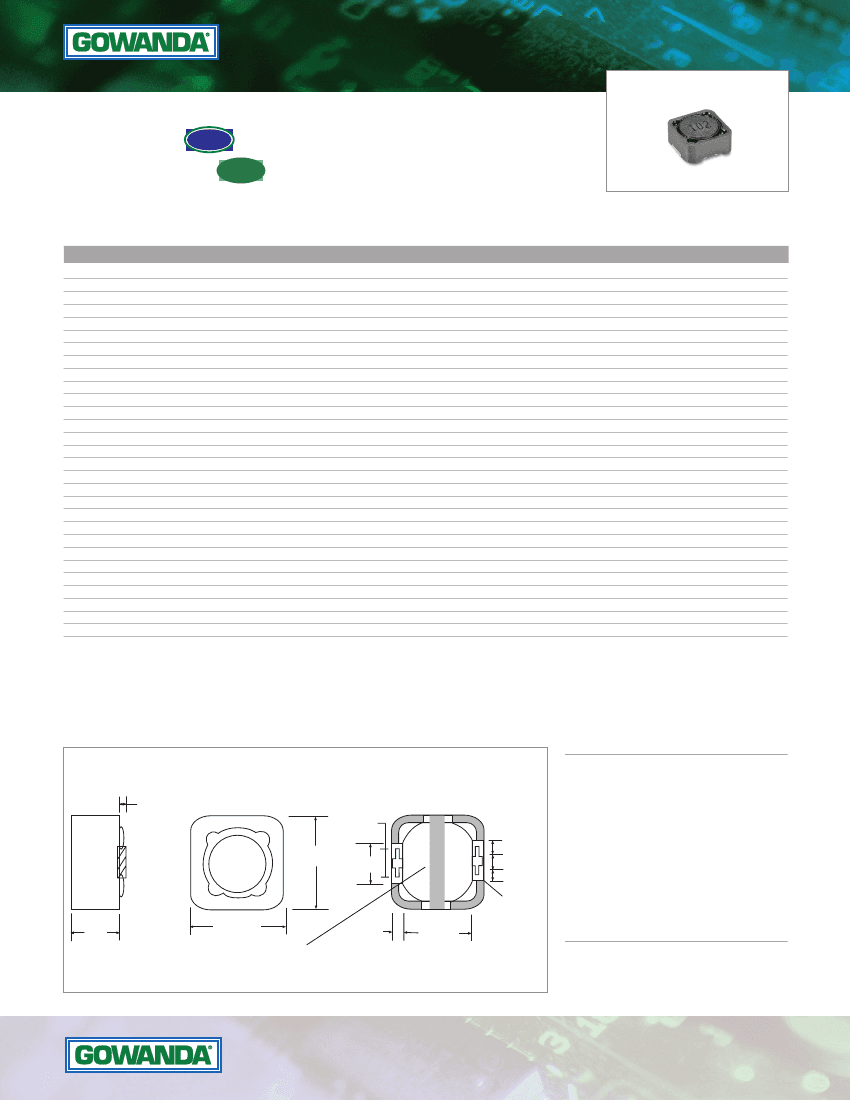

STANDARD POWER INDUCTORS - SURFACE MOUNT

GP3125

TRADITIONAL

GP3125LF

PART

NUMBER

GP3125-2R2M

GP3125-3R3M

GP3125-4R7M

GP3125-6R8M

GP3125-100M

GP3125-120M

GP3125-150M

GP3125-180M

GP3125-220M

GP3125-270M

GP3125-330M

GP3125-390M

GP3125-470M

GP3125-560M

GP3125-680M

GP3125-820M

GP3125-101M

GP3125-121M

GP3125-151M

GP3125-181M

GP3125-221M

GP3125-271M

GP3125-331M

GP3125-391M

GP3125-471M

GP3125-561M

GP3125-681M

GP3125-821M

GP3125-102M

COMPLIANT

RoHS

Wirewound, Shielded

µH

2.2

3.3

4.7

6.8

100

120

150

180

220

270

330

390

470

560

680

820

1000

TEST

FREQ

KHz

100

DCR

OHMS

MAX

0.020

0.030

0.040

0.050

0.055

0.060

0.065

0.070

0.075

0.085

0.095

0.105

0.115

0.135

0.170

0.190

0.210

0.250

0.300

0.350

0.420

0.510

0.600

0.750

0.820

1.000

1.300

1.650

2.000

CURRENT

RATING

A DC MAX

7.00

5.50

5.00

4.50

4.00

3.50

3.30

3.00

2.80

2.30

2.10

2.00

1.80

1.60

1.50

1.40

1.30

1.10

1.00

0.90

0.80

0.75

0.70

0.65

0.60

0.55

0.50

0.45

0.40

FERRITE CORE/FERRITE SLEEVE

All part numbers provide 20% tolerance on inductance

Custom designs are available to meet your specific requirements; please contact factory

*Add “LF” suffix for RoHS requirement. Example: GP3125-2R2MLF

Gowanda designates a component RoHS-compliant by adding “LF” (lead free) to the part number.

These LF components meet the ≤ .1% lead requirement and they are compatible with 260°C soldering processes.

NOTES:

• Operating Temperature Range:

-55°C to +125°C

0.015

(0.38)

REF

TOP VIEW

0.110 ± 0.010

(2.54 ± 0.5)

0.472 ± 0.020

(12.0 ± 0.5) 0.198 ± 0.020

(5.0 ± 0.5)

BOTTOM VIEW

• Current Rating is based on a 40°C maximum

temperature rise, 10% maximum decrease in

inductance, at an ambient temperature of 25°C

0.075 REF

0.050 REF

0.075 REF

TERMINAL

AREA

• Terminals are solderable - more than 95% new

solder coverage when subjected to soldering

temperature

• Application Frequency Range:

To 1.0 MHz MIN (for L values 1.2 µH -10 µH)

To 300 kHz MIN (for values > 10 µH)

TAPE AND REEL SPECS:

Pcs./Reel maximum:

Pitch between parts:

Tape width:

Reel diameter:

500

16 mm

24 mm

13 in.

0.236

(6.0)

MAX

0.472 ± 0.020

(12.0 ± 0.5)

0.110 ± 0.020

(2.54 ± 0.5)

RECESSED METALIZED AREAS

(NOT TERMINAL AREA)

0.300 ± 0.020

(7.6 ± 0.5)

in. (mm)

One Magnetics Pkwy, Gowanda, NY 14070 • (t) 716-532-2234 • (f) 716-532-2702 • sales@gowanda.com

www.gowanda.com

030414
