5111374-4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 5111374-4

5111374-4: DescriptionA/L univ hdr 20p vert LG lat HT; CategoryThe connector; File Size130KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

5111374-4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5111374-4	-	-	View	Buy Now

5111374-4 Overview

A/L univ hdr 20p vert LG lat HT

5111374-4 Parametric

Parameter Name	Attribute value
Datasheets

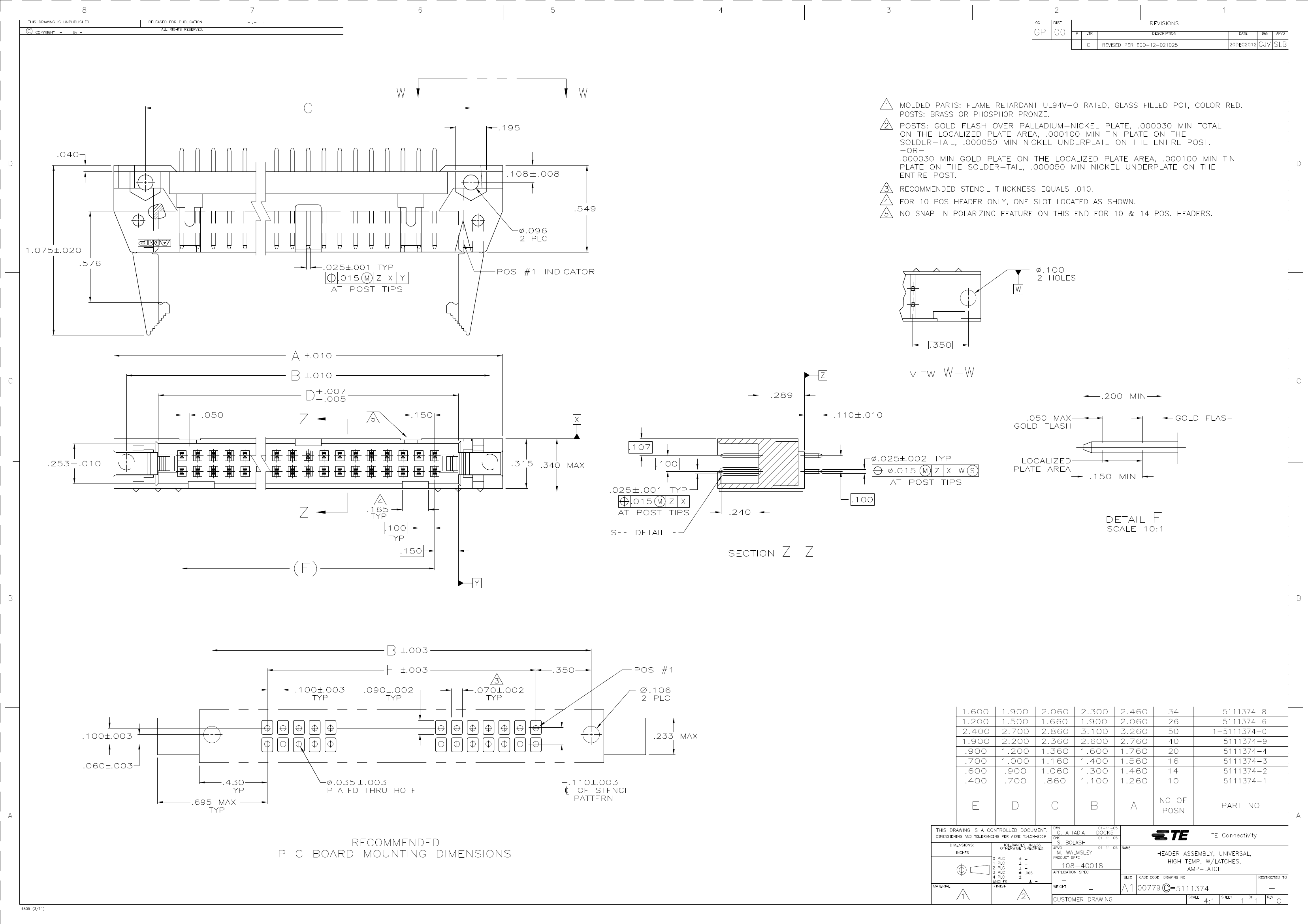

5111374 Drawing
Standard Package	42
Category	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Male Pins
Packaging	Tray
Contact Type	Male Pi
Connector Type	Header, Shrouded
Number of Positions	20
Number of Positions Loaded	All
Pitch	0.100" (2.54mm)
Number of Rows	2
Row Spacing	0.100" (2.54mm)
Contact Mating Length	0.240" (6.10mm)
Mounting Type	Through Hole
Terminati	Solde
Fastening Type	Latch Lock/Eject Hooks
Features	-
Contact Finish	Gold
Contact Finish Thickness	Flash
Col	Red
Other Names	A118481

Preview

Download Datasheet

View All

5111374-4 Related Products

	5111374-4	5111374-1	5111374-2	5111374-3	5111374-6	5111374-8	5111374-9	1-5111374-0
Description	A/L univ hdr 20p vert LG lat HT	A/L univ hdr 10p vert LG lat HT	A/L univ hdr 14p vert LG lat HT	A/L univ hdr 16p vert LG lat HT	A/L univ hdr 26p vert LG lat HT	A/L univ hdr 34p vert LG lat HT	A/L univ hdr 40p vert LG lat HT	A/L univ hdr 50p vert LG lat HT
Standard Package	42	54	48	48	60	50	24	18
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins
Packaging	Tray	Tray	Tray	Tray	Tray	Tray	Tray	Tray
Contact Type	Male Pi	Male Pi	Male Pi	Male Pi	Male Pi	Male Pi	Male Pi	Male Pi
Connector Type	Header, Shrouded	Header, Shrouded	Header, Shrouded	Header, Shrouded	Header, Shrouded	Header, Shrouded	Header, Shrouded	Header, Shrouded
Number of Positions	20	10	14	16	26	34	40	50
Number of Positions Loaded	All	All	All	All	All	All	All	All
Pitch	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Rows	2	2	2	2	2	2	2	2
Row Spacing	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Contact Mating Length	0.240" (6.10mm)	0.240" (6.10mm)	0.240" (6.10mm)	0.240" (6.10mm)	0.240" (6.10mm)	0.240" (6.10mm)	0.240" (6.10mm)	0.240" (6.10mm)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Terminati	Solde	Solde	Solde	Solde	Solde	Solde	Solde	Solde
Fastening Type	Latch Lock/Eject Hooks	Latch Lock/Eject Hooks	Latch Lock/Eject Hooks	Latch Lock/Eject Hooks	Latch Lock/Eject Hooks	Latch Lock/Eject Hooks	Latch Lock/Eject Hooks	Latch Lock/Eject Hooks
Contact Finish	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold
Contact Finish Thickness	Flash	Flash	Flash	Flash	Flash	Flash	Flash	Flash
Col	Red	Red	Red	Red	Red	Red	Red	Red
Other Names	A118481	A118478	A118479	A118480	A118482	A118483	A118484	A118234
