GEC03DABN-M30 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> GEC03DABN-M30

GEC03DABN-M30: Descriptionconn header 6pos .100 dual smd; CategoryThe connector; File Size31KB，1 Pages; ManufacturerSullins Connector Solutions; Environmental Compliance

Download Datasheet Parametric View All

GEC03DABN-M30 Overview

conn header 6pos .100 dual smd

GEC03DABN-M30 Parametric

Parameter Name	Attribute value
Datasheets

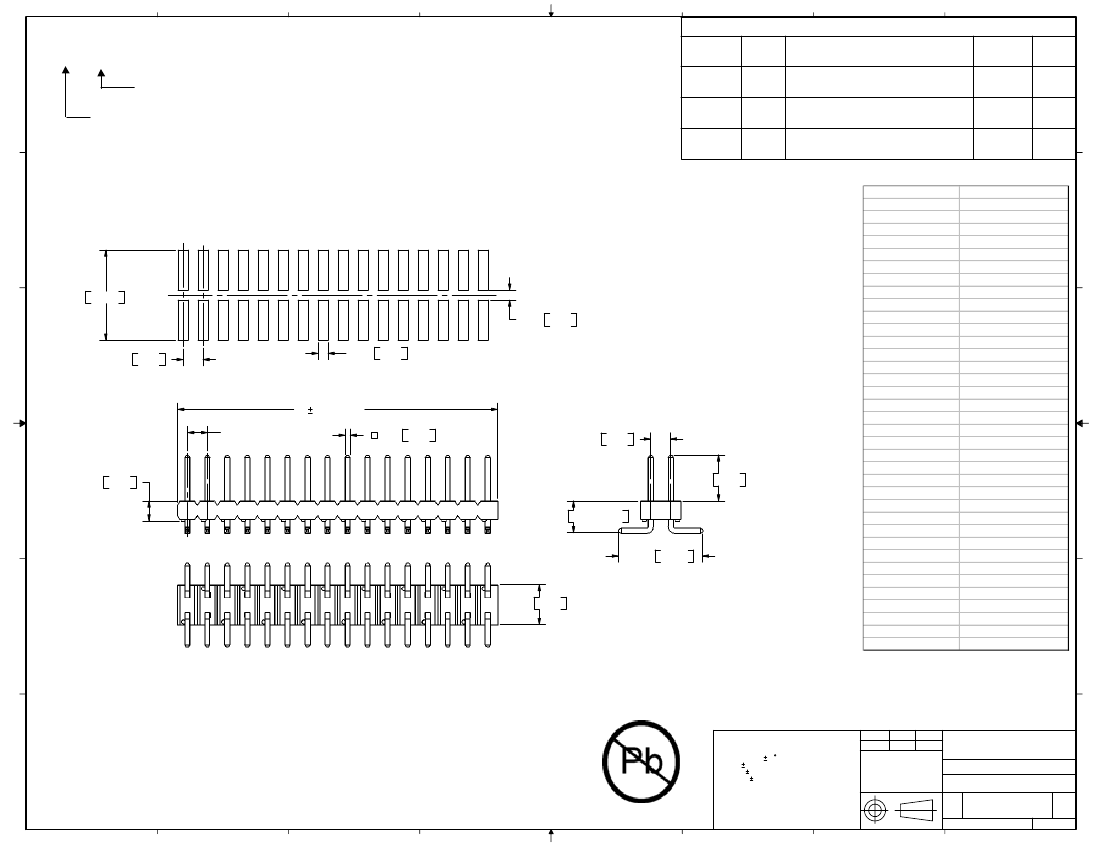

GxCxxDABN-M30 Drawing
Male HDR .100"(2.54mm)
Catalog Drawings
S23x1E Series Dual Straigh
Featured Produc
Hi-Temp Headers & Card Edge Connectors
Standard Package	1
Category	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Male Pins
Packaging	Bulk
Contact Type	Male Pi
Connector Type	Header, Unshrouded, Breakaway
Number of Positions	6
Number of Positions Loaded	All
Pitch	0.100" (2.54mm)
Number of Rows	2
Row Spacing	0.100" (2.54mm)
Contact Mating Length	0.230" (5.84mm)
Mounting Type	Surface Mou
Terminati	Solde
Fastening Type	-
Features	-
Contact Finish	Ti
Contact Finish Thickness	10µin (0.25µm)
Col	Black
Mating Products	S7106-ND - CONN HEADER FMAL 6PS .1" DL GOLDS7071-ND - CONN HEADER FMALE 6PS .1" DL TINS5712-ND - CONN FEMALE 6POS DL .1" GOLD SMDS5673-ND - CONN FEMALE 6POS DL .1" TIN SMDS5556-ND - CONN FEMALE 6POS DL .1" R/A GOLDS5517-ND - CONN FEMALE 6POS DL .1" R/A TINS4611-ND - CONN FEMALE 6POS DL .1" GOLD SMDS4572-ND - CONN FEMALE 6POS DL .1" TIN SMDS4455-ND - CONN FMALE 6POS DL .1" R/A GOLDS4416-ND - CONN FEMALE 6POS DL .1" R/A TINS4303-ND - CONN HEADER FEM 6POS .1" DL GOLDS4203-ND - CONN HEADER FEM 6POS .1" DL TIN
Other Names	S2331E-03

Preview

Download Datasheet

View All

REVISIONS

PART NUMBER CODING

G _ C _ _ DABN - M30

REV.

ECO.

536

DESCRIPTION

INITIAL RELEASE

.150" DIMENSION CHANGED TO

.160"

ADDED SPECS, UPDATED TO

SHOW ONLY AB TERMINATION

DATE

2/1/2005

AJT

NUMBER OF POSITIONS PER ROW

PLATING

ALL PLATINGS HAVE .000050" NICKEL UNDERPLATE

CONTACT

TERMINATION

.000010" GOLD

.000100" PURE TIN, MATTE

.000030" GOLD

.000100" PURE TIN, MATTE

.000100" PURE TIN, MATTE OVERALL

.450 11.43 MIN

.050 1.27 MAX

.100 2.54

.050 1.27 MIN

RECOMMENDED PCB LAYOUT

A .010 [.25]

.100

.025 0.64

.100 2.54

.160±.010 4.05±0.25

.230 5.84

.420 10.67

.200 5.08

PART NUMBER

G_C01DABN-M30

G_C02DABN-M30

G_C03DABN-M30

G_C04DABN-M30

G_C05DABN-M30

G_C06DABN-M30

G_C07DABN-M30

G_C08DABN-M30

G_C09DABN-M30

G_C10DABN-M30

G_C11DABN-M30

G_C12DABN-M30

G_C13DABN-M30

G_C14DABN-M30

G_C15DABN-M30

G_C16DABN-M30

G_C17DABN-M30

G_C18DABN-M30

G_C19DABN-M30

G_C20DABN-M30

G_C21DABN-M30

G_C22DABN-M30

G_C23DABN-M30

G_C24DABN-M30

G_C25DABN-M30

G_C26DABN-M30

G_C27DABN-M30

G_C28DABN-M30

G_C29DABN-M30

G_C30DABN-M30

G_C31DABN-M30

G_C32DABN-M30

G_C33DABN-M30

G_C34DABN-M30

G_C35DABN-M30

G_C36DABN-M30

0.100 [2.54]

0.200 [5.08]

0.300 [7.62]

0.400 [10.16]

0.500 [12.70]

0.600 [15.24]

0.700 [17.78]

0.800 [20.32]

0.900 [22.86]

1.000 [25.40]

1.100 [27.94]

1.200 [30.48]

1.300 [33.02]

1.400 [35.56]

1.500 [38.10]

1.600 [40.64]

1.700 [43.18]

1.800 [45.72]

1.900 [48.26]

2.000 [50.80]

2.100 [53.34]

2.200 [55.88]

2.300 [58.42]

2.400 [60.96]

2.500 [63.50]

2.600 [66.04]

2.700 [68.58]

2.800 [71.12]

2.900 [73.66]

3.000 [76.20]

3.100 [78.74]

3.200 [81.28]

3.300 [83.82]

3.400 [86.36]

3.500 [88.90]

3.600 [91.44]

NOTES:

1. INSULATOR MATERIAL: PA9T.

2. CONTACT MATERIAL: PHOSPHOR BRONZE

3. PLATING: SEE TABLE

4. OPERATING TEMPERATURE: -65°C TO +125°C

5. PROCESSING TEMPERATURE: 260°C MAX FOR 120 SECS MAX.

6. UL FLAMMABILITY: 94V-0

7. VOLTAGE RATING: 600 VDC MINIMUM AT SEA LEVEL.

8. CURRENT RATING: 3 AMP

9. INSULATION RESISTANCE: 5000 MEGA OHMS.

10. MODIFICATION: SURFACE MOUNT.

CUSTOMER COPY

UNLESS OTHERWISE SPECIFIED:

DIMENSIONS ARE IN INCHES[MM]

TOLERANCES:

ANGULAR: 1

.XX= .02 [.508]

.XXX= .005 [.1270]

.XXXX= .0005 [.0127]

PARENTHETICAL INFORMATION IS FOR

REFERENCE ONLY

DATE

DRAWN

NAME

Aria. N

THE INFORMATION HERIN CONTAINS

PROPIETARY RIGHTS OF

SULLINS ELECTRONICS AND IS NOT

TO BE REPRODUCED, USED OR

DISCLOSED TO OTHERS FOR ANY

PURPOSE EXCEPT AS SPECIFICALLY

AUTHORIZED IN WRITING BY

SULLINS ELECTRONICS.

SULLINS

ELECTRONICS

DESCRIPTION

PART NUMBER

HEADER CONNECTOR

REV

G _ C _ _ DABN-M30

SIZE DWG. NO.

RoHS COMPLIANT

INTERPRET DIMENSIONS AND GEOMETRIC

TOLERANCING

PER: ANSI Y14.5-1984

C10059

SHEET 1 OF 1

SCALE: 4:1

FILE NAME: Z:\Part Assemblies\Customer Drawings\C10059, G_C_ _DABN-M30 HEADERS PRINT: 12/08/05
