TECHNICAL CHARACTERISTICS
MATERIAL
INSULATOR: PBT
COLOR: BLACK
CONTACT MATERIAL: COPPER ALLOY
CONTACT TYPE: STAMPED
CONTACT PLATING: GOLD
QUALITY CLASS: 3 AS PER CECC 75 301-802
PITCH: 2.54MM
ENVIRONMENTAL
OPERATING TEMPERATURE: -40 UP TO 125°C
FLAMABILITY RATING: UL94-V0
COMPLIANCE: LEAD FREE AND ROHS
ELECTRICAL
CURRENT RATING: 3 A MAX
WORKING VOLTAGE: 250 VAC
INSULATOR RESISTANCE: >1000 MOHM
DIELECTRIC WITHSTANDING VOLTAGE: 500 VAC/MN
CONTACT RESISTANCE: 20 mOHM MAX
STANDARD
CERTIFIED: E323964
SOLDERING
JEDEC LEAD FREE WAVE SOLDERING PROCESS

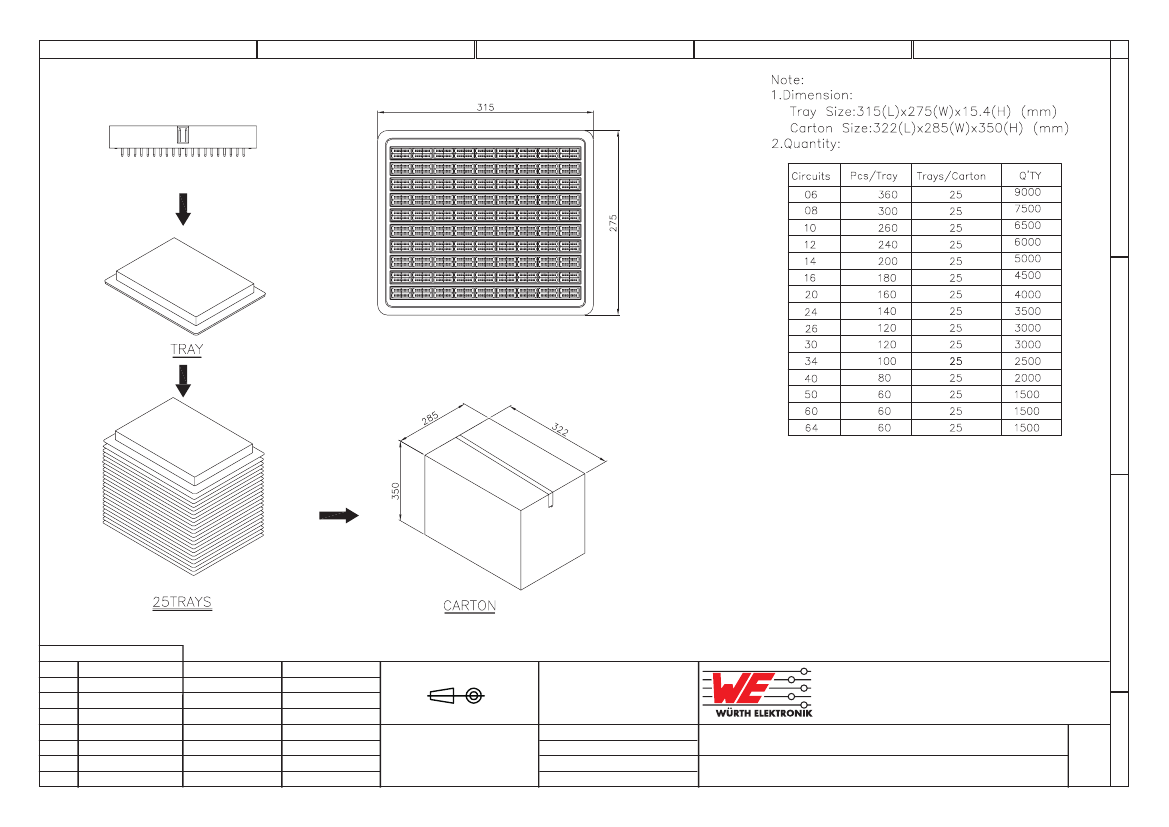

PACKAGING
TRAY
Last
A
B

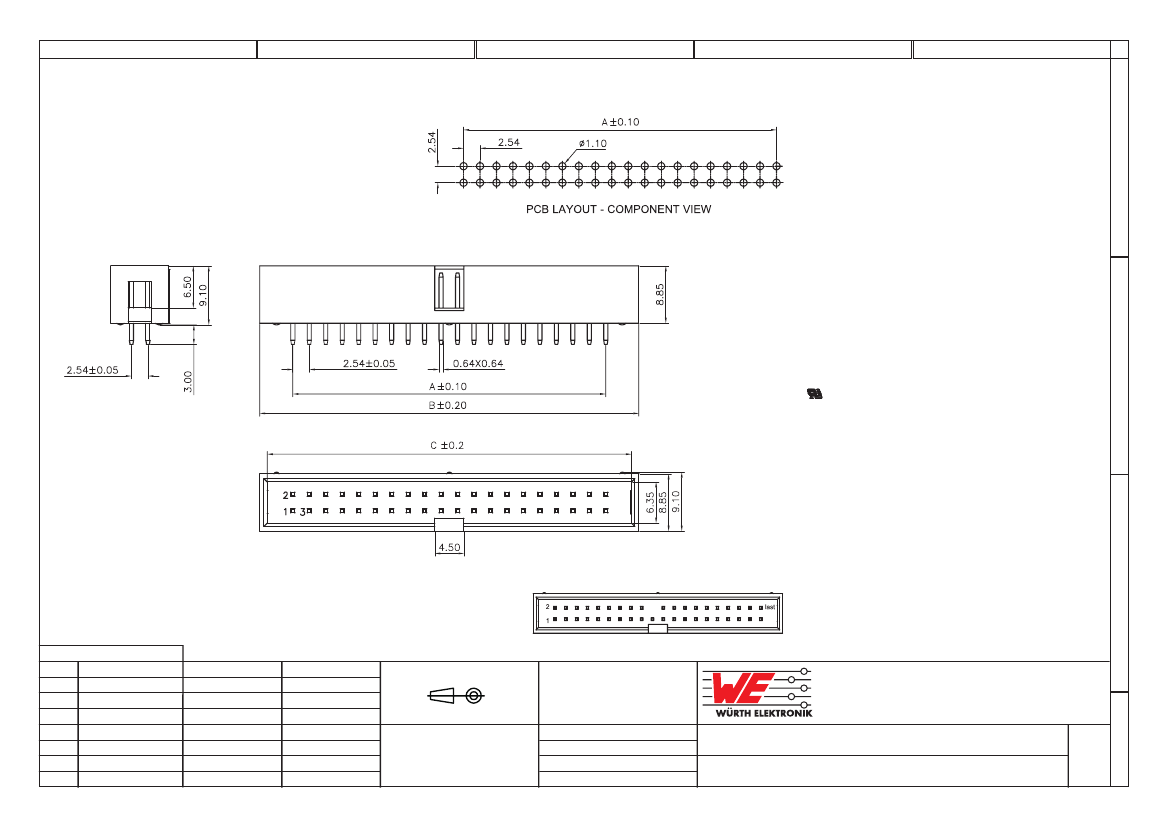

DIMENSION
A = 2.54 x (NB. PIN / 2 -1)
B = 2.54 x (NB. PIN / 2) +7.66
C = 2.54 x (NB. PIN / 2 -1) +7.88
61203921621: pin 20 removed
NOTES:
No. Of Positions 50-64 With 3 Keys
All Oher Pin With 1 Key
RoHS Compliant
PROJECTION:
GENERAL TOLERANCE
.X = +/- 0.2
.XX = +/- 0.15
APPROVAL: FBr
H
REV
06-APR-16
DATE
DRAWING
FILE
AK
BY
UNIT: MM
SCALE:
SHEET: 1/3
DRAW: PEARL
WERI PART NO: 612 0xx 216 21
DESCRIPTION: 2.54MM MALE BOX HEADER
SIZE
C
A4
D
1
2
3
4
5
Cautions and Warnings:
This electronic component is designed and developed with the intention for use
in general electronics equipments.
Before incorporating the components into any equipments in the field such as aerospace, aviation,
nuclear control, submarine, transportation, (automotive control, train control, ship control),
transportation signal, disaster prevention, medical, public information network etc. where higher safety
and reliability are especially required or if there is possibility of direct damage or injury to human body,
Wurth Elektronik must be asked for a written approval.
In addition, even electronic component in general electronic equipments, when used in electrical circuits
that require high safety, reliability functions or performance, the sufficient reliability evaluation-check
for the safety must be performed before by the user before usage.
