5-146311-7 datasheet, PDF - EEWORLD Datasheet

5-146311-7: Descriptionconn hdr brkway DL RA 14pos .100; CategoryThe connector; File Size360KB，2 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

5-146311-7 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5-146311-7	-	-	View	Buy Now

conn hdr brkway DL RA 14pos .100

Parameter Name	Attribute value
Datasheets

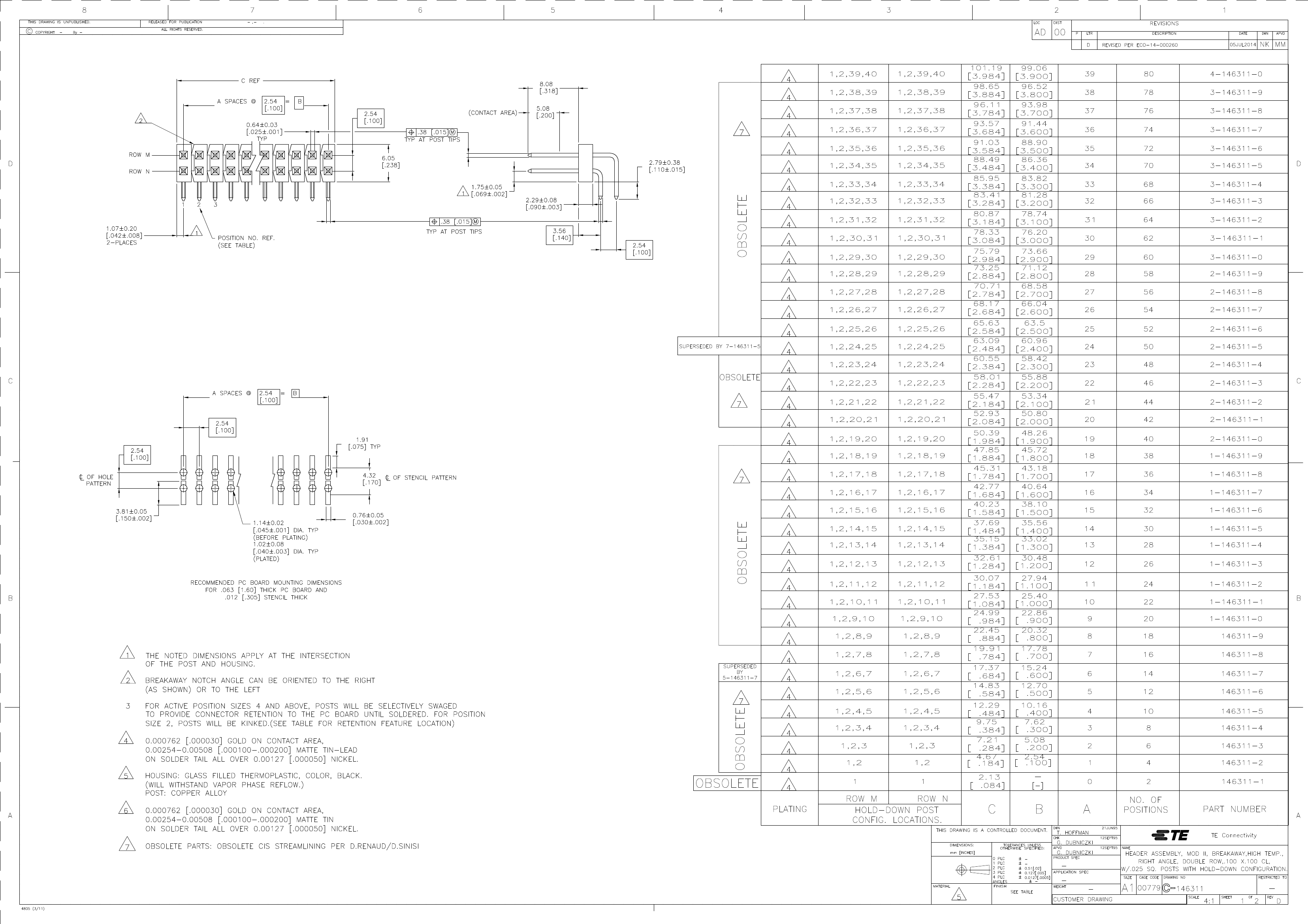

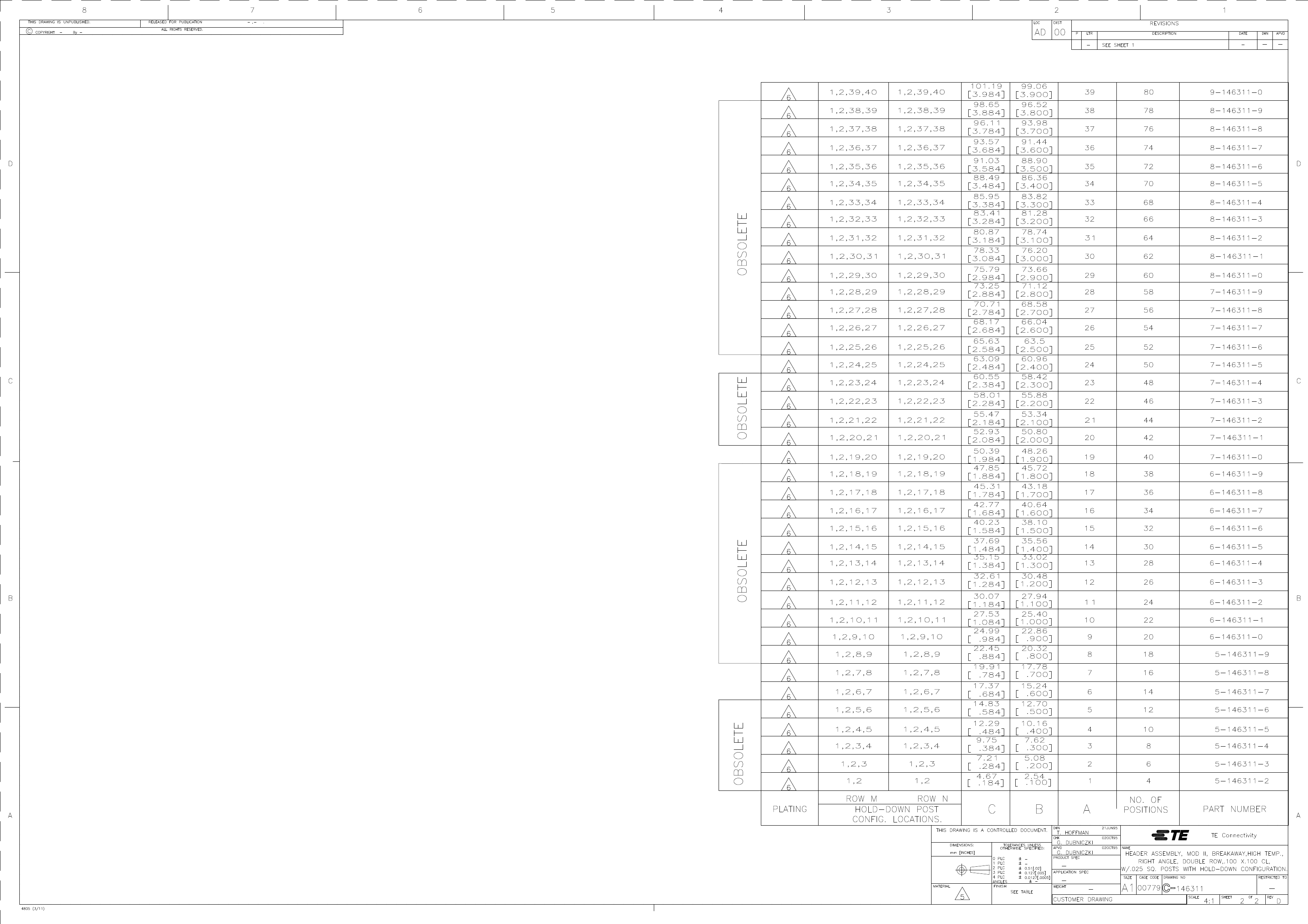

146311 Drawing
RoHS Informati
5-146311-7 Statement of Compliance
RoHS 2 Stateme
Standard Package	25
Category	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Male Pins
Packaging	Bulk
Contact Type	Male Pi
Connector Type	Header, Unshrouded, Breakaway
Number of Positions	14
Number of Positions Loaded	All
Pitch	0.100" (2.54mm)
Number of Rows	2
Row Spacing	0.100" (2.54mm)
Contact Mating Length	0.318" (8.08mm)
Mounting Type	Through Hole, Right Angle
Terminati	Solde
Fastening Type	-
Features	-
Contact Finish	Gold
Contact Finish Thickness	30µin (0.76µm)
Col	Black
Other Names	5-146311-7-NDA115296

	5-146311-7	7-146311-0	146311-8	7-146311-5
Description	conn hdr brkway DL RA 14pos .100	conn hdr brkway DL RA 40pos .100	conn headr B/A 16pos DL R/A gold	conn hdr brkway DL RA 50pos .100
Standard Package	25	500	150	100
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins
Packaging	Bulk	Bulk	Bulk	Bulk
Contact Type	Male Pi	Male Pi	Male Pi	Male Pi
Connector Type	Header, Unshrouded, Breakaway	Header, Unshrouded, Breakaway	Header, Unshrouded, Breakaway	Header, Unshrouded, Breakaway
Number of Positions	14	40	16	50
Number of Positions Loaded	All	All	All	All
Pitch	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Rows	2	2	2	2
Row Spacing	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Contact Mating Length	0.318" (8.08mm)	0.318" (8.08mm)	0.318" (8.08mm)	0.318" (8.08mm)
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle
Terminati	Solde	Solde	Solde	Solde
Contact Finish	Gold	Gold	Gold	Gold
Contact Finish Thickness	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)
Col	Black	Black	Black	Black
