206763-2: Descriptionconn header pin 24pos vert tin; CategoryThe connector; File Size140KB，1 Pages; ManufacturerAll Sensors

Download Datasheet Parametric Compare View All

206763-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	206763-2	-	-	View	Buy Now

206763-2 Overview

conn header pin 24pos vert tin

206763-2 Parametric

Parameter Name	Attribute value
Datasheets

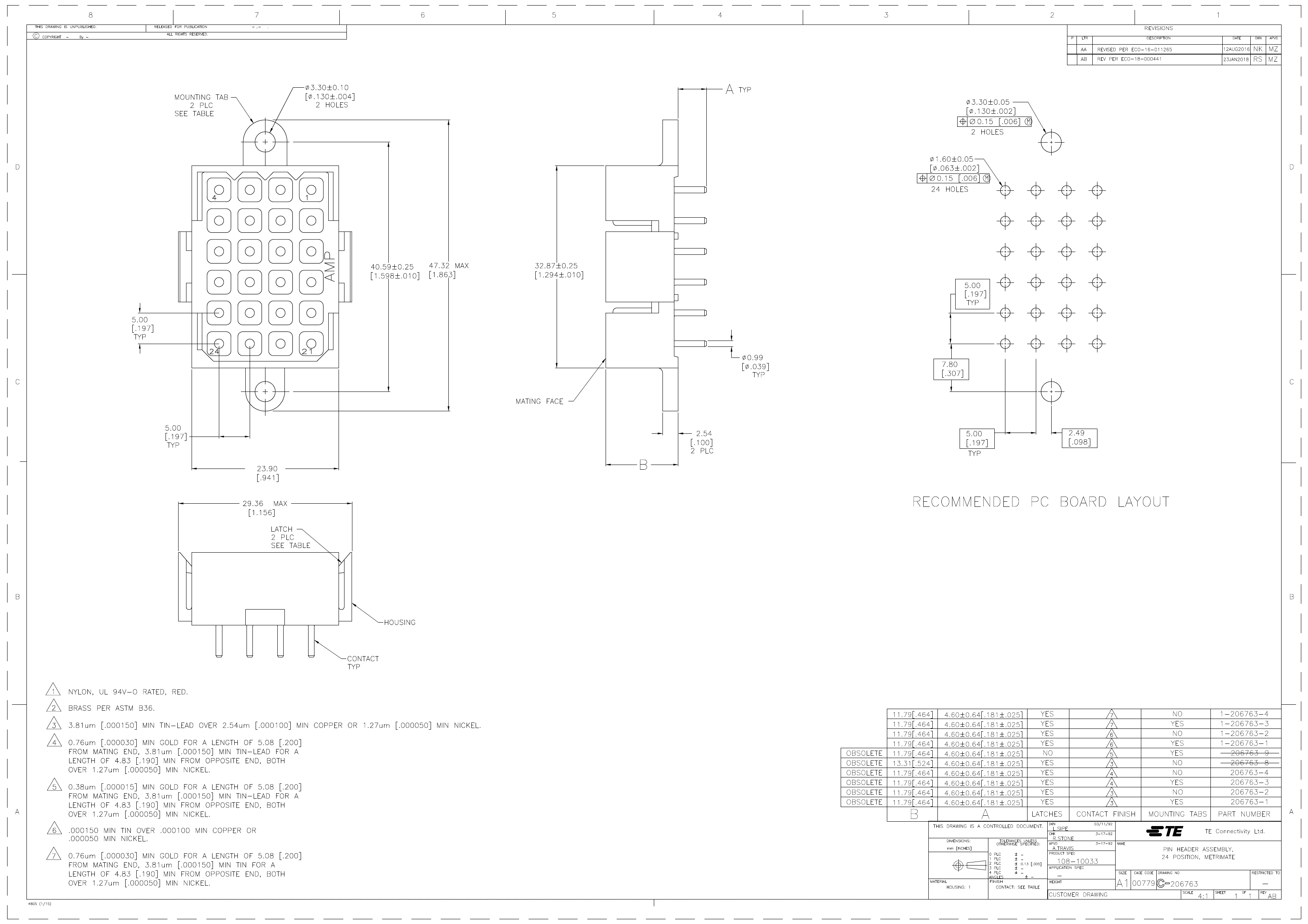

206763 Drawing
3D Model
206763-2.pdf
Standard Package	320
Category	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Male Pins
Packaging	Tray
Contact Type	Male Pi
Connector Type	Header, Shrouded
Number of Positions	24
Number of Positions Loaded	All
Pitch	0.197" (5.00mm)
Number of Rows	4
Row Spacing	0.197" (5.00mm)
Contact Mating Length	0.200" (5.08mm)
Mounting Type	Through Hole
Terminati	Solde
Fastening Type	Latch Lock
Features	-
Contact Finish	Ti
Contact Finish Thickness	150µin (3.81µm)
Col	Red
Mating Products	A29203-ND - CONN PLUG 24 POS METRIMATE

Preview

Download Datasheet

View All

206763-2 Related Products

	206763-2	1-206763-2	206763-3	206763-4	1-206763-3
Description	conn header pin 24pos vert tin	conn header pin 24pos vert tin	conn header pin 24pos vert gold	conn header pin 24pos vert gold	conn header pin 24pos vert gold
Standard Package	320	320	256	40	32
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins
Packaging	Tray	Tray	Tray	Tray	Tray
Contact Type	Male Pi	Male Pi	Male Pi	Male Pi	Male Pi
Connector Type	Header, Shrouded	Header, Shrouded	Header, Shrouded	Header, Shrouded	Header, Shrouded
Number of Positions	24	24	24	24	24
Number of Positions Loaded	All	All	All	All	All
Pitch	0.197" (5.00mm)	0.197" (5.00mm)	0.197" (5.00mm)	0.197" (5.00mm)	0.197" (5.00mm)
Number of Rows	4	4	4	4	4
Row Spacing	0.197" (5.00mm)	0.197" (5.00mm)	0.197" (5.00mm)	0.197" (5.00mm)	0.197" (5.00mm)
Contact Mating Length	0.200" (5.08mm)	0.200" (5.08mm)	0.200" (5.08mm)	0.200" (5.08mm)	0.200" (5.08mm)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Terminati	Solde	Solde	Solde	Solde	Solde
Fastening Type	Latch Lock	Latch Lock	Latch Lock	Latch Lock	Latch Lock
Contact Finish	Ti	Ti	Gold	Gold	Gold
Contact Finish Thickness	150µin (3.81µm)	150µin (3.81µm)	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)
Col	Red	Red	Red	Red	Red
Mating Products	A29203-ND - CONN PLUG 24 POS METRIMATE	A29203-ND - CONN PLUG 24 POS METRIMATE	A29203-ND - CONN PLUG 24 POS METRIMATE	A29203-ND - CONN PLUG 24 POS METRIMATE	A29203-ND - CONN PLUG 24 POS METRIMATE
