CRHV2010U3900JE datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> CRHV2010U3900JE

CRHV2010U3900JE: DescriptionFixed Resistor, Metal Glaze/thick Film, 0.5W, 390ohm, 2000V, 5% +/-Tol, 100ppm/Cel, Surface Mount, 2010, CHIP, ROHS COMPLIANT; CategoryPassive components The resistor; File Size537KB，3 Pages; ManufacturerMeritek Electronics; Websitehttp://www.meritekusa.com; Environmental Compliance

Download Datasheet Parametric View All

CRHV2010U3900JE Overview

Fixed Resistor, Metal Glaze/thick Film, 0.5W, 390ohm, 2000V, 5% +/-Tol, 100ppm/Cel, Surface Mount, 2010, CHIP, ROHS COMPLIANT

CRHV2010U3900JE Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1240361968
package instruction	, 2010
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	7.8
JESD-609 code	e3
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE

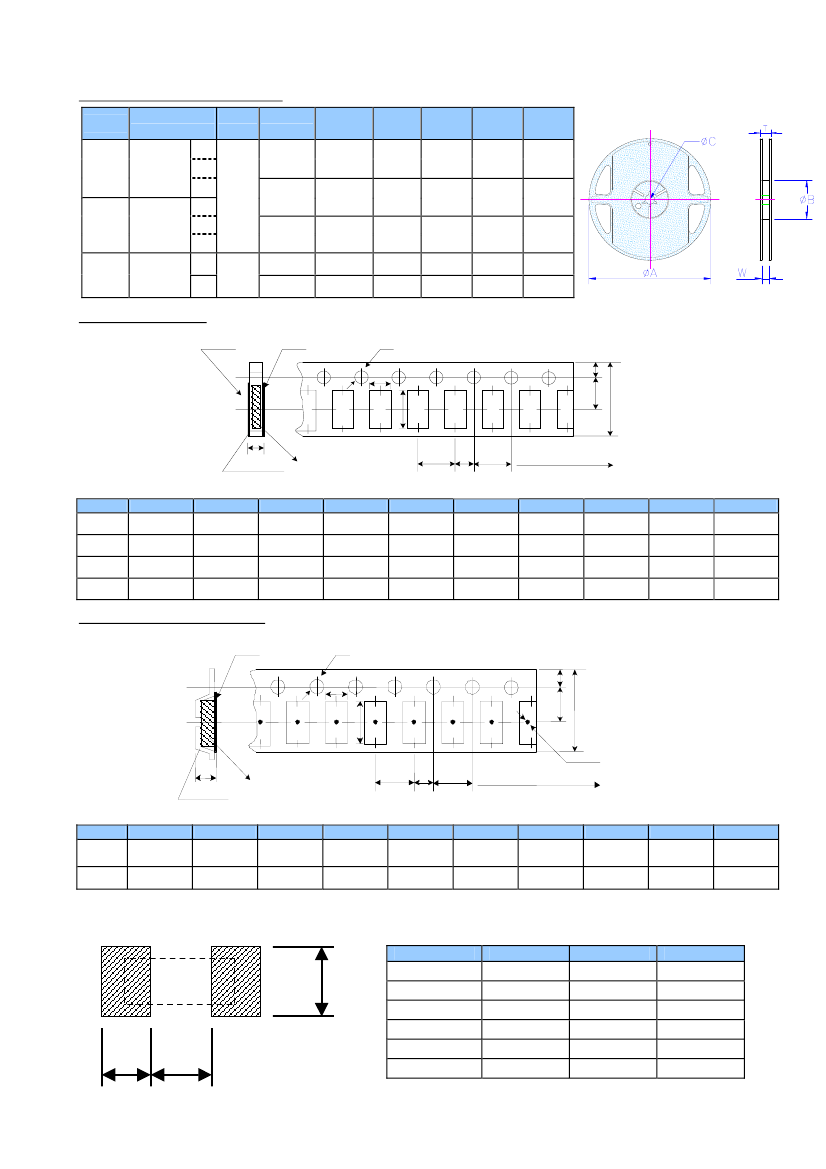

method of packing	TR, EMBOSSED PLASTIC, 7/10 INCH
Rated power dissipation(P)	0.5 W
Rated temperature	70 °C
resistance	390 Ω
Resistor type	FIXED RESISTOR
size code	2010
surface mount	YES
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	100 ppm/°C
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
Tolerance	5%
Operating Voltage	2000 V

Preview

Download Datasheet

View All

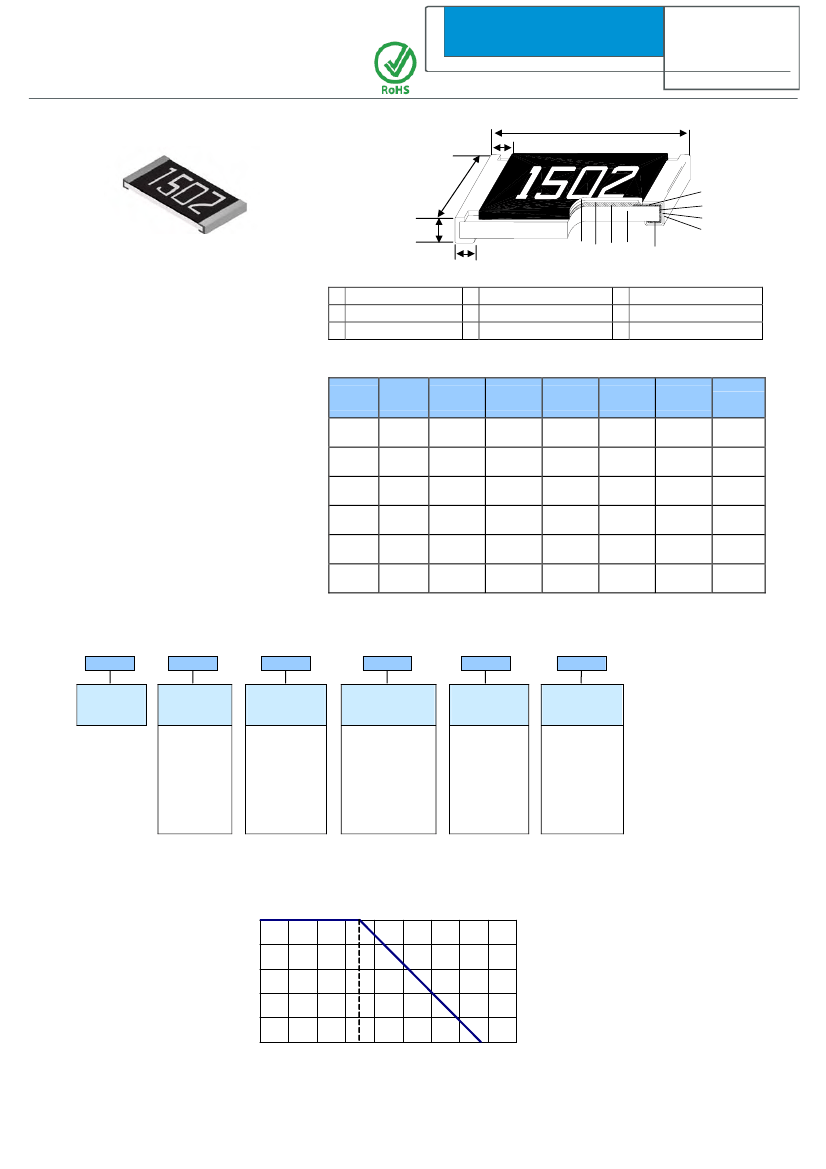

High Voltage Thick Film Chip Resistor

.－

■Construction

CRHV

Series

MERITEK

987 1

Alumina Substrate

Bottom Electrode (Ag)

Top Electrode (Ag-Pd)

Edge Electrode (NiCr)

Barrier Layer (Ni)

External Electrode (Sn)

Resistor Layer (RuO

/Ag)

Primary Overcoat (Glass)

Secondary Overcoat (Epoxy)

Unit: mm

■Features

－Highly

reliable multilayer electrode

construction

－Higher

component and equipment reliability

－Excellent

performance at high voltage

－Reduced

size of final equipment

■Dimensions

Type

CRHV.

Size

(Inch)

0402

0603

0805

1206

2010

2512

Weight

(g)

(1000pcs)

0.620

2.042

4.368

8.947

24.241

39.448

1.00±0.05 0.50±0.05 0.35±0.05 0.20±0.10 0.20±0.10

1.60±0.10 0.80±0.10 0.45±0.10 0.30±0.20 0.30±0.20

2.00±0.10 1.25±0.10 0.50±0.10 0.35±0.20 0.40±0.20

3.10±0.10 1.55±0.10 0.55±0.10 0.50±0.25 0.50±0.20

5.00±0.20 2.50±0.15 0.55±0.10 0.60±0.25 0.50±0.20

6.35±0.20 3.20±0.15 0.55±0.10 0.60±0.25 0.50±0.20

■Applications

－Inverter

－Outdoor

Equipments

－Converter

－Automotive

Industry

－High

Pulse Equipment

■Part

Numbering

CRHV

Product

Type

0402

0603

0805

1206

2010

2512

0402

Dimensions

Power

Rating

Y: 1/16W

X: 1/10W

W: 1/8W

V: 1/4W

U: 1/2W

T: 1W

1004:.1Mohm

1005:.10Mohm

1004

Resistance

Tolerance

±1%

±5%

TCR

(PPM/'C)

E: ±100

F: ±200

H: ±400

■Derating

Curve

100

Power ratio(%)

100

120

140

160

180

Ambient Temperature(℃)

Specifications are

subject to change without notice.

rev.6a
