2-292138-8: Descriptionconn header 28pos dual R/A tin; CategoryThe connector; File Size66KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

2-292138-8 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2-292138-8	-	-	View	Buy Now

2-292138-8 Overview

conn header 28pos dual R/A tin

2-292138-8 Parametric

Parameter Name	Attribute value
Datasheets

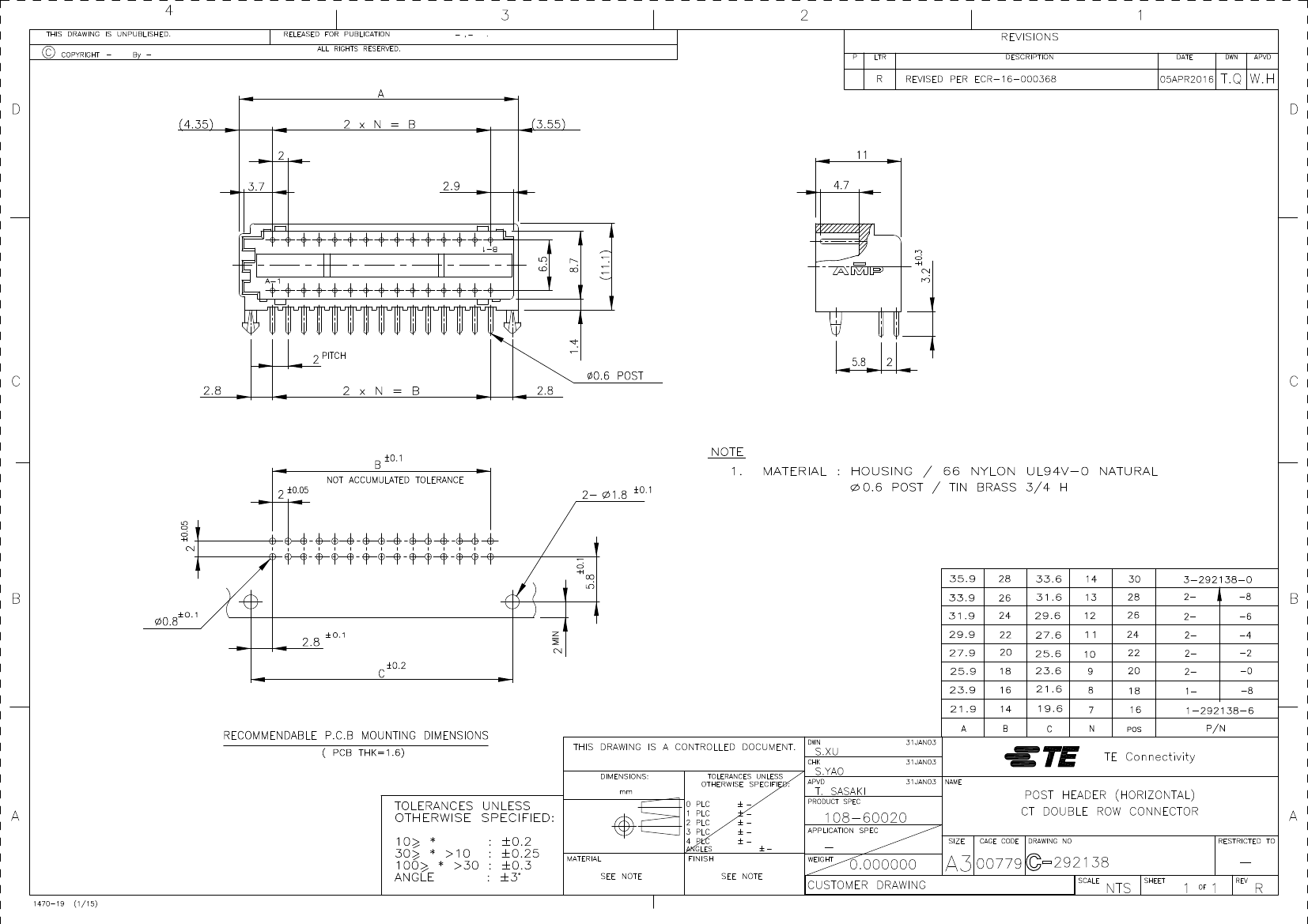

292138 Drawing
Product Photos
2-292138-8
RoHS Informati
2-292138-8 Statement of Compliance
RoHS 2 Stateme
Catalog Drawings
292138 Series
3D Model
2-292138-8.pdf
Standard Package	10,920
Category	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Male Pins
Packaging	Tray
Contact Type	Male Pi
Connector Type	Header, Shrouded
Number of Positions	28
Number of Positions Loaded	All
Pitch	0.079" (2.00mm)
Number of Rows	2
Row Spacing	0.256" (6.50mm)
Contact Mating Length	0.185" (4.70mm)
Mounting Type	Through Hole, Right Angle
Terminati	Solde
Fastening Type	-
Features	Board Lock
Contact Finish	Ti
Contact Finish Thickness	-
Col	Natural
Other Names	A99718

Preview

Download Datasheet

View All

2-292138-8 Related Products

	2-292138-8	2-292138-0	2-292138-6	1-292138-6	3-292138-0	1-292138-8
Description	conn header 28pos dual R/A tin	conn header 20pos dual R/A tin	conn header 26pos dual R/A tin	conn header 16pos dual R/A tin	conn header 30pos dual R/A tin	conn header 18pos dual R/A tin
Standard Package	10,920	11,900	11,760	11,200	10,080	180
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins
Packaging	Tray	Tray	Tray	Tray	Tray	Tray
Contact Type	Male Pi	Male Pi	Male Pi	Male Pi	Male Pi	Male Pi
Connector Type	Header, Shrouded	Header, Shrouded	Header, Shrouded	Header, Shrouded	Header, Shrouded	Header, Shrouded
Number of Positions	28	20	26	16	30	18
Number of Positions Loaded	All	All	All	All	All	All
Pitch	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)
Number of Rows	2	2	2	2	2	2
Row Spacing	0.256" (6.50mm)	0.256" (6.50mm)	0.256" (6.50mm)	0.256" (6.50mm)	0.256" (6.50mm)	0.256" (6.50mm)
Contact Mating Length	0.185" (4.70mm)	0.185" (4.70mm)	0.185" (4.70mm)	0.185" (4.70mm)	0.185" (4.70mm)	0.185" (4.70mm)
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle
Terminati	Solde	Solde	Solde	Solde	Solde	Solde
Features	Board Lock	Board Lock	Board Lock	Board Lock	Board Lock	Board Lock
Contact Finish	Ti	Ti	Ti	Ti	Ti	Ti
Col	Natural	Natural	Natural	Natural	Natural	Natural
Other Names	A99718	A99714	A99717	A99712	A99719	12921388A99713
