5-146264-1 datasheet, PDF - EEWORLD Datasheet

5-146264-1: Descriptionconn hdr brkway dual 2pos .100; CategoryThe connector; File Size261KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

5-146264-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5-146264-1	-	-	View	Buy Now

conn hdr brkway dual 2pos .100

Parameter Name	Attribute value

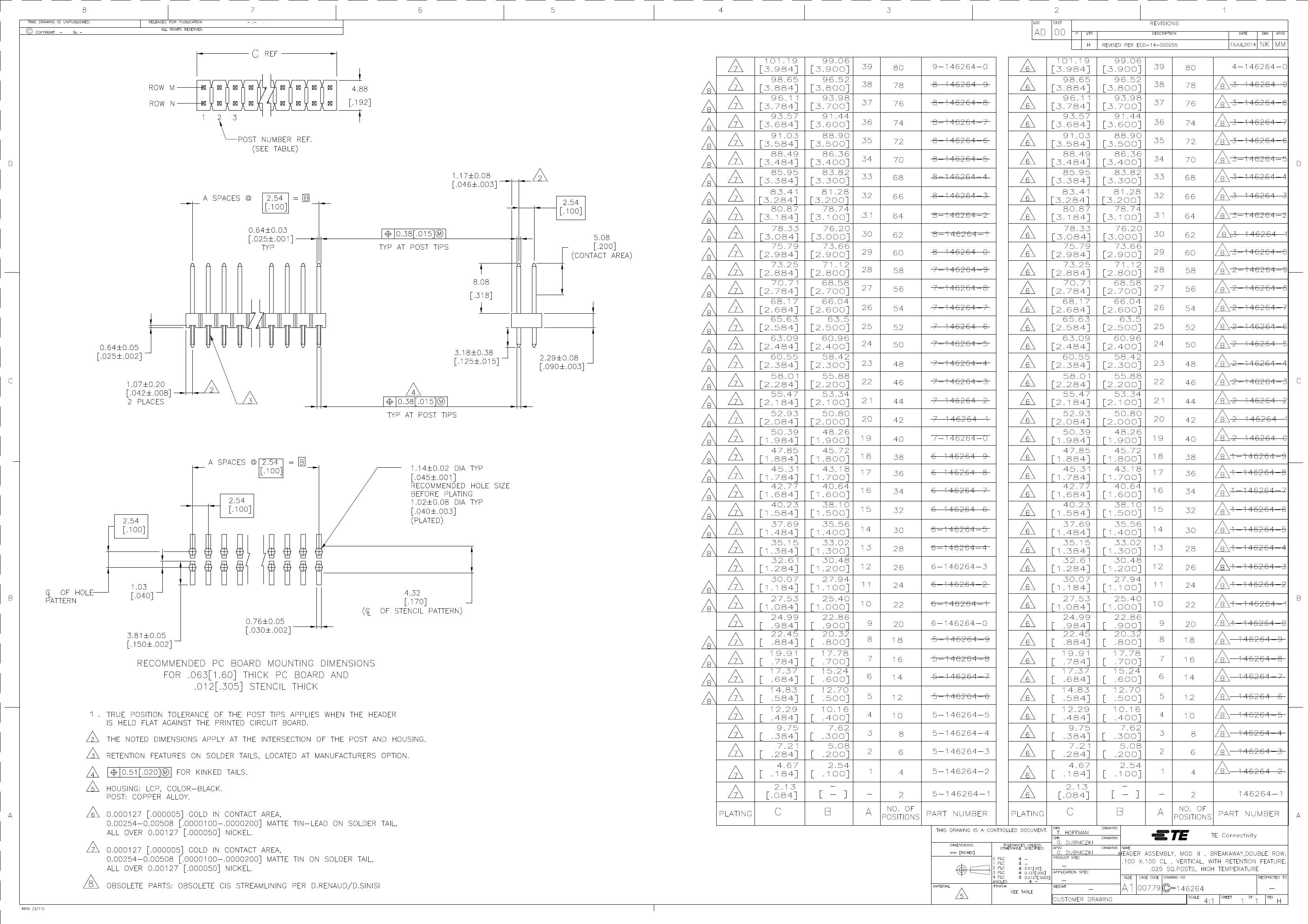

Datasheets
146264
RoHS Informati
5-146264-1 Statement of Compliance
RoHS 2 Stateme
Standard Package	41,600
Category	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Male Pins
Packaging	Bulk
Contact Type	Male Pi
Connector Type	Header, Unshrouded, Breakaway
Number of Positions	2
Number of Positions Loaded	All
Pitch	0.100" (2.54mm)
Number of Rows	2
Row Spacing	0.100" (2.54mm)
Contact Mating Length	0.318" (8.08mm)
Mounting Type	Through Hole
Terminati	Solde
Fastening Type	-
Features	-
Contact Finish	Gold
Contact Finish Thickness	50µin (1.27µm)
Col	Black

	5-146264-1	5-146264-5	5-146264-2	146264-1	4-146264-0
Description	conn hdr brkway dual 2pos .100	conn hdr brkway dual 10pos .100	conn hdr brkway dual 4pos .100	conn hdr brkway dual 2pos .100	conn hdr brkway dual 80pos .100
Standard Package	41,600	960	10,000	2,080	500
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk
Contact Type	Male Pi	Male Pi	Male Pi	Male Pi	Male Pi
Connector Type	Header, Unshrouded, Breakaway	Header, Unshrouded, Breakaway	Header, Unshrouded, Breakaway	Header, Unshrouded, Breakaway	Header, Unshrouded, Breakaway
Number of Positions	2	10	4	2	80
Number of Positions Loaded	All	All	All	All	All
Pitch	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Rows	2	2	2	2	2
Row Spacing	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Contact Mating Length	0.318" (8.08mm)	0.318" (8.08mm)	0.318" (8.08mm)	0.318" (8.08mm)	0.318" (8.08mm)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Terminati	Solde	Solde	Solde	Solde	Solde
Contact Finish	Gold	Gold	Gold	Gold	Gold
Contact Finish Thickness	50µin (1.27µm)	50µin (1.27µm)	50µin (1.27µm)	50µin (1.27µm)	50µin (1.27µm)
Col	Black	Black	Black	Black	Black
