AWH16G-E202-IDC-R datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> AWH16G-E202-IDC-R

Preview

AWH16G-E202-IDC-R: Descriptionconn pin idc 16pos W/ flange; CategoryThe connector; File Size164KB，1 Pages; ManufacturerASSMANN WSW components; Environmental Compliance

Download Datasheet Parametric View All

AWH16G-E202-IDC-R Overview

conn pin idc 16pos W/ flange

AWH16G-E202-IDC-R Parametric

Parameter Name	Attribute value
Datasheets

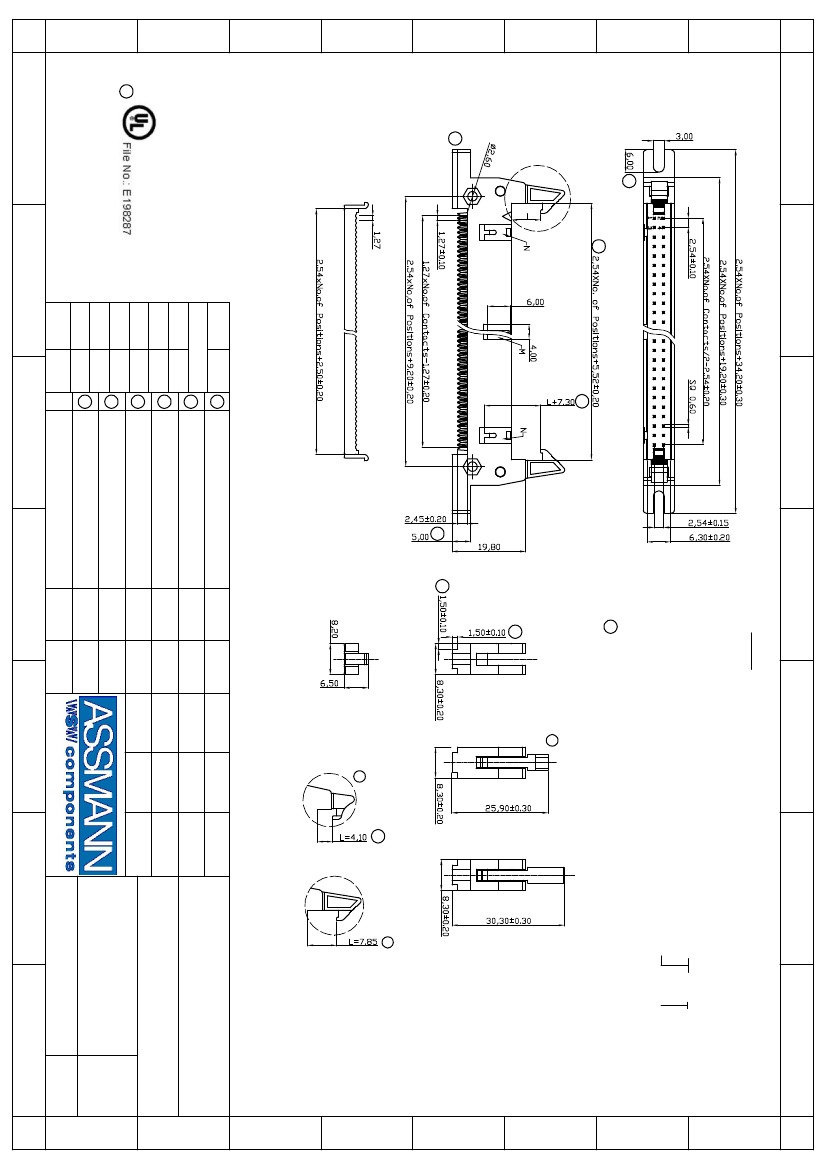

AWHxG-E2x2-IDC Drawing
Product Photos
AWH16G-E202-IDC-R
Catalog Drawings
AWH Series with Flange
Featured Produc
IDC Connectors and Cables
Cable Assemblies
Standard Package	84
Category	Connectors, Interconnects
Family	Rectangular Connectors - Free Hanging, Panel Mou
Packaging	Tray
Connector Type	Heade
Contact Type	Male Pi
Number of Positions	16
Pitch	0.100" (2.54mm)
Number of Rows	2
Row Spacing	0.100" (2.54mm)
Mounting Type	Panel Mou
Fastening Type	-
Cable Terminati	IDC
Wire Type	Ribbon Cable
Wire Gauge	-
Features	Feed Through
Contact Finish	Gold
Contact Finish Thickness	-
Col	Gray
Dynamic Catalog	AWH Series
Mating Products	HSR16S-ND - CONN SOCKET IDC 16POS W/STR TINHSC16S-ND - CONN SOCKT IDC 16POS W/O KEY TINHSR16H-ND - CONN SOCKET IDC 16POS W/STR GOLDHSC16H-ND - CONN SOCKET IDC 16POS W/O KEY AUHKR16S-ND - CONN SOCKET IDC 16POS W/STR TINHKC16S-ND - CONN SOCKET IDC 16POS W/KEY TINHKR16H-ND - CONN SOCKET IDC 16POS W/STR GOLDHKC16H-ND - CONN SOCKET IDC 16POS W/KEY GOLD
Other Names	AWH16GE202IDCRHPL16H

Preview

Download Datasheet

View All

1

4

NOTES:

2

3

5

6

7

A

B

5

C

8

5

MATERIAL

1.Insulator Material:PBT+30%G.F,(UL94V-0),Grey

2.Contact Material : Brass

3.Contact Plating : 1u" Au selective Over Ni

ELECTRICAL

1.Current Rating : 3.0 AMP

2.Withstand Voltage : 1000V AC/minute

3.Contact Resistance : 20mΩ max

4.Insulation Resistance: 1000MΩ min

ENVIRONMENTAL

1.Operation Temperature: -40°C to +105°C

7

2.Packing : Tube

3.10P~18P with slot"M" without slot "N"

20P-64P with slot "M" and "N"

A

Ordering Information

AWH xxG-E2x2-IDC

No. of Contacts :

10,14,16,20,26,

30,34,40,50,60,64

Latch Type

0 -without latch

2 -with short latches

3 -with long latches

B

4

C

D

8

D

5

8

without Latch

with short Latch

with long Latch

3

E

9

4

E

F

Scale

Free

9

TOLERANCE

X.X

X.XX

6

8

Correct the dimension L =4.10mm

Modify the shape of insulator

20.12.2017

05.06.2017

Winnie

Drawn

Short Latch

Long Latch

F

Date

29.05.2006

G

RoHS compliant

Unit: mm

Name

Customer-No.

Hellwig

±0.40

±0.25

X.XXX ±0.15

ANGLE

7

6

Change the packing tray into tube

Add UL file no.

21.09.2015

12.12.2013

Winnie

Amy

Approved

20.19.2017

G

±

3°

Winnie

ASSMANN WSW-No.

AWH xxG-E2x2-IDC

5

4

Update

Correct drawing of short latch

03.04.2013

05.05.2010

Winnie

Dean

Drawing-No.

H

DIM

TOL

ASS 0532 CO

Id.

Modification

Date

Name

rev09

H

1

2

3

4

5

Replace

Sheet

6

7
