5962-9224701M3A

Description
Bus Driver, FCT Series, 1-Func, 10-Bit, True Output, CMOS, CQCC28, CERAMIC, LCC-28
Categorylogic    logic
File Size134KB,5 Pages
ManufacturerCypress Semiconductor
Download Datasheet Parametric View All

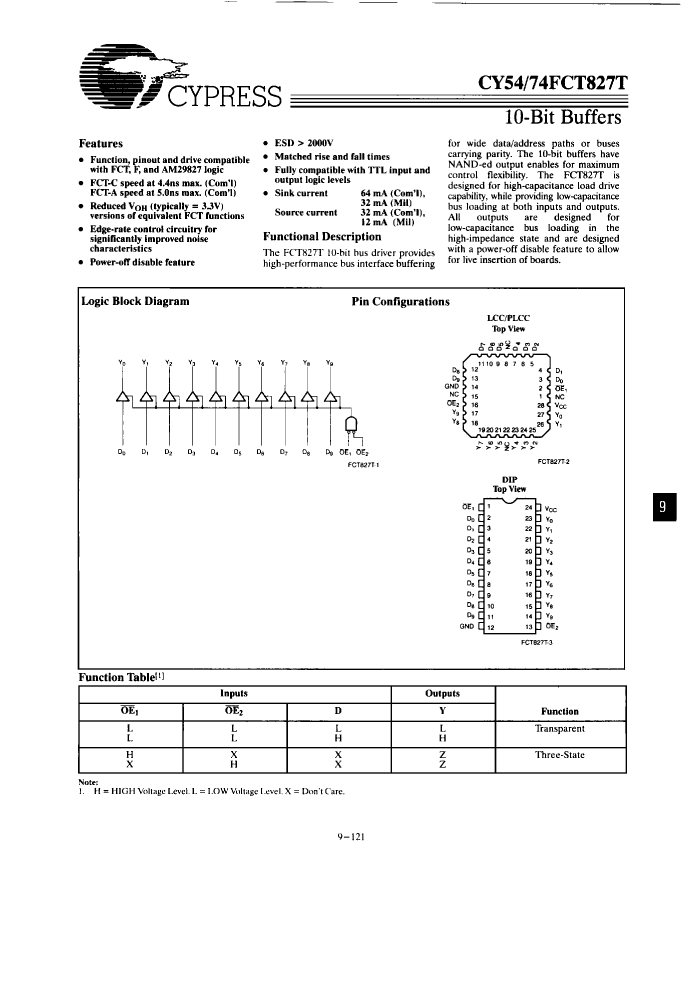

5962-9224701M3A Overview

Bus Driver, FCT Series, 1-Func, 10-Bit, True Output, CMOS, CQCC28, CERAMIC, LCC-28

5962-9224701M3A Parametric

Parameter NameAttribute value

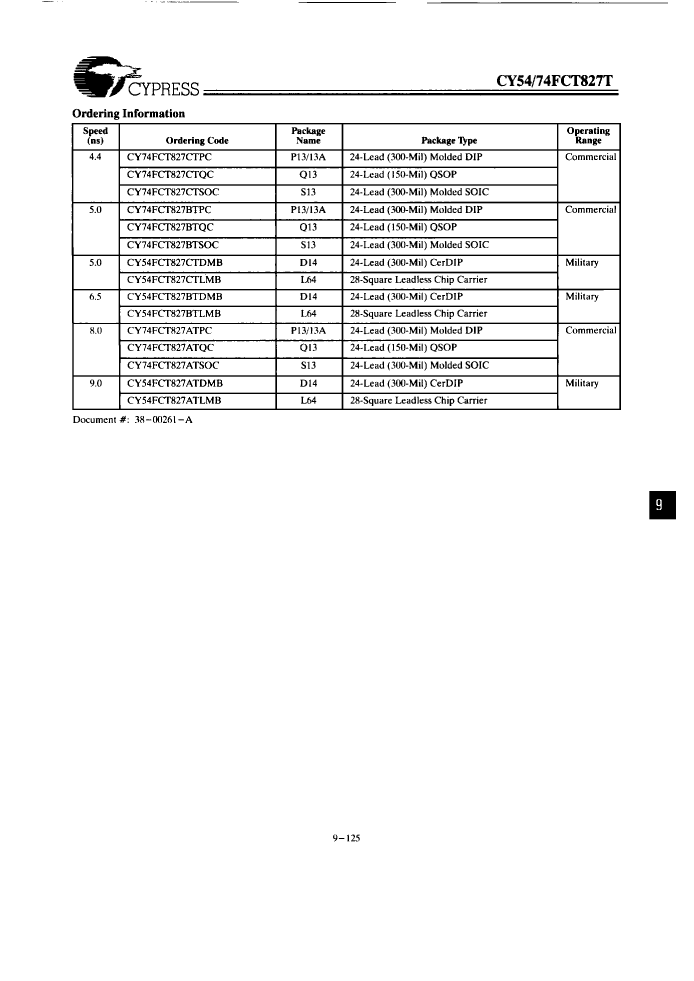

Parts packaging codeQLCC
package instructionQCCN,
Contacts28
Reach Compliance Codeunknow
Other featuresWITH DUAL OUTPUT ENABLE
seriesFCT
JESD-30 codeS-CQCC-N28
JESD-609 codee0
length11.43 mm
Load capacitance (CL)300 pF
Logic integrated circuit typeBUS DRIVER
Number of digits10
Number of functions1
Number of ports2
Number of terminals28

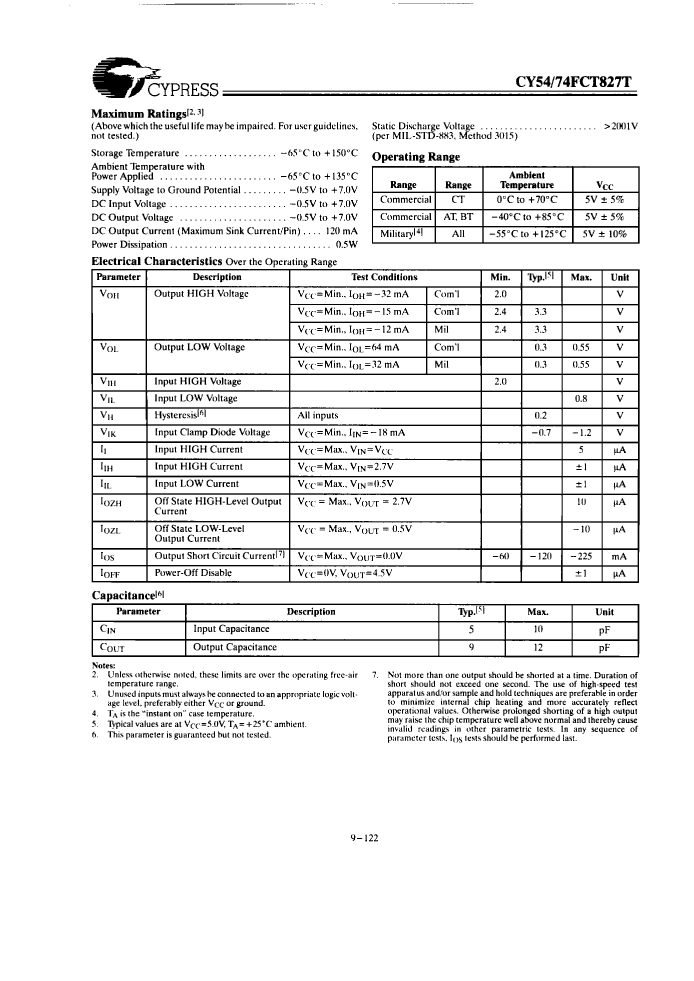

Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Output characteristics3-STATE
Output polarityTRUE
Package body materialCERAMIC, METAL-SEALED COFIRED
encapsulated codeQCCN
Package shapeSQUARE
Package formCHIP CARRIER

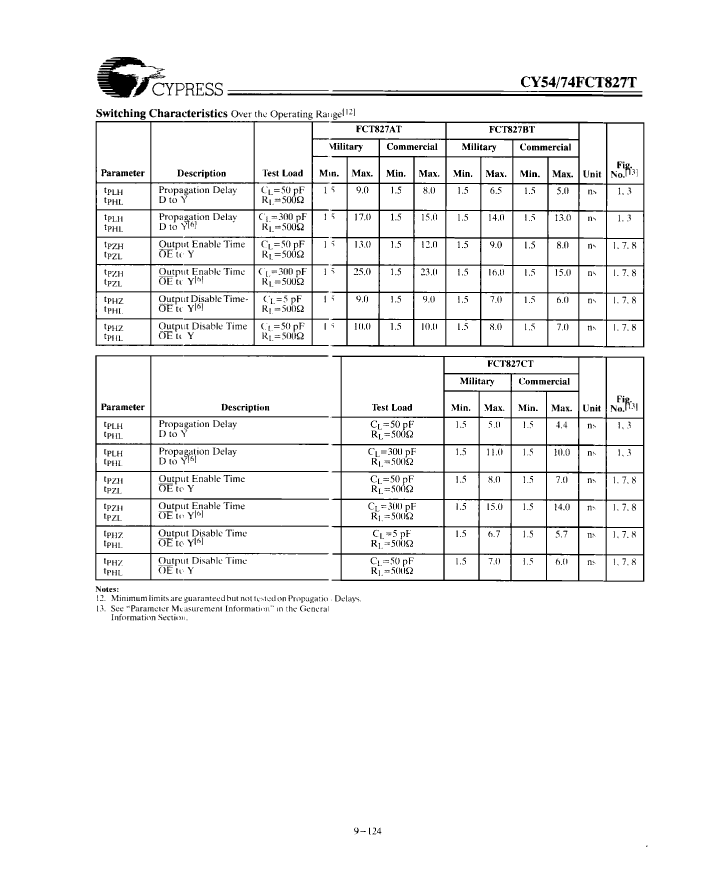

propagation delay (tpd)17 ns
Certification statusNot Qualified
Filter levelMIL-STD-883
Maximum seat height1.9812 mm

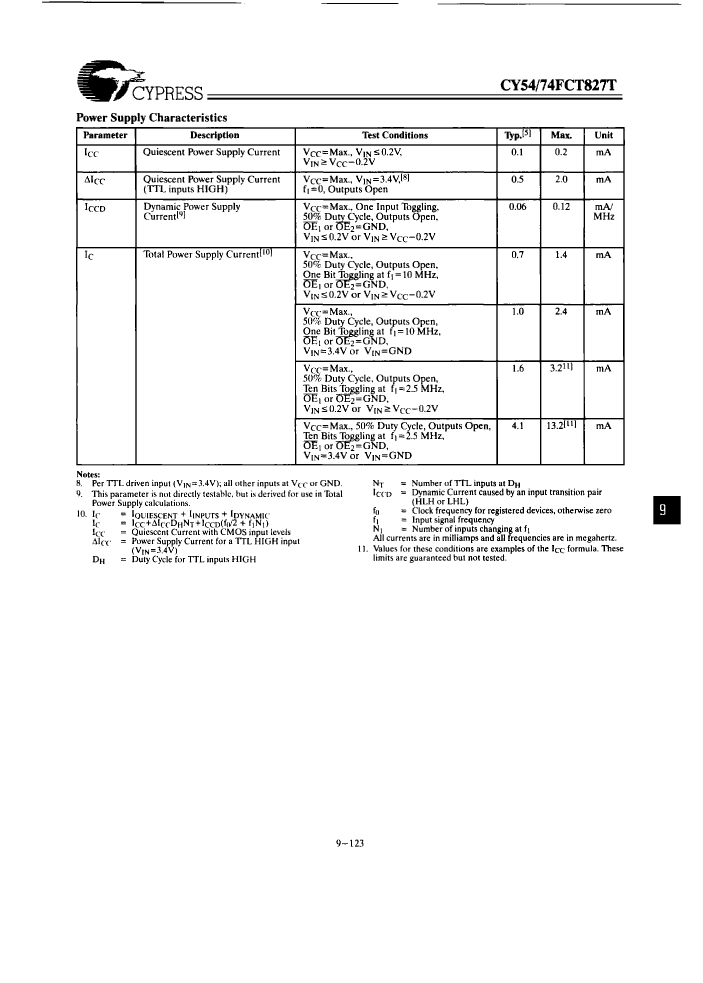

Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)4.5 V
Nominal supply voltage (Vsup)5 V
surface mountYES
technologyCMOS
Temperature levelMILITARY
Terminal surfaceTIN LEAD
Terminal formNO LEAD
Terminal pitch1.27 mm
Terminal locationQUAD
width11.43 mm
Base Number Matches1
