8
THIS DRAWING IS UNPUBLISHED.
RELEASED FOR PUBLICATION
-
ALL RIGHTS RESERVED.
7
20
6
5
4
3
LOC
2
DIST
1
REVISIONS
P
LTR
DESCRIPTION
DATE
DWN
APVD
C
COPYRIGHT
20
CM
00
M1
REVISED PER ECR-18-004355
18JUN2018
BDA
SG
1
2
3
POST TO WITHSTAND 13 NEWTONS (3 LBS) MIN AXIAL FORCE
IN BOTH DIRECTIONS SHOWN WITHOUT DISLODGING.
TOLERANCES APPLY TO SOLDER SIDE OF BOARD.
MEASURED AT
-A- .
D
D
4. PARTS TO COMPLY WITH AMP SOLDERABILITY SPEC 109-11-2.
5
6
ONE HOLE MAY BE UNDERSIZED 0.81 - 0.89 [.032 - .035]
DIA. FOR ASSEMBLY RETENTION DURING WAVE SOLDERING.
MATERIAL: HOUSING: NYLON, 4/6, HIGH TEMP, BLACK.}
POST -2 THRU -12: COPPER ALLOY, TIN-LEAD (93/7)
POST -32 THRU -42 : COPPER ALLOY, TIN PLATE
COORDINATE DIMENSION APPLIES FROM CENTER OF ACTUAL
FEATURE.
POST TO BE MEASURED WHEN STRIP IS HELD FLAT.
PLATING
( 10.67 )
[.420]
7
8
9. TUBE MUST MAINTAIN PART ORIENTATION AND ALLOW FREE
SLIDING AT A 45 $ TUBE INCLINE.
10. DIMENSIONS IN BRACKETS ARE IN INCHES.
TUBE
11
C
PLATING: GOLD PLATE AREA, 0.00038 [.000015] GOLD OR
0.00008 [.000003] MIN GOLD FLASH OVER 0.00030 [.000012]
PALLADIUM NICKEL, PER TE CONNECTIVITY'S DISCRETION,
ALL SIDES, OVER NICKEL UNDERPLATE, 0.00127 [.000050] MIN,
ALL SIDES AND ENTIRE LENGTH OF POST.
BRIGHT TIN/LEAD (93/7) PLATE AREA, 0.00381 - 0.O0889
[.000150 - .000350] THICK, ALL FOUR SIDES, 3.56 [.140] MIN.
AMP LOGO AND UL AND CSA TRADEMARKS TO APPEAR ON THIS SURFACE.
OBSOLETE PARTS: OBSOLETE CIS STREAMLINING PER D.RENAUD/D.SINISI
12
C
HEADER ASSEMBLY
(SEE SHEET 2)
13
( 16.00 )
[.630]
14
7.62 [.300]
-
-
-
-
B
12.70 [.500]
10.16 [.400]
7.62 [.300]
5.08 [.200]
-
-
-
-
-
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
PLUG
2
2
2
2
19
20
22
25
32
38
57
114
19
20
22
25
32
45
57
114
76
38
28
76
45
28
30.48 [1.200]
27.94 [1.100]
25.40 [1.000]
22.86 [.900]
20.32 [.800]
17.78 [.700]
12.70 [.500]
10.16 [.400]
5.08 [.200]
7.62 [.300]
15.24 [.600]
12
11
10
9
8
4- 647296 -2
4- 647296 -1
4- 647296 -0
3- 647296 -9
3- 647296 -7
3- 647296 -6
3- 647296 -5
3- 647296 -3
3- 647296 -2
3- 647296 -4
3- 647296 -8
PLUG
( 609.60 )
[24.000]
-
-
-
-
SUPERCEDED BY 4-647296-2
SUPERCEDED BY 4-
SUPERCEDED BY 4-
SUPERCEDED BY 3-
SUPERCEDED BY 3-
14
2.54 [.100]
7
6
5
3
2
4
B
-
-1
-0
-9
-8
-7
-6
-5
-4
-3
7.62 [.300]
-
-
-
-
-
-
-
-
-
W
-
-
12.70 [.500]
10.16 [.400]
7.62 [.300]
5.08 [.200]
2.54 [.100]
-
-
-
-
G
-
-
-
30.48 [1.200]
27.94 [1.100]
25.40 [1.000]
22.86 [.900]
20.32 [.800]
15.24 [.600]
12.70 [.500]
10.16 [.400]
7.62 [.300]
5.08 [.200]
L
02JAN2002
02JAN2002
02JAN2002
NAME
12
11
10
9
8
1- 647296 -2
1- 647296 -1
1- 647296 -0
647296 -9
647296 -8
647296 -6
647296 -5
647296 -4
647296 -2
TUBE LOADED
ASSEMBLY
PART NUMBER
A

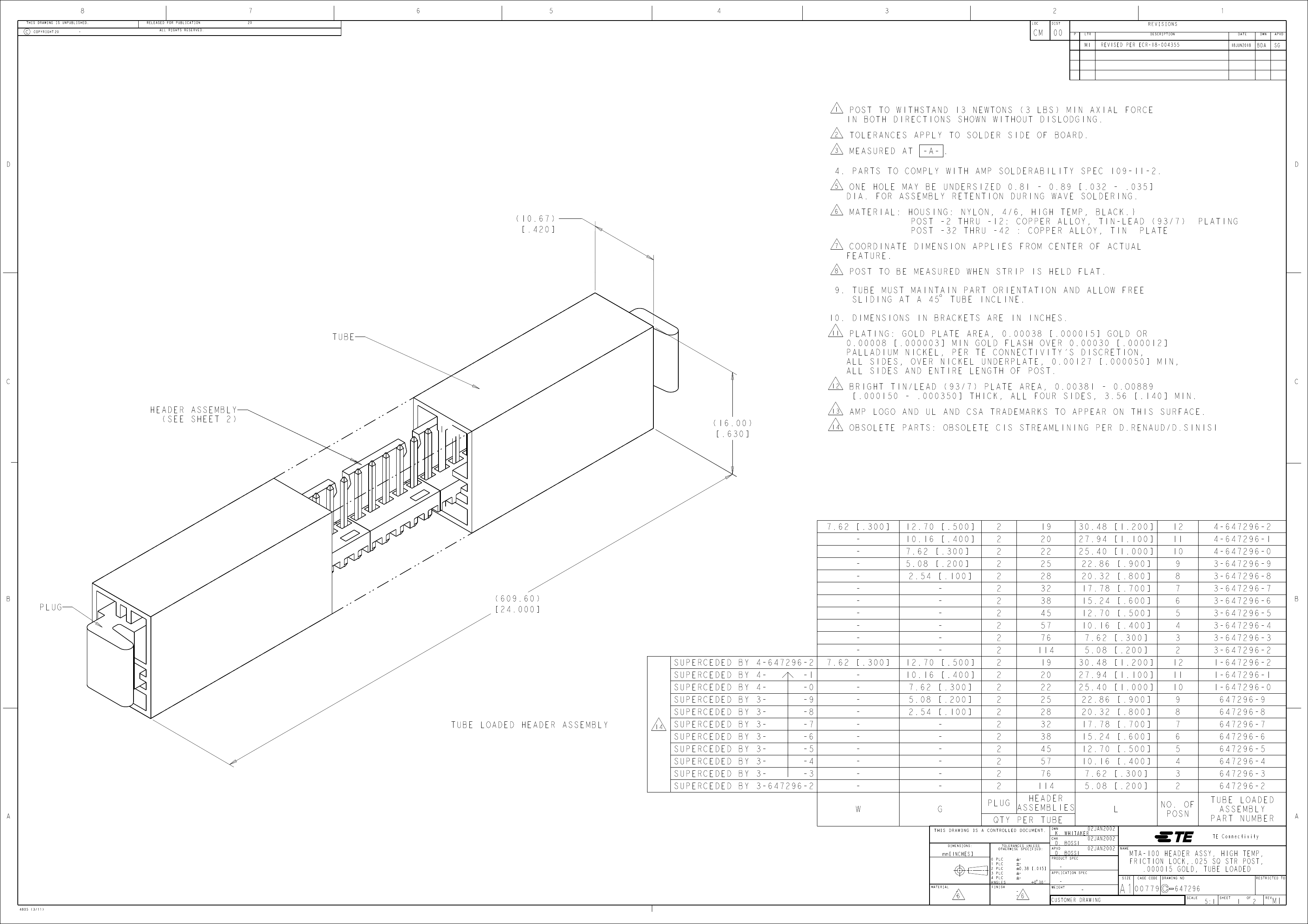

TUBE LOADED HEADER ASSEMBLY
SUPERCEDED BY 3-
SUPERCEDED BY 3-
SUPERCEDED BY 3-
SUPERCEDED BY 3-
SUPERCEDED BY 3-
17.78 [.700]
7
6
5
4
2
3
647296 -7
SUPERCEDED BY 3-647296-2
647296 -3
A
THIS DRAWING IS A CONTROLLED DOCUMENT.
DIMENSIONS:
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
QTY PER TUBE
DWN
CHK
HEADER
ASSEMBLIES
K. WHITAKER
D. BOSSI
D. BOSSI
-
-
NO. OF
POSN
TE Connectivity
mm[INCHES]
APVD
MATERIAL
0 PLC
1 PLC
2 PLC
3 PLC
4 PLC
ANGLES
FINISH
-
-
0.38 [.015]
-
-
0 $ 30'
PRODUCT SPEC
APPLICATION SPEC
-
-
6
-
-
6
WEIGHT
-
CUSTOMER DRAWING
A1
00779
SIZE
MTA-100 HEADER ASSY, HIGH TEMP,
FRICTION LOCK,.025 SQ STR POST,
.000015 GOLD, TUBE LOADED
CAGE CODE
DRAWING NO
RESTRICTED TO
647296
SCALE
4805 (3/11)
5:1
SHEET
1
OF
2
REV
M1
8
THIS DRAWING IS UNPUBLISHED.
RELEASED FOR PUBLICATION
-
ALL RIGHTS RESERVED.
7
20
6
5
4
3
LOC
2
DIST
1
REVISIONS
P
LTR
DESCRIPTION
DATE
DWN
APVD
C
COPYRIGHT
20
CM
00
-
SEE SHEET 1
-
-
-
G
W
D
2.87
[ .113 ]
3
D
6.35
[ .250 ]
(L)
0.05 [.002]
ALL POSTS
0.25 [.010] m
ALL POSTS
0.64-1.02
[.025-.040]
13
11
A
1
TYP
C
C
7.49±0.25
[.295±.010]
-A-
3.18
[ .125 ]
1
8.81 0.25
[ .347 .010 ]
13.97
[ .550
0.25
.010 ]
0.64 # 0.03
[.025 # .001]
SQUARE TYP
8
3
8
TYP
2.54
[ .100 ]
TYP
7
1.27
[ .050 ]
( 3.43
)
[ .135 ]
B
B
1.52
[ .060 ]
PRE-TINNED LAND
BOTH SIDES TYP
2.54
TYP
[ .100 ]
0.20[.008] MIN. THK. SOLDER
PASTE IN AREA SHOWN
1.02 0.07
[ .040 .003 ]
PRE-TINNED PLATED
THRU HOLE TYP
5
7.62
[ .300 ]
3.81
[ .150 ]
0.826
[ .0325 ]
1.65
[ .065 ]

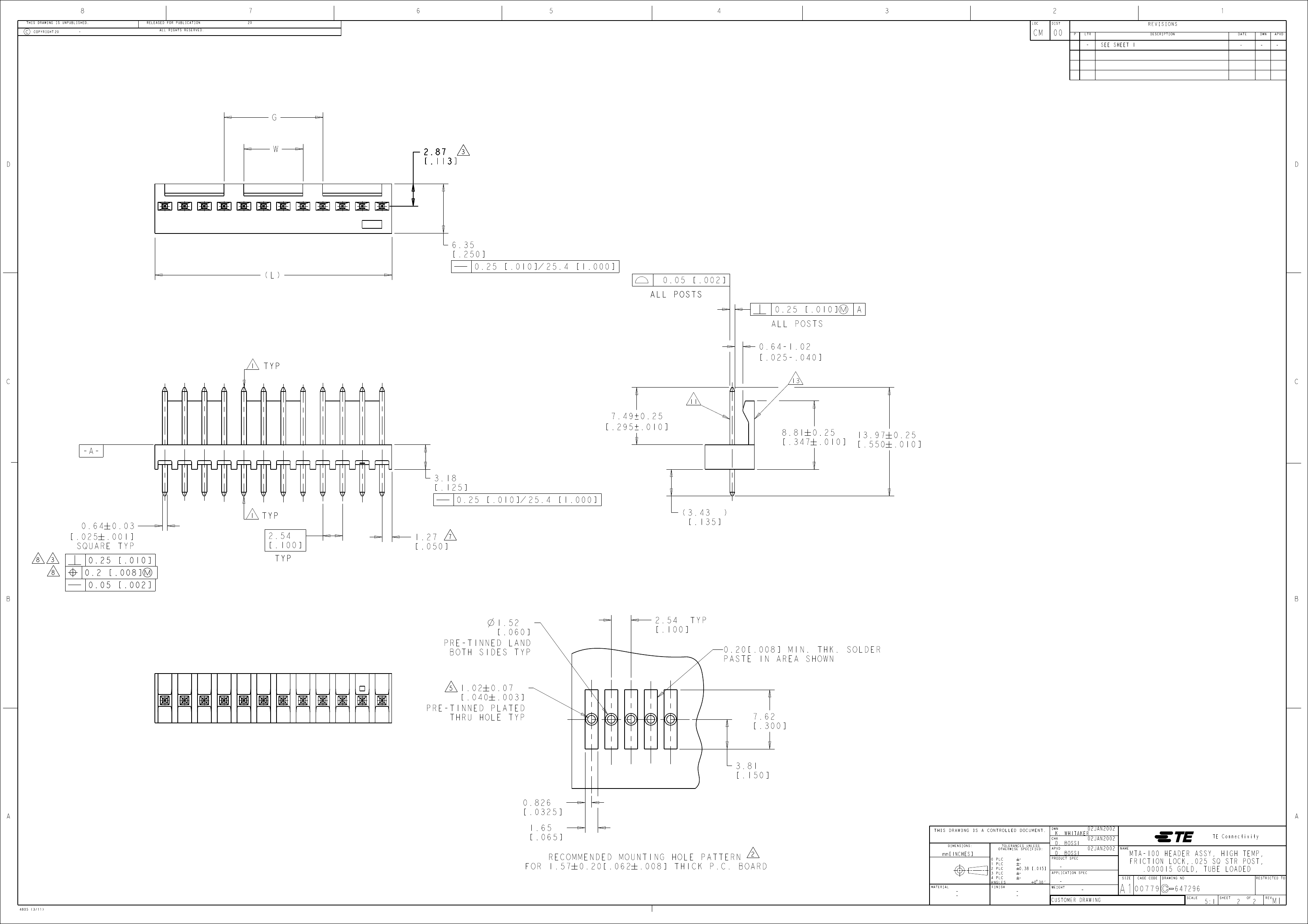

RECOMMENDED MOUNTING HOLE PATTERN
FOR 1.57 # 0.20[.062 # .008] THICK P.C. BOARD
2
THIS DRAWING IS A CONTROLLED DOCUMENT.
DIMENSIONS:
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
DWN
CHK
A
A
K. WHITAKER
D. BOSSI
D. BOSSI
-
-
02JAN2002
02JAN2002
02JAN2002
NAME
TE Connectivity
mm[INCHES]
APVD
MATERIAL
0 PLC
1 PLC
2 PLC
3 PLC
4 PLC
ANGLES
FINISH
-
-
0.38 [.015]
-
-
0 $ 30'
PRODUCT SPEC
APPLICATION SPEC
-
-
-
-
WEIGHT
-
CUSTOMER DRAWING
A1
00779
SIZE
MTA-100 HEADER ASSY, HIGH TEMP,
FRICTION LOCK,.025 SQ STR POST,
.000015 GOLD, TUBE LOADED
CAGE CODE
DRAWING NO
RESTRICTED TO
647296
SCALE
4805 (3/11)
5:1
SHEET
2
OF
2
REV
M1
