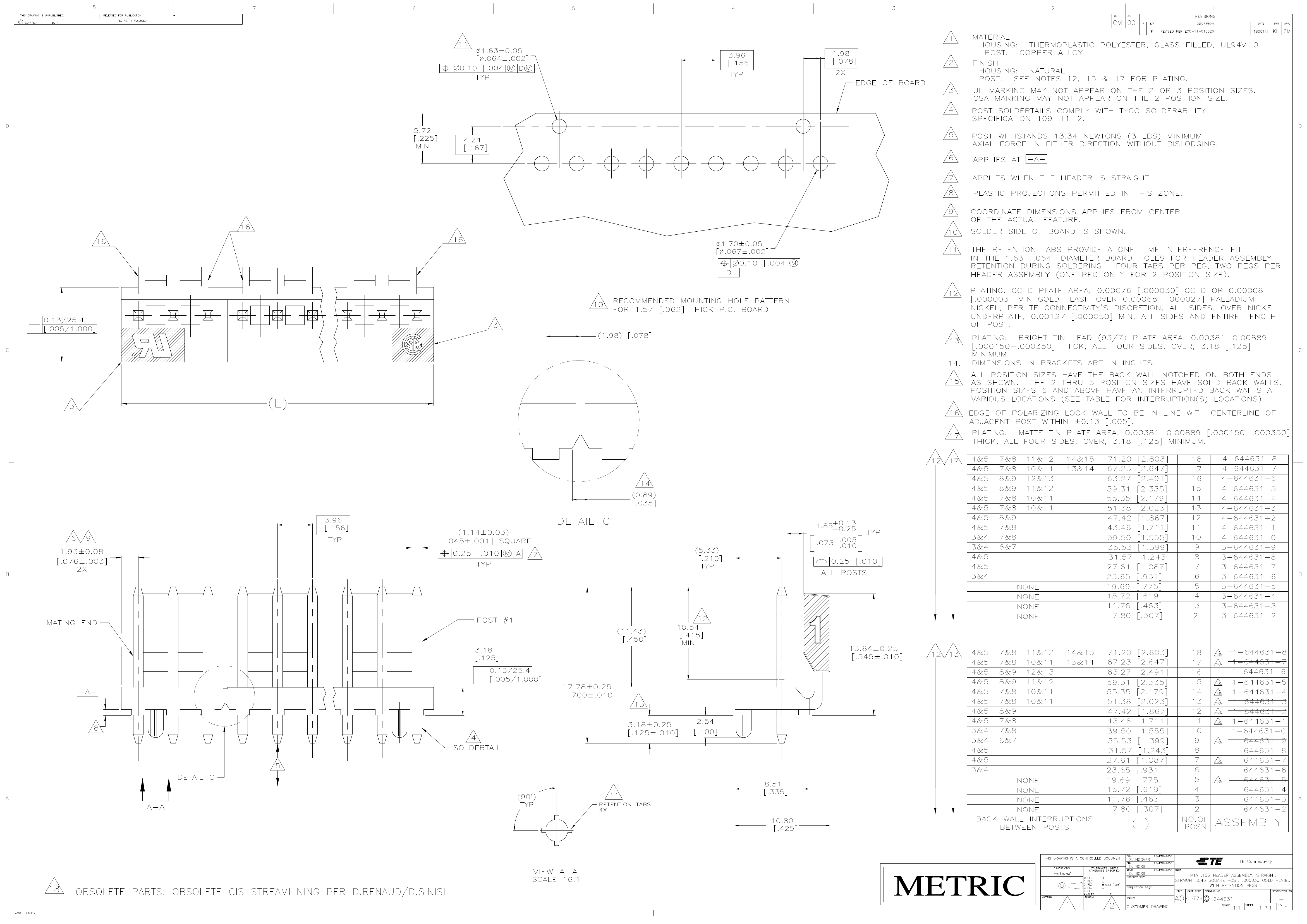

Preview

3-644631-5: Descriptionconn header 5pos vert .156 gold; CategoryThe connector; File Size207KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

3-644631-5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-644631-5	-	-	View	Buy Now

3-644631-5 Overview

conn header 5pos vert .156 gold

3-644631-5 Parametric

Parameter Name	Attribute value
Datasheets
644631
RoHS Informati
3-644631-5 Statement of Compliance
RoHS 2 Stateme
3D Model
3-644631-5.pdf
Standard Package	500
Category	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Male Pins
Packaging	Bulk
Contact Type	Male Pi
Connector Type	Header, Unshrouded
Number of Positions	5
Number of Positions Loaded	All
Pitch	0.156" (3.96mm)
Number of Rows	1
Row Spacing	-
Contact Mating Length	0.450" (11.43mm)
Mounting Type	Through Hole
Terminati	Solde
Fastening Type	Friction Lock
Features	Board Guide, Polarizing Key
Contact Finish	Gold
Contact Finish Thickness	30µin (0.76µm)
Col	Natural

Preview

Download Datasheet

View All

3-644631-5 Related Products

	3-644631-5	644631-3	3-644631-8	3-644631-6	3-644631-4
Description	conn header 5pos vert .156 gold	03p mta156 hdr assy str 30au	conn header 8pos vert .156 gold	conn header 6pos vert .156 gold	conn header 4pos vert .156 gold
Standard Package	500	500	1,000	500	3,000
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk
Contact Type	Male Pi	Male Pi	Male Pi	Male Pi	Male Pi
Connector Type	Header, Unshrouded	Header, Unshrouded	Header, Unshrouded	Header, Unshrouded	Header, Unshrouded
Number of Positions	5	3	8	6	4
Number of Positions Loaded	All	All	All	All	All
Pitch	0.156" (3.96mm)	0.156" (3.96mm)	0.156" (3.96mm)	0.156" (3.96mm)	0.156" (3.96mm)
Number of Rows	1	1	1	1	1
Contact Mating Length	0.450" (11.43mm)	0.450" (11.43mm)	0.450" (11.43mm)	0.450" (11.43mm)	0.450" (11.43mm)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Terminati	Solde	Solde	Solde	Solde	Solde
Fastening Type	Friction Lock	Friction Lock	Friction Lock	Friction Lock	Friction Lock
Features	Board Guide, Polarizing Key	Board Guide, Polarizing Key	Board Guide, Polarizing Key	Board Guide, Polarizing Key	Board Guide, Polarizing Key
Contact Finish	Gold	Gold	Gold	Gold	Gold
Contact Finish Thickness	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)
Col	Natural	Natural	Natural	Natural	Natural
