M80-5221005

Description
Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle, LEAD FREE
CategoryThe connector    The connector
File Size63KB,1 Pages
ManufacturerHarwin
Websitehttp://www.harwin.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

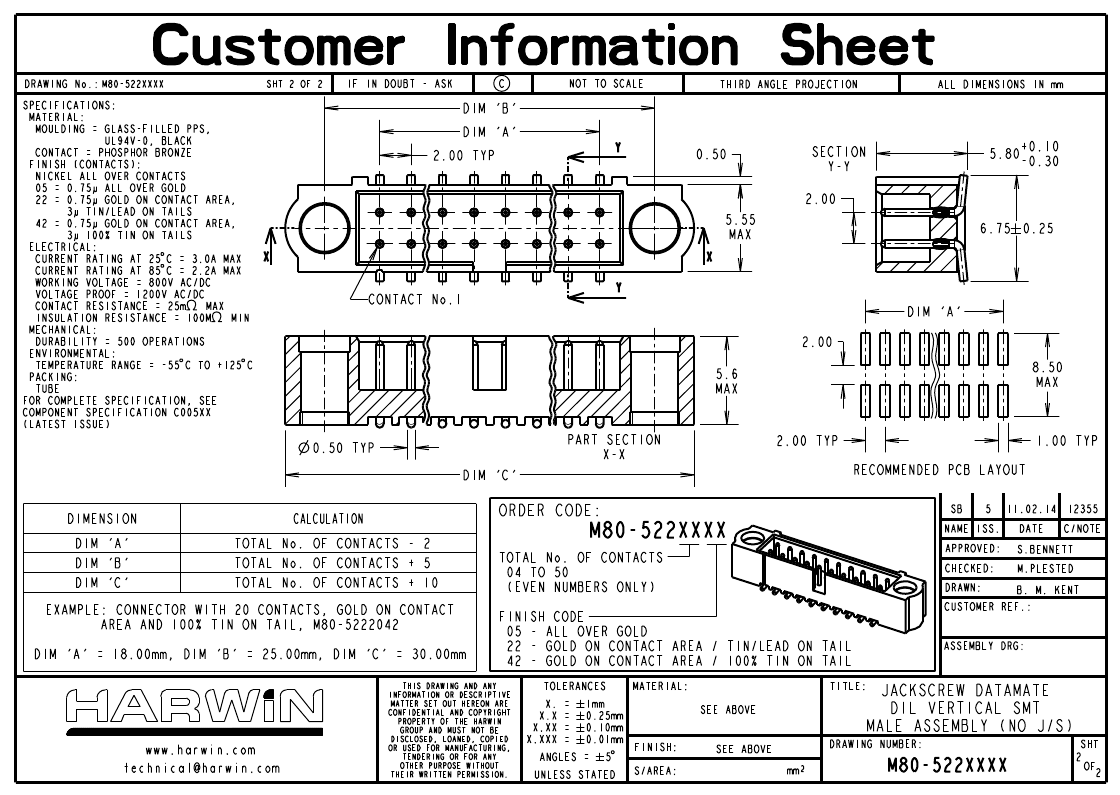

M80-5221005 Overview

Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle, LEAD FREE

M80-5221005 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Objectid1591514187
package instructionLEAD FREE
Reach Compliance Codecompliant
Country Of OriginUK
ECCN codeEAR99
Samacsys DescriptionDatamate J-Tek DIL Male Vertical SMT Connector, gold, no jackscrews, 5+5 contacts
Samacsys ManufacturerHarwin
Samacsys Modified On2020-07-23 05:43:34
YTEOL8.4
Other featuresPANEL MOUNTABLE
body width0.238 inch
subject depth0.22 inch
body length0.787 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact completed and terminatedGOLD
Contact point genderMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact resistance25 mΩ
Contact styleRND PIN-SKT
DIN complianceNO
Durability500 Cycles
Filter functionNO
IEC complianceNO
Insulation resistance100000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED POLYPHENYLENE SULFIDE
JESD-609 codee4
MIL complianceNO
Plug contact pitch0.079 inch
Match contact row spacing0.079 inch
Mixed contactsNO
Installation option 1LOCKING
Installation option 2JACKSCREW
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing5.2578 mm
Plating thickness30u inch
polarization keyPOLARIZED HOUSING
Rated current (signal)3 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch2 mm
Termination typeSURFACE MOUNT
Total number of contacts10
UL Flammability Code94V-0

M80-5221005 Related Products

M80-5221005 M80-5222022 M80-5224822
Description Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle, LEAD FREE Headers & Wire Housings MALE VERTICAL SMT 10+10 DBL ROW WO/ JS Board Connector, 48 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle,
Is it lead-free? Lead free Contains lead Contains lead
Is it Rohs certified? conform to incompatible incompatible
Reach Compliance Code compliant unknown compliant
ECCN code EAR99 EAR99 EAR99
Other features PANEL MOUNTABLE PANEL MOUNTABLE PANEL MOUNTABLE
body width 0.238 inch 0.238 inch 0.238 inch
subject depth 0.22 inch 0.22 inch 0.22 inch
body length 0.787 inch 1.181 inch 2.283 inch
Body/casing type RECEPTACLE RECEPTACLE RECEPTACLE
Connector type BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation NOT SPECIFIED GOLD (30) NOT APPLICABLE
Contact completed and terminated GOLD Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Contact point gender MALE MALE MALE
Contact material NOT SPECIFIED PHOSPHOR BRONZE NOT APPLICABLE
contact mode RECTANGULAR RECTANGULAR RECTANGULAR
Contact resistance 25 mΩ 25 mΩ 25 mΩ
Contact style RND PIN-SKT RND PIN-SKT RND PIN-SKT
DIN compliance NO NO NO
Durability 500 Cycles 500 Cycles 500 Cycles
Filter function NO NO NO
IEC compliance NO NO NO
Insulation resistance 100000000 Ω 100000000 Ω 100000000 Ω
Insulator color BLACK BLACK BLACK
insulator material GLASS FILLED POLYPHENYLENE SULFIDE GLASS FILLED POLYPHENYLENE SULPHIDE GLASS FILLED POLYPHENYLENE SULFIDE
JESD-609 code e4 e0 e0
MIL compliance NO NO NO
Plug contact pitch 0.079 inch 0.079 inch 0.079 inch
Match contact row spacing 0.079 inch 0.079 inch 0.079 inch
Mixed contacts NO NO NO
Installation option 1 LOCKING LOCKING LOCKING
Installation option 2 JACKSCREW JACKSCREW JACKSCREW
Installation method STRAIGHT STRAIGHT STRAIGHT
Installation type BOARD BOARD BOARD
Number of connectors ONE ONE ONE
PCB row number 2 2 2
Number of rows loaded 2 2 2
Maximum operating temperature 125 °C 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C -55 °C
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
PCB contact pattern RECTANGULAR RECTANGULAR RECTANGULAR
PCB contact row spacing 5.2578 mm 5.2578 mm 5.2578 mm
Plating thickness 30u inch 30u inch 30u inch
polarization key POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING
Rated current (signal) 3 A 3 A 3 A
Guideline UL UL UL
reliability COMMERCIAL COMMERCIAL COMMERCIAL
Terminal pitch 2 mm 2 mm 2 mm
Termination type SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT
Total number of contacts 10 20 48
UL Flammability Code 94V-0 94V-0 94V-0
Objectid 1591514187 - 1591514275
