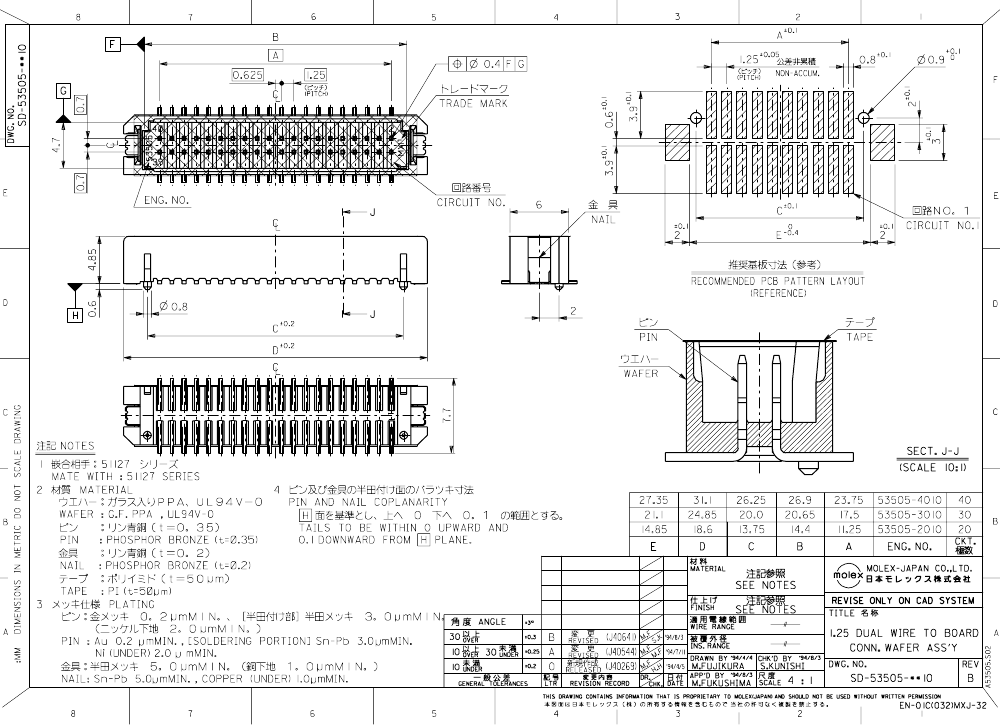

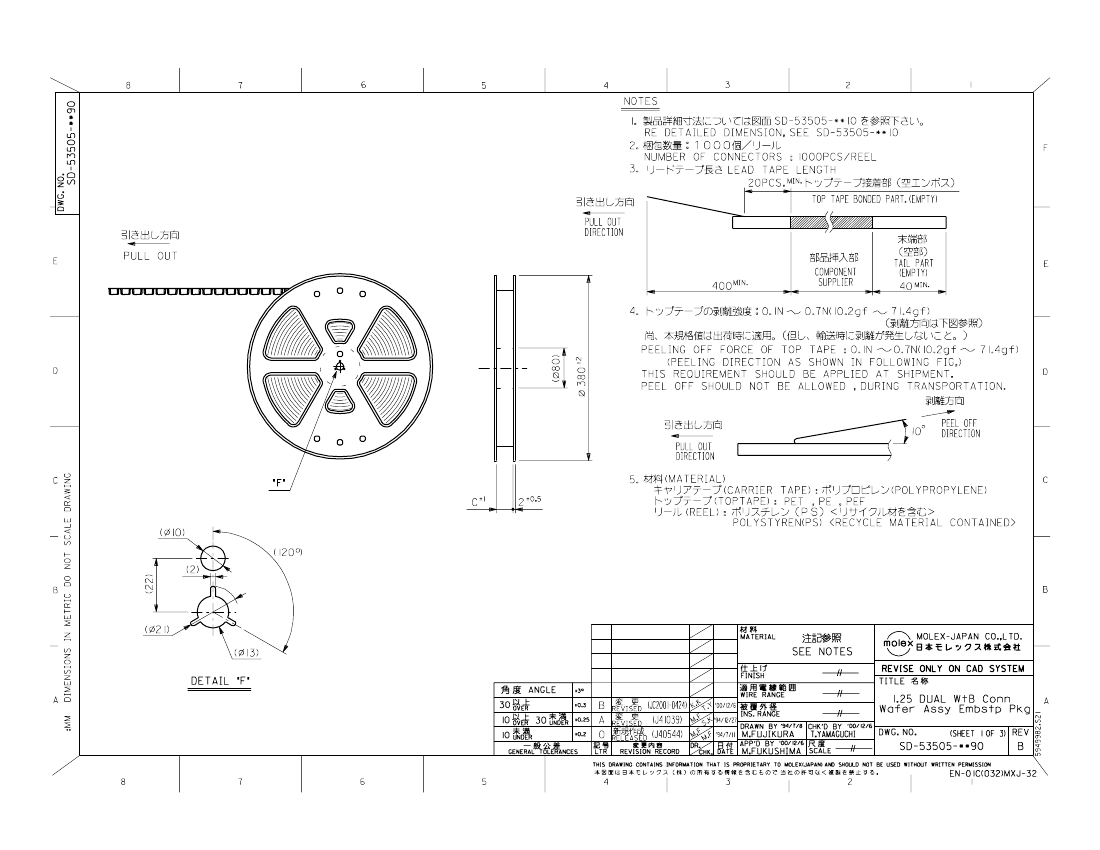

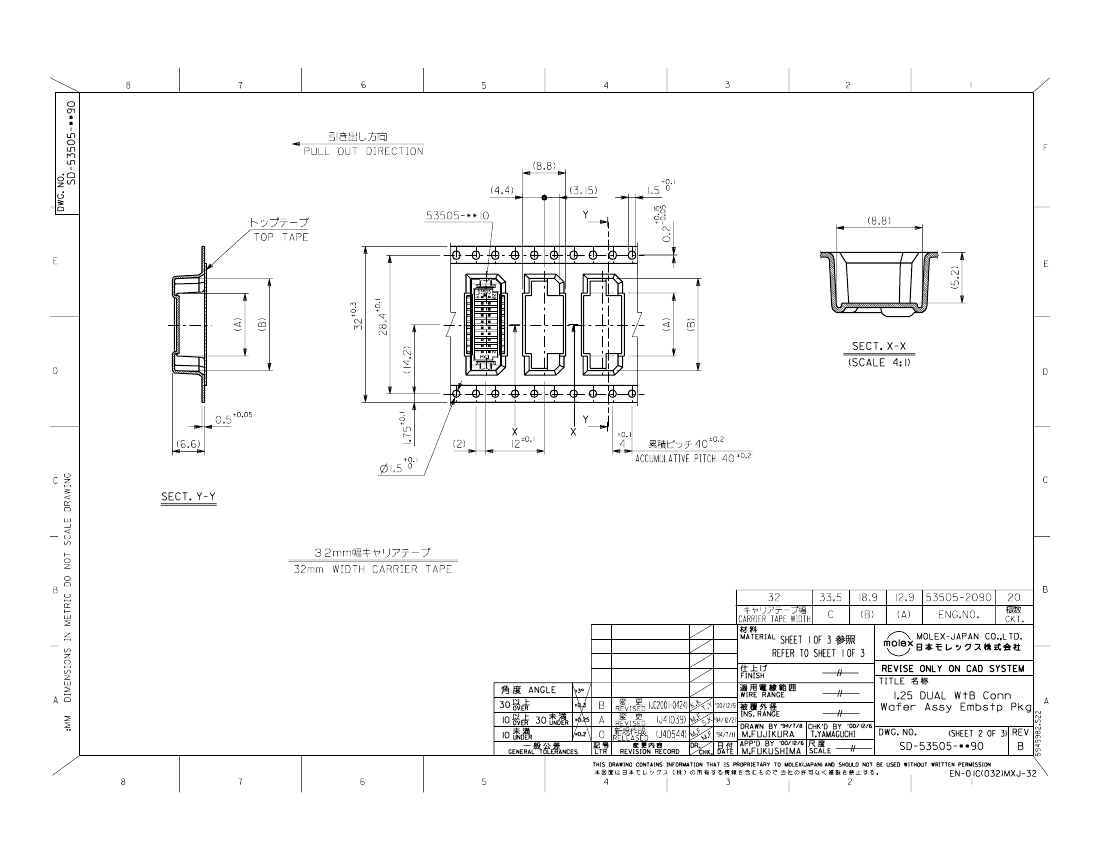

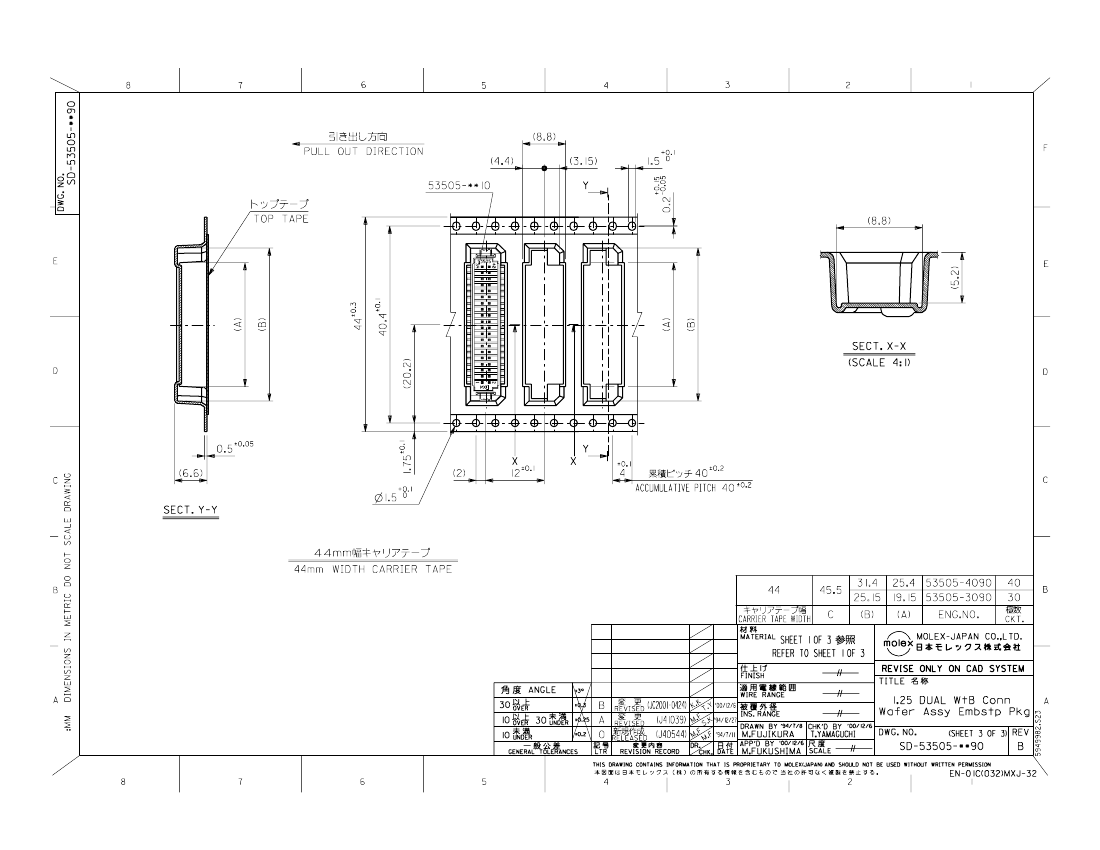

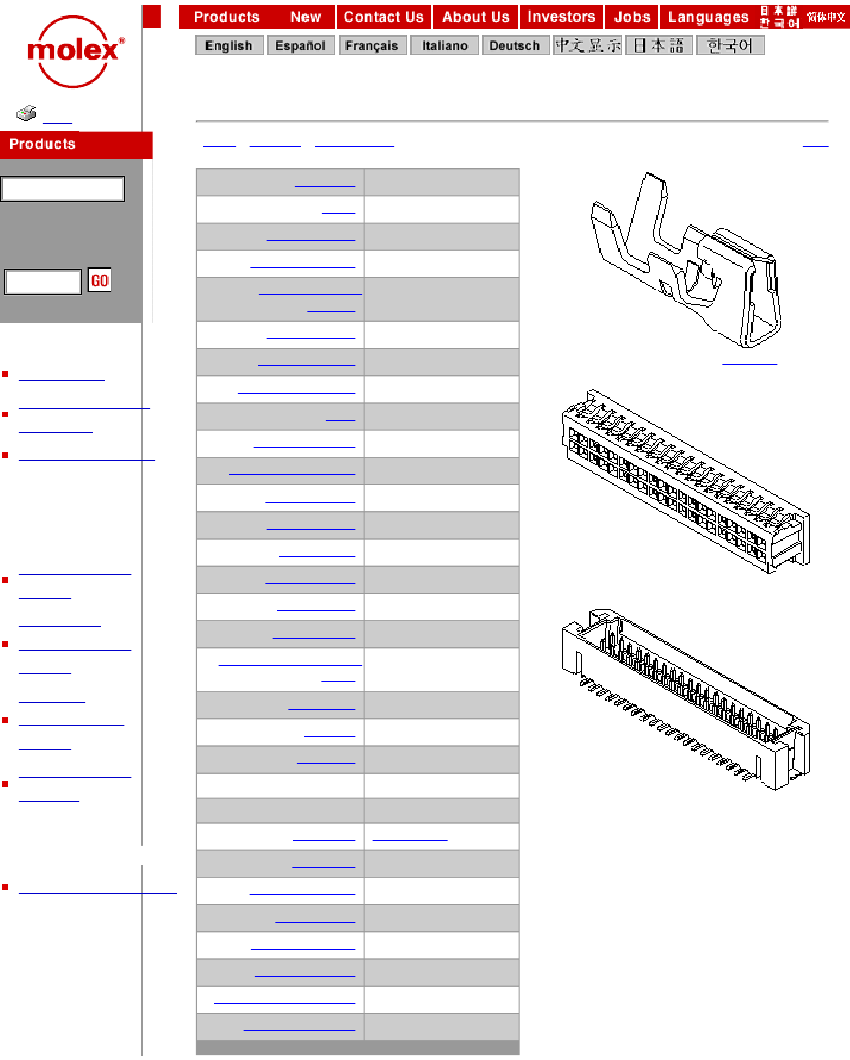

Board Connector, 30 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal
| Parameter Name | Attribute value |
| Maker | Molex |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Other features | POLARIZED, SHROUDED |
| Connector type | BOARD CONNECTOR |
| Contact point gender | MALE |
| DIN compliance | NO |
| Filter function | NO |
| IEC compliance | NO |
| MIL compliance | NO |
| Manufacturer's serial number | 53505 |
| Plug information | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of rows loaded | 2 |
| Options | GENERAL PURPOSE |
| Terminal pitch | 1.25 mm |
| Termination type | SURFACE MOUNT |
| Total number of contacts | 30 |
| UL Flammability Code | 94V-0 |
| Base Number Matches | 1 |
| 53505-3010 | 53505-2010 | 53505-4010 | |
|---|---|---|---|
| Description | Board Connector, 30 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal | Board Connector, 20 Contact(s), 2 Row(s), Male, Straight, 0.049 inch Pitch, Surface Mount Terminal, Locking, Receptacle | Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.049 inch Pitch, Surface Mount Terminal, Locking, Receptacle |
| Maker | Molex | Molex | Molex |
| Reach Compliance Code | unknown | unknown | unknown |
| Other features | POLARIZED, SHROUDED | POLARIZED, SHROUDED | POLARIZED, SHROUDED |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact point gender | MALE | MALE | MALE |
| DIN compliance | NO | NO | NO |
| Filter function | NO | NO | NO |
| IEC compliance | NO | NO | NO |
| MIL compliance | NO | NO | NO |
| Manufacturer's serial number | 53505 | 53505 | 53505 |
| Plug information | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO | NO | NO |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT |
| Installation type | BOARD | BOARD | BOARD |
| Number of rows loaded | 2 | 2 | 2 |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Terminal pitch | 1.25 mm | 1.25 mm | 1.25 mm |
| Termination type | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT |
| Total number of contacts | 30 | 20 | 40 |
| UL Flammability Code | 94V-0 | 94V-0 | 94V-0 |
| Base Number Matches | 1 | 1 | 1 |
| ECCN code | EAR99 | - | EAR99 |
| Board mount options | - | SOLDER HOLDING POSTS | SOLDER HOLDING POSTS |
| body width | - | 0.236 inch | 0.236 inch |
| subject depth | - | 0.191 inch | 0.191 inch |
| body length | - | 0.732 inch | 1.224 inch |
| Body/casing type | - | RECEPTACLE | RECEPTACLE |
| Contact to complete cooperation | - | AU ON NI | AU ON NI |
| Contact completed and terminated | - | TIN/LEAD OVER NICKEL | TIN/LEAD OVER NICKEL |
| Contact material | - | PHOSPHOR BRONZE | PHOSPHOR BRONZE |
| contact mode | - | RECTANGULAR | RECTANGULAR |
| Contact resistance | - | 20 mΩ | 20 mΩ |
| Contact style | - | RND PIN-SKT | RND PIN-SKT |
| Dielectric withstand voltage | - | 250VAC V | 250VAC V |
| Durability | - | 50 Cycles | 50 Cycles |
| maximum insertion force | - | 2.1128 N | 2.1128 N |
| Insulation resistance | - | 100000000 Ω | 100000000 Ω |
| insulator material | - | GLASS FILLED POLYPHTHALAMIDE | GLASS FILLED POLYPHTHALAMIDE |
| Plug contact pitch | - | 0.049 inch | 0.049 inch |
| Match contact row spacing | - | 0.055 inch | 0.055 inch |
| Installation option 1 | - | LOCKING | LOCKING |
| Installation option 2 | - | FRICTION LOCK | FRICTION LOCK |
| Number of connectors | - | ONE | ONE |
| PCB row number | - | 2 | 2 |
| Maximum operating temperature | - | 85 °C | 85 °C |
| Minimum operating temperature | - | -40 °C | -40 °C |
| PCB contact pattern | - | RECTANGULAR | RECTANGULAR |
| PCB contact row spacing | - | 4.4958 mm | 4.4958 mm |
| Plating thickness | - | 8u inch | 8u inch |
| Rated current (signal) | - | 1 A | 1 A |
| Guideline | - | UL | UL |
| reliability | - | COMMERCIAL | COMMERCIAL |
| Evacuation force-minimum value | - | .5004 N | .5004 N |
