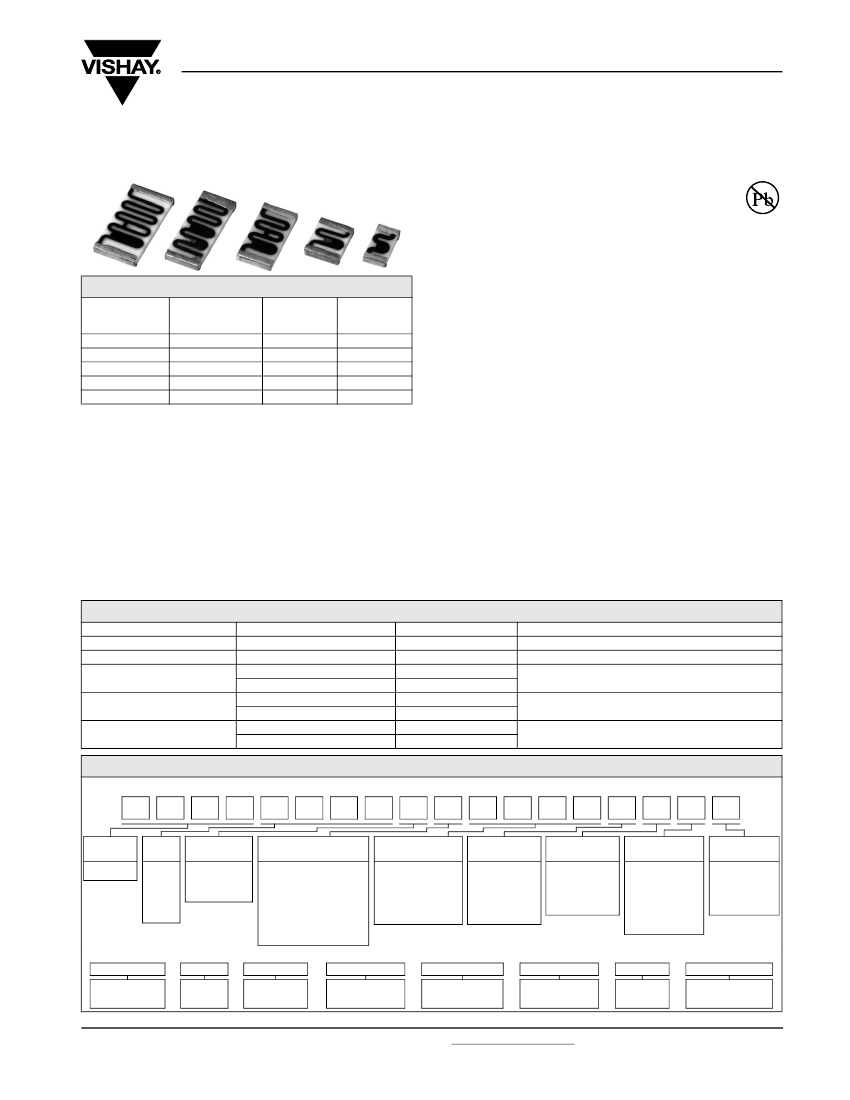

CRHV
Vishay Techno
Thick Film Chip Resistors, High Voltage
FEATURES
•
•
•
•
•
•
High voltage up to 3000 V
Outstanding stability < 0.5 %
Available
Flow solderable
RoHS*
Custom sizes available
COMPLIANT
Automatic placement capability
Available with either wraparound terminations or as a
single termination flip chip
Tape and reel packaging available
Internationally standardized sizes
Suitable for solderable, epoxy bondable, or wire bondable
applications
Termination: Gold, palladium silver, platinum gold,
platinum silver, platinum palladium gold or solder-coated
nickel barrier available
Multiple styles, termination materials and configurations,
allow wide design flexibility
Non-magnetic terminations available
Lead (Pb)-free version is RoHS compliant
STANDARD ELECTRICAL SPECIFICATIONS
MODEL
RESISTANCE
(1)
(Ω)
POWER
RATING
(W)
0.300
0.450
0.500
0.600
0.700
VOLTAGE
RATING
(V) (max.)
1500
1750
2000
2500
3000
•
•
•
•
•
•
•
CRHV1206
2M - 8G
CRHV1210
4M - 10G
CRHV2010
6M - 35G
CRHV2510
10M - 40G
CRHV2512
12M - 50G
Notes
(1)
Resistance values below 1 GΩ are calibrated at 100 V , and
DC
values of 1 GΩ and above are calibrated at 1000 V
DC
. Calibration
at other voltages available upon request.
• For non-standard sizes, lower values or higher power rating
requirement, contact factory
MECHANICAL SPECIFICATIONS
Construction:
96 % alumina substrate with proprietary
cermet resistance element and specified termination material
ELECTRICAL SPECIFICATIONS
(Reference only: Not for all values specified. Consult factory for your
size and value.)
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature:
- 55 °C to + 150 °C
Life:
Less than 0.5 % change when tested at full rated power
(Reference only: Not for all values specified. Consult factory for your
size and value.)
Resistance Range:
2 MΩ to 50 GΩ
Resistance Tolerance:
± 1 %, ± 2 %, ± 5 %, ± 10 %, ± 20 %
Temperature Coefficient:
± 100 ppm/°C (- 55 °C to + 150 °C)
Voltage Rating:
1500 V - 3000 V
Short Time Overload:
Less than 0.5 %
ΔR
VOLTAGE COEFFICIENT OF RESISTANCE CHART
SIZE
CRHV1206
CRHV1210
CRHV2010
CRHV2510
CRHV2512
VALUE (Ω)
2M to 199M
4M to 200M
6M to 99M
100M to 1G
10M to 99M
100M to 1G
12M to 999M
1G to 5G
VCR (ppm/V)
25
25
15
20
10
15
10
25
FURTHER INSTRUCTIONS
Values over 200M, consult factory
Values over 200M, consult factory
Values over 1G, consult factory
Values over 1G, consult factory
Values over 5G, consult factory
GLOBAL PART NUMBER INFORMATION
New Global Part Numbering: CRHV1206AF100MFKFB (preferred part number format)
C
GLOBAL
MODEL
CRHV
R
SIZE
1206
1210
2010
2510
2512
H
V
1
2
0
6
A
F
1
0
0
M
TCR
F
K
F
B
A
= Palladium silver
F
= ± 1.0 %
B
= Platinum gold
G
= ± 2.0 %
C
= Gold
J
= ± 5.0 %
D
= Platinum silver
K
= ± 10.0 %
E
= Platinum
M
= ± 20.0 %
palladium gold
F
= Nickel barrier
Historical Part Numbering: CRHV1206AF1006F100e2 (will continue to be accepted)
CRHV
1206
A
F
1006
HISTORICAL
MODEL
SIZE
TERM
STYLE
TERM
MATERIAL
RESISTANCE
VALUE
TERM
STYLE
A
= 3-sided
B
= top only
C
= 5-sided
TERM MATERIAL
RESISTANCE
VALUE
M = Million
G = Billion
4M70
= 4.7 MΩ
10M0
= 10 MΩ
1G00
= 1 GΩ
TOLERANCE
K
= 100 ppm
N
= 200 ppm
W
= 350 ppm
P
= 500 ppm
SOLDER
PACKAGING
TERMINATION
E
= Sn100
B
= Bulk
F
= Sn95/Ag5
T
= Tape and
reel
N
= No solder
S
=
W
= Waffle
Sn62/Pb36/Ag2
T
= Sn90/Pb10
F
100
TCR
e2
SOLDER
TERMINATION
TOLERANCE
* Pb containing terminations are not RoHS compliant, exemptions may apply
Document Number: 68002
Revision: 19-Nov-08
For technical questions, contact: te1resistors@vishay.com
www.vishay.com
3
CRHV
Vishay Techno
Thick Film Chip Resistors, High Voltage
DIMENSIONS
in inches [millimeters]
Termination Style A
(3-sided wraparound)
W
L
T
0.025 [0.635]
Max.
T
0.025 [0.635]
Max.
L
Termination Style B
(Top conductor only)
W
Termination Style C
(5-sided wraparound)
W
L
T
0.025 [0.635]
Max.
MODEL
CRHV1206
CRHV1210
CRHV2010
CRHV2510
CRHV2512
LENGTH (L)
± 0.006 [0.152]
0.125
0.125
0.200
0.250
0.250
WIDTH (W)
± 0.006 [0.152]
0.063
0.100
0.100
0.100
0.126
THICKNESS (T)
± 0.002 [0.051]
0.025
0.025
0.025
0.025
0.025
DERATING CURVE
120
% OF RATED POWER
100
80
60
40
20
0
20
50
70
100
AMBIENT TEMPERATURE IN °C
150
(Reference only: Not for all values specified. Consult factory for your size and value.)
TYPE
Solderable
Wire bondable/
Solderable
Wire bondable/
Epoxy bondable
TERMINATION
MATERIAL
Nickel barrier
Platinum palladium gold
TERMINATION
STYLE
3-sided (wraparound)
Top only (flip chip)
3-sided (wraparound)
Top only (flip chip)
5-sided (wraparound)
3-sided (wraparound)
Top only (flip chip)
5-sided (wraparound)
3-sided (wraparound)
Top only (flip chip)
5-sided (wraparound)
3-sided (wraparound)
Epoxy bondable
Platinum gold
Top only (flip chip)
5-sided (wraparound)
3-sided (wraparound)
Platinum silver
Top only (flip chip)
5-sided (wraparound)
TERMINATION STYLE/
MATERIAL CODE
AF
BF
AE
BE
CE
AC
BC
CC
AA
BA
CA
AB
BB
CB
AD
BD
CD
N
SOLDER TERMINATION
CODE
E, F, S, or T
(3)
N, F or S
(1)
Gold
N
Palladium silver
(2)
Notes
(1)
Use solder termination N for applications requiring wire bondable mounting, and solder terminations F or S for applications requiring solderable
mounting.
(2)
While not recommended, palladium silver terminations could be used for solderable applications when using a solder alloy containing silver.
(3)
Standard solder plating for the nickel barrier parts are solder terminations E or T. Hot solder dipped terminations F or S are also available.
www.vishay.com
4
For technical questions, contact: te1resistors@vishay.com
Document Number: 68002
Revision: 19-Nov-08
