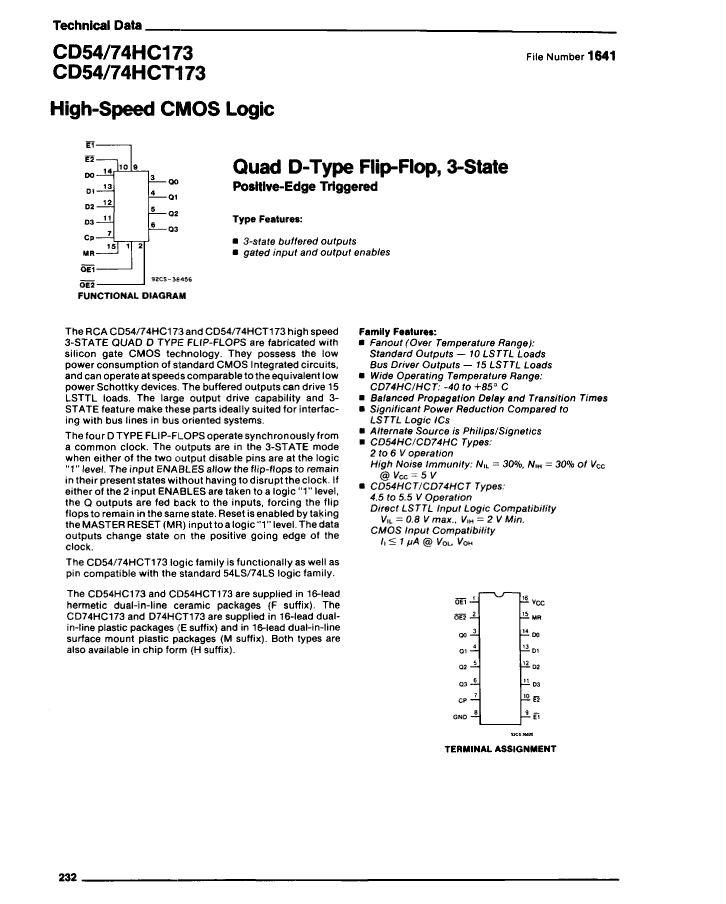

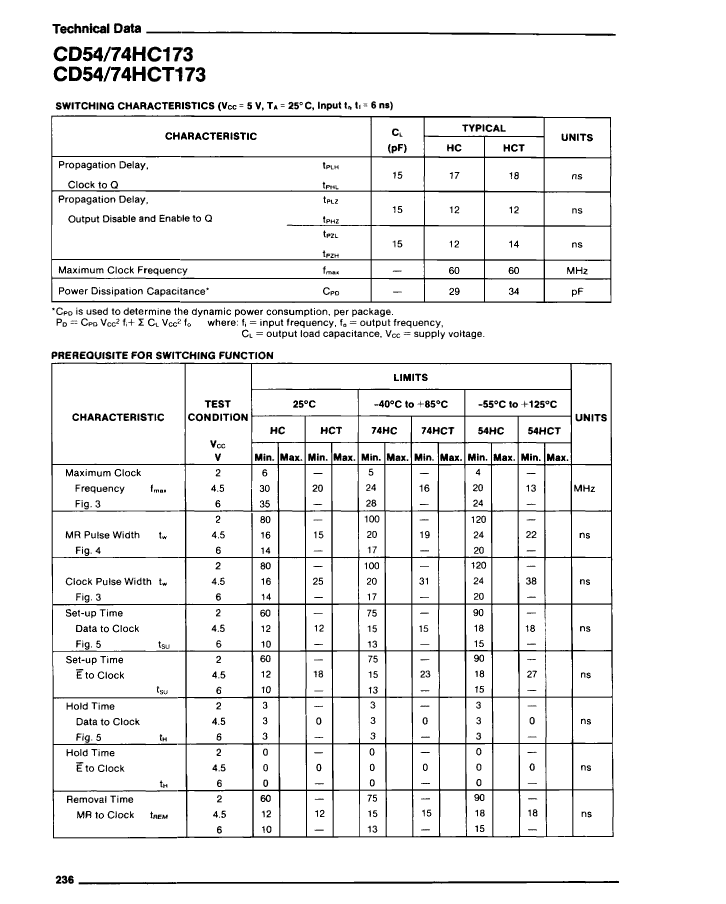

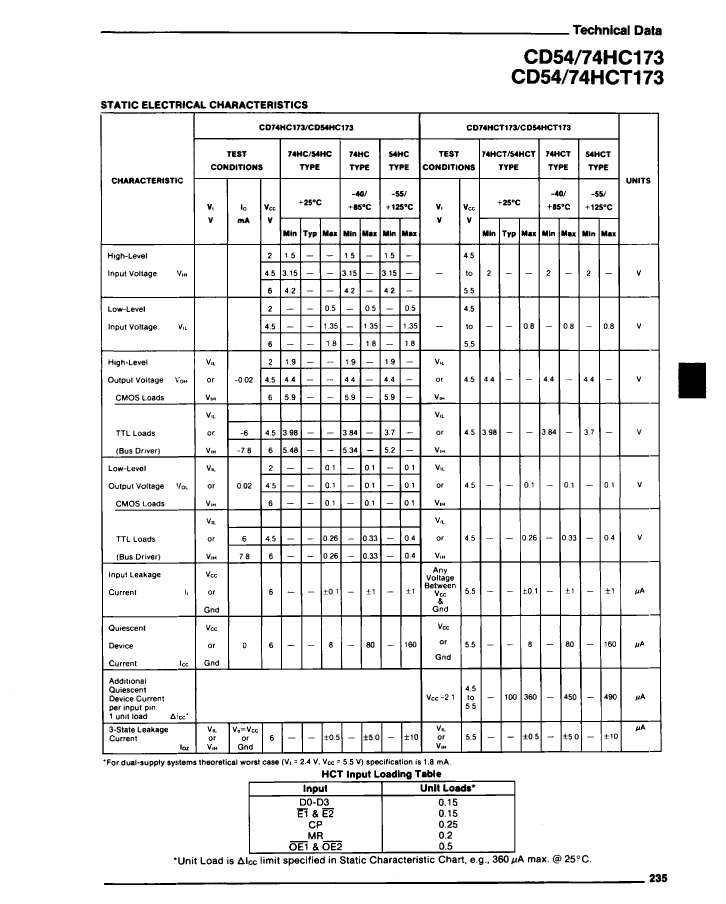

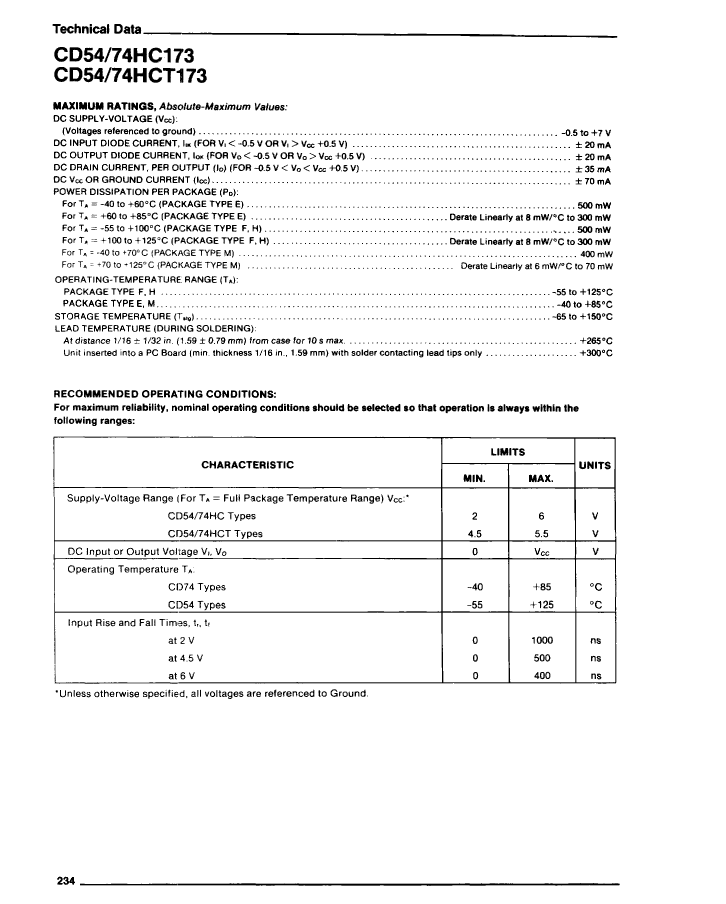

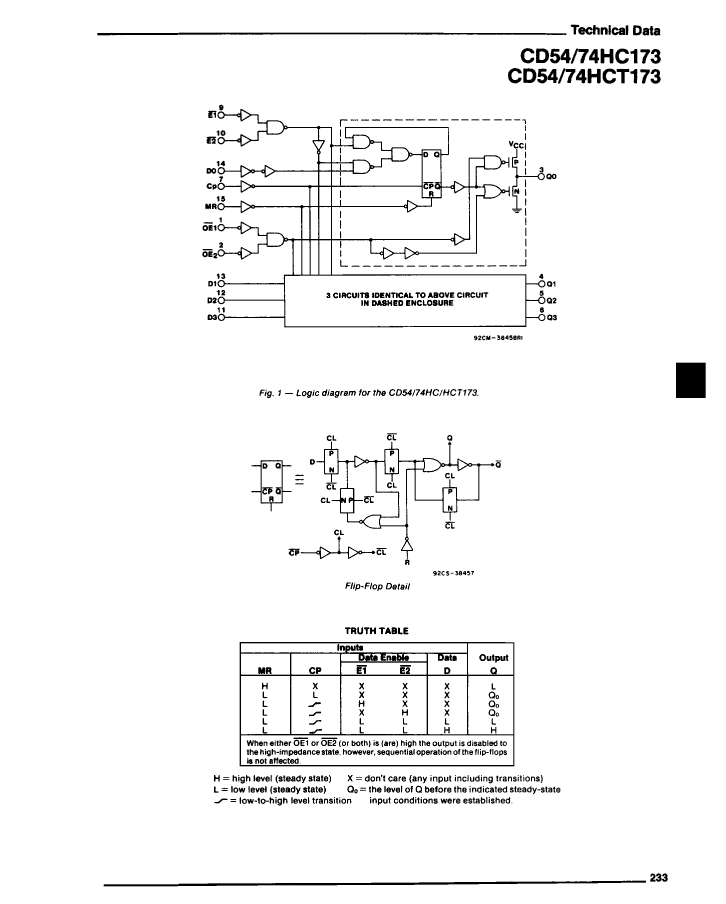

CD54HC173F/3

Description
HC/UH SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, CDIP16
Categorylogic    logic
File Size182KB,6 Pages
ManufacturerRenesas Electronics Corporation
Websitehttps://www.renesas.com/
Download Datasheet Parametric View All

CD54HC173F/3 Overview

HC/UH SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, CDIP16

CD54HC173F/3 Parametric

Parameter NameAttribute value
MakerRenesas Electronics Corporation
package instruction,
Reach Compliance Codeunknown
Other featuresWITH HOLD MODE
seriesHC/UH
JESD-30 codeR-CDIP-T16
Logic integrated circuit typeD FLIP-FLOP
Number of digits4
Number of functions1
Number of terminals16
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Output characteristics3-STATE
Output polarityTRUE
Package body materialCERAMIC, METAL-SEALED COFIRED
Package shapeRECTANGULAR
Package formIN-LINE
propagation delay (tpd)300 ns
Certification statusNot Qualified
Maximum supply voltage (Vsup)6 V
Minimum supply voltage (Vsup)2 V
surface mountNO
technologyCMOS
Temperature levelMILITARY
Terminal formTHROUGH-HOLE
Terminal locationDUAL
Trigger typePOSITIVE EDGE
minfmax60 MHz
Base Number Matches1
