3-641114-8 datasheet, PDF - EEWORLD Datasheet

3-641114-8: Descriptionconn header 8pos vert .156 gold; CategoryThe connector; File Size178KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

3-641114-8 Overview

conn header 8pos vert .156 gold

Parameter Name	Attribute value

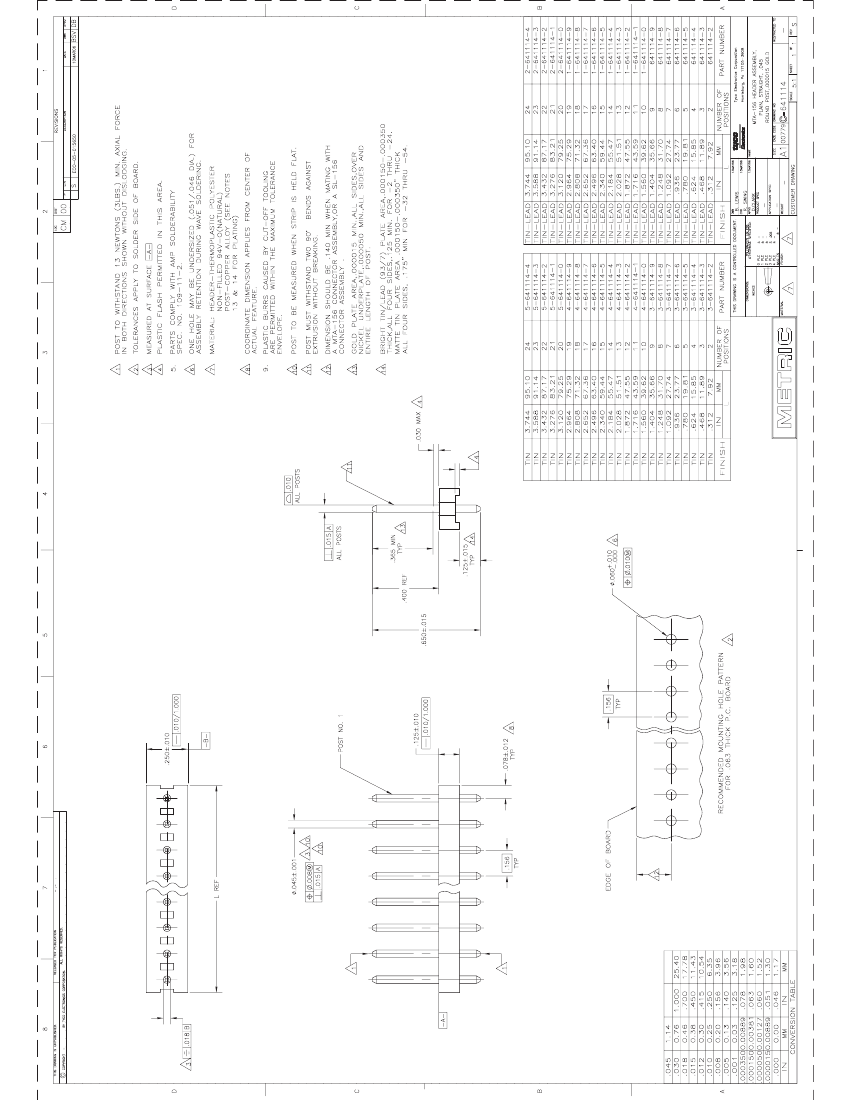

Datasheets
641114
Standard Package	1
Category	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Male Pins
Packaging	Bulk
Contact Type	Male Pi
Connector Type	Header, Unshrouded
Number of Positions	8
Number of Positions Loaded	All
Pitch	0.156" (3.96mm)
Number of Rows	1
Row Spacing	-
Contact Mating Length	0.400" (10.16mm)
Mounting Type	Through Hole
Terminati	Solde
Fastening Type	-
Features	-
Contact Finish	Gold
Contact Finish Thickness	15µin (0.38µm)
Col	Natural

	3-641114-8	3-641114-7	3-641114-6
Description	conn header 8pos vert .156 gold	conn header 7pos vert .156 gold	conn header 6pos vert .156 gold
Standard Package	1	1	1
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins
Packaging	Bulk	Bulk	Bulk
Contact Type	Male Pi	Male Pi	Male Pi
Connector Type	Header, Unshrouded	Header, Unshrouded	Header, Unshrouded
Number of Positions	8	7	6
Number of Positions Loaded	All	All	All
Pitch	0.156" (3.96mm)	0.156" (3.96mm)	0.156" (3.96mm)
Number of Rows	1	1	1
Contact Mating Length	0.400" (10.16mm)	0.400" (10.16mm)	0.400" (10.16mm)
Mounting Type	Through Hole	Through Hole	Through Hole
Terminati	Solde	Solde	Solde
Contact Finish	Gold	Gold	Gold
Contact Finish Thickness	15µin (0.38µm)	15µin (0.38µm)	15µin (0.38µm)
Col	Natural	Natural	Natural
