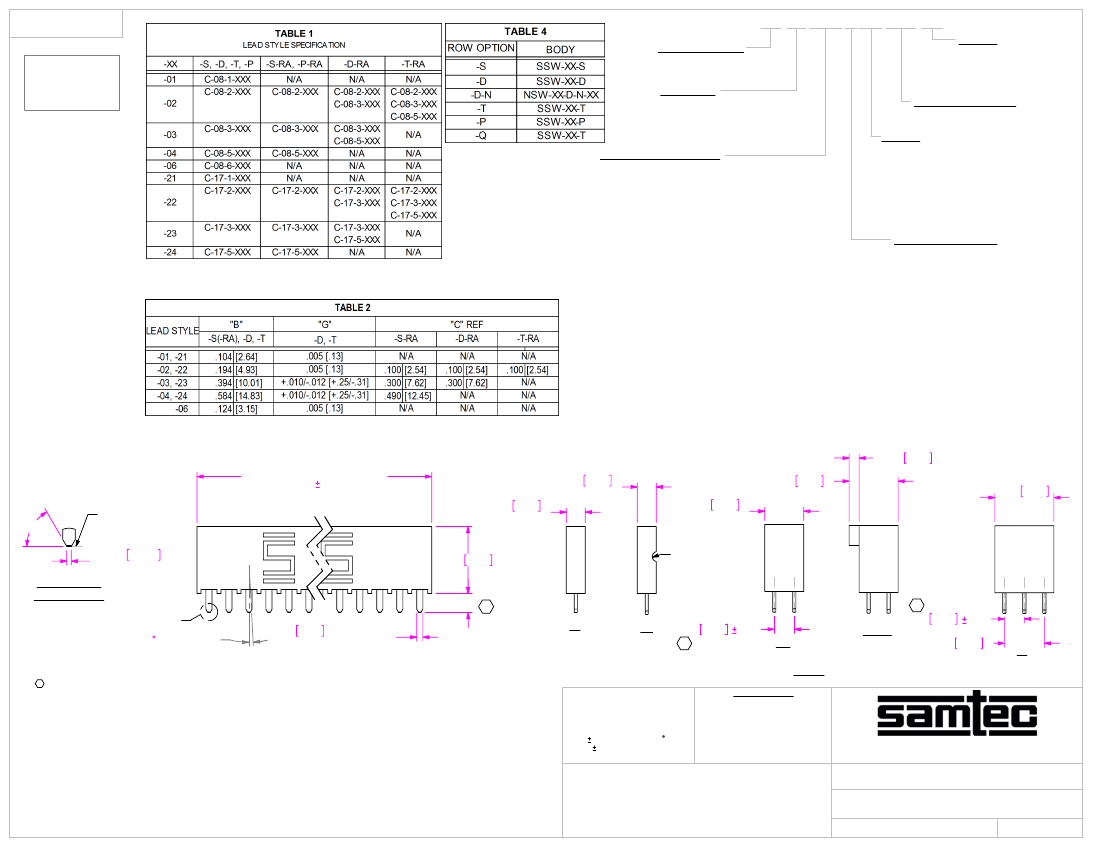

REVISION CE
DO NOT
SCALE FROM
THIS PRINT
SSW-1XX-XX-XXX-X-XX-XXX-XX
No OF POSITIONS
-01 THRU -50
(-P OPTION: 36 POS MAX)
LEAD STYLE
(SEE TABLE 1)
-01 THRU -06 (STD. INS. FORCE)
-21 THRU -24 (LOW INS. FORCE)
PLATING SPECIFICATION
OPTION
-LL: LOCKING LEAD
(SEE FIG 4, SHT 2)
(N/A IN SINGLE ROW,
1 & 2 POSITION)
POLARIZING OPTION
INDICATE POS, SEE FIG 3, SHT 3
OPTION
-RA: RIGHT ANGLE (SEE FIG 2, SHT 2)
(STYLE -01 & -21 N/A)
-N: NOTCH (SEE FIG 6, SHT 3)
(ONLY AVAILABLE IN -D ROW)
(ONLY AVAILABLE IN 5, 7, 8, 10, 12,
13, 15, 17, 20, 25, 32, 36 POSITIONS)
(USE NSW-XX-D-N-XX BODY,
SEE TABLE 6)
-G: 20µ" GOLD IN CONTACT AREA,
3µ" GOLD ON TAIL
-T: MATTE TIN CONTACT AND TAIL
(CONTACT -21 THRU -24 N/A)
-S: 30µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-H: 30µ" HEAVY GOLD IN CONTACT AREA,
ROW SPECIFICATION
3µ" GOLD ON TAIL
-E: 50µ" EXTRA HEAVY GOLD IN CONTACT AREA,
-S: SINGLE
3µ" GOLD ON TAIL
-D: DOUBLE
(CONTACT -01 & -02 STRAIGHT ONLY)
-T: TRIPLE
-F: 3µ" FLASH SELECTIVE GOLD IN CONTACT AREA,
-P: SINGLE
MATTE TIN ON TAIL
-Q: TRIPLE WITH ONLY OUTER 2 ROWS
-STL: 30µ" SELECTIVE GOLD IN CONTACT AREA,
FILLED
TIN/LEAD (90/10 ± 5%) TAIL
-TL: TIN/LEAD (90/10 ± 5%) CONTACT AND TAIL
(AVAILABLE ONLY ON LEAD STYLES -01)
-TM: MATTE TIN CONTACT AND TAIL (CONTACT -21 THRU -24 N/A)
-SM: 30µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-FM: 3µ" FLASH GOLD SELECTIVE IN CONTACT AREA,
MATTE TIN ON TAIL
-L: 10µ" LIGHT SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
((No OF POS x .100[2.54])
+ .020[0.51] .010[0.25])
SEE NOTE 10
.095 2.41
REF
.050 1.27
.095 2.41
REF
.245 6.22
.195 4.95
REF
REF
.295 7.49
REF
60°
DETAIL 'A'
SCALE 4 : 1
.0110 0.280
REF
.335 8.51
SEE NOTE 8
'A'
2 MAX SWAY
(EITHER DIRECTION)
"B"
C
.031 0.79 X .016[0.41]
REF (TYP)
-S
-P
.100 2.54
C
"G"
-D
FIG 1
-D-N
C
.100 2.54
"G"
.200 5.08
NOTES:
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
C
-T
REPRESENTS A CRITICAL DIMENSION.
MAXIMUM CUT FLASH: .015[.38] WITH NO FLASH BELOW STANDOFFS OR IN CONTACT HOLES.
MINIMUM CONTACT PUSHOUT FORCE: 1.5 LBS.
MAXIMUM ALLOWABLE BOW: .003[.08] INCH/INCH.
NOTE DELETED.
MAXIMUM ALLOWABLE VARIATION BETWEEN ROWS: .010[.25].
"END WALLS" AFTER CUTTING SHOULD BE .020±.003 [.51±.08].
NOTCH ON -P-RA & -D-RA-N OPTIONS TO BE ORIENTED AS SHOWN.
SHEAR LOCATION TO BE WITHIN .001[.03] OF THE BREAK OFF CENTER LOCATION.
SHEAR LOCATION TO BE WITHIN .001[.03] OF THE BREAK OFF CENTER LOCATION
FOR MACHINE FILL.
11. LEAD STYLE X2 (SINGLE AND DOUBLE) -RA's TO BE LAYER PACKAGED. ALL OTHER -RA
LEAD STYLES: UNDER 5 POSITION TO BE LAYER PACKAGED, 5 AND UP TO BE PACKAGED
IN TUBES.
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
*
PROPRIETARY NOTE
*
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
.XX: .01 [0.3]
.XXX: .005 [0.13]
ANGLES
2
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
INSULATOR:
-S, -D, -D-N: VECTRA E130i, COLOR: BLACK UL94 V0
-P, -T: PCT, COLOR: BLACK UL94 V0
CONTACT: PHOSPHOR BRONZE, SPRING TEMPER
ALLOY 511 OR 510
(TENSILE STRENGTH 90-100 KSI)
(YEILD STRENGTH @ 2% OFFSET 88-98 KSI)
PER MIL-B-13501
THICKNESS: .0160±.001 [0.635±0.03]
F:\DWG\MISC\MKTG\SSW-1XX-XX-XXX-X-XX-XXX-XX-MKT.SLDDRW
SHEET SCALE: 2:1
ASSEMBLY, SOCKET STRIP .016 X .031 TAIL
SSW-1XX-XX-XXX-X-XX-XXX-XX
PURVIS
06/12/1987
SHEET
1
OF
3
BY:
REVISION CE

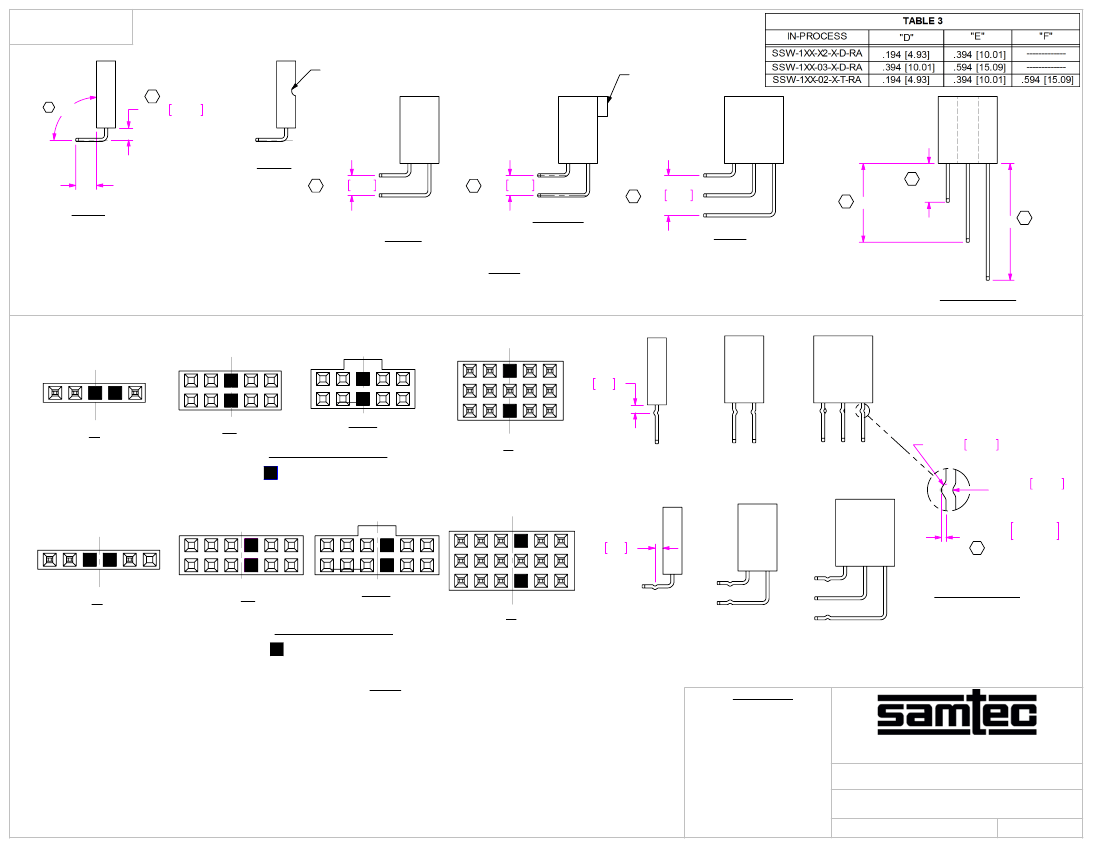

SEE NOTE 8
C
.060 1.524
SEE NOTE 8
C
90°
-P-RA
"C"
(SEE TABLE 2, SHEET 1)
C
.100 2.54
C
.100 2.54
C
.200 5.08
C
"D"
C
"E"
"F"
C
-S-RA
-D-RA
FIG 2
-D-RA-N
-T-RA
RIGHT ANGLE OPTION
ALL OPTIONS DIFFERENT AS SHOWN, OTHERWISE SAME AS -S-RA
IN-PROCESS
01
C
L
C
L
01
C
L
C
L
.04 1.0
01
-S
-D
-D-N
-T
ODD POSITIONS
= CRIMP LOCATION
01
-S-LL
-D-LL
-T-LL
R.0560 1.422 (TYP)
CRIMP LOCATIONS
01
C
L
C
L
01
C
L
C
L
R.0320 0.813
(TYP)
.008
- .000
0.20
.04 1.0
C
(TYP)
+.005
+0.13
0.00
-S
-D
01
-D-N
-T
01
-S-RA-LL
CRIMP LOCATIONS
EVEN POSITIONS
= CRIMP LOCATION
-D-RA-LL
-T-RA-LL
ALL CONFIGURATIONS
CRIMP DETAIL
LOCKING LEAD OPTION
ALL OPTIONS SAME AS -S-XX-LL
UNLESS OTHERWISE SHOWN
FIG 4
*
PROPRIETARY NOTE
*
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DO NOT SCALE DRAWING
DESCRIPTION:
DWG. NO.
ASSEMBLY, SOCKET STRIP .016 X .031 TAIL
SHEET SCALE: 2:1
SSW-1XX-XX-XXX-X-XX-XXX-XX
PURVIS
06/12/1987
SHEET
2
OF
3
F:\DWG\MISC\MKTG\SSW-1XX-XX-XXX-X-XX-XXX-XX-MKT.SLDDRW
BY:
REVISION CE

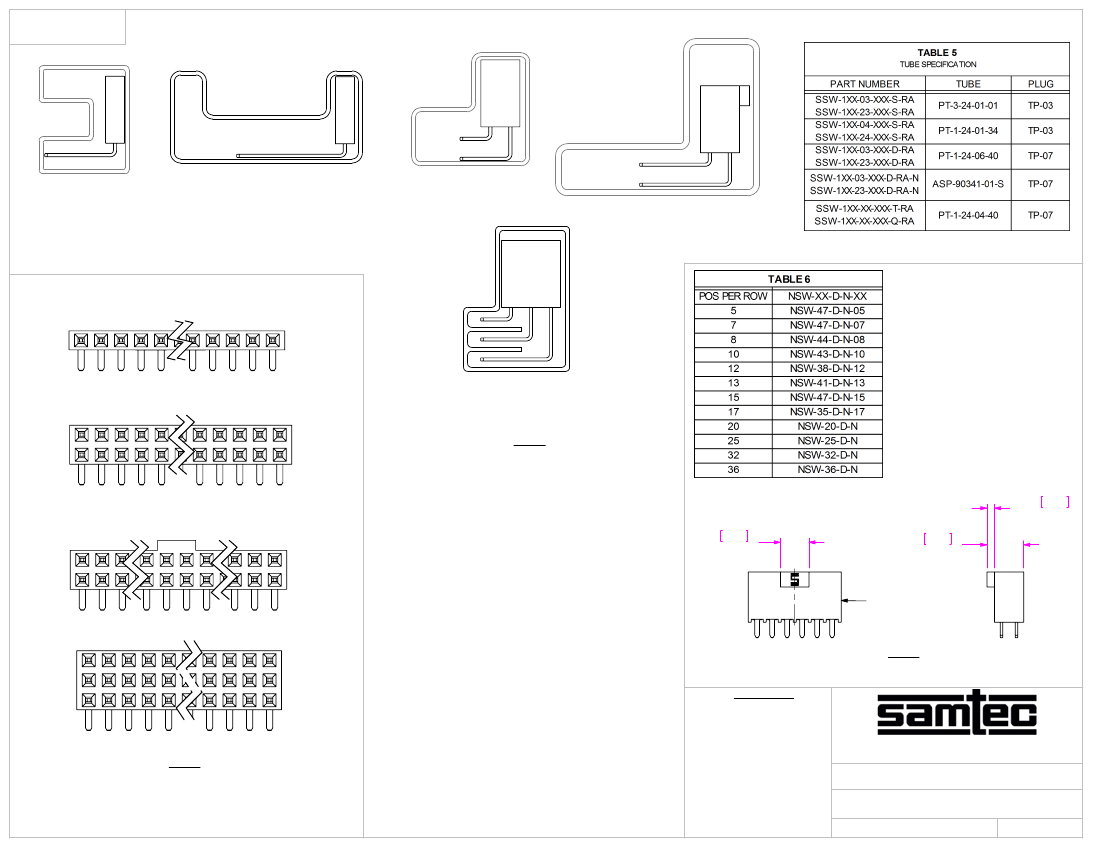

SSW-1XX-03-XXX-S-RA
SSW-1XX-23-XXX-S-RA
SSW-1XX-04-XXX-S-RA
SSW-1XX-24-XXX-S-RA
SSW-1XX-03-XXX-D-RA
SSW-1XX-23-XXX-D-RA
SSW-1XX-03-XXX-D-RA-N
SSW-1XX-23-XXX-D-RA-N
01
50
-S, -P, -S-RA & -P-RA
SSW-1XX-XX-XXX-T-RA
SSW-1XX-XX-XXX-Q-RA
02
01
100
99
PACKAGING VIEWS
(SEE NOTE 11)
FIG 5
-D, -D-RA
.050 1.27
REF
.190 4.83
REF
.245 6.22
REF
01
02
99
100
-D-N, -D-RA-N
150
03
NSW-XX-D-N-XX
(SEE TABLE 6)
NOTCH OPTION
DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1
*
PROPRIETARY NOTE
*
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
FIG 6
148
-T, -Q, -T-RA & -Q-RA
01
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
POLARIZATION LOCATION
(INSERT PK-06-N INTO SPECIFIED POSITION & BREAK OFF TAB)
(-RA OPTION SHOWN FOR ORIENTATION PURPOSE ONLY)
FIG 3
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DO NOT SCALE DRAWING
DESCRIPTION:
DWG. NO.
ASSEMBLY, SOCKET STRIP .016 X .031 TAIL
SHEET SCALE: 2:1
SSW-1XX-XX-XXX-X-XX-XXX-XX
PURVIS
06/12/1987
SHEET
3
OF
3
F:\DWG\MISC\MKTG\SSW-1XX-XX-XXX-X-XX-XXX-XX-MKT.SLDDRW
BY:
