0010311038 datasheet, PDF - EEWORLD Datasheet

0010311038: Descriptionheader 3pos vert W/lock; CategoryThe connector; File Size53KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

0010311038 Overview

header 3pos vert W/lock

Parameter Name	Attribute value
Datasheets

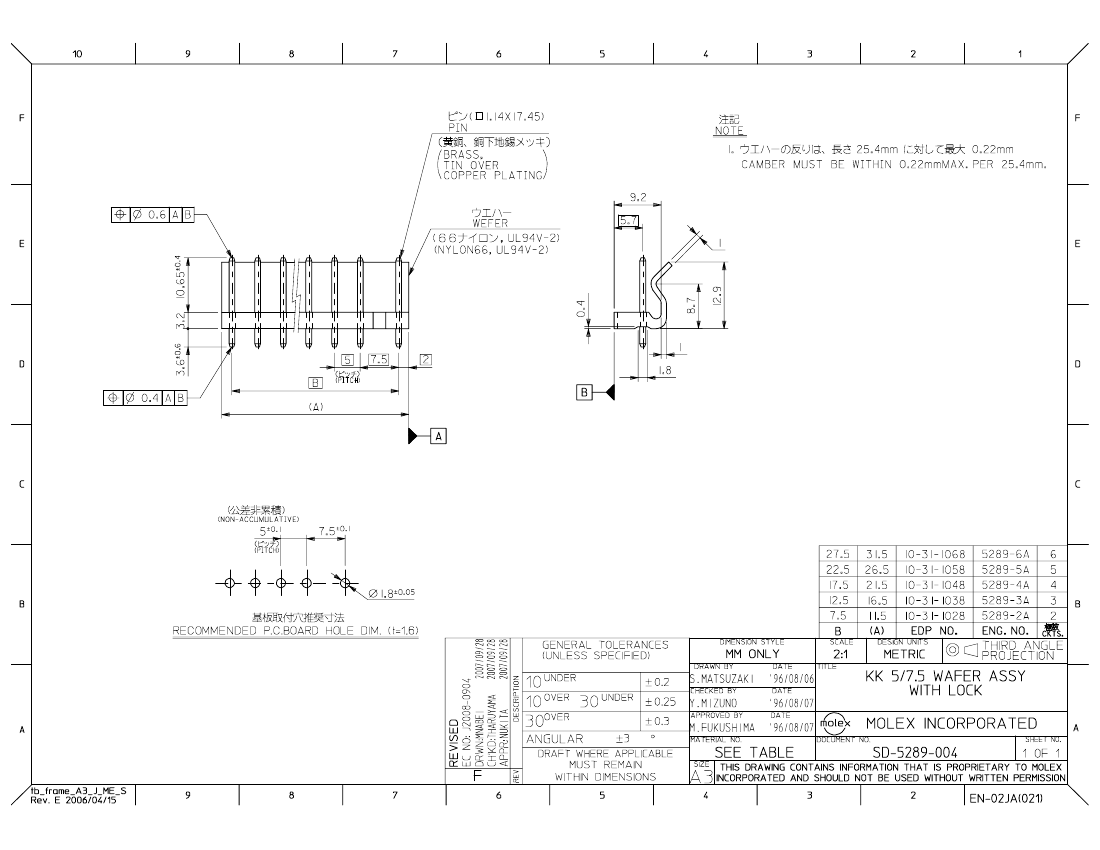

0010311038 Drawing
Standard Package	500
Category	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Male Pins
Packaging	Bulk
Contact Type	Male Pi
Connector Type	Header, Unshrouded
Number of Positions	3
Number of Positions Loaded	All
Pitch	0.197" (5.00mm)
Number of Rows	1
Row Spacing	-
Contact Mating Length	0.419" (10.65mm)
Mounting Type	Through Hole
Terminati	Solde
Fastening Type	Friction Lock
Features	-
Contact Finish	Ti
Contact Finish Thickness	-
Col	Natural
Other Names	001031-103801031103810-31-103810311038

	0010311038	0010311068	0010311028	0010311058	0010311048
Description	header 3pos vert W/lock	header 6pos vert W/lock	header 2pos vert W/lock	header 5pos vert W/lock	header 4pos vert W/lock
Standard Package	500	3,000	3,000	-	-
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	-	-
Family	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	-	-
Packaging	Bulk	Bulk	Bulk	-	-
Contact Type	Male Pi	Male Pi	Male Pi	-	-
Connector Type	Header, Unshrouded	Header, Unshrouded	Header, Unshrouded	-	-
Number of Positions	3	6	2	-	-
Number of Positions Loaded	All	All	All	-	-
Pitch	0.197" (5.00mm)	0.197" (5.00mm)	0.197" (5.00mm)	-	-
Number of Rows	1	1	1	-	-
Contact Mating Length	0.419" (10.65mm)	0.419" (10.65mm)	0.419" (10.65mm)	-	-
Mounting Type	Through Hole	Through Hole	Through Hole	-	-
Terminati	Solde	Solde	Solde	-	-
Fastening Type	Friction Lock	Friction Lock	Friction Lock	-	-
Contact Finish	Ti	Ti	Ti	-	-
Col	Natural	Natural	Natural	-	-
Other Names	001031-103801031103810-31-103810311038	0010-31-106810-31-106810311068WM2356	0010-31-102810-31-102810311028WM2354	-	-
