3-1445099-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 3-1445099-2

3-1445099-2: Descriptionconn header 12pos R/A 30gold smd; CategoryThe connector; File Size175KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

3-1445099-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-1445099-2	-	-	View	Buy Now

3-1445099-2 Overview

conn header 12pos R/A 30gold smd

3-1445099-2 Parametric

Parameter Name	Attribute value
Datasheets
1445099
RoHS Informati
3-1445099-2 Statement of Compliance
RoHS 2 Stateme
3D Model
3-1445099-2.pdf
Standard Package	215
Category	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Male Pins
Packaging	Tape & Reel (TR)
Contact Type	Male Pi
Connector Type	Header, Shrouded
Number of Positions	12
Number of Positions Loaded	All
Pitch	0.118" (3.00mm)
Number of Rows	1
Row Spacing	-
Contact Mating Length	-
Mounting Type	Surface Mount, Right Angle
Terminati	Solde
Fastening Type	Locking Ram
Features	Board Lock
Contact Finish	Gold
Contact Finish Thickness	30µin (0.76µm)
Col	Black
Mating Products	A30268-ND - CONN RECEPT 3MM 12POS MATE-N-LOK

Preview

Download Datasheet

View All

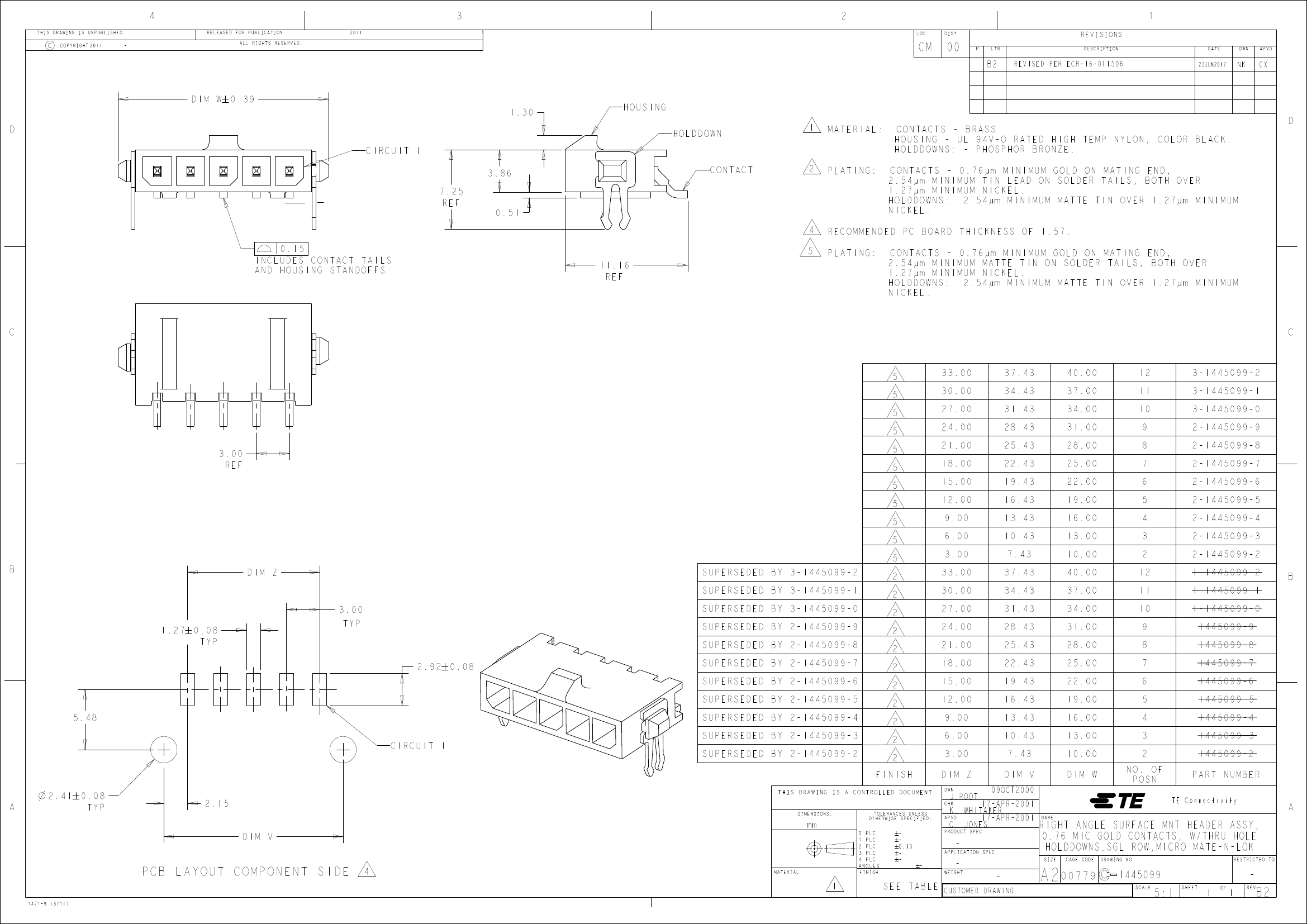

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

2011

LOC

DIST

2011

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

REVISED PER ECR-16-011506

23JUN2017

DIM W # 0.39

1.30

HOUSING

HOLDDOWN

MATERIAL:

CONTACTS - BRASS

HOUSING - UL 94V-O RATED HIGH TEMP NYLON, COLOR BLACK.

HOLDDOWNS: - PHOSPHOR BRONZE.

CIRCUIT 1

3.86

7.25

REF

CONTACT

PLATING:

0.51

CONTACTS - 0.76µm MINIMUM GOLD ON MATING END,

2.54µm MINIMUM TIN LEAD ON SOLDER TAILS, BOTH OVER

1.27µm MINIMUM NICKEL.

HOLDDOWNS: 2.54µm MINIMUM MATTE TIN OVER 1.27µm MINIMUM

NICKEL.

RECOMMENDED PC BOARD THICKNESS OF 1.57.

PLATING:

CONTACTS - 0.76µm MINIMUM GOLD ON MATING END,

2.54µm MINIMUM MATTE TIN ON SOLDER TAILS, BOTH OVER

1.27µm MINIMUM NICKEL.

HOLDDOWNS: 2.54µm MINIMUM MATTE TIN OVER 1.27µm MINIMUM

NICKEL.

INCLUDES CONTACT TAILS

AND HOUSING STANDOFFS

11.16

REF

3.00

REF

33.00

30.00

27.00

24.00

21.00

18.00

15.00

12.00

9.00

6.00

3.00

33.00

30.00

27.00

24.00

21.00

18.00

15.00

12.00

9.00

6.00

3.00

DIM Z

DWN

CHK

37.43

34.43

31.43

28.43

25.43

22.43

19.43

16.43

13.43

10.43

7.43

37.43

34.43

31.43

28.43

25.43

22.43

19.43

16.43

13.43

10.43

7.43

DIM V

09OCT2000

NAME

40.00

37.00

34.00

31.00

28.00

25.00

22.00

19.00

16.00

13.00

10.00

40.00

37.00

34.00

31.00

28.00

25.00

22.00

19.00

16.00

13.00

10.00

DIM W

NO. OF

POSN

3-1445099-2

3-1445099-1

3-1445099-0

2-1445099-9

2-1445099-8

2-1445099-7

2-1445099-6

2-1445099-5

2-1445099-4

2-1445099-3

2-1445099-2

1-1445099-2

1-1445099-1

1-1445099-0

1445099-9

1445099-8

1445099-7

1445099-6

1445099-5

1445099-4

1445099-3

1445099-2

PART NUMBER

TE Connectivity

DIM Z

SUPERSEDED BY 3-1445099-2

SUPERSEDED BY 3-1445099-1

3.00

SUPERSEDED BY 3-1445099-0

SUPERSEDED BY 2-1445099-9

SUPERSEDED BY 2-1445099-8

2.92

0.08

SUPERSEDED BY 2-1445099-7

SUPERSEDED BY 2-1445099-6

SUPERSEDED BY 2-1445099-5

TYP

FINISH

1.27

0.08

TYP

5.48

CIRCUIT 1

SUPERSEDED BY 2-1445099-4

SUPERSEDED BY 2-1445099-3

SUPERSEDED BY 2-1445099-2

2.41

0.08

TYP

2.15

DIM V

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

PCB LAYOUT COMPONENT SIDE

1471-9 (3/11)

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

0.13

17-APR-2001

K. WHITAKER

APVD

17-APR-2001

C. JONES

PRODUCT SPEC

APPLICATION SPEC

J.ROOT

RIGHT ANGLE SURFACE MNT HEADER ASSY,

0.76 MIC GOLD CONTACTS, W/THRU HOLE

HOLDDOWNS,SGL ROW,MICRO MATE-N-LOK

WEIGHT

SEE TABLE

CUSTOMER DRAWING

00779

SIZE

CAGE CODE

DRAWING NO

RESTRICTED TO

1445099

SCALE

5:1

SHEET

REV

3-1445099-2 Related Products

	3-1445099-2	2-1445099-3	2-1445099-4	2-1445099-9	2-1445099-8	3-1445099-1
Description	conn header 12pos R/A 30gold smd	conn header 3pos R/A 30gold smd	conn header 4pos R/A 30gold smd	conn header 9pos R/A 30gold smd	conn header 8pos R/A 30gold smd	conn header 11pos R/A 30gold smd
Standard Package	215	860	645	215	215	215
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins
Packaging	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)
Contact Type	Male Pi	Male Pi	Male Pi	Male Pi	Male Pi	Male Pi
Connector Type	Header, Shrouded	Header, Shrouded	Header, Shrouded	Header, Shrouded	Header, Shrouded	Header, Shrouded
Number of Positions	12	3	4	9	8	11
Number of Positions Loaded	All	All	All	All	All	All
Pitch	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)
Number of Rows	1	1	1	1	1	1
Mounting Type	Surface Mount, Right Angle	Surface Mount, Right Angle	Surface Mount, Right Angle	Surface Mount, Right Angle	Surface Mount, Right Angle	Surface Mount, Right Angle
Terminati	Solde	Solde	Solde	Solde	Solde	Solde
Fastening Type	Locking Ram	Locking Ram	Locking Ram	Locking Ram	Locking Ram	Locking Ram
Features	Board Lock	Board Lock	Board Lock	Board Lock	Board Lock	Board Lock
Contact Finish	Gold	Gold	Gold	Gold	Gold	Gold
Contact Finish Thickness	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)
Col	Black	Black	Black	Black	Black	Black
Mating Products	A30268-ND - CONN RECEPT 3MM 12POS MATE-N-LOK	A30259-ND - CONN RECEPT 3MM 3POS MATE-N-LOK	A30260-ND - CONN RECEPT 3MM 4POS MATE-N-LOK	A30265-ND - CONN RECEPT 3MM 9POS MATE-N-LOK	A30264-ND - CONN RECEPT 3MM 8POS MATE-N-LOK	A30267-ND - CONN RECEPT 3MM 11POS MATE-N-LOK
