5-146138-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 5-146138-1

5-146138-1: Description03 modiv vrt SR CE 100/115; CategoryThe connector; File Size223KB，2 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

5-146138-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5-146138-1	-	-	View	Buy Now

5-146138-1 Overview

03 modiv vrt SR CE 100/115

5-146138-1 Parametric

Parameter Name	Attribute value
Datasheets
146138
RoHS Informati
5-146138-1 Statement of Compliance
RoHS 2 Stateme
3D Model

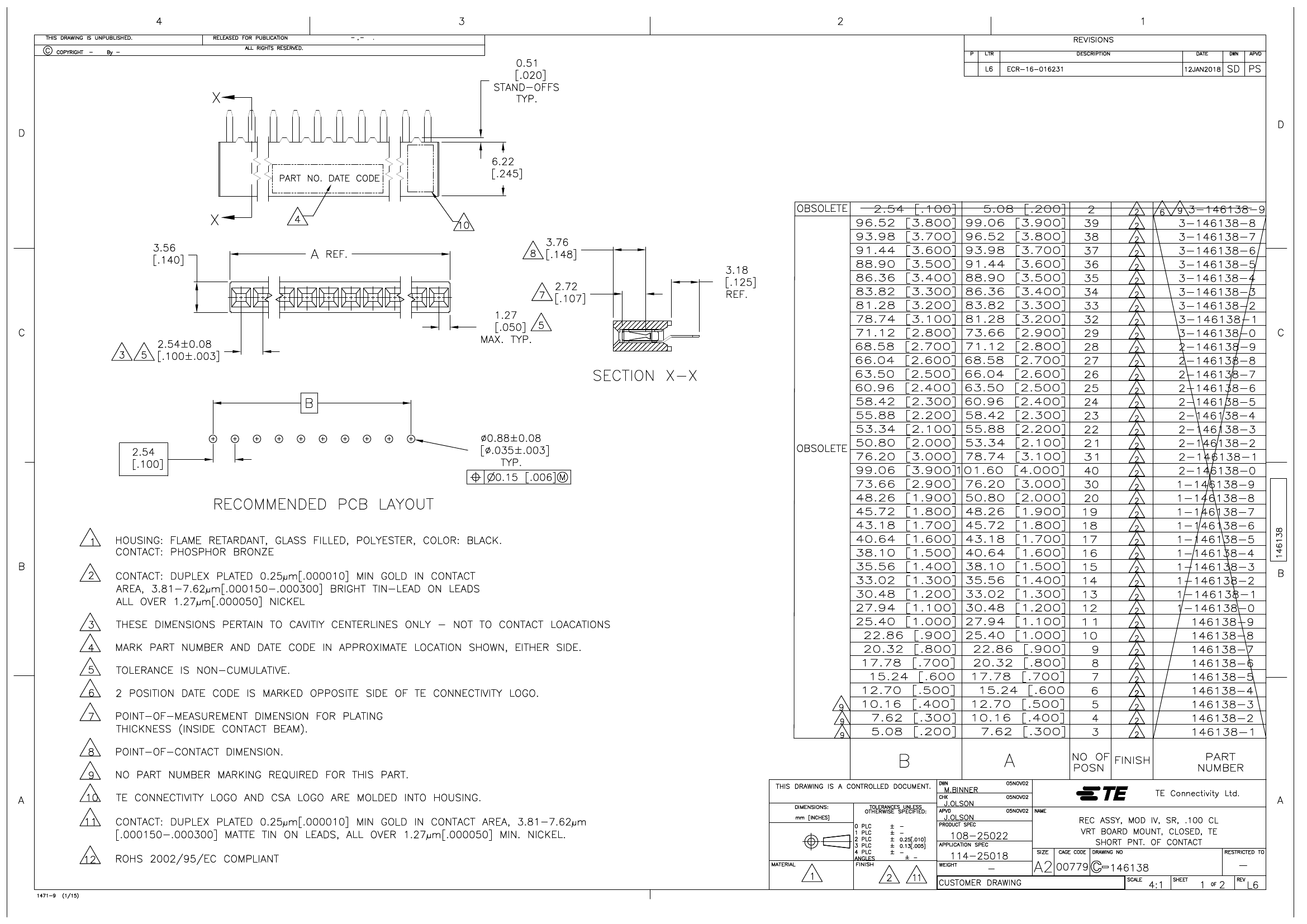

5-146138-1.pdf
Standard Package	4,440
Category	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Receptacles, Female Sockets
Packaging	Tube
Connector Type	Receptacle
Contact Type	Female Socke
Number of Positions	3
Number of Positions Loaded	All
Pitch	0.100" (2.54mm)
Number of Rows	1
Row Spacing	-
Mounting Type	Through Hole
Terminati	Solde
Fastening Type	-
Features	-
Contact Finish	Gold
Contact Finish Thickness	10µin (0.25µm)
Col	Black

Preview

Download Datasheet

View All

5-146138-1 Related Products

	5-146138-1	146138-9	5-146138-3	146138-3	146138-5	146138-6	5-146138-5	5-146138-6
Description	03 modiv vrt SR CE 100/115	conn rcpt 11pos vert .100 T/H	05 modiv vrt SR CE 100/115	conn rcpt mod IV 5pos SL gold	conn rcpt 7pos vert .100 gold	conn recept 8pos vert pcb	07 modiv vrt SR CE 100/115	08 modiv vrt SR CE 100/115
Standard Package	4,440	20	3,600	3,600	2,560	2,240	2,560	2,240
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Receptacles, Female Sockets	Rectangular Connectors - Headers, Receptacles, Female Sockets	Rectangular Connectors - Headers, Receptacles, Female Sockets	Rectangular Connectors - Headers, Receptacles, Female Sockets	Rectangular Connectors - Headers, Receptacles, Female Sockets	Rectangular Connectors - Headers, Receptacles, Female Sockets	Rectangular Connectors - Headers, Receptacles, Female Sockets	Rectangular Connectors - Headers, Receptacles, Female Sockets
Packaging	Tube	Tube	Tube	Tube	Tube	Tube	Tube	Tube
Connector Type	Receptacle	Receptacle	Receptacle	Receptacle	Receptacle	Receptacle	Receptacle	Receptacle
Contact Type	Female Socke	Female Socke	Female Socke	Female Socke	Female Socke	Female Socke	Female Socke	Female Socke
Number of Positions	3	11	5	5	7	8	7	8
Number of Positions Loaded	All	All	All	All	All	All	All	All
Pitch	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Rows	1	1	1	1	1	1	1	1
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Terminati	Solde	Solde	Solde	Solde	Solde	Solde	Solde	Solde
Contact Finish	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold
Contact Finish Thickness	10µin (0.25µm)	10µin (0.25µm)	10µin (0.25µm)	10µin (0.25µm)	10µin (0.25µm)	10µin (0.25µm)	10µin (0.25µm)	10µin (0.25µm)
Col	Black	Black	Black	Black	Black	Black	Black	Black
