71694-2101 datasheet, PDF - EEWORLD Datasheet

71694-2101: Descriptionconn recept 10pos .165 awg18 tin; CategoryThe connector The connector; File Size399KB，7 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

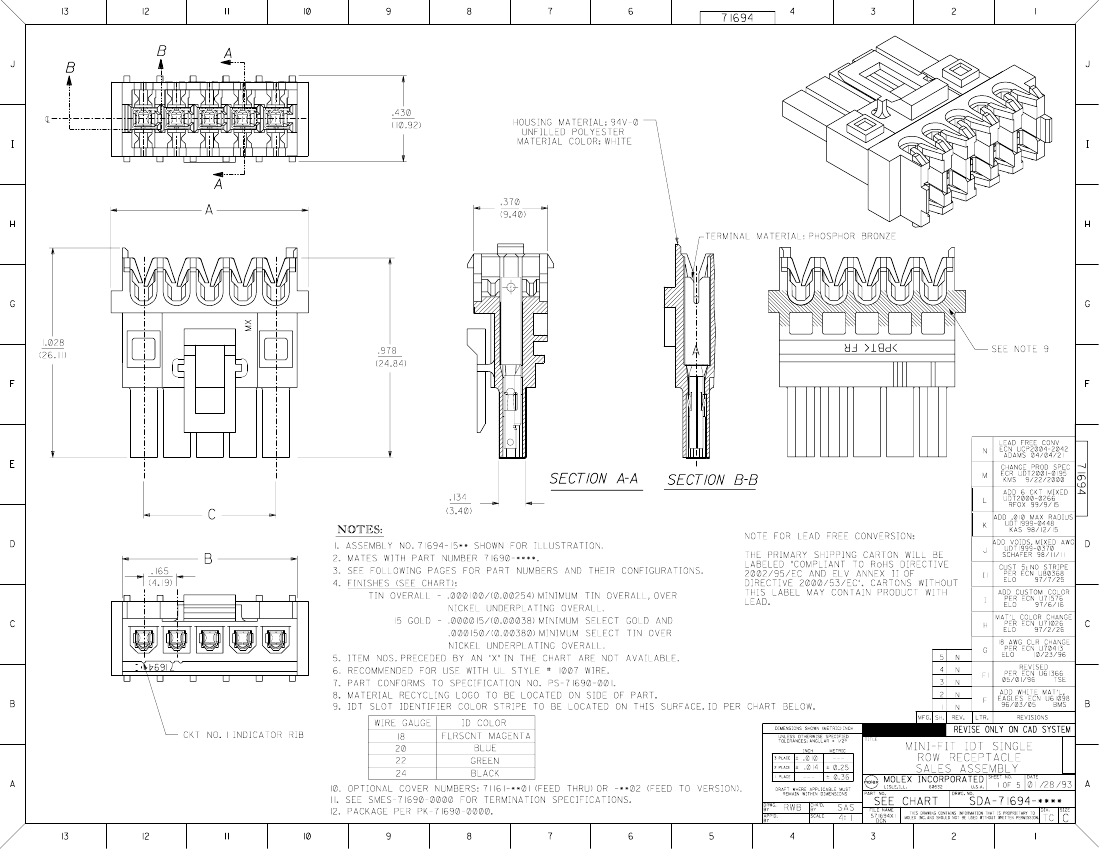

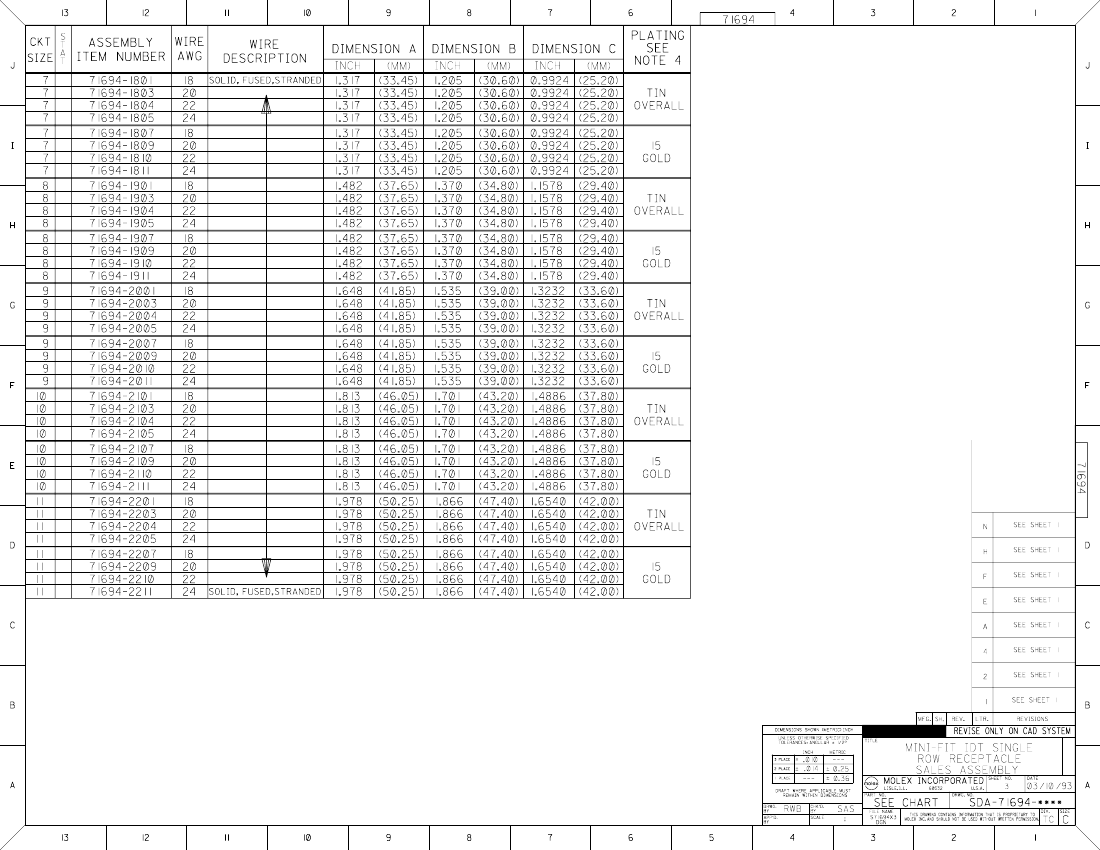

71694-2101 Overview

conn recept 10pos .165 awg18 tin

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknow
Other features	MINI-FIT IDT, POLARIZED, POSITIVE LOCK
body width	0.43 inch
subject depth	1.028 inch
body length	1.813 inch
Body/casing type	RECEPTACLE
Connector type	RECTANGULAR POWER CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	2200VAC V
Durability	30 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	6.672 N
Insulation resistance	1000000000 Ω
insulator material	POLYESTER
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.165 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING MECH
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
Plating thickness	100u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	6 A
Guideline	CSA, UL
reliability	COMMERCIAL
Shell material	POLYESTER
Terminal length

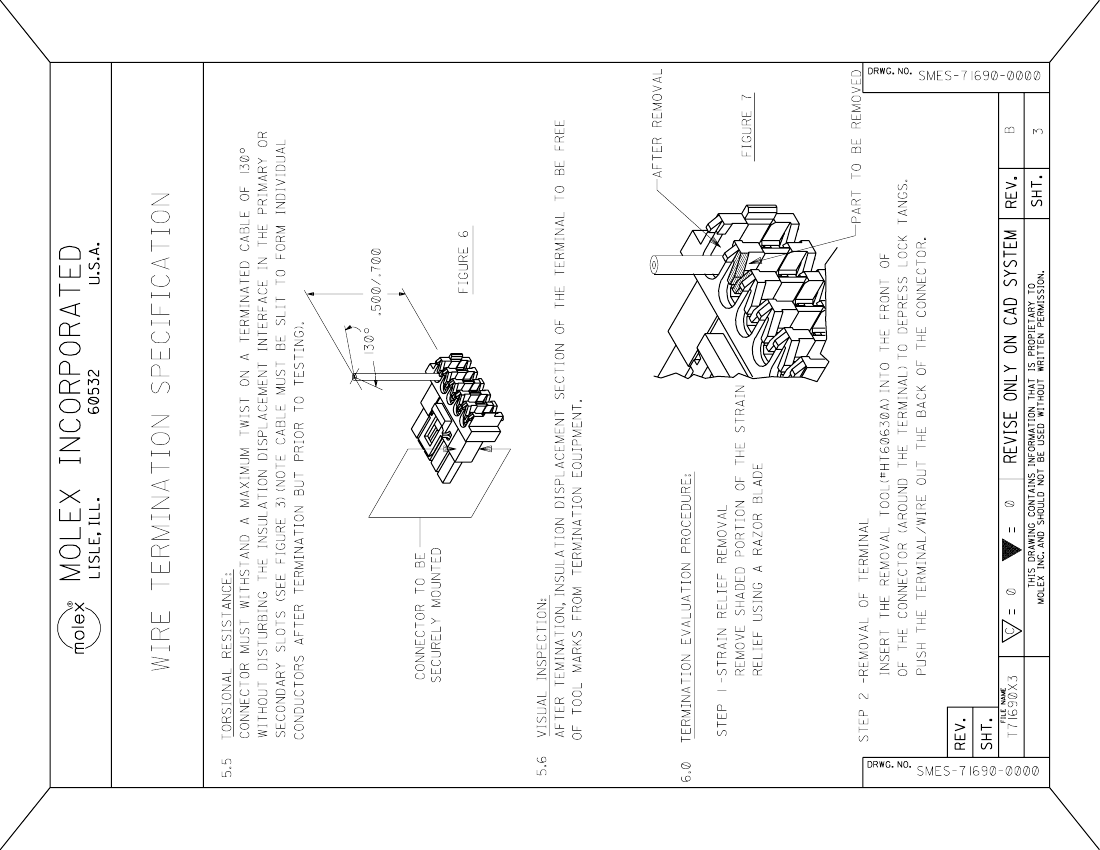

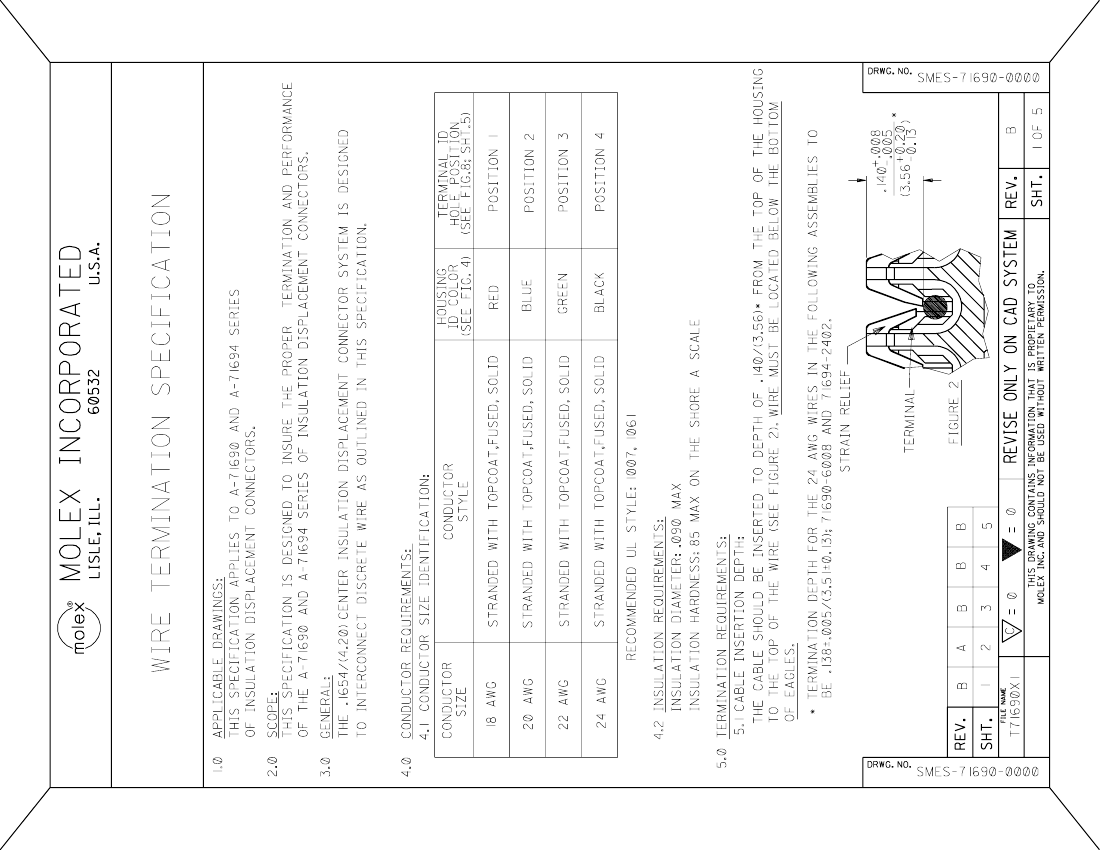

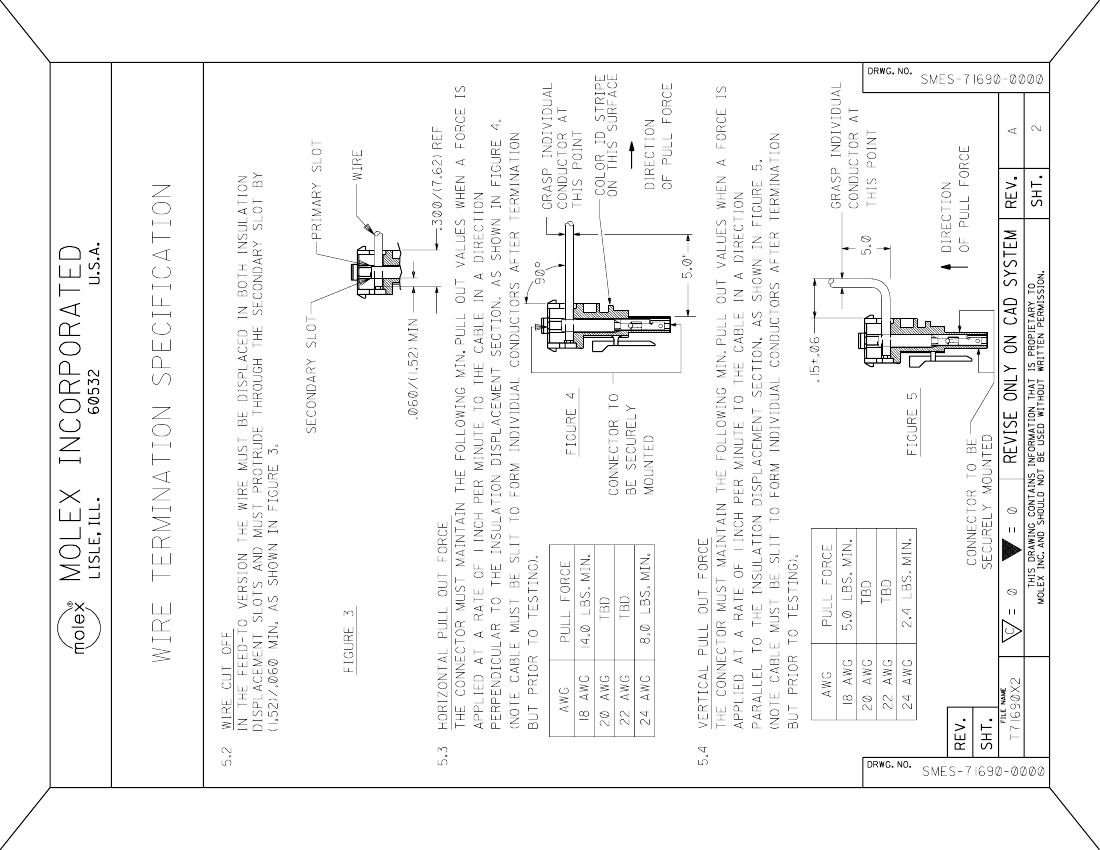

Termination type	IDC
Total number of contacts	10
UL Flammability Code	94V-0
Maximum wire diameter	18 AWG
Minimum wire diameter	18 AWG
Evacuation force-minimum value	3.9198 N
