FPC-98210-4611-TR datasheet, PDF

Datasheet> All Categories > The connector> The connector> FPC-98210-4611-TR

FPC-98210-4611-TR: DescriptionCard Edge Connector, 46 Contact(s), 1 Row(s), Male, Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking Mech; CategoryThe connector The connector; File Size76KB，2 Pages; ManufacturerYamaichi Electronics Co., Ltd.; Websitehttp://www.yamaichi.com/

Download Datasheet Parametric View All

FPC-98210-4611-TR Overview

Card Edge Connector, 46 Contact(s), 1 Row(s), Male, Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking Mech

FPC-98210-4611-TR Parametric

Parameter Name	Attribute value
Objectid	1823398494
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	TAPE &REEL PKG., TOP CONTACT
body width	0.079 inch
subject depth	0.173 inch
body length	1.161 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Filter function	NO
IEC compliance	NO
maximum insertion force	ZIF N
Insulation resistance	100000000 Ω
insulator material	POLYPHENYLENE SULFIDE
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.02 inch
Mixed contacts	NO
Installation option 1	LOCKING MECH
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Rated current (signal)	0.3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	46
UL Flammability Code	94V-0
Evacuation force-minimum value	ZIF N

Preview

Download Datasheet

View All

FPC Series

Specifications

Insulation Resistance:

Contact Resistance:

Withstanding Voltage:

Voltage Rating:

Current Rating:

Operating Temp. Range:

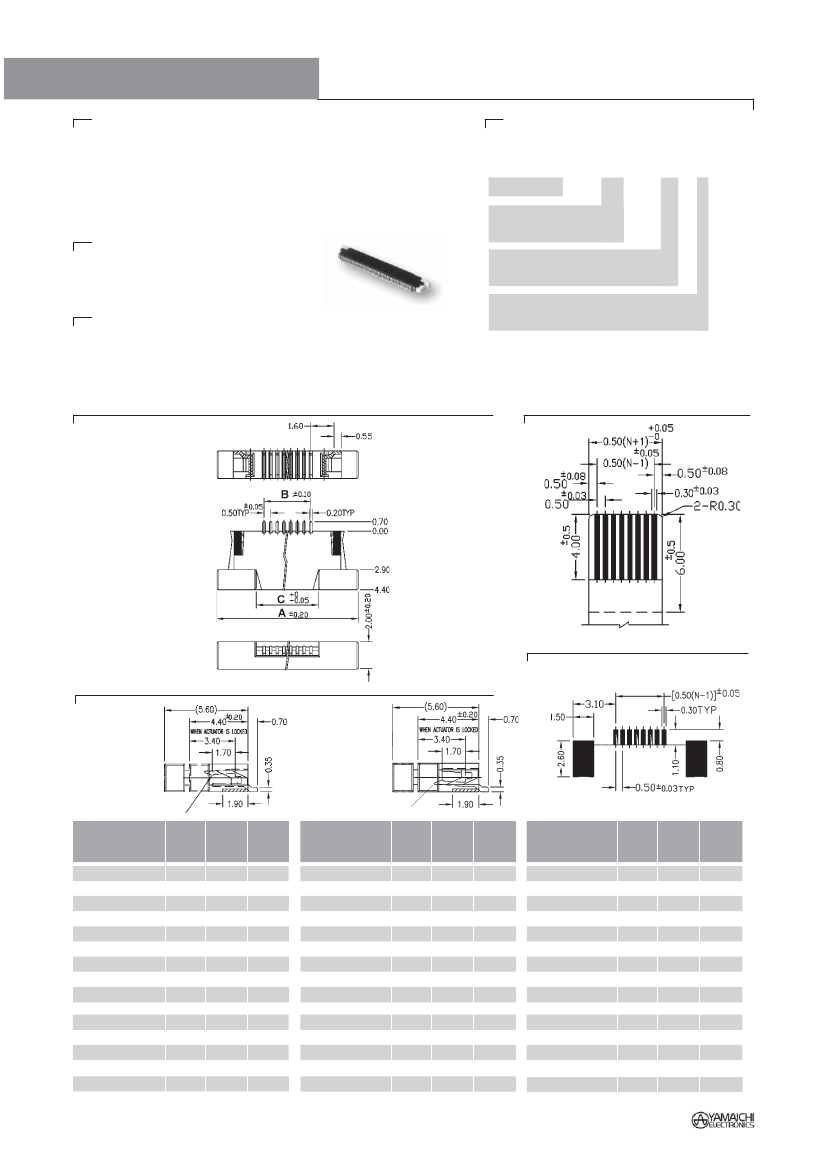

ZIF for FFC / FPC Connector 0.5mm Pitch 90° SMT

Part Number

(Details)

100MΩ minimum

20mΩ maximum

500V AC rms for 1 minute

25V DC

0.3A

-25°C to +85°C

FPC-98210-

Series No.

No. of Contacts:

4 to 60 pins

*1 - *

Materials and Finish

Housing: PPS (UL94V-0)

Actuator: PPS (UL94V-0)

Contacts: Phosphor Bronze / Tin Plated

1 = Top Contact

2 = Bottom Contact

No Mark: Tube Packaging

T&R: Tape and Reel 2,000pcs/reel

Features

➭

90° SMT Zero Insertion Force connector for 0.50mm

Flexible Flat Cable (FFC) and Flexible Printed Circuit (FPC) appliances

➭

Top or bottom contact type

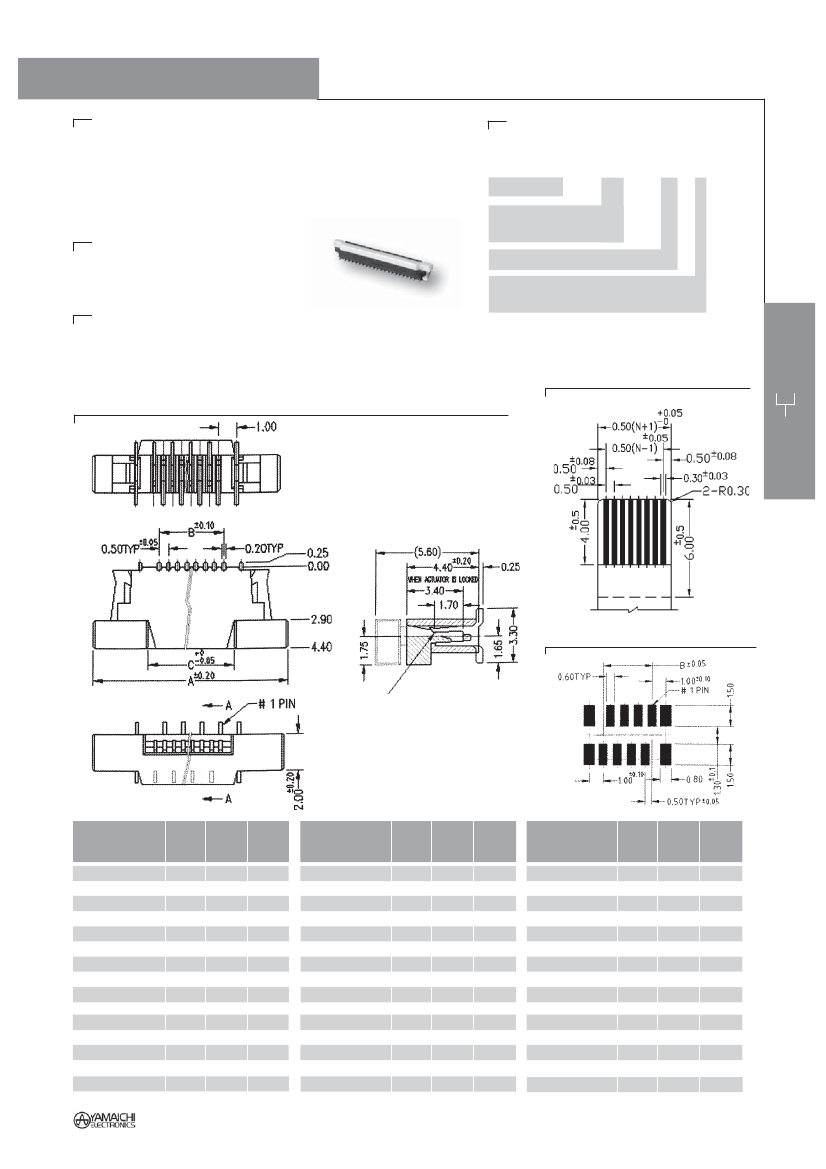

Outline Dimensions for Top Contact

Recommended FPC Cable

Recommended PCB Layouts

Contacts (side view)

Top Contact

Bottom Contact

Contact point

Part

Number

FPC-98210-04*1

FPC-98210-05*1

FPC-98210-06*1

FPC-98210-07*1

FPC-98210-08*1

FPC-98210-0911

FPC-98210-10*1

FPC-98210-11*1

FPC-98210-12*1

FPC-98210-13*1

FPC-98210-14*1

FPC-98210-15*1

FPC-98210-16*1

FPC-98210-17*1

FPC-98210-18*1

FPC-98210-19*1

Dim. Dim. Dim.

8.50

9.00

9.50

10.00

10.50

11.00

11.50

12.00

12.50

13.00

13.50

14.00

14.50

15.00

15.50

16.00

1.50

2.00

2.50

3.00

3.50

4.00

4.50

5.00

5.50

6.00

6.50

7.00

7.50

8.00

8.50

9.00

2.60

3.10

3.60

4.10

4.60

5.10

5.60

6.10

6.60

7.10

7.60

8.10

8.60

9.10

9.60

10.10

Part

Number

FPC-98210-20*1

FPC-98210-21*1

FPC-98210-22*1

FPC-98210-23*1

FPC-98210-24*1

FPC-98210-25*1

FPC-98210-26*1

FPC-98210-27*1

FPC-98210-28*1

FPC-98210-29*1

FPC-98210-30*1

FPC-98210-31*1

FPC-98210-32*1

FPC-98210-33*1

FPC-98210-34*1

FPC-98210-35*1

Dim. Dim. Dim.

16.50

17.00

17.50

18.00

18.50

19.00

19.50

20.00

20.50

21.00

21.50

22.00

22.50

23.00

23.50

24.00

9.50

10.00

10.50

11.00

11.50

12.00

12.50

13.00

13.50

14.00

14.50

15.00

15.50

16.00

16.50

17.00

10.60

11.10

11.60

12.10

12.60

13.10

13.60

14.10

14.60

15.10

15.60

16.10

16.60

17.10

17.60

18.10

Part

Number

FPC-98210-36*1

FPC-98210-37*1

FPC-98210-38*1

FPC-98210-39*1

FPC-98210-40*1

FPC-98210-41*1

FPC-98210-42*1

FPC-98210-43*1

FPC-98210-44*1

FPC-98210-45*1

FPC-98210-46*1

FPC-98210-47*1

FPC-98210-48*1

FPC-98210-49*1

FPC-98210-50*1

FPC-98210-60*1

Dim. Dim. Dim.

24.50

25.00

25.50

26.00

26.50

27.00

27.50

28.00

28.50

29.00

29.50

30.00

30.50

31.00

31.50

36.50

17.50

18.00

18.50

19.00

19.50

20.00

20.50

21.00

21.50

22.00

22.50

23.00

23.50

24.00

24.50

29.50

18.60

19.10

19.60

20.10

20.60

21.10

21.60

22.10

22.60

23.10

23.60

24.10

24.60

25.10

25.60

30.60

Trading Division

B- 66

Sockets and Connectors

SPECIFICATIONS ARE SUBJECT TO ALTERATION WITHOUT PRIOR NOTICE - DIMENSIONS IN MILLIMETER
