S 204 Series

utomotive Grade Quartz Crystal

Features

EC-

EC-Q200 Compliant

Hermetic Ceramic Surface Mount Package

Fundamental Crystal Design

Frequency Range 16 – 96MHz

Frequency Tolerance, ±30ppm Standard

Frequency Stability, ±50ppm Standard

Operating Temperature Range to -55°C to +125°C

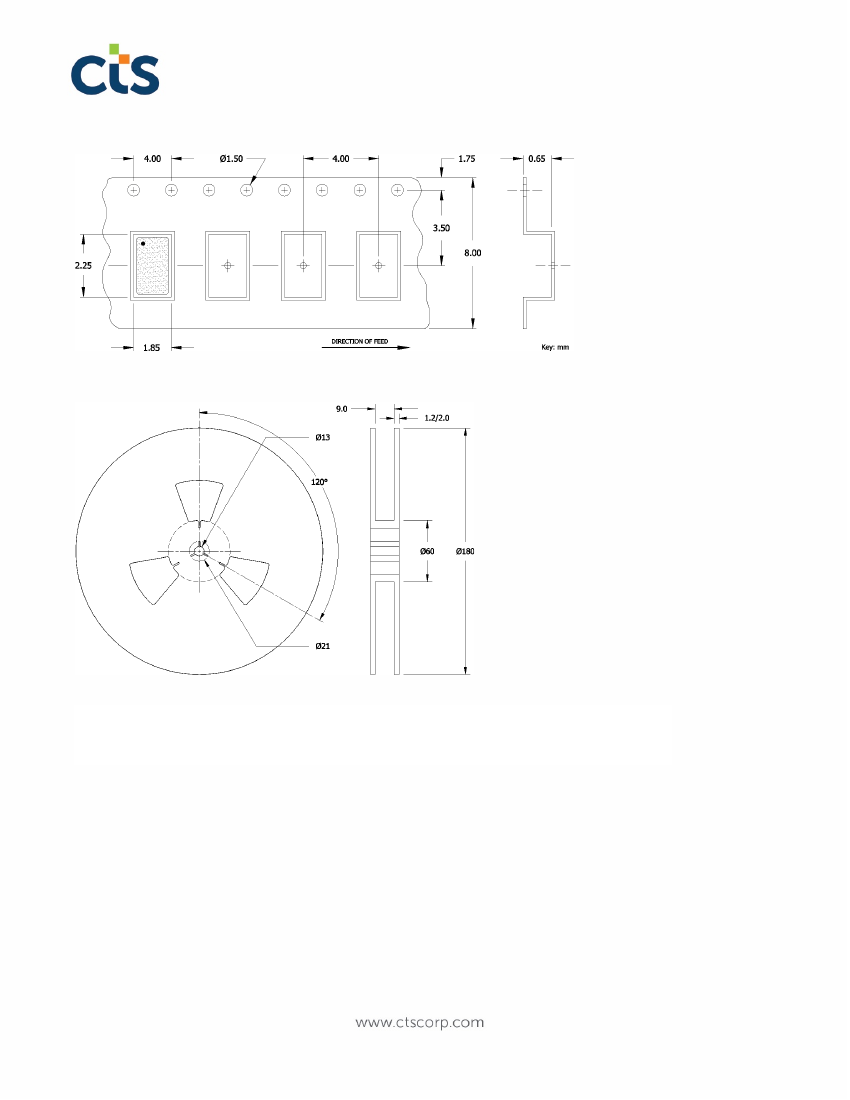

Tape and Reel Packaging, EI -481

Part Dimensions:

2.0 × 1.6 × 0.5mm • 5.70mg

Standard Frequencies – see Page 5 for developed frequencies.

* Check with factory for availability of frequencies not listed.

pplications

utomotive Electronics

Mobile Multimedia/Infotainment

Car Navigation Systems

Internet of Things [IoT, IIot]

Microcontrollers and FPG s

Wireless Communication

Ethernet/GbE/SyncE

Medical Electronics

Commercial Military & erospace

Description

CTS Model S 204 incorporates a low cost, high Q, small size quartz resonator specifically developed to operate

over extended temperature ranges for use in automotive electronics.

Ordering Information

Model

S 204

Frequency Code

[MHz]

XXX

Mode of

Oscillation

Tolerance

@ +25°C

Temperature

Stability

Temperature

Range

Load

Capacitance

Packaging

Code

Frequency

Product Frequency Code

Code

Tolerance

±10ppm

±15ppm

±20ppm

±30ppm

±50ppm

Code

Stability

±15ppm

±20ppm

±30ppm

Code

Temp. Range

-40°C to +85°C

-40°C to +105°C

-40°C to +125°C

-40°C to +150°C

-55°C to +105°C

-55°C to +125°C

Packing

Code

3k pcs./reel

Code

Mode

Fundamental

Code

Stability

±50ppm

±100ppm

±150ppm

Code Capacitance Code Capacitance

7pF

16pF

8pF

18pF

9pF

20pF

10pF

24pF

12pF

30pF

13pF

Series

Notes:

Refer to document 016-1454-0, Frequency Code Tables. 3-digits for frequencies <100MHz, 4-digits for frequencies 100MHz or greater.

vailable with all stability codes.

vailable with stability codes 3, 5, 6 and 7.

vailable with stability codes 5, 6 and 7.

Stability codes 6 and 7. Contact factory for code 5 availability.

Not all performance combinations and frequencies may be available.

Contact your local CTS Representative or CTS Customer Service for availability.

This product is specified for use only in standard commercial applications. Supplier disclaims all express and implied warranties and liability in connection with any use of this

product in any non-commercial applications or in any application that may expose the product to conditions that are outside of the tolerances provided in its specification.

DOC# 008-0584-0 Rev. D

Page 1 of 5

equipment. Visit www.ctscorp.com for list of applicable patent(s), more information, or to request a quote.
