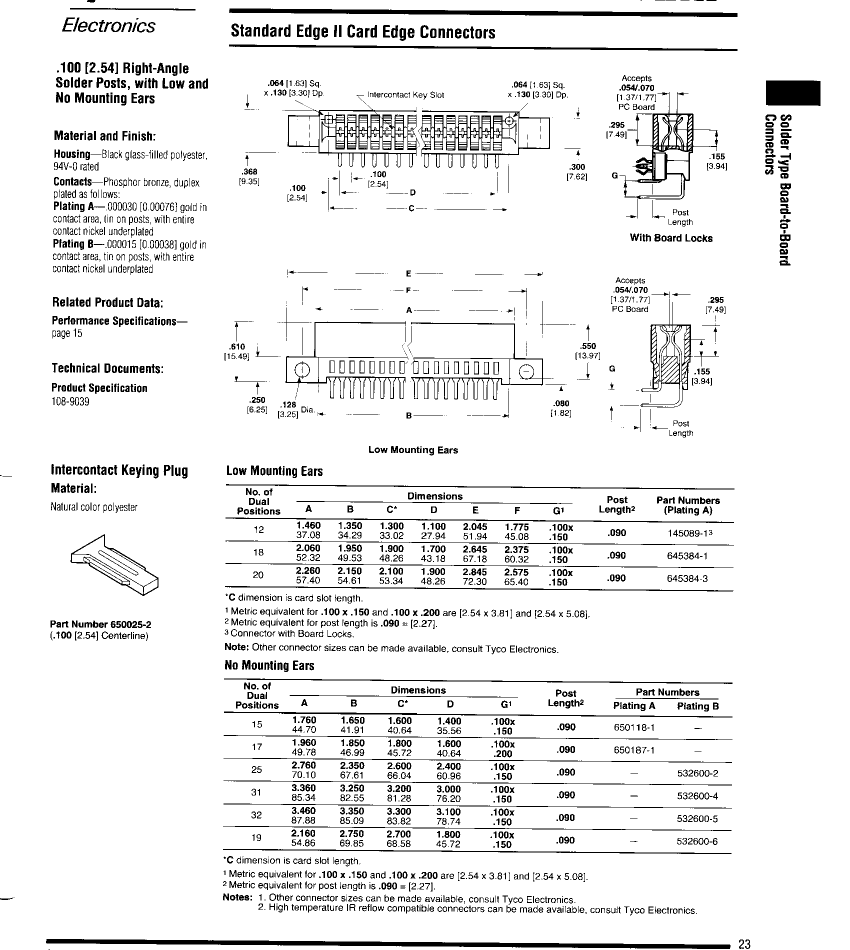

38 CONTACT(S), FEMALE, RIGHT ANGLE SINGLE PART CARD EDGE CONN, SOLDER
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | TE Connectivity |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Other features | POLARIZED |
| body width | 0.368 inch |
| subject depth | 0.76 inch |
| body length | 2.16 inch |
| Body/casing type | RECEPTACLE |
| Connector type | CARD EDGE CONNECTOR |
| Contact to complete cooperation | GOLD (15) OVER NICKEL |
| Contact completed and terminated | Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier |
| Contact point gender | FEMALE |
| Contact material | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR |
| Contact resistance | 10 mΩ |
| Contact style | BELLOWED TYPE |
| DIN compliance | NO |
| Dielectric withstand voltage | 1000VAC V |
| Durability | 100 Cycles |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | 5.3376 N |
| Insulation resistance | 5000000000 Ω |
| Insulator color | BLACK |
| insulator material | GLASS FILLED POLYESTER |
| JESD-609 code | e0 |
| MIL compliance | NO |
| Manufacturer's serial number | 532600 |
| Plug contact pitch | 0.1 inch |
| Mixed contacts | NO |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 3.81 mm |
| Plating thickness | 15u inch |
| Rated current (signal) | 3 A |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Terminal length | 0.09 inch |
| Terminal pitch | 2.54 mm |
| Termination type | SOLDER |
| Total number of contacts | 38 |
| UL Flammability Code | 94V-0 |
| Evacuation force-minimum value | .3614 N |
| Base Number Matches | 1 |
| 532600-6 | 532600-2 | 650187-1 | 654384-1 | 654384-3 | |
|---|---|---|---|---|---|
| Description | 38 CONTACT(S), FEMALE, RIGHT ANGLE SINGLE PART CARD EDGE CONN, SOLDER | 50 CONTACT(S), FEMALE, RIGHT ANGLE SINGLE PART CARD EDGE CONN, SOLDER | 34 CONTACT(S), FEMALE, RIGHT ANGLE SINGLE PART CARD EDGE CONN, SOLDER | 36 CONTACT(S), FEMALE, RIGHT ANGLE SINGLE PART CARD EDGE CONN, SOLDER | 40 CONTACT(S), FEMALE, RIGHT ANGLE SINGLE PART CARD EDGE CONN, SOLDER |
| Reach Compliance Code | unknown | compliant | unknown | unknown | unknown |
| Other features | POLARIZED | POLARIZED | POLARIZED | PANEL MOUNTABLE, POLARIZED | PANEL MOUNTABLE, POLARIZED |
| Connector type | CARD EDGE CONNECTOR | CARD EDGE CONNECTOR | CARD EDGE CONNECTOR | CARD EDGE CONNECTOR | CARD EDGE CONNECTOR |
| Contact completed and terminated | Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier | Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier | Tin (Sn) | TIN LEAD OVER NICKEL | TIN LEAD OVER NICKEL |
| Contact point gender | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE |
| DIN compliance | NO | NO | NO | NO | NO |
| Filter function | NO | NO | NO | NO | NO |
| IEC compliance | NO | NO | NO | NO | NO |
| JESD-609 code | e0 | e0 | e3 | e0 | e0 |
| MIL compliance | NO | NO | NO | NO | NO |
| Manufacturer's serial number | 532600 | 532600 | 650187 | 654384 | 654384 |
| Mixed contacts | NO | NO | NO | NO | NO |
| Installation method | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE |
| Installation type | BOARD | BOARD | BOARD | BOARD | BOARD |
| Number of rows loaded | 2 | 2 | 2 | 2 | 2 |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Terminal pitch | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm |
| Termination type | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 38 | 50 | 34 | 36 | 40 |
| UL Flammability Code | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 |
| Is it Rohs certified? | incompatible | incompatible | incompatible | - | - |
| Maker | TE Connectivity | TE Connectivity | TE Connectivity | - | - |
| ECCN code | EAR99 | EAR99 | EAR99 | - | - |
| body width | 0.368 inch | 0.368 inch | 0.368 inch | - | - |
| subject depth | 0.76 inch | 0.76 inch | 0.76 inch | - | - |
| body length | 2.16 inch | 2.76 inch | 1.96 inch | - | - |
| Body/casing type | RECEPTACLE | RECEPTACLE | RECEPTACLE | - | - |
| Contact to complete cooperation | GOLD (15) OVER NICKEL | GOLD (15) OVER NICKEL | GOLD (30) | - | - |
| Contact material | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | - | - |
| contact mode | RECTANGULAR | RECTANGULAR | RECTANGULAR | - | - |
| Contact resistance | 10 mΩ | 10 mΩ | 10 mΩ | - | - |
| Contact style | BELLOWED TYPE | BELLOWED TYPE | BELLOWED TYPE | - | - |
| Dielectric withstand voltage | 1000VAC V | 1000VAC V | 1000VAC V | - | - |
| maximum insertion force | 5.3376 N | 3.336 N | 3.336 N | - | - |
| Insulation resistance | 5000000000 Ω | 5000000000 Ω | 5000000000 Ω | - | - |
| Insulator color | BLACK | BLACK | BLACK | - | - |
| insulator material | GLASS FILLED POLYESTER | GLASS FILLED POLYESTER | GLASS FILLED POLYESTER | - | - |
| Plug contact pitch | 0.1 inch | 0.1 inch | 0.1 inch | - | - |
| Number of connectors | ONE | ONE | ONE | - | - |
| PCB row number | 2 | 2 | 2 | - | - |
| Maximum operating temperature | 85 °C | 85 °C | 85 °C | - | - |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | - | - |
| PCB contact pattern | RECTANGULAR | RECTANGULAR | RECTANGULAR | - | - |
| PCB contact row spacing | 3.81 mm | 5.08 mm | 5.08 mm | - | - |
| Plating thickness | 15u inch | 30u inch | 15u inch | - | - |
| Rated current (signal) | 3 A | 2.5 A | 2.5 A | - | - |
| Guideline | UL, CSA | UL, CSA | UL, CSA | - | - |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | - | - |
| Terminal length | 0.09 inch | 0.09 inch | 0.09 inch | - | - |
| Evacuation force-minimum value | .3614 N | .556 N | .556 N | - | - |
