ABM81-19.999MHZ-10-N2X-T2 datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> ABM81-19.999MHZ-10-N2X-T2

ABM81-19.999MHZ-10-N2X-T2: DescriptionParallel - Fundamental Quartz Crystal,; CategoryPassive components Crystal/resonator; File Size2MB，2 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ABM81-19.999MHZ-10-N2X-T2 Overview

Parallel - Fundamental Quartz Crystal,

ABM81-19.999MHZ-10-N2X-T2 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	7071684525
package instruction	SMD, 4 PIN
Reach Compliance Code	compliant
Country Of Origin	Mainland China
YTEOL	7.23
Other features	TR, 7 INCH
Ageing	3 PPM/FIRST YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	10 µW
frequency stability	0.002%
frequency tolerance	20 ppm
JESD-609 code	e4
load capacitance	10 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	19.999 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
physical size	L3.2XB2.5XH0.65 (mm)/L0.126XB0.098XH0.026 (inch)
Series resistance	70 Ω
surface mount	YES
Terminal surface	Nickel/Gold (Ni/Au)

Preview

Download Datasheet

View All

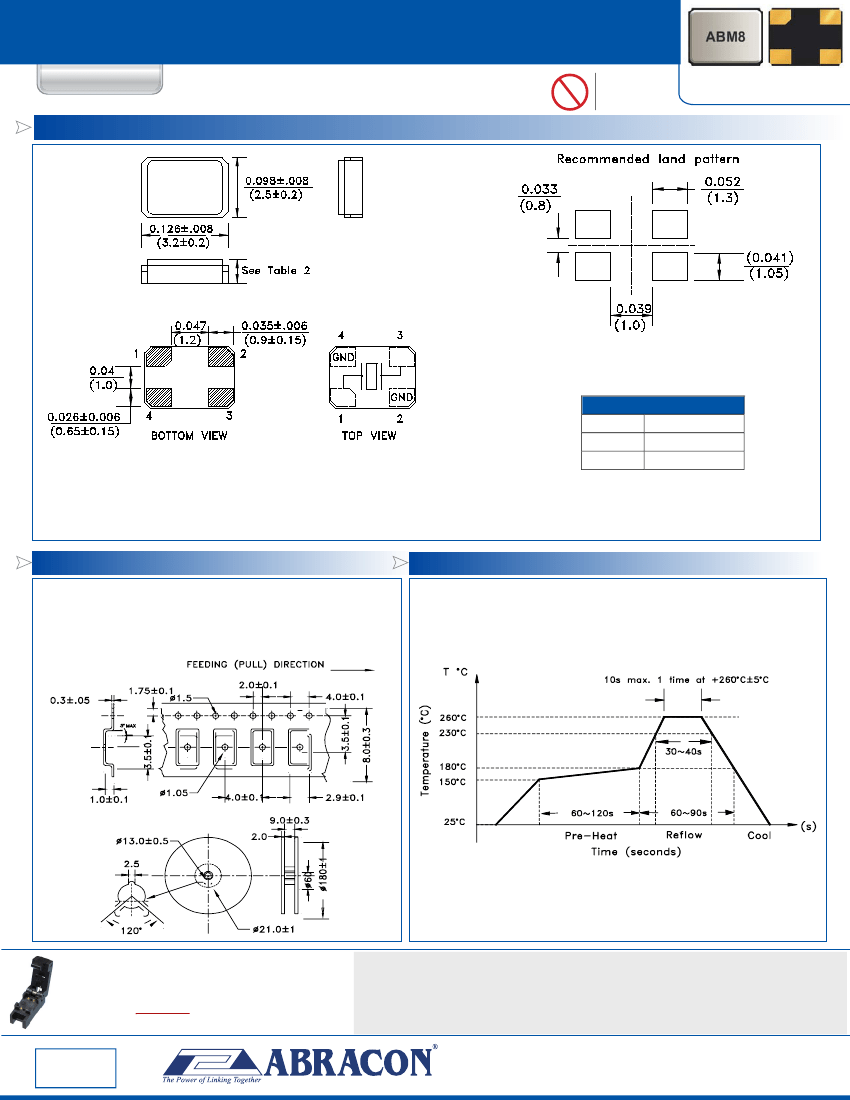

ULTRA MINIATURE CERAMIC SMD CRYSTAL

ABM8

Moisture Sensitivity Level (MSL) – This product is Hermetically Sealed and not Moisture

Sensitive - MSL = N/A: Not Applicable

RoHS

Compliant

3.2 x 2.5 x 0.8mm

FEATURES:

• Low in height; suitable for thin equipment, 0.8mm max • Suitable for RoHS reflow

• Available for fundamental

• Seam sealed package assures high reliability

and 3rd over tone mode

• Tight tolerance and stability available

APPLICATIONS:

• High density applications

• Modems, communication and test equipment

• PMCIA, Wireless applications

STANDARD SPECIFICATIONS:

Parameters

Frequency Range

Operation Mode

Operating Temperature

Storage Temperature

Frequency Tolerance @+25°C

Frequency Stability over the Operating

Temperature ( ref. to +25°C)

Equivalent series resistance (R1)

Shunt capacitance (C0)

Load capacitance (CL)

Drive Level

Aging

Insulation Resistance

TABLE 1- Standard ESR

Frequency (MHz)

10.000 -11.999 (Fund)

12.000 -15.999 (Fund)

16.000 -19.999 (Fund)

20.000 - 29.999 (Fund)

Minimum

10.000

Typical

-----

Maximum

125.000*

Units

MHz

-----

ºC

ppm

Ω

µW

ppm

MΩ

@25°C±3°C

First year

@ 100Vdc ± 15V

ESR(Ω)

max

120

Standard

(See options if

other than STD)

Notes

Contact Abracon for

available F<11MHz

10MHz - 54MHz

64.000 MHz - 125.000 MHz

Please contact Abracon for

available frequencies

Fundamental

3rd Overtone

(Standard Frequencies: 64, 66, 66.6666, 75,

80, 98.304, 100, 125MHz)

-10

-----

+60

-55

-----

+125

-50

-----

+50

-50

-----

-3

500

ESR(Ω)

max

200

120

-----

See table 1 below

-----

18.0

-----

+50

7.0

-----

100

-----

See options

Frequency (MHz)

30.000 - 39.999 (Fund)

40.000 - 54.000 (Fund)

66.000 - 80.000 (3rd OT)

98.304 - 125.000 (3rd OT)

OPTIONS AND PART IDENTIFICATION: (Left blank if standard)

ABM8

Height (mm)

Blank: 0.80±0.10

1: 0.65±0.05

2: 0.60±0.10

Frequency in MHz

Please specify the

frequency in MHz.

e.g. 16.000MHz

Load Capacitance (pF)

Please specify CL (min

10pF) in pF or S for series

Custom ESR if

other than standard

R□

□:

Specify a value in

Ω

(e.g.: R40)

Operating Temp.

E: 0°C ~ +70°C

B: -20°C ~ +70°C

C: -30°C ~ +70°C

N: -30°C ~ +85°C

D: -40°C ~ +85°C

J**: -40°C ~ +105°C

K**: -40°C ~ +125°C

** Frequency stability ±

50ppm and ± 100 ppm

MHz -

Packaging

Blank: Bulk

T: 1kpcs / reel

T2: 250pcs / reel

T3: 3kpcs / reel

Freq. Stability

U: ± 10 ppm(*)

G: ± 15 ppm

X: ± 20 ppm

W: ± 25 ppm

Y: ± 30 ppm

H: ± 35 ppm

Q: ± 100 ppm

(*) Option E, B, and

-10°C to +60°C only.

Freq. Tolerance

1: ± 10 ppm

7: ± 15 ppm

2: ± 20 ppm

3: ± 25 ppm

4: ± 30 ppm

ABRACON IS

ISO9001:2008

CE RTIFIED

CERTIFIED

LLC

2 Faraday, Suite# B

Irvine

CA 92618

Revised: 08.19.15

Ph. 949.546.8000

Fax. 949.546.8001

Visit

www.abracon.com

for Terms and Conditions of Sale
