ASV12-0.500MHZ-E-R-A datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> ASV12-0.500MHZ-E-R-A

ASV12-0.500MHZ-E-R-A: DescriptionHCMOS/TTL Output Clock Oscillator, 0.5MHz Min, 200MHz Max, 0.5MHz Nom, LCC, SMD, 4 PIN; CategoryPassive components oscillator; File Size1MB，2 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ASV12-0.500MHZ-E-R-A Overview

HCMOS/TTL Output Clock Oscillator, 0.5MHz Min, 200MHz Max, 0.5MHz Nom, LCC, SMD, 4 PIN

ASV12-0.500MHZ-E-R-A Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1206622816
package instruction	LCC, SMD, 4 PIN
Reach Compliance Code	compliant
Country Of Origin	South Korea
YTEOL	6.22
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION; BULK
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
frequency stability	25%
Installation features	SURFACE MOUNT
Number of terminals	4
Maximum operating frequency	200 MHz
Minimum operating frequency	0.5 MHz
Nominal operating frequency	0.5 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	HCMOS/TTL
Output load	10 TTL, 15 pF
Package body material	CERAMIC
Encapsulate equivalent code	DILCC4,.2,200
physical size	7.0mm x 5.08mm x 1.6mm
power supply	1.8 V
Certification status	Not Qualified
longest rise time	10 ns
Maximum slew rate	15 mA
Maximum supply voltage	1.98 V
Minimum supply voltage	1.62 V
Nominal supply voltage	1.8 V
surface mount	YES
maximum symmetry	40/60 %

Preview

Download Datasheet

View All

3.3Vdc HCMOS/TTL SMD CRYSTAL CLOCK OSCILLATOR

ASV1 SERIES

FEATURES:

• Leadless Chip Carrier (LCC)

• HCMOS/TTL Compatible, 3.3Vdc, 2.5Vdc, & 1.8Vdc options

• Reflow capable, Seam Sealed Package

RoHS

Compliant

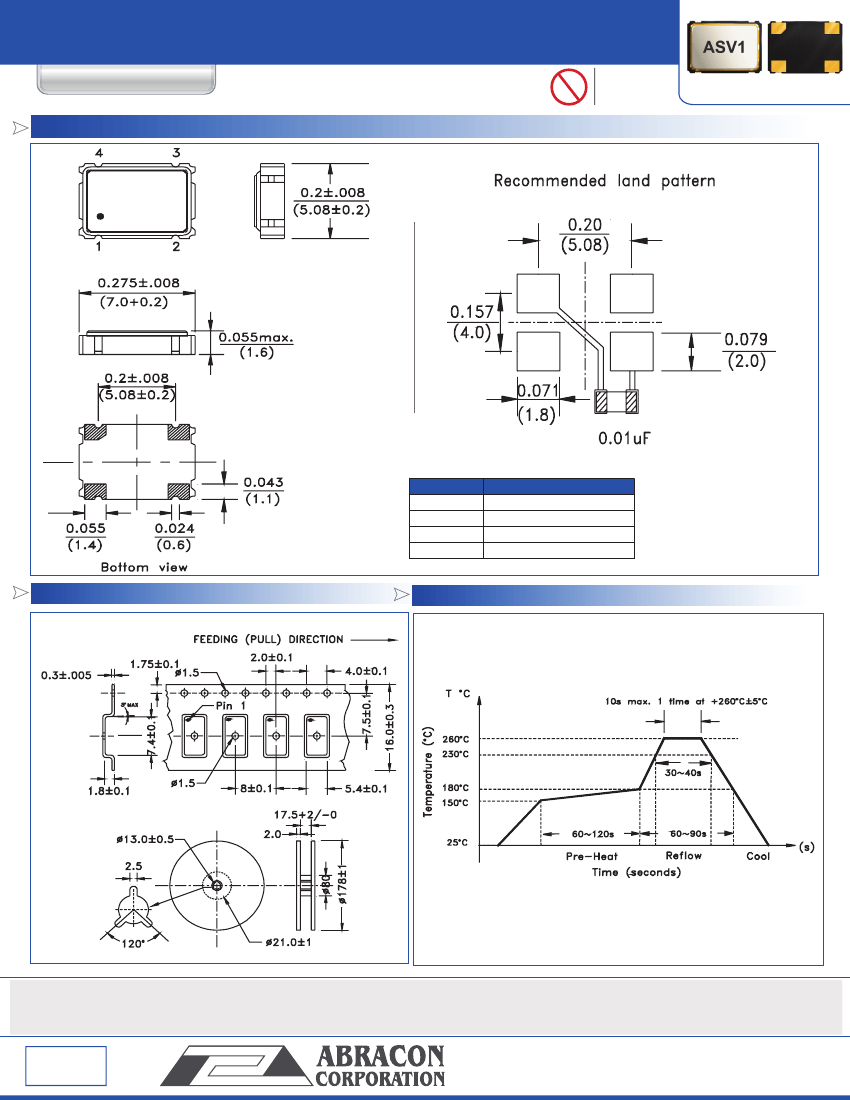

7.0 x 5.0 x 1.6mm

| | | | | | | | | | | | | | |

APPLICATIONS:

• Clock signaling for µProcessors, PC Motherboards

and Graphic Cards

• High output drive capability (up to 50pf)

STANDARD SPECIFICATIONS:

PARAMETERS

ABRACON P/N

Frequency Range

Operating Temperature

Storage Temperature

Overall Frequency Stability

Supply Voltage (Vdd)

Input Current

Symmetry

Rise time / Fall time (Tr/Tf)

Output Load

Output Voltage

Start-up Time

Tristate Function

Disable Current (with Power Down)

Disable Current (without Power Down)

Enable Time (with Power Down)

Enable Time (without Power Down)

Disable Time (with Power Down)

Disable Time (without Power Down)

Aging at 25°C/ (first year)

Period Jitter one sigma

ASV1 Series

0.500 MHz to 200.000 MHz

-10° C to + 70° C (see options)

- 55° C to + 125° C

± 100 ppm max. (see options)

3.3 Vdc ± 10% (see options)

See Table 1

40/60 % max.@ 1/2Vdd (see options)

See Table 1

15pF (10TTL); 50pF max.

VOH = 0.9 * Vdd min.; VOL = 0.4 Vdc max.

10ms max.

"1" (VIH >= 0.7 Vdc) or open: Oscillation

"0" (VIL < 0.3 Vdc) : Hi Z

10µA max.

200µA (Option A)

400ms max.

100ns (Option A)

100ns

100ns (Option A)

± 5 ppm max.

1 to 5ps typ. (frequency dependent)

Table 1

Frequency

0.5 ~ 30.0MHz

30.01 ~ 70.0MHz

70.01~125.0MHz

125.01 ~ 165MHz

Idd (max)

15mA

35mA

45mA

65mA

Tr/Tf (max)

10ns

7ns

5ns

Please contact Abracon for higher frequencies

OPTIONS & PART IDENTIFICATION:

(Left blank if standard)

P/N and Vdd (V)

ASV1: 3.3 10%

ASV11: 2.5 10%

ASV12: 1.8 10%

Frequency in MHz

e.g. 24.576MHz

14.31818MHz

26.000MHz

Operating Temp.

I: 0°C ~ +50°C

D: -10°C ~ +60°C

E: -20°C ~ +70°C

F: -30°C ~ +70°C

N: -30°C ~ +85°C

L: -40°C ~ +85°C

ABRACON IS

ISO9001:2008

CERTIFIED

ASV1

–

MHz -

Blank: Bulk

T: Tape & Reel

Packaging

Blank: Tri-state with PD

A: Tri-state

Tri-state

(*) Temp option I, D, E only.

Freq. Stability

J: ± 20 ppm(*)

R: ± 25 ppm

K: ± 30 ppm

H: ± 35 ppm

C: ± 50 ppm

Blank: 40/60% @1/2Vdd

S: 45/55% @1/2Vdd

Symmetry

Revised: 10.18.10

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

fax 949-546-8001

| www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale
