IPBS-105-01-T-D-GP datasheet, PDF

Datasheet> All Categories > The connector> The connector> IPBS-105-01-T-D-GP

IPBS-105-01-T-D-GP: Descriptionpwr mate term strip hdr 10pos; CategoryThe connector The connector; File Size832KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

IPBS-105-01-T-D-GP Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	IPBS-105-01-T-D-GP	-	-	View	Buy Now

IPBS-105-01-T-D-GP Overview

pwr mate term strip hdr 10pos

IPBS-105-01-T-D-GP Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Factory Lead Time	8 weeks
Samacsys Confidence	4
Samacsys Status	Released
Samacsys PartID	1071814
Samacsys Pin Cou	10
Samacsys Part Category	Connec
Samacsys Package Category	Header, Shrouded
Samacsys Footprint Name	IPBS-105-01-T-D-GP
Samacsys Released Date	2018-09-12 14:19:59
Is Samacsys	N
Other features	POWER MATE, POLARIZED, SHROUDED
Body/casing type	SOCKET
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	MATTE TIN OVER NICKEL (50)
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrie
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	LIQUID CRYSTAL POLYMER
Termination type	SOLDER
Total number of contacts	10
Base Number Matches	1

Preview

Download Datasheet

View All

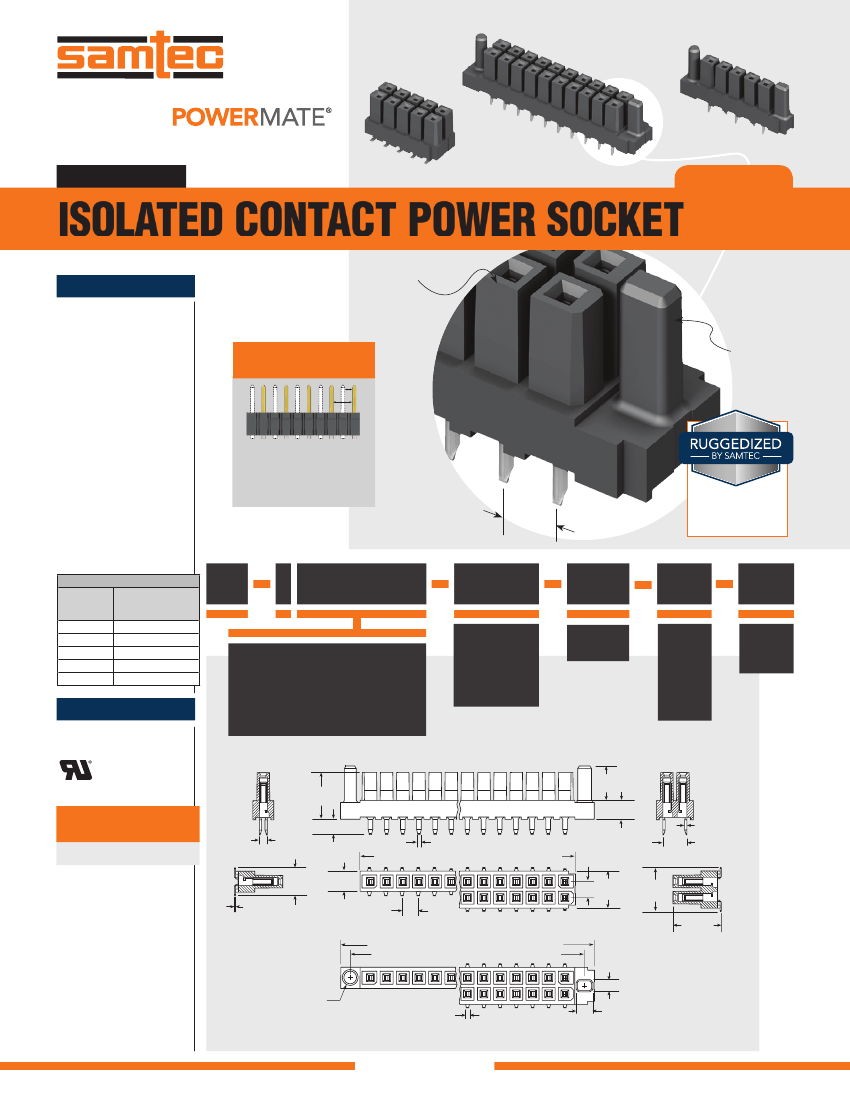

F-219

IPBS–105–01–T–S–GP

IPBS–110–01–T–D–GP

(4.19 mm) .165"

IPBS–105–02–T–D

IPBS SERIES

ISOLATED CONTACT POWER SOCKET

SPECIFICATIONS

For complete specifications

see www.samtec.com?IPBS

Insulator Material:

Black Liquid Crystal Polymer

Contact Material:

Phosphor Bronze

Plating:

Sn over 50 µ" (1.27 µm) Ni

Operating Temp Range:

-55 °C to +105 °C

Insertion Depth:

(6.15 mm) .242" to

(7.24 mm) .285"

Wiping Distance:

(0.38 mm) .015" min.

Voltage Rating:

400 VAC/565 VDC

Standard Creepage:

(4.27 mm) .168" (-S)

(1.68 mm) .066" (-D)

Standard Clearance:

(2.16 mm) .085" (-S)

(1.14 mm) .045" (-D)

RoHS Compliant:

Yes

Lead–Free Solderable:

Yes

IPBT/IPBS

CURRENT

PINS

RATING

POWERED (PER CONTACT)

10.3 A

8.4 A

7.6 A

7.1 A

6.0 A

Mates with:

IPBT

Individually

shrouded contacts

CREEPAGE

AND CLEARANCE

Optional

polarized

guide posts

Selectively loading

contacts achieves customer

specific creepage and

clearance requirements.

Contact asp@samtec.com

(4.19 mm)

.165"

pitch

• Individually

shrouded contacts

• Polarized guide

post option

IPBS

NO. OF POSITIONS

PER ROW

LEAD

STYLE

PLATING

OPTION

ROW

OPTION

02, 03, 04, 05, 08, 10, 15

(–D only)

= Standard Power

Surface Mount

–01

= Matte Tin

–T

–02

= Single

Row

–S

= Guide

Post

–GP

RECOGNITIONS

For complete scope

of recognitions see

www.samtec.com/quality

02, 03, 04, 05, 08, 10

(–S only)

(Standard sizes)

= Double

Row

–D

FILE NO. E111594

(12.19)

.480

(2.03)

.080

–01–S

(7.37)

.290

(0.25)

.010

–02–S

(3.94) .155

(1.19) .047

No. of Positions x (4.19) .165 + (1.02) .040

(8.89)

.350

(4.95)

.195

(6.22)

.245

(0.59)

.023

ALSO AVAILABLE

(MOQ Required)

• Other sizes

(4.19)

.165

(9.60)

.378

–01–D

(5.41)

.213

(4.19)

.165

(11.44)

.451

(12.65)

.498

–02–D

No. of Positions x (4.19) .165 + (11.18) .440

No. of Positions x (4.19) .165 + (6.10) .240

(2.54)

.100

Note:

Some lengths, styles and

options are non-standard,

non-returnable.

(3.16)

.125

DIA

(1.02) .040

(3.80) .150

–GP OPTION

Due to technical progress, all designs, specifications and components are subject to change without notice.

All parts within this catalog are built to Samtec’s specifications.

Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.

WWW.SAMTEC.COM
