RMCG1/22002%R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> RMCG1/22002%R

RMCG1/22002%R: DescriptionRESISTOR, METAL GLAZE/THICK FILM, 0.75W, 2%, 200ppm, 200ohm, SURFACE MOUNT, 2010, CHIP, ROHS COMPLIANT; CategoryPassive components The resistor; File Size187KB，2 Pages; ManufacturerSEI(Stackpole Electronics Inc.); Websitehttps://www.seielect.com/; Environmental Compliance

Download Datasheet Parametric View All

RMCG1/22002%R Overview

RESISTOR, METAL GLAZE/THICK FILM, 0.75W, 2%, 200ppm, 200ohm, SURFACE MOUNT, 2010, CHIP, ROHS COMPLIANT

RMCG1/22002%R Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1768401401
package instruction	CHIP, ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
JESD-609 code	e3
Manufacturer's serial number	RMCG
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR, PAPER, 7 INCH
Rated power dissipation(P)	0.75 W
Rated temperature	70 °C
resistance	200 Ω
Resistor type	FIXED RESISTOR
size code	2010
surface mount	YES
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	200 ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
Tolerance	2%
Operating Voltage	200 V

Preview

Download Datasheet

View All

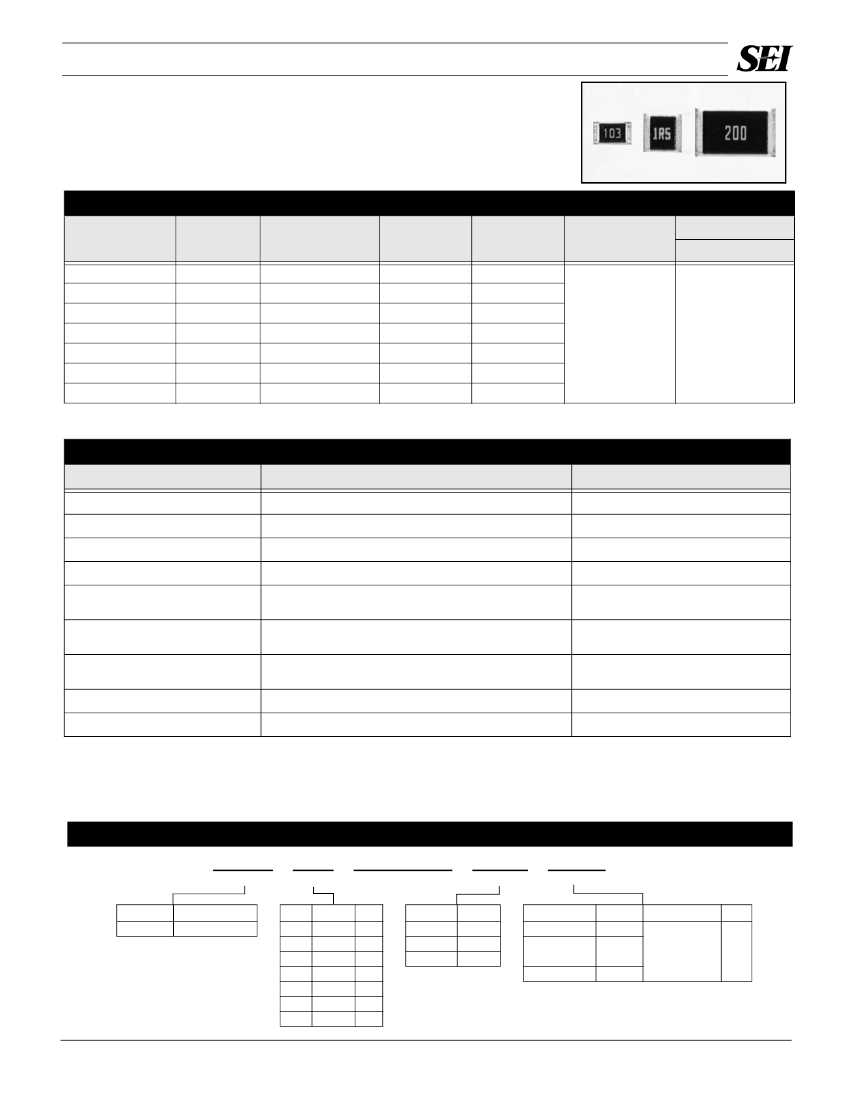

RMCG Series — Gold Barrier Thick Film Chip Resistors

Features

• Gold terminations are completely impervious to sulfur

• Zero ohm available (max resistance 0.05Ω)

• RoHS compliant / lead-free

Electrical Specifications

Type / Code

Package

Size

0402

0603

0805

1206

1210

2010

2512

Power Rating

(Watts)

@ 70°C

0.063W

0.100W

0.125W

0.250W

0.333W

0.750W

1.000W

Maximum

Working

Voltage*

50V

150V

200V

Maximum

Overload

Voltage

100V

300V

400V

±200 ppm/°C

10Ω – 1MΩ

Resistance

Temperature

Coefficient

Ohmic Range

1%, 2%, 5%

RMCG 1/16S

RMCG 1/16

RMCG 1/10

RMCG 1/8

RMCG 1/4

RMCG 1/2

RMCG 1

* Lesser of

√PR

or maximum working voltage

Performance Characteristics

Test

Short Time Overload

Dielectric Withstanding Voltage

Resistance to Soldering Heat

Solderability

Temperature Cycle (5 cycles)

Endurance (Damp load)

Endurance (Rated load)

Voltage Coefficient

Robustness of Termination

Test Conditions (JIS C 5202)

2.5x rated voltage for 5 seconds

100VAC, 1 minute

260°C ±5°C, for 10 sec. ±0.5 sec. (Solder Bath)

245°C ±5°C, for 3 sec. ±0.5 sec. (Colophonium flux)

-55°C: 30 min. 25°C: 2 to 3 min.

125°C: 30 min. 25°C: 2 to 3 min.

60°C ± 2°C, 90% RH, Rated Load

90 min. On, 30 min. Off, (1,000 hrs. - 0 hrs. + 48 hrs.)

70°C ± 2°C, Rated Load

90 min. On, 30 min. Off, (1,000 hrs. - 0 hrs. + 48 hrs.)

1/10 rated voltage for 3 sec. max, then rated voltage for 3 sec. max.

Bend of 3mm for 5 ± 1 sec.

Test Results

±(2% +0.1Ω)

±(1% +0.05Ω)

95% coverage, minimum

±(1% +0.05Ω)

Jumper (<0.05Ω)

±(3% +0.1Ω)

Jumper (<0.05Ω)

±(3% +0.1Ω)

Jumper (<0.05Ω)

±100 (ppm/V)

±(1.0% + 0.05 Ohm)

Operating Temperature Range :

-55°C to +125°C (0402)

-55°C to +155°C (0603 - 2512)

How to Order

RMCG

SEI Type

Code/Type

RMCG

Description

Sulfur Impervious

1/16

Code

4.7K

Nominal Resistance

Tolerance

Packaging

SEI Types

1/16S

1/16, 1/10, 1/8

1/4, 1/2, 1

Pkg Qty

10,000

5,000

4,000

7" reel - Paper

Description

Code

Code Wattage Size

1/16S 0.063W 0402

1/16

1/10

1/8

1/4

1/2

0.100W 0603

0.125W 0805

0.250W 1206

0.333W 1210

0.750W 2010

1.000W 2512

Tolerance Values

E96,E24

E24

Toll Free: (888) SEI-SEIS

(888) 734-7347

www.seielect.com

email: marketing@seielect.com

Rev 01/08
