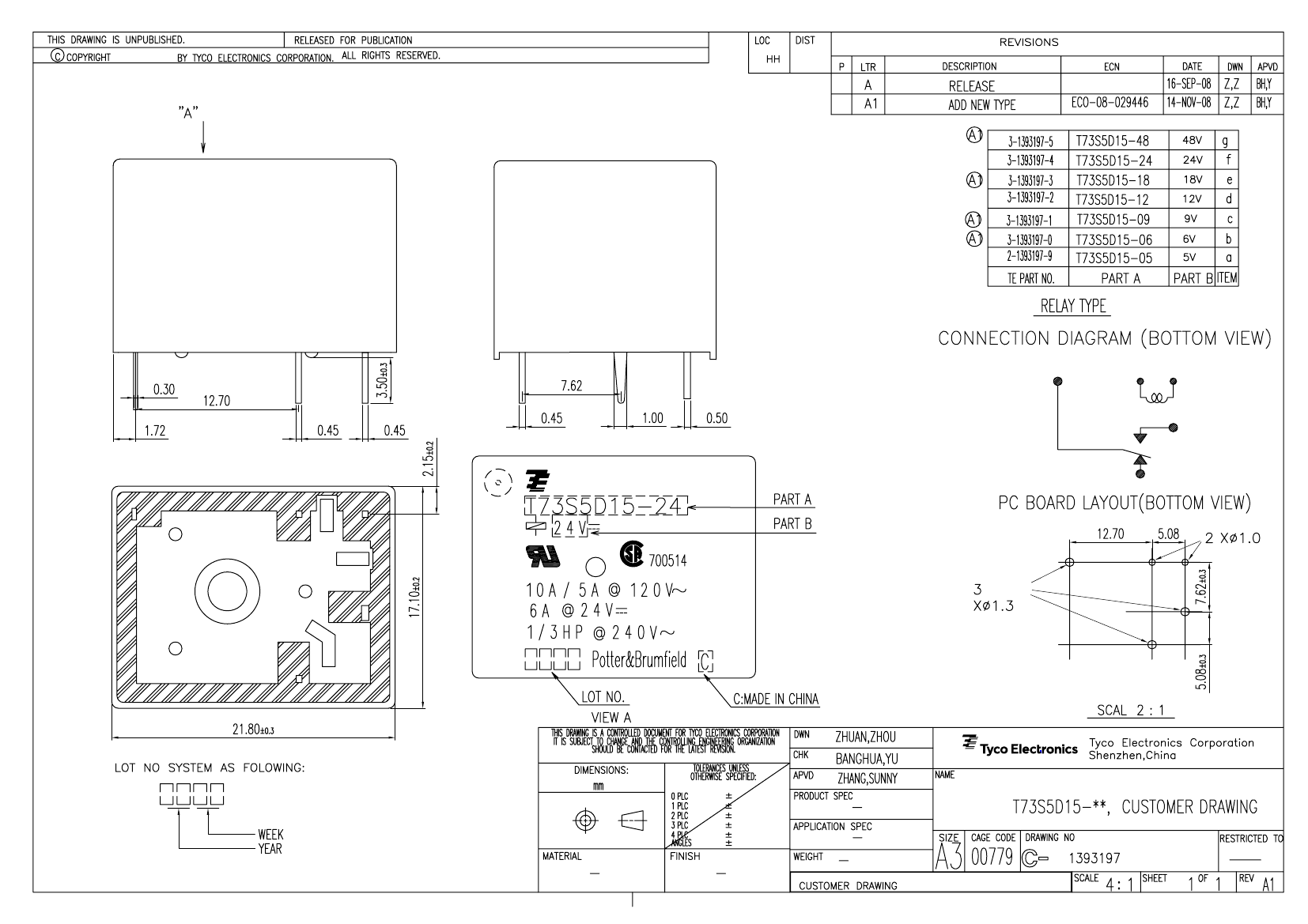

Preview

3-1393197-1: DescriptionPOWER/SIGNAL RELAY, SPDT, MOMENTARY, 10A (CONTACT), 9VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT; CategoryMechanical and electronic products relay; File Size209KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

3-1393197-1 Overview

POWER/SIGNAL RELAY, SPDT, MOMENTARY, 10A (CONTACT), 9VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT

3-1393197-1 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
body width	17.1 mm
Body length or diameter	21.8 mm
Maximum contact current (AC)	10 A
Maximum contact current (DC)	10 A
Contact (DC) maximum rated R load	10A@9VDC
Maximum contact voltage (DC)	9 V
Contact/Output Power Type	AC/DC
Manufacturer's serial number	1393197
Installation features	THROUGH HOLE-STRAIGHT MOUNT
Guideline	CSA; UL
Relay action	MOMENTARY
Relay function	SPDT
Relay type	POWER/SIGNAL RELAY
surface mount	NO
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

3-1393197-1 Related Products

	3-1393197-1	2-1393197-9	3-1393197-5	3-1393197-4	3-1393197-3	3-1393197-0
Description	POWER/SIGNAL RELAY, SPDT, MOMENTARY, 10A (CONTACT), 9VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT	POWER/SIGNAL RELAY, SPDT, MOMENTARY, 10A (CONTACT), 5VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT	POWER/SIGNAL RELAY, SPDT, MOMENTARY, 10A (CONTACT), 48VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT	POWER/SIGNAL RELAY, SPDT, MOMENTARY, 10A (CONTACT), 24VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT	POWER/SIGNAL RELAY, SPDT, MOMENTARY, 10A (CONTACT), 18VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT	POWER/SIGNAL RELAY, SPDT, MOMENTARY, 10A (CONTACT), 6VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT
Reach Compliance Code	unknow	compli	unknown	compliant	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
body width	17.1 mm	17.1 mm	17.1 mm	17.1 mm	17.1 mm	17.1 mm
Body length or diameter	21.8 mm	21.8 mm	21.8 mm	21.8 mm	21.8 mm	21.8 mm
Maximum contact current (AC)	10 A	10 A	10 A	10 A	10 A	10 A
Maximum contact current (DC)	10 A	10 A	10 A	10 A	10 A	10 A
Contact (DC) maximum rated R load	10A@9VDC	10A@5VDC	10A@48VDC	10A@24VDC	10A@18VDC	10A@6VDC
Maximum contact voltage (DC)	9 V	5 V	48 V	24 V	18 V	6 V
Contact/Output Power Type	AC/DC	AC/DC	AC/DC	AC/DC	AC/DC	AC/DC
Installation features	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT
Guideline	CSA; UL	CSA; UL	CSA; UL	CSA; UL	CSA; UL	CSA; UL
Relay action	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY
Relay function	SPDT	SPDT	SPDT	SPDT	SPDT	SPDT
Relay type	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY
surface mount	NO	NO	NO	NO	NO	NO
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Base Number Matches	1	1	1	1	1	1
Manufacturer's serial number	1393197	-	1393197	1393197	1393197	1393197
