LBSW-445211138 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Optical fiber> LBSW-445211138

LBSW-445211138: DescriptionSwitch, 1510nm Min, 1610nm Max, 4X4 Port, LC Connector; CategoryWireless rf/communication Optical fiber; File Size181KB，2 Pages; ManufacturerLaser Components USA Inc.; Environmental Compliance

Download Datasheet Parametric View All

LBSW-445211138 Overview

Switch, 1510nm Min, 1610nm Max, 4X4 Port, LC Connector

LBSW-445211138 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1326794429
Reach Compliance Code	unknown
body width	68 mm
body height	15 mm
Body length or diameter	144 mm
Connection Type	LC CONNECTOR
Crosstalk	55 dB
Fiber optic equipment types	SWITCH
Fiber type	SMF-28
Maximum operating temperature	70 °C
Minimum operating temperature	-5 °C
Maximum operating wavelength	1610 nm
Minimum operating wavelength	1510 nm
Nominal operating wavelength	1550 nm
Maximum optical input power	500 mW
Port configuration	4X4
minimum return loss	55 dB
Switch action	NON-LATCHING
switching speed	4 ms

Preview

Download Datasheet

View All

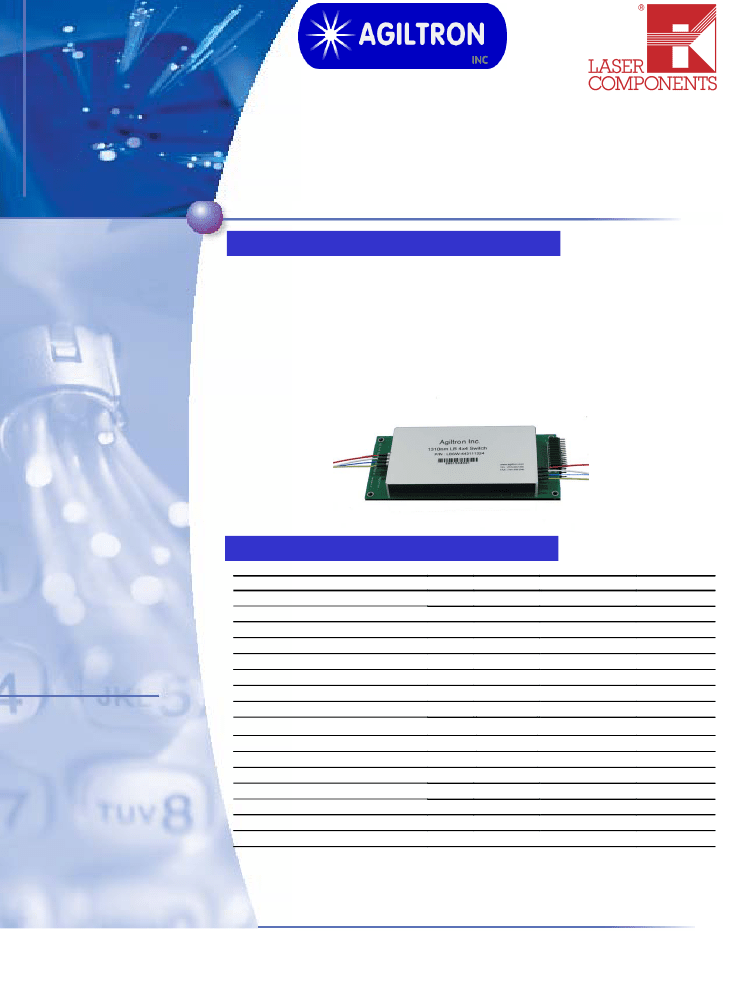

LightBend

4x4

OptoMechanical Fiberoptic Switch

(Protected by U.S. patent 6823102 and pending patents.)

Product Description

The LB Series 4x4 fiber optic switch connects optical channels by

redirecting any of four incoming optical signals into any of four output

fibers. This is achieved using a patent pending opto-mechanical

configuration and activated via an electrical control signal. Latching

operation preserves the selected optical path after the drive signal has

been removed. This new material-based advanced design significantly

reduces moving part position sensitivity, offering unprecedented high

stability as well as an unmatched low cost. Electronic driver is available

for this series of switches.

Features

•

Unmatched Low Cost

Low Optical Distortions

High Isolation

High Reliability

Epoxy-Free Optical Path

Performance Specifications

LB Series 4x4 Switch

Operation Wavelength

Insertion Loss

Wavelength Dependent Loss

Polarization Dependent Loss

Return Loss

Cross Talk

Switching Time

Repeatability

Operating Voltage

Operating Current

Voltage Pulse Width

(Latching)

Switching Type

Operating Temperature

Optical Power Handling

Storage Temperature

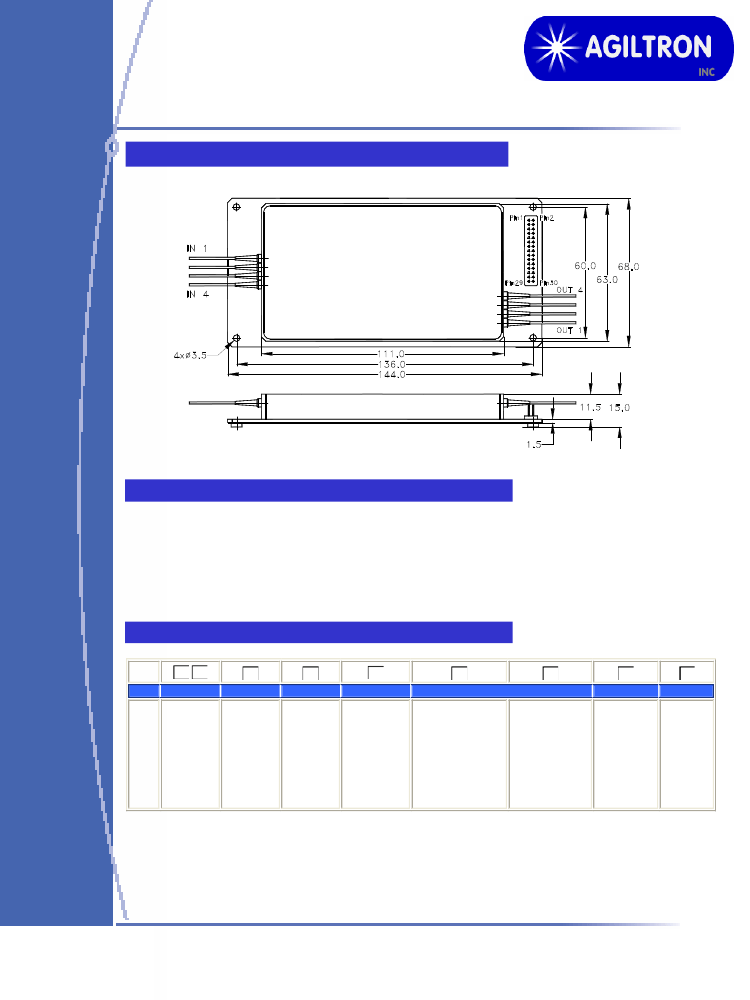

Package Dimension

Note:

1. Excluding connectors.

Min

Typical

Max

850, 1260~1360, 1510~1610

1.2

1.8

0.15

Unit

VDC

±0.05

Applications

•

Channel Blocking

Configurable Add/Drop

System Monitoring

Instrumentation

-5

-40

Latching, Non-Latching

500

142L x 68W x 15H

LASER COMPONENTS GmbH

Werner-von-Siemens-Str. 15, 82140 Olching, Germany, Phone: +49 8142 2864 0, Fax: +49 8142 2864 11, info@lasercomponents.com
