BS2-042-H360-55/11E datasheet, PDF

Datasheet> All Categories > The connector> The connector> BS2-042-H360-55/11E

BS2-042-H360-55/11E: DescriptionBoard Connector, 42 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Plug; CategoryThe connector The connector; File Size303KB，1 Pages; ManufacturerE-tec Interconnect Ltd.

Download Datasheet Parametric View All

BS2-042-H360-55/11E Overview

Board Connector, 42 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Plug

BS2-042-H360-55/11E Parametric

Parameter Name	Attribute value
Objectid	307178822
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.122 inch
subject depth	0.142 inch
body length	1.064 inch
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Filter function	NO
Insulation resistance	1000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	42
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

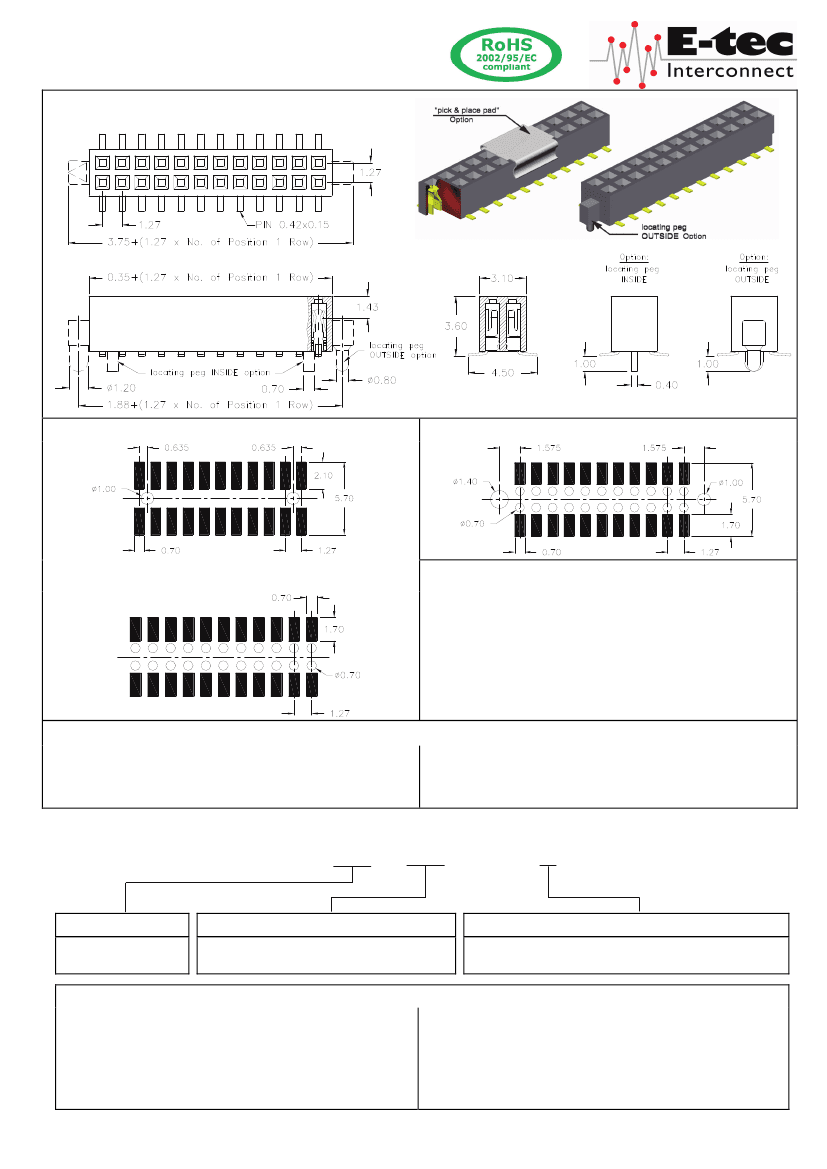

1.27mm pitch

- SMT -

Female Header

3.60mm profile

dual row

H360

PCB

Surface Mount Layout

Version ”H360”

PCB

H360

Version ”H36A”

H36A

Surface Mount Layout

PCB Surface Mount Layout Version ”H360” if through Board mating

!! only possible without inside locating pegs !!

APPLICATION

AND

FEATURES

Standard: tube packing without locating pegs

Also available with “pick & place pad” for automatic suck

assembly to the PCB

Low profile, 3.60mm height Type. Hi-rel dual beam contacts.

Mating with 1.27mm x 1.27mm pitch, 0.40mm square pin headers.

Through Board mating possible

SPECIFICATIONS

Current rating

Insulator resistance

Contact resistance

Withstanding voltage

1000 MΩ min.

20 mΩ max.

500 V AC

Operating temperature

Processing temperature

Contact material

(RoHS compliant)

Insulator material

(RoHS compliant)

- 40°C to +105°C

+250°C

+0/-5°C

for 10sec.

Phosphor Bronze

LCP UL 94 V-0

How to order

BS2 - xxx - H xxx -

/ 11 X

Nbr of contacts

006

100

360

36A

Version

without & with inside locating pegs

with outside locating pegs

Packing and ”pick and place pad” Option

See below

Order Code Options:

without ”locating pegs”

BS2-xxx-H360-55/11

BS2-xxx-H360-55/11A

BS2-xxx-H360-55/11B

with ”locating pegs”

tube packing; w/o pick & place pad

BS2-xxx-H360-55/11C

BS2-xxx-H360-55/11D

tube packing; with pick & place pad

BS2-xxx-H36A-55/11D

reel packing; with pick & place pad

BS2-xxx-H360-55/11E

BS2-xxx-H36A-55/11E

tube packing; w/o pick & place pad

tube packing; with pick & place pad

reel packing; with pick & place pad
